Specifications:
Frequency range: 50kHz - 3GHz
Frequency tolerance : < 2ppm
Frequency Stability: < 0.5ppm
System dynamic range (calibrated): 70dB (up to 1.5GHz), 60dB (up to 3GHz)
S11 noise floor (calibrated): -50dB (up to 1.5GHz), -40dB (up to 3GHz)
Sweep rate: 100 points/s
Display: 3.95 inch, 320 x 480
USB interface: Micro USB
Power: USB, Maximum charge current 1A
Battery:3000mAh lithium-ion
Battery connector: JST-XH 2.54mm
Maximum sweep points (on device): 201
Maximum sweep points (USB): 1024
Port 2 return loss (1.5GHz): 20dB typ
Port 2 return loss (3GHz): 13dB min
VNA-QT software supported platforms: Linux, Windows (7+), 1MacIOS planned

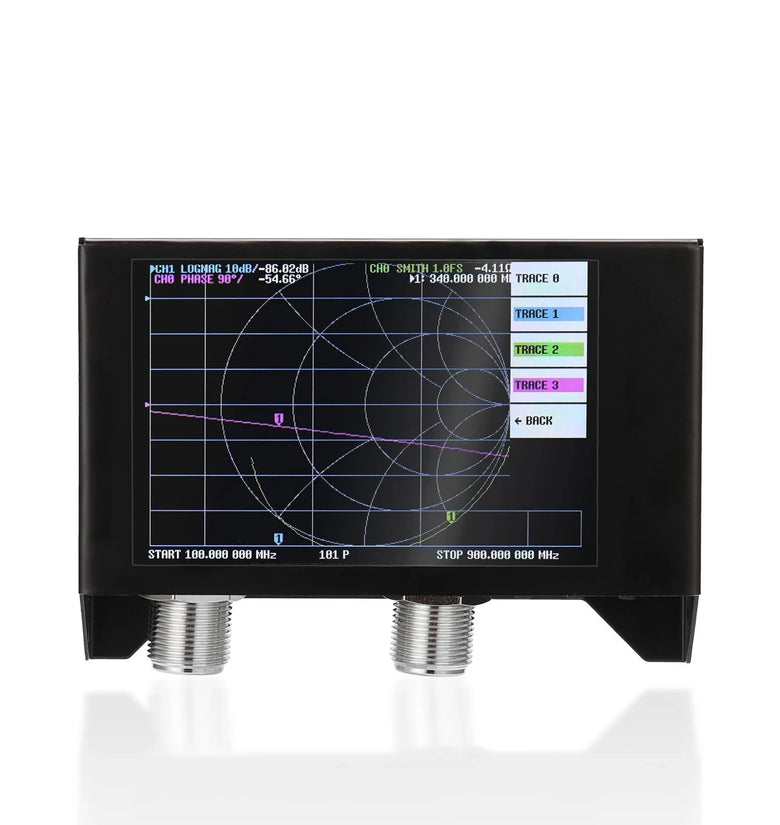

SAA-2N NanoVNA V2.2
3GHz vector network analyzer, designed by OwOComm, under the LGPL license agreement, it is completely manufactured according to the v2_2 files issued by OwOComm at https://github.com/nanovna/S-A-A Development Department, in line with the original technical specifications designed by OwOComm.
The SAA-2N/NanoVNA_V2.2 uses a similar user interface to the NanoVNA, but with a different technical architecture, the SAA-2N/NanoVNA_V2.2 does not load the initial calibration data at startup, and does not automatically interpolate the calibration data after the user changes the frequency, and must recalibrate or call back the calibration data after each startup and frequency change. Please read the user manual carefully before use to avoid damaging the device.
Package Includes:

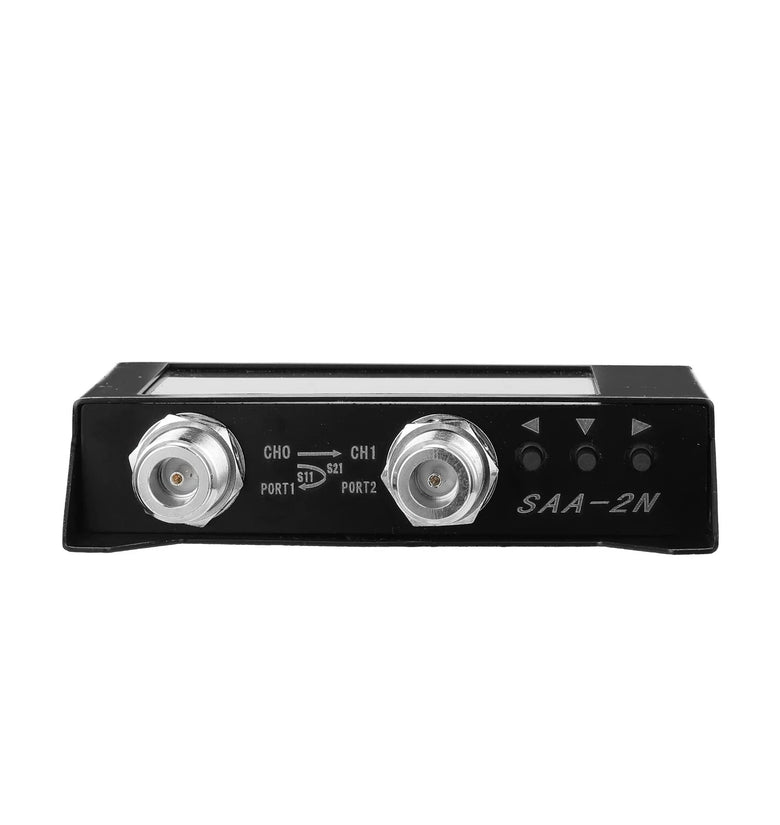

SAA-2N host (inside 3000mAh battery) x 1
Micro USB data cable x1

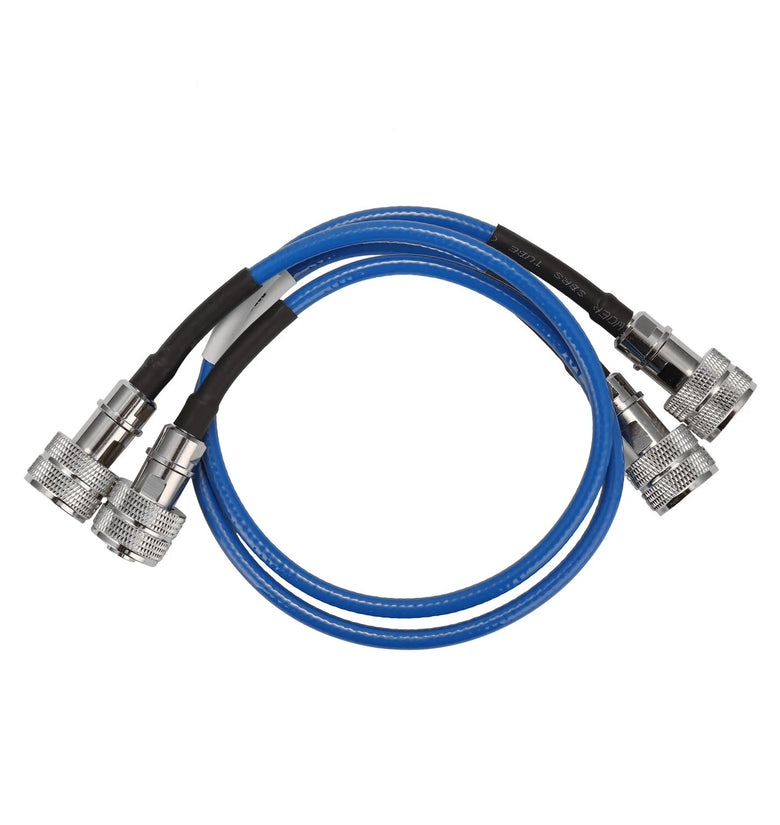

50cm N-type male to male RG142-PUR RF cable x2

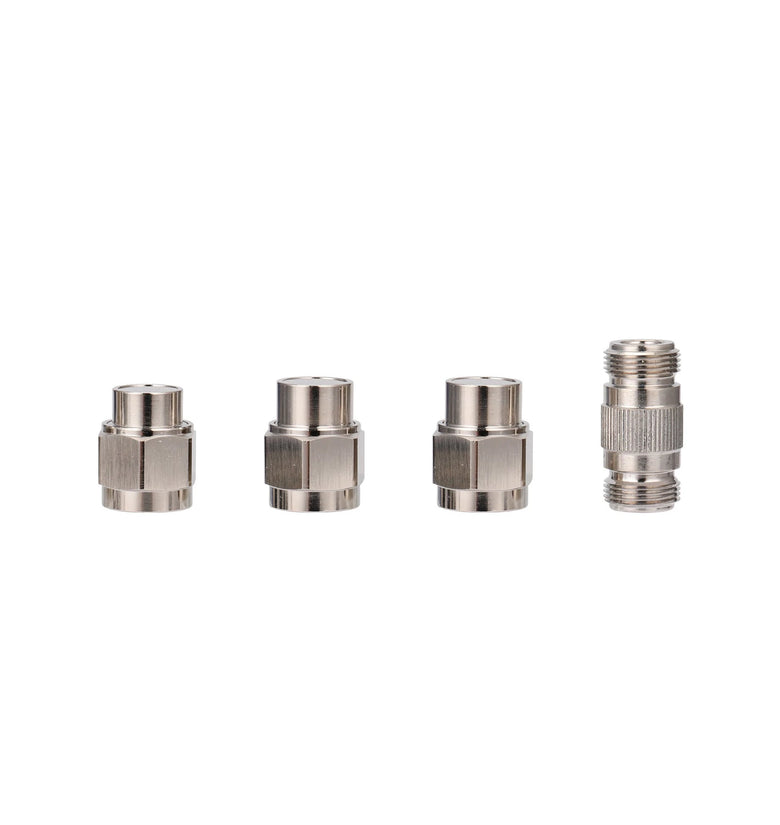

N-type male calibration kit - OPEN x1
N-type male calibration kit - SHORT x1
N-type male calibration kit - LOAD x1
N-type female to female connector x1
Touch screen paddles and lanyard x1

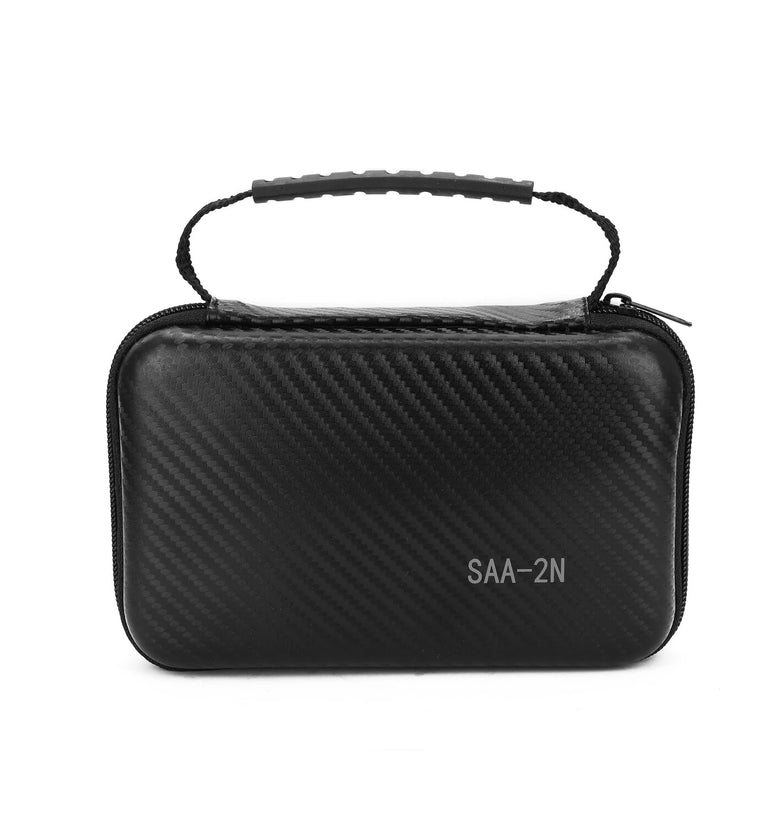

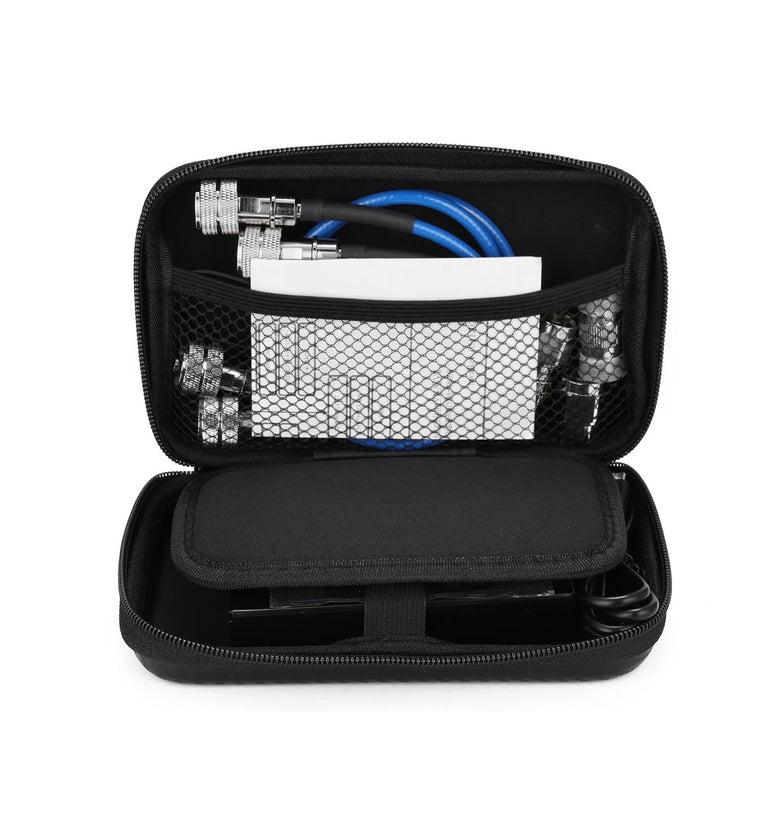

EVA storage bag x1
