Specifications:

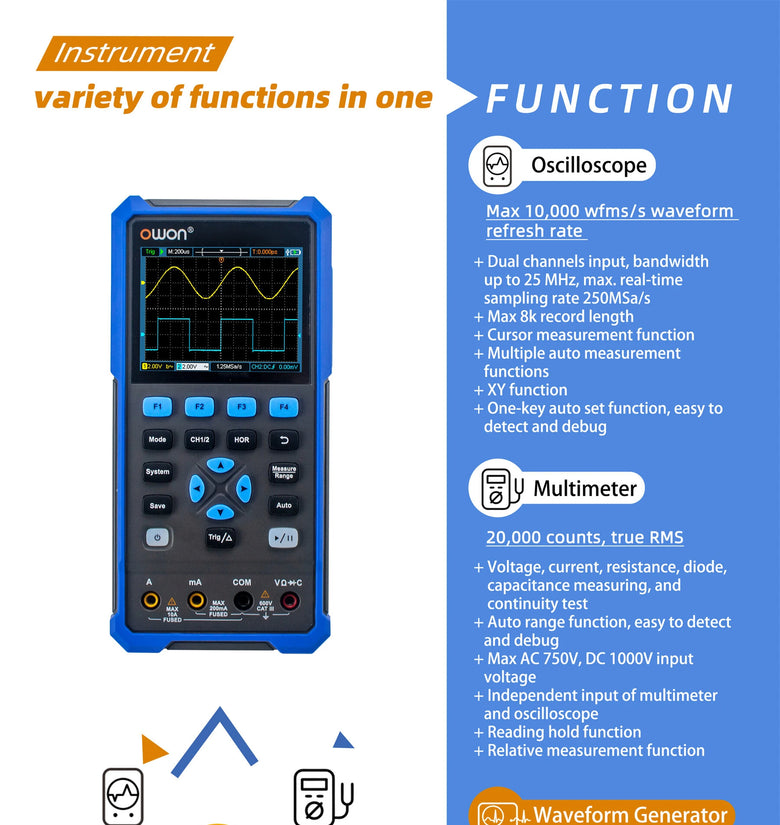

Oscilloscope Specifications:

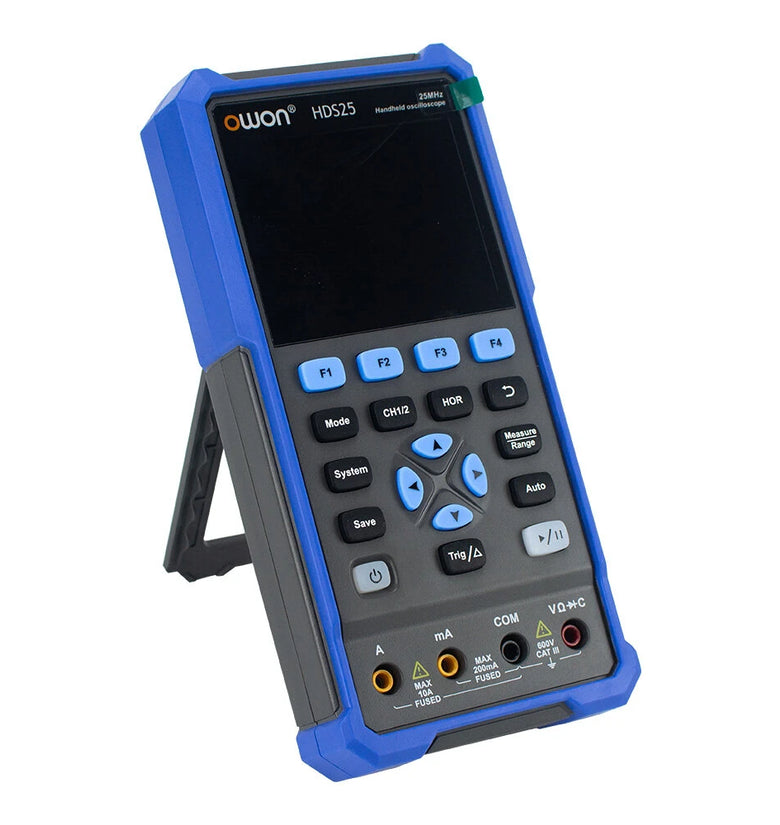

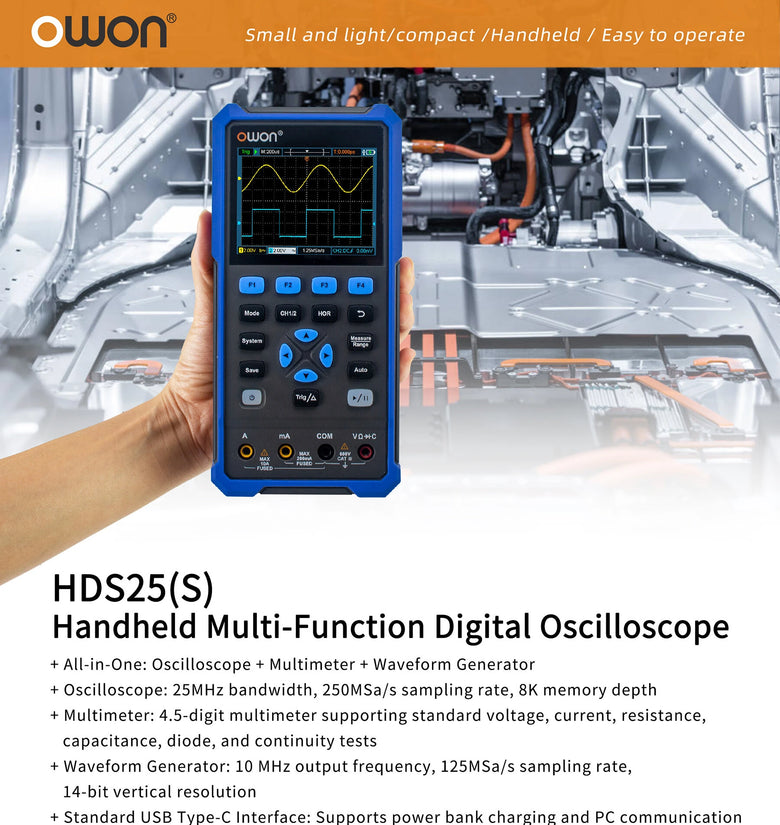

- Model: HDS25 / HDS25S

- Bandwidth: 25MHz

- Channel: 2

- Sample Rate: 250MSa/s (Single channel), 125MSa/s (Dual channel)

- Acquisition Model: Sample, Peak detect

- Record Length: 8K or 4K optional

- Display: 3.5 inch LCD

- Waveform Refresh Rate: 10,000 wfms/s

- Input Coupling: DC, AC, Ground

- Input Impedance (DC Coupling): 1 MΩ±2%, in parallel with 16 pF±10 pF

- Probe Attenuation: 1X, 10X, 100X, 1000X, 10000X

- Max. Input Voltage: 400V (DC+AC, PK - PK)

- Sensitivity Resolution: 10mV/div~10V/div

- Vertical Resolution: 8 bit

- Horizontal Scale: 5ns/div-1000s/div (1-2-5 step)

- Trigger Type: Edge

- Trigger Model: Auto, Normal, Single

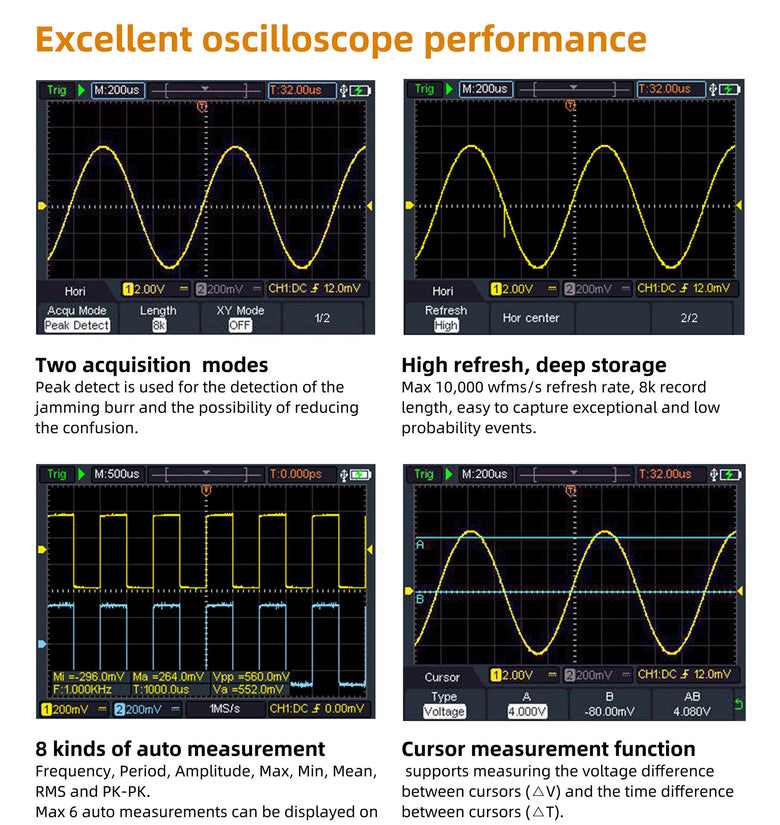

- Automatic Measurement: Period, Frequency, Mean, PK-PK, Max, Min, Amplitude, RMS

- Cursor Measurement: ΔV, ΔT, ΔT&ΔV between cursors, auto cursor

Digital Multimeter Specification:

- Full Scale Reading: 4 ½ digits (max 20000 counts)

- Testing Modes: Voltage, Current, Resistance, Capacitance, Diode, Continuity

- Max Input Voltage: AC 750V, DC 1000V

- Max Input Current: AC 10A, DC 10A

- Automatic Range: Yes

- True RMS: Yes

Waveform Generator Specification: (onl
