mso-bidi-font-family:'Times New Roman';font-size:10.5000pt;mso-font-kerning:1.0000pt;'>Features:mso-bidi-font-family:'Times New Roman';font-size:10.5000pt;mso-font-kerning:1.0000pt;'>

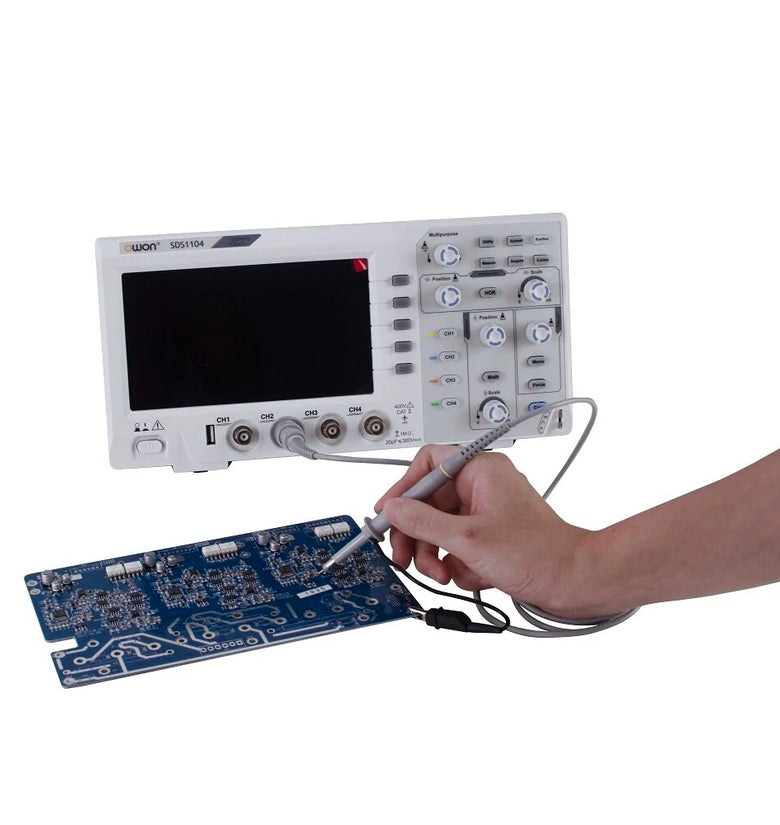

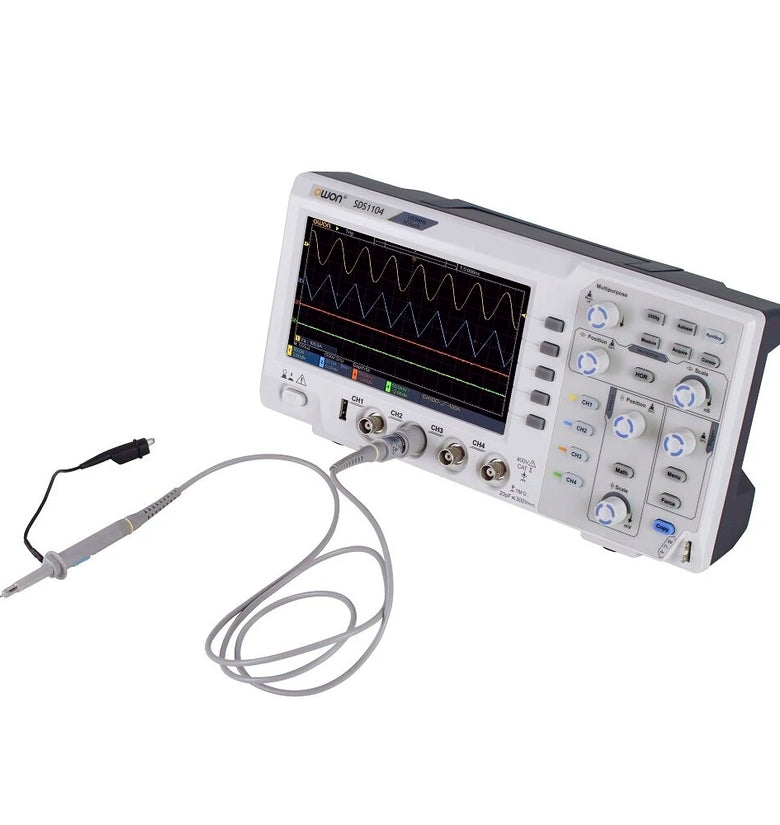

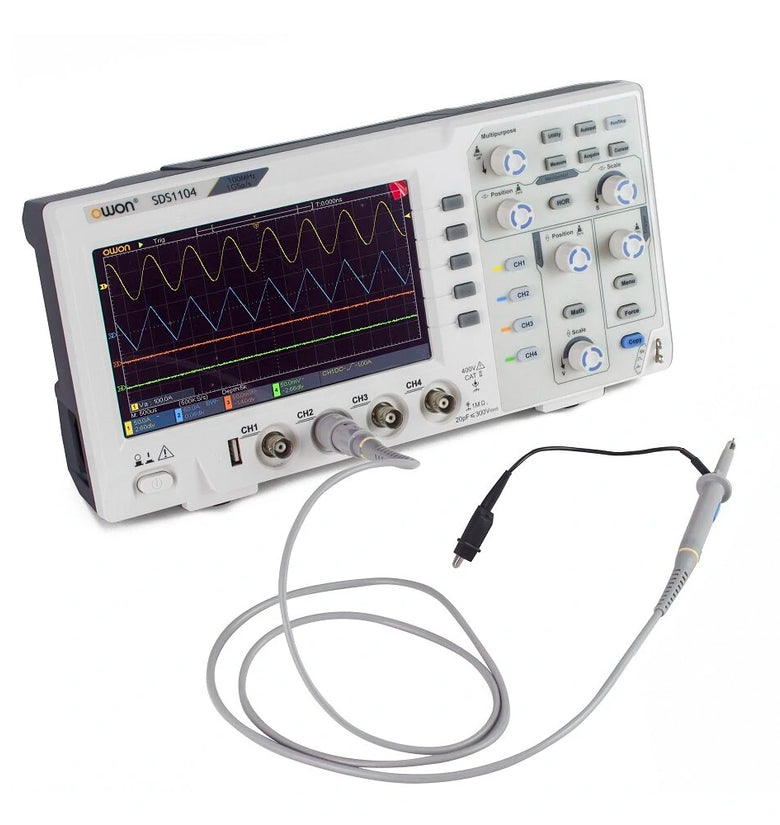

mso-bidi-font-family:'Times New Roman';font-size:10.5000pt;mso-font-kerning:1.0000pt;'>High Performance: The OWON SDS1104 oscilloscope offers a 100MHz bandwidth and a 1GS/s sample rate, ensuring accurate and high-resolution signal observations.mso-bidi-font-family:'Times New Roman';font-size:10.5000pt;mso-font-kerning:1.0000pt;'>
mso-bidi-font-family:'Times New Roman';font-size:10.5000pt;mso-font-kerning:1.0000pt;'>Four Channels: The device boasts a 4-channel configuration, offering a broader range of signal tracking and compatibility with various testing and debugging requirements.mso-bidi-font-family:'Times New Roman';font-size:10.5000pt;mso-font-kerning:1.0000pt;'>

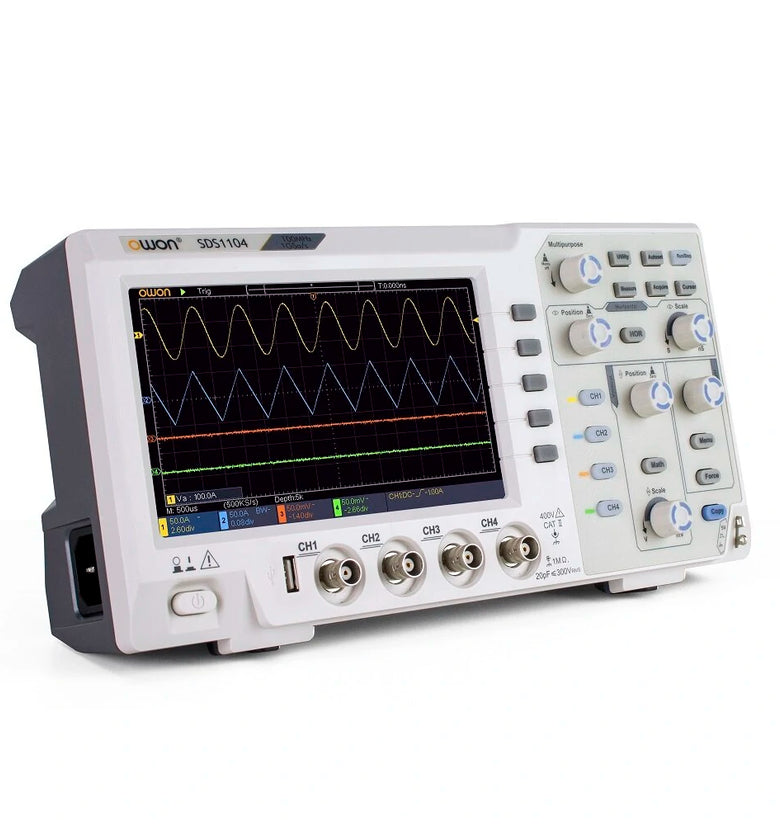

mso-bidi-font-family:'Times New Roman';font-size:10.5000pt;mso-font-kerning:1.0000pt;'>Advanced Display: It features a 7-inch, high-resolution LCD, providing clear and easy-to-read measurements.mso-bidi-font-family:'Times New Roman';font-size:10.5000pt;mso-font-kerning:1.0000pt;'>
mso-bidi-font-family:'Times New Roman';font-size:10.5000pt;mso-font-kerning:1.0000pt;'>Special Features: With SCPI and LabVIEW support, the device enhances functionality and versatility for the user.mso-bidi-font-family:'Times New Roman';font-size:10.5000pt;mso-font-kerning:1.0000pt;'>

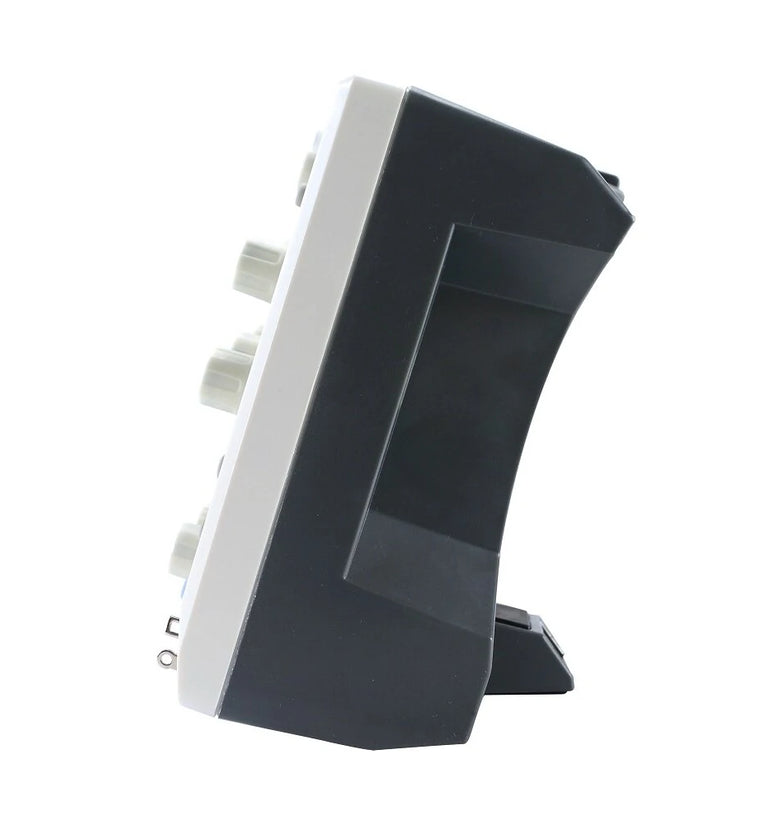

mso-bidi-font-family:'Times New Roman';font-size:10.5000pt;mso-font-kerning:1.0000pt;'>Thin Design: Despite the powerful performance, it retains an thin body, ensuring it’s convenient for carrying and handling.mso-bidi-font-family:'Times New Roman';font-size:10.5000pt;mso-font-kerning:1.0000pt;'>
Specifications:
Model |
SDS1104 |
|
Bandwidth |
100MHz |
|
Sample Rate |
1GS/s |
|
Horizontal Scale (s/div) |
2ns/div - 1000s/div, step by 1 - 2 - 5 |
|
Rise Time (at input, typical) |
≤3.5ns |
|
Channel |
4 |
|
Display |
7' color LCD, 800 x 480 pixels |
|
Input Impedance |
1MΩ ± 2%, in parallel with 20pF±5pF |
|
Max Input Voltage |
400V (PK - PK) (DC+AC, PK - PK) |
|
DC Gain Accuracy |
±3% |
|
Record Length |
20K |
|
DC Accuracy (average) |
Average≥16：±(3% reading + 0.05 div) for △V |
|

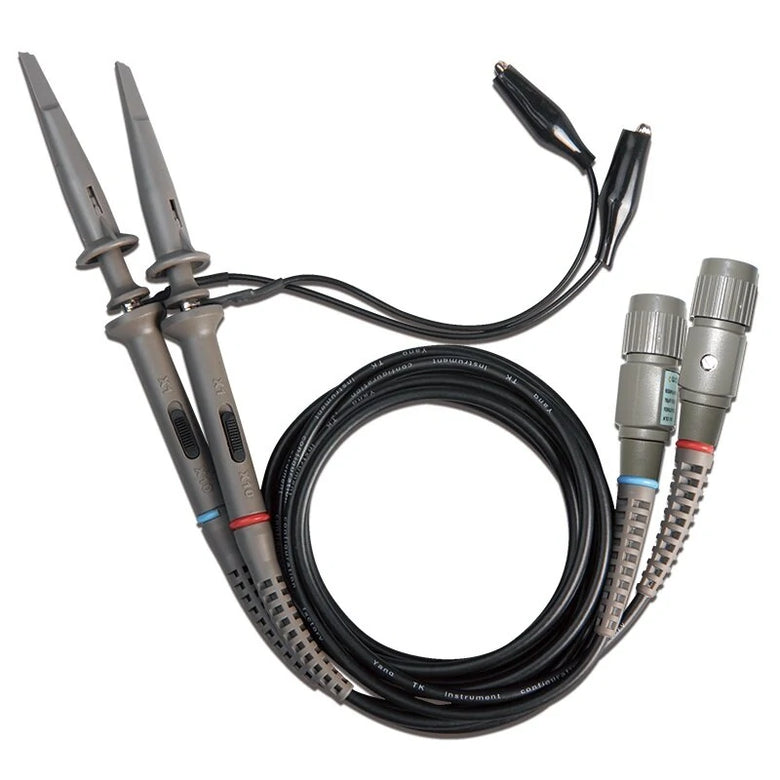

Probe Attenuation Factor |
1X, 10X, 100X, 1000X |
|
LF Respond (AC, -3dB) |
≥10Hz (at input, AC coupling, -3dB) |
|
|
Sample Rate / Relay Time Accuracy |
±100ppm |
|
Interpolation |
sin (x) / x |
|
|
Interval (△T) Accuracy (full bandwidth) |
Single : ±(1 interval time + 100ppm x reading + 0.6ns), Average>16 : ±(1 interval time + 100ppm x reading + 0.4ns) |
|
Input Coupling |
DC, AC , and GND |
|
Vertical Resolution (A/D) |
8 bits (2 channels simultaneously) |
|
Vertical Sensitivity |
5mV/div - 5V/div (at input) |
|
