Description:

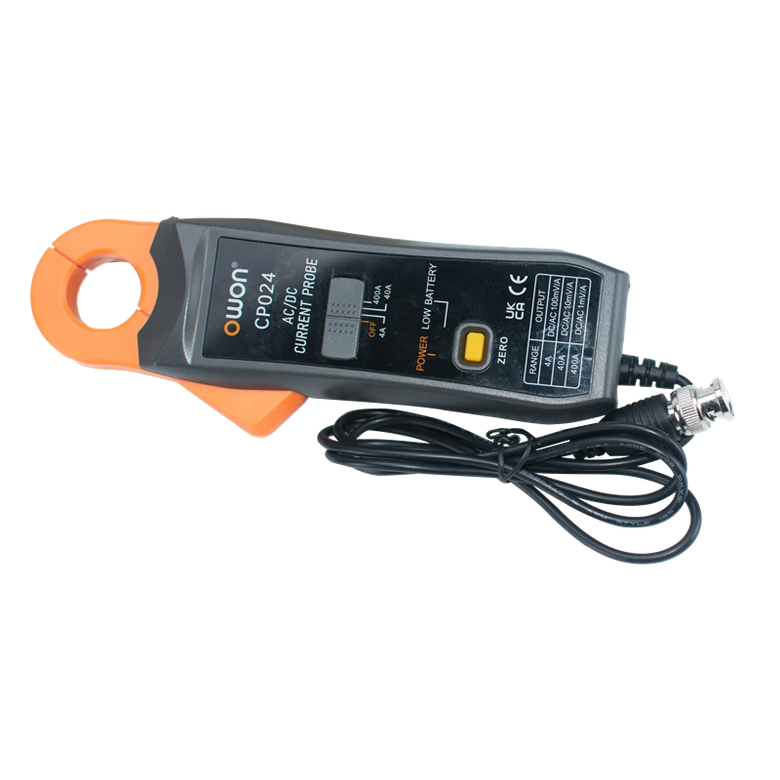

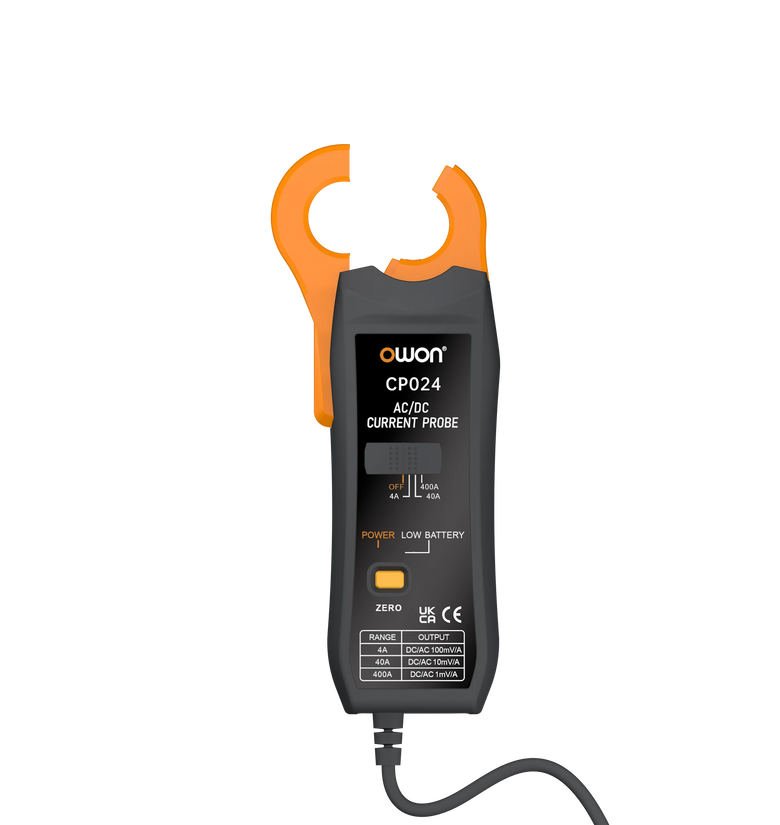

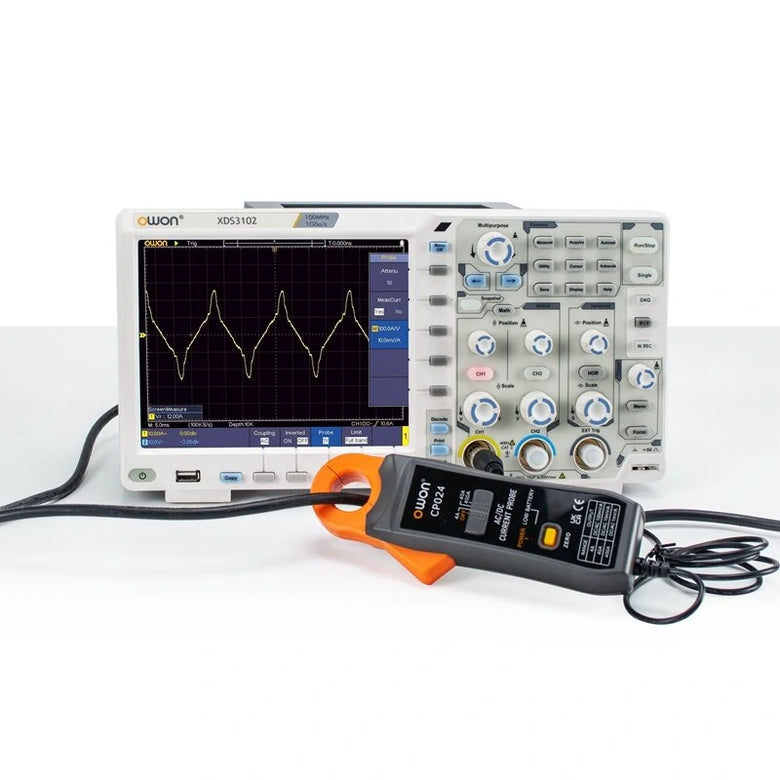

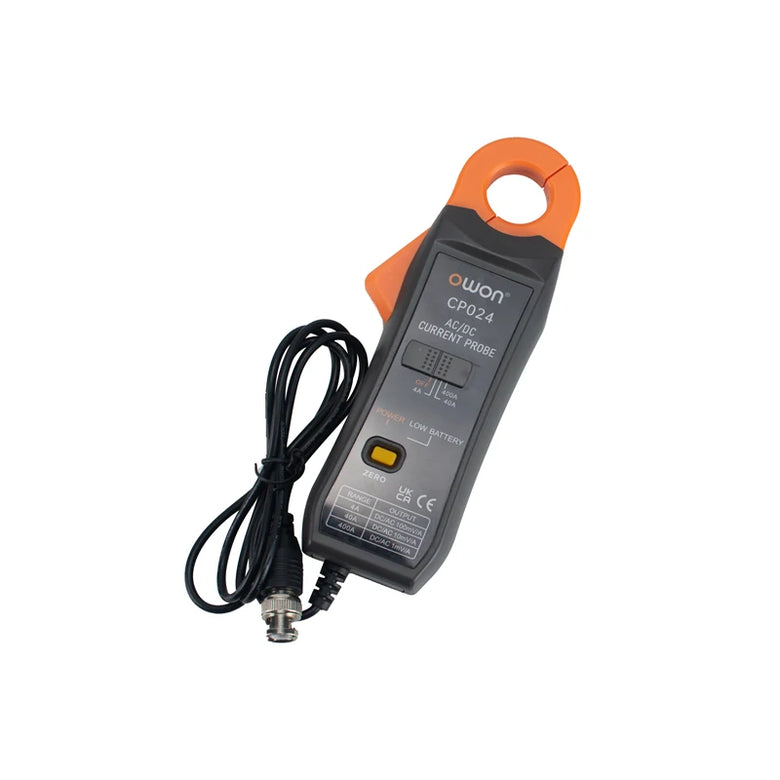

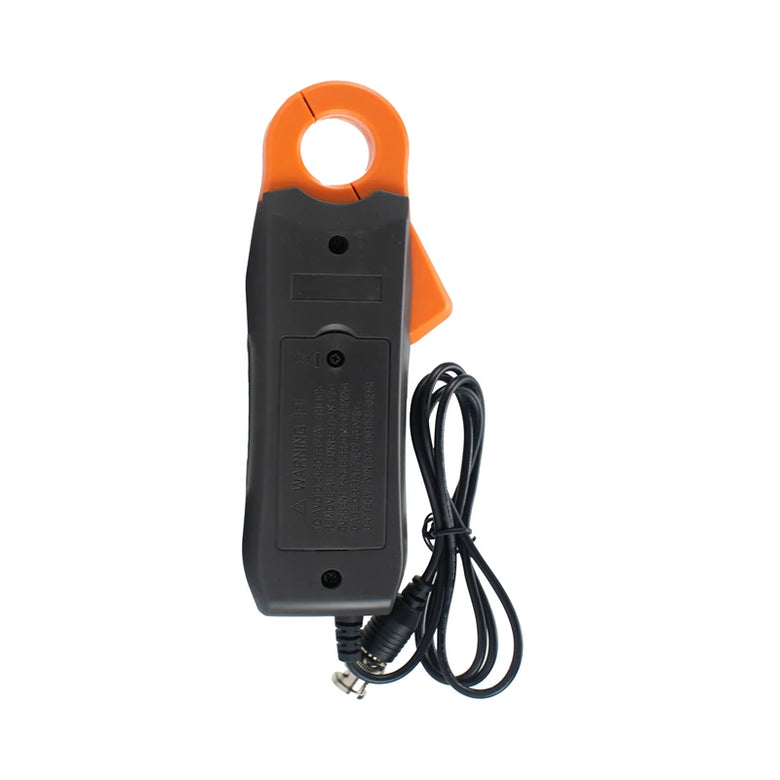

AC/DC Current Clamp Probe
- CP024
+ 1mA to 400A test range
+ Bandwidth：DC 200KHz（-3dB）
+ Error by earth magnetic: ± 30mA max
+ Remanence (±100AŽ0A): ± 30mA max
+ Jaw size: 23mm (Max)。
+ Auto Zero at power on
+ Low battery indication
Specification：
DC Current
Range |
Sensitivity |
Accuracy |
|||
DC 4A |
1 mV/10 m A |
±(1.5%rdg±5d) |
|||
DC 40A |
1 mV/ 0.1A |
±(1.5%rdg±5d) |
|||
DC 300A |
1 mV/ 1A |
±(1.5%rdg±5d) |
|||
DC 300~400A |
1 mV/ 1A |
±(3.0%rdg±5d) |
|||
AC Current | |||||
| |||||
AC 4A |
1 mV/ 10mA |
±(2.0%rdg±5d) |
|||
AC 40A |
1 mV/ 0.1A |
±(2.0%rdg±5d) |
|||
AC 300A |
1 mV/ 1A |
±(2.0%rdg±5d) |
|||
AC 300A~400A |
1 mV/ 1A |
±(3.0%rdg±5d) |
|||
General Specifications | |||||
Power supply |
9V (6LR61) Battery （Not included） |
||||
Dimension(W*H*D) |
180 x 68 x 32 (mm) |
||||
Device Weight |
About 250 g |
||||
Operating Temperature |
0℃ to 50℃，≤70%RH |
||||
Package Included:
1 x CP024
1 x Quick Guide
1 x Soft bag
1 x Manual
