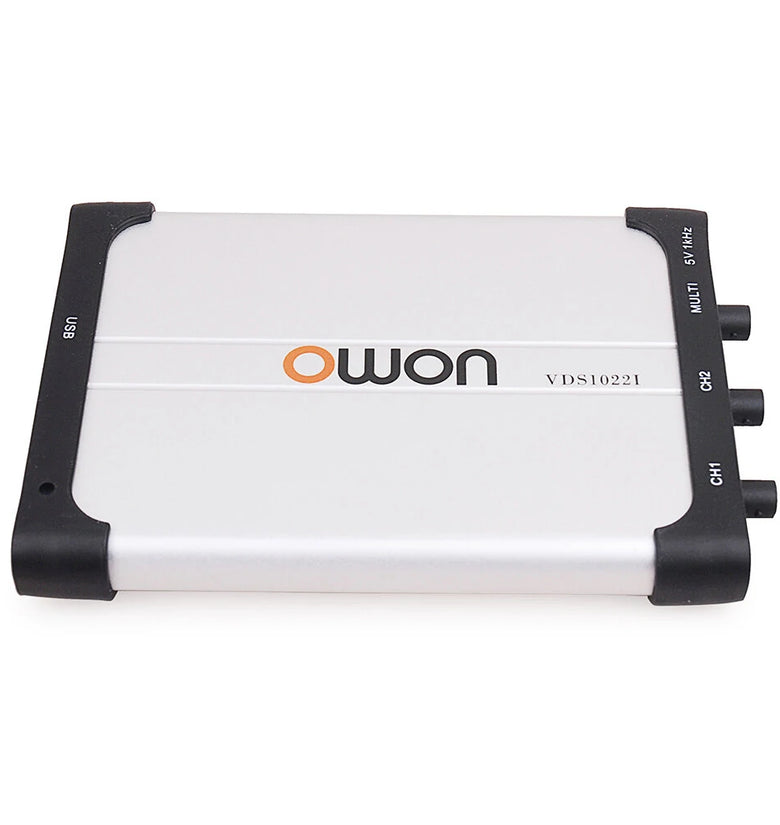

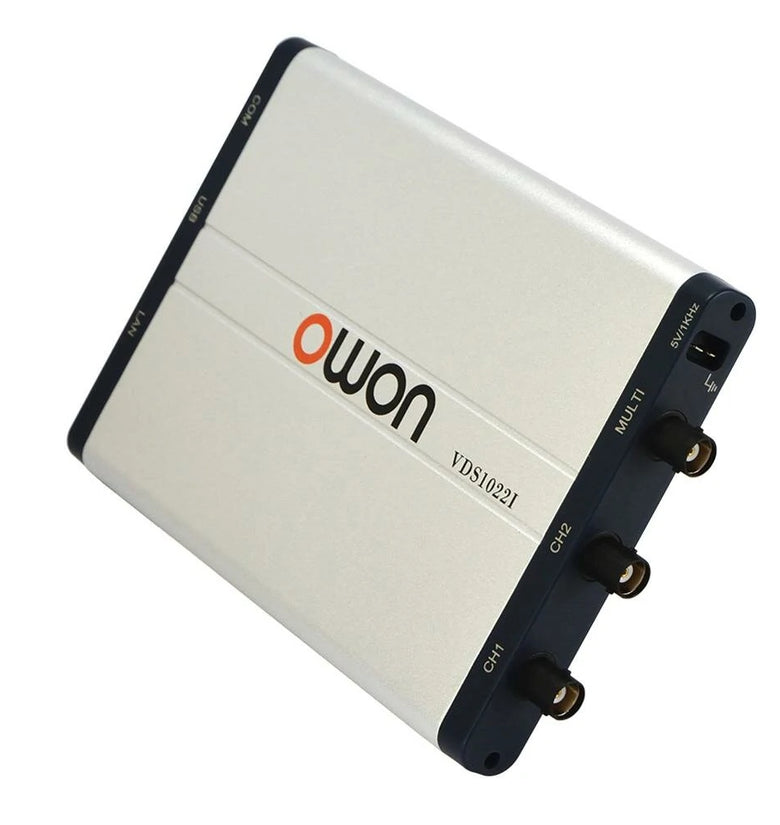

OWON VDS1022I VDS1022 Digital Storage Oscilloscope 100Msa/S 25Mhz Bandwidth Handheld Portable PC USB Oscilloscopes with Probes
OWON VDS Series PC Oscilloscope
Features:
- Up to 100MHz bandwidth, and max 1GS/s real-time sample rate
- 10M record length
- Friendly UI : FFT, or X-Y, and waveform 2 views displayed
on the same screen
- Multi-trigger option : edge, video, slope, pulse, and alternate
- USB isolation - less signal inference, more PC protection
- USB bus powering, and LAN remote control (optional)
- Ultra-thin body design, easy portability

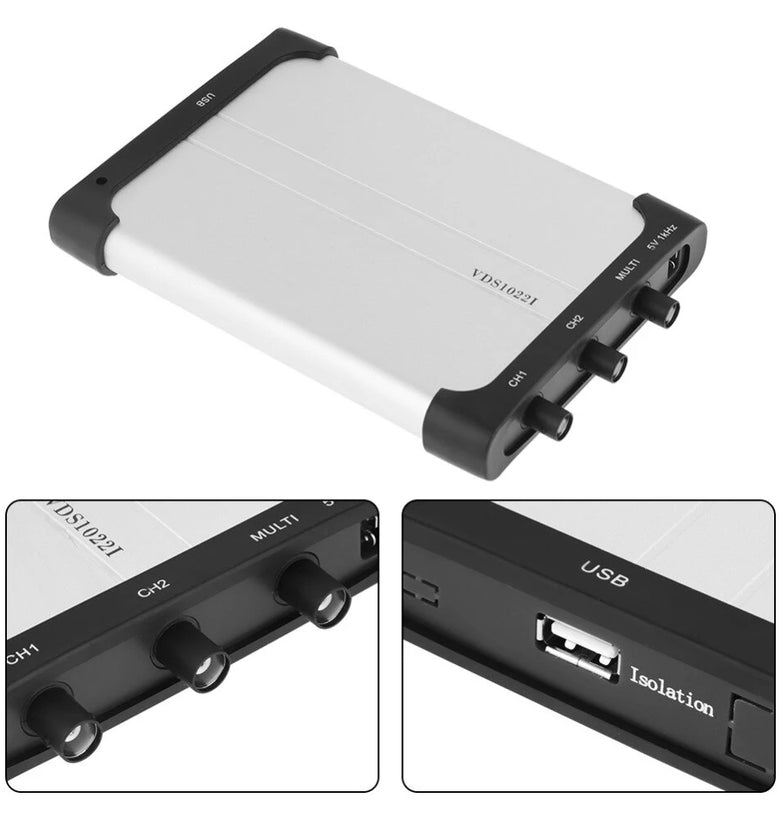

Notice:The difference between VDS1022 and VDS1022I is VDS1022I isolate power for the computer and the oscilloscope to protect the computer from being burned by mistake
Specifications:
Model |
VDS1022I |
VDS1022I |
Bandwidth |
25MHZ |
|
Channel |
2+1 (multi) |
|
Sample Rate |
100MSa/s |
|
Horizontal Scale (s/div) |
5ns/div~~100s/div, step by 1~2~~5 |
|
Record Length |
5K |
|
Max Input Voltage |
40V (PK - PK) (DC+AC, PK - PK) |
40V (PK - PK) (DC+AC, PK - PK) |
Vertical Resolution (A/D) |
8 bits (2 channels simultaneously) |
|
Vertical Sensitivity |
5mV/div~5V/div |
|
Trigger Type |
Edge, Pulse, Video, Slope, and Alternate |
|
Trigger Mode |
Auto, Normal, and Single |
|
Acquisition Mode |
Sample, Peak Detect, and Average |
|
Waveform Math |
+,-,×,+,invert,FFT |
|
Communication Interface |
USB 2.0 (isolation) |
USB 2.0 |
Signal Type |
synchronized input / output, Pass / Fail, external trigger input |
|
Level Standard |
TTL |
|
Power Supply |
5.0V/1A |
|
Power Consumption |
≤2.5W |
≤6.5W |

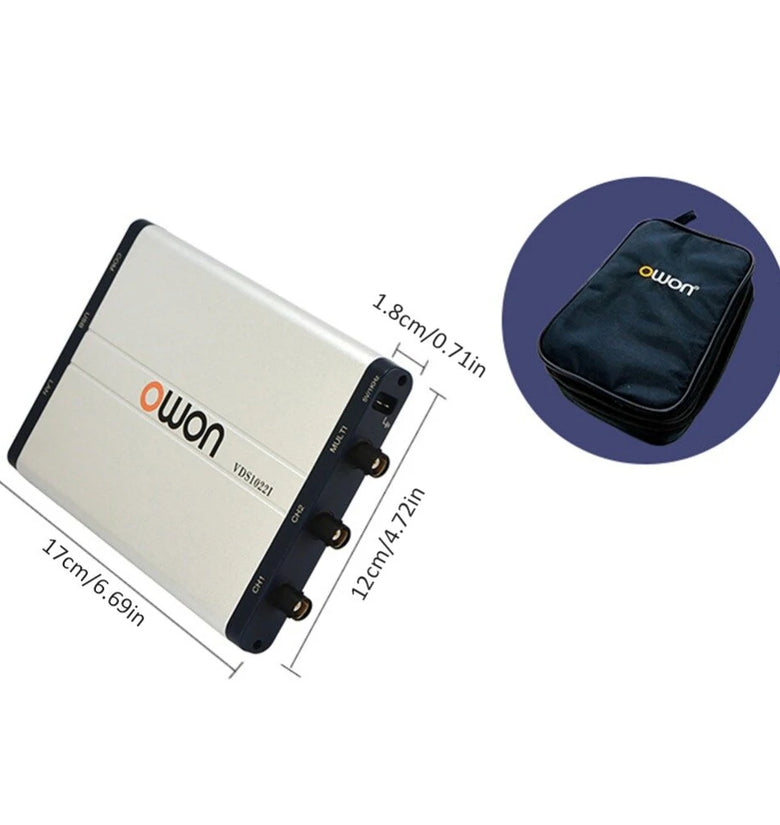

Dimensions(W x H x D) |
170×120×18(mm) |
190×120× 18(mm) |

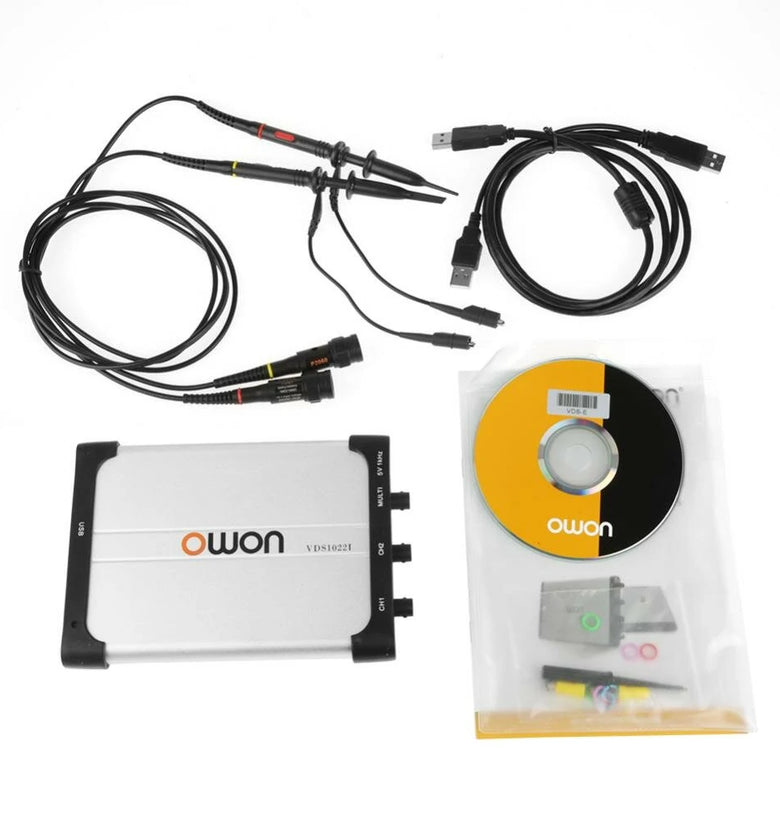

Package included:
1 x PC Oscilloscope
2 x Probe
1 x USB cable
1 x CD
1 x Manual

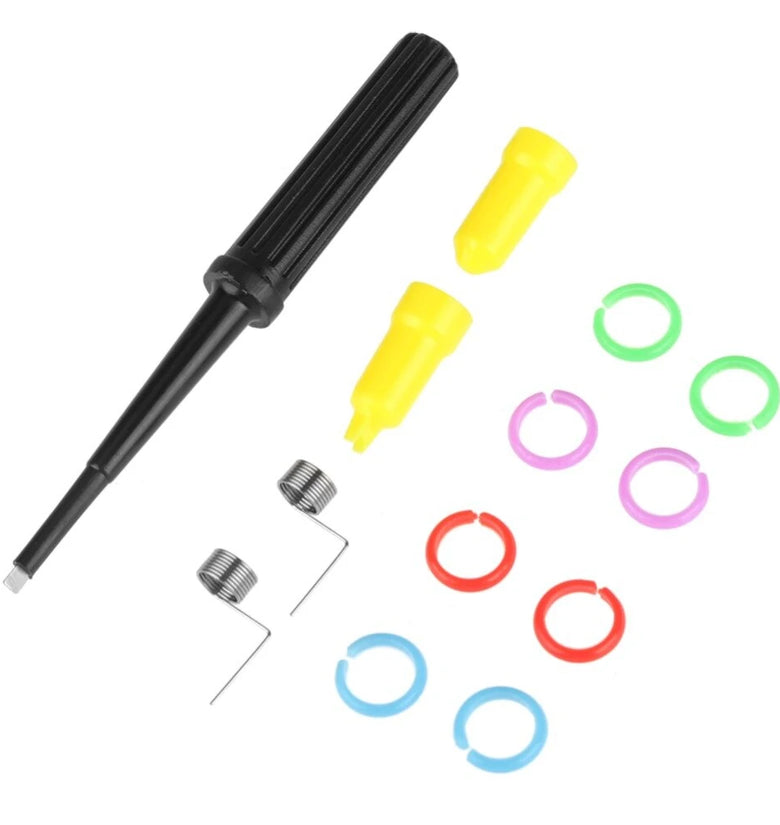

1 x Adjust tool
2 x Tip locating sleeve
8 x Color circle
2 x Ground spring
