Specifications:

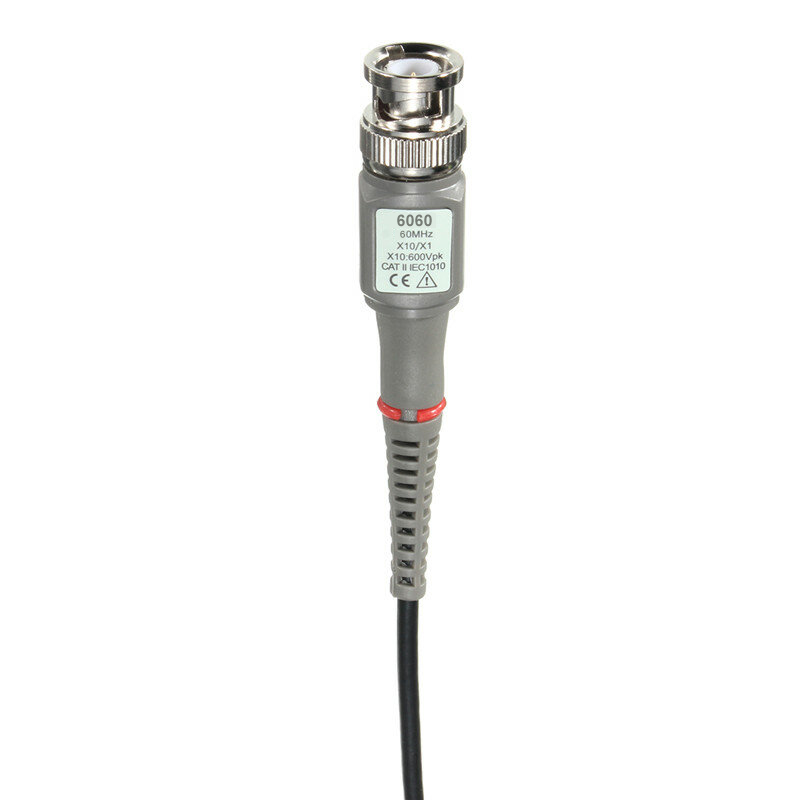

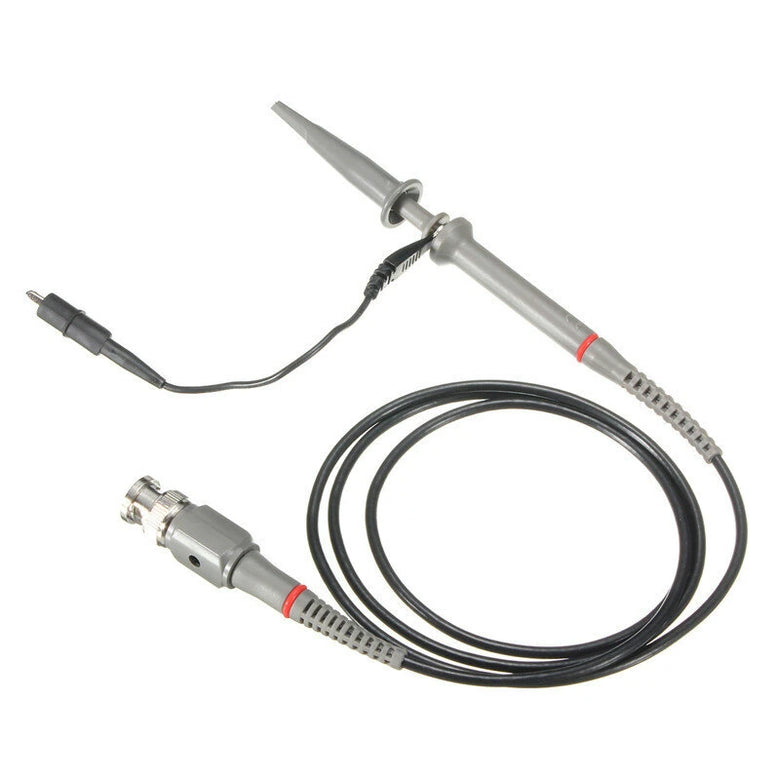

Product Name: Oscilloscope Probe

Model: P6060

Bandwidth: 60 MHz

Rise Time: 5.8 ns

Attenuation Ratio: 1x & 10x

Input Resistance: 1x: 1MΩ/-2%, 10x: 10MΩ/-2%

Input Capacitance: 1x: 70 pF ~ 120 pF, 10x: 14 pF ~ 18 pF

Max Input Voltage: 1x: 200V (Vpp), 10x: 600V (Vpp)

Compensation Range: 15 ~ 45 pF

Operating Environment: 0°C ~ 50°C, 0 ~ 80% RH

Storage Environment: -20°C ~ 60°C, 0 ~ 90% RH

Length: 120 ± 2 cm

Weight: Approx. 55 g

Features:

High Bandwidth: Supports up to 60 MHz bandwidth and 5.8 ns rise time, suitable for a variety of electronic measurement and testing needs.

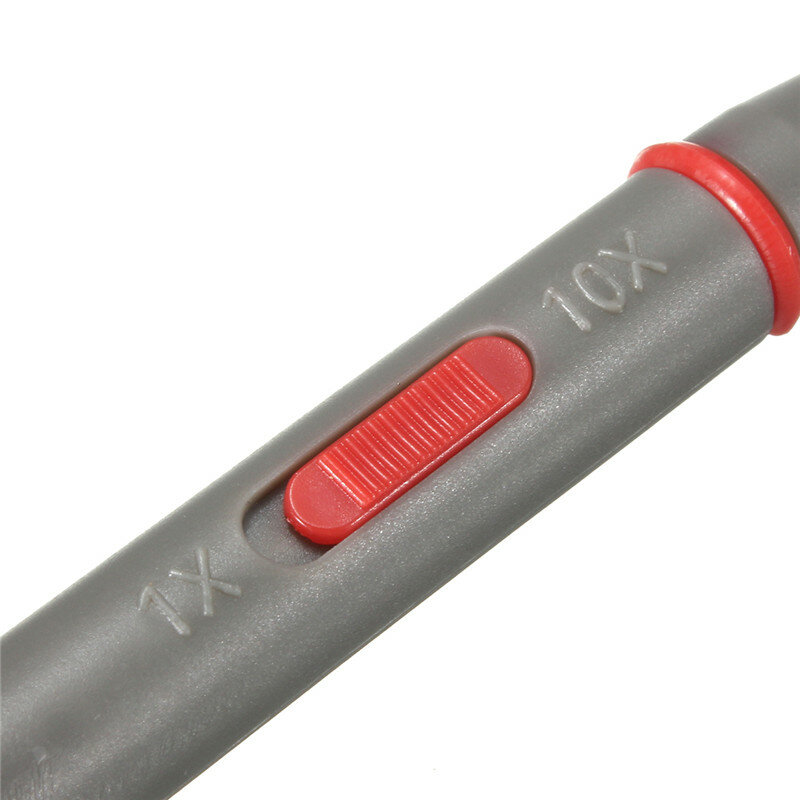

Adjustable Attenuation: Features both 1x and 10x attenuation settings, providing flexibility for different types of signal measurements and allowing for precise and accurate readings.

Wide Input Range: Can handle a maximum input voltage of 200V (Vpp) in 1x mode and 600V (Vpp) in 10x mode, accommodating multi-range testing requirements.

Optimal Compatibility: Compatible with a wide range of oscilloscopes, featuring adjustable compensation range (15 ~ 45 pF) for precise calibration and signal integrity.

Lightweight and Compact: Weighs only 55g and features a cable length of 120 cm, ensuring ease of use and maneuverability during measurements.

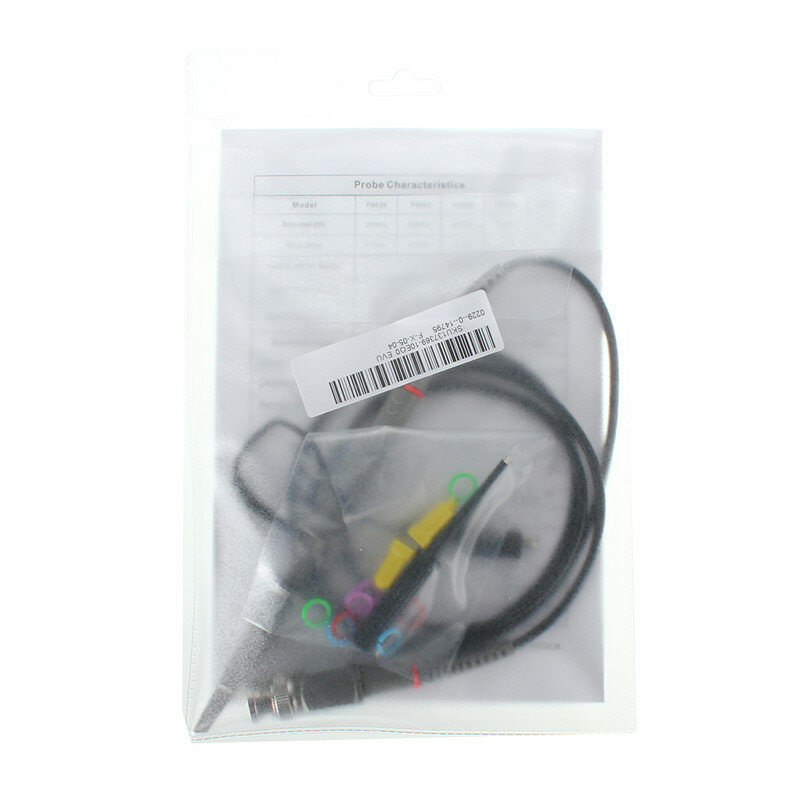

Package Included:

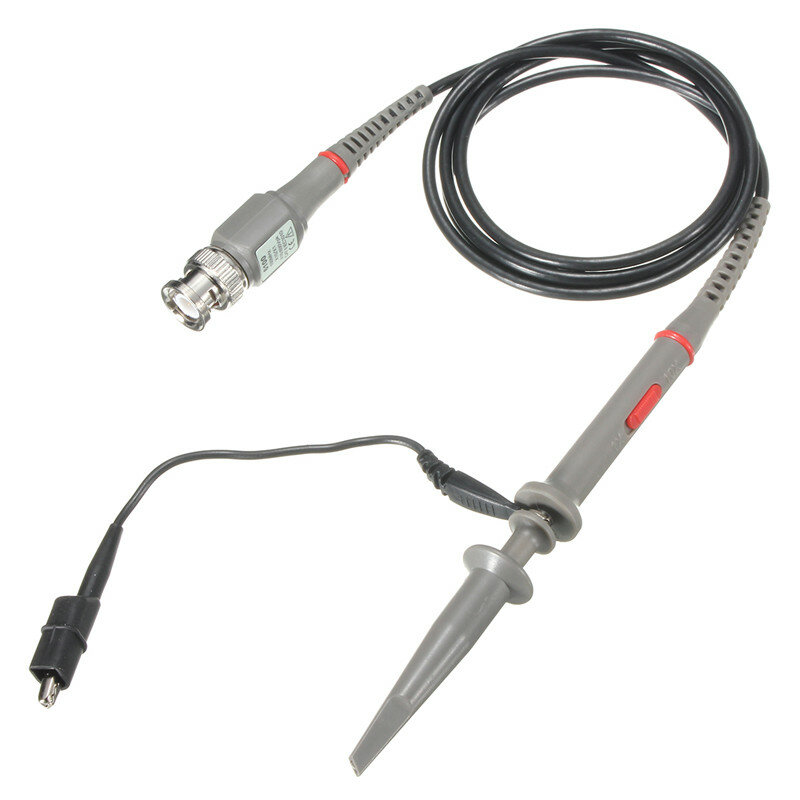

1 x Oscilloscope Probe (P6060)

1 x User Manual
