Specifications:

Type: Standard, Mini, With DC 5.5X2.1 USB Interface (optional)

Input Voltage: DC 8V-30V

Output Voltage: Automatically adjusts between 3.3V-21V (Requires input voltage higher than output voltage, for 20V quick charge, input must be higher than 20V)

Maximum Output: 20V 3.25A

Output Power: Up to 65W (5V3A, 9V3A, 12V3A, 20V3.25A)

Conversion Efficiency: 92% to 97%

Output Voltage Ripple: <200mV

No-load Current: <3mA

Protection Features:

Input Over-Voltage Protection

Input Under-Voltage Protection

Output Over-Current Protection

Output Short-Circuit Protection

Over-Temperature Protection

Product Dimensions:

Standard Version: 32x20x10mm (without the protruding Type-C port)

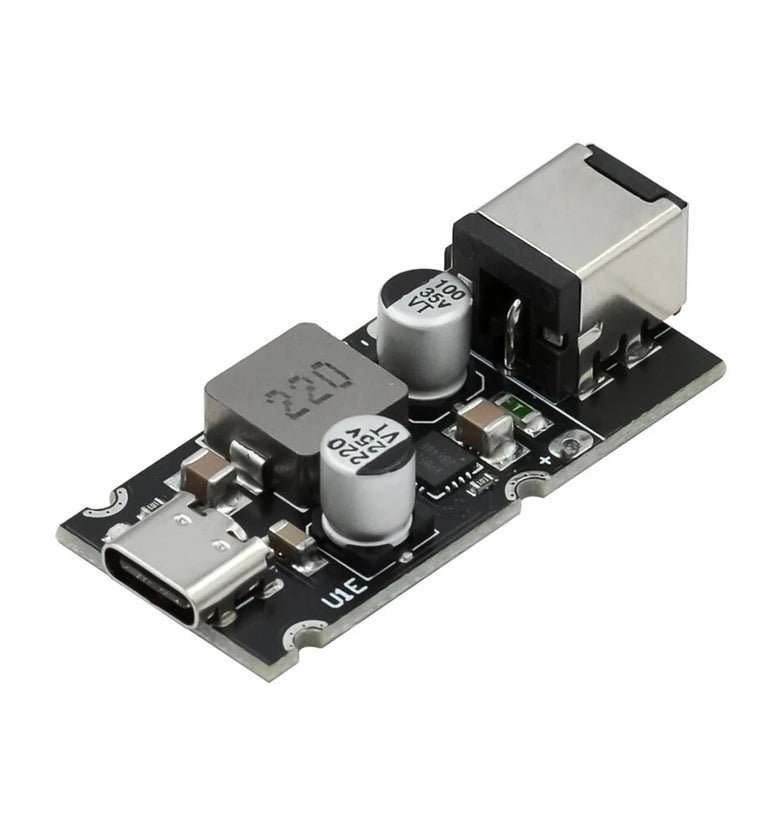

With DC Seat: 44x20x10mm (without the protruding Type-C port)

Supported Charging Protocols: PD3.1 (PPS), QC3.0, SCP, BC1.2, Apple 2.4A, Samsungs 9V2A

Features:

1.High Compatibility with Charging Protocols

The PD65W Fast Charging Module supports a wide range of charging protocols including PD3.1 (PPS), QC3.0, and SCP, ensuring compatibility with various devices from smartphones to laptops. This versatile compatibility makes it an essential component for all your fast-charging needs, regardless of the device br
