Please note: It has been upgraded to the latest version 2.22. Please do not upgrade without permission！！！！！Updating without permission may cause the system to become bricked.

V2D is used for:

- Searching and listening to radio sessions on amateur bands

- Listening to VHF (FM) radio stations

- Radio monitoring

- Radio transmitter tuning

- PC as SDR set-top box with 12 MHz sample rate and 5 MHz bandwidth

- Educational process in universities

Specification:

- Firmware version: V2.12

- Frequency range: 100 kHz-2800 MHz

- Bandwidth spectrum baseband: 1 - 2 - 3 - 5.3MHz

- Bandwidth IF spectrum: 25 - 50 - 100 - 250 - 450KHz

- Frequency resolution: 1Hz

- ADC bit depth: 16bit

- Sensitivity: 0.25uV

- Control range of low noise amplifier: 0-30dB

- Control range of attenuator: 0-30dB

- Input impedance 50 Ohm switchable to HI-Z

- Reference oscillator TCXO: ±0.5 ppm

- Operating modes: CW, AM, AMS, LSB, USB, DSB, NFM, WFM/STEREO

- Fixed filter bandwidths for WFM: 100, 200, 300, 400 kHz

- Adjustable filter bandwidths for WFM: 50 kHz-450 kHz

- Fixed filter bandwidths for AM, AMS, NFM: 4, 6, 8, 10, 20 kHz

- Adjustable filter bandwidths for AM, AMS, NFM: 2 - 25 kHz

- Fixed filter bandwidths for LSB, USB, DSB: 1.8 - 2.0 - 2.4 - 2.7 - 3.3 kHz

- Adjustable filter bandwidths for LSB, USB, DSB: 1 - 5kHz

- Fixed filter bandwidths for CW: 0.25 - 0.3 - 0.5 - 1.0 - 1.5 kHz

- Adjustable filter bandwidths for CW: 0.1 - 2 kHz

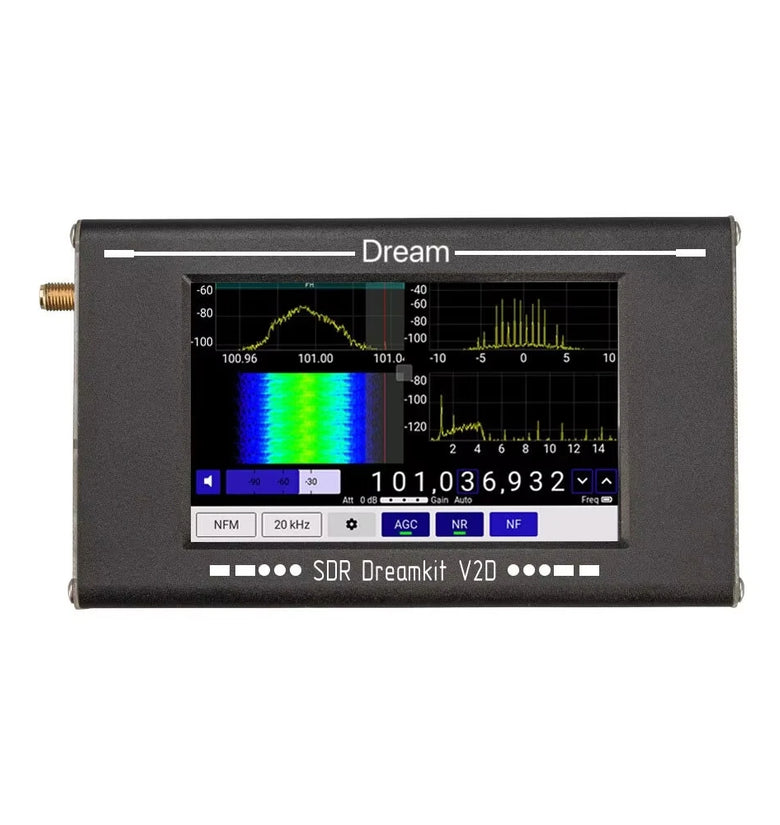

- Additional functions: AGC, noise reduction, squelch, notch filter, 5 band equalizer with presets.

- Fixed step sizes: Off, 100Hz, 1KHz, 5KHz, 6.25KHz, 9KHz, 10KHz, 12.5KHz, 25KHz (User freely adjustable)

- Alphanumeric frequency memory: 125

- Tuning wheel with push function

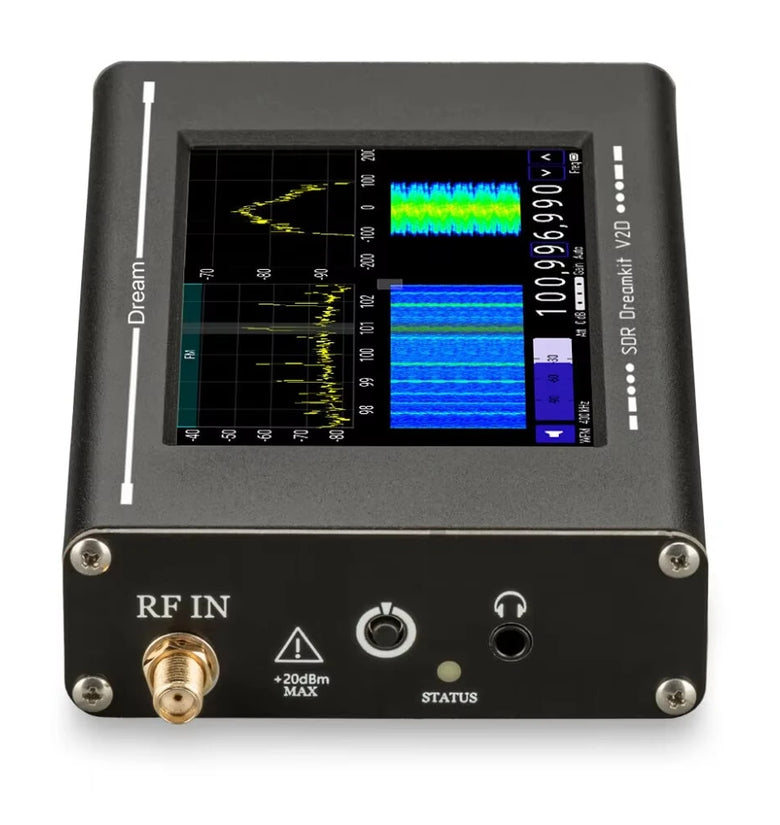

- Antenna connector: SMA

- Built-in 2W speaker & headphone output in stereo

- Screen size: 4'

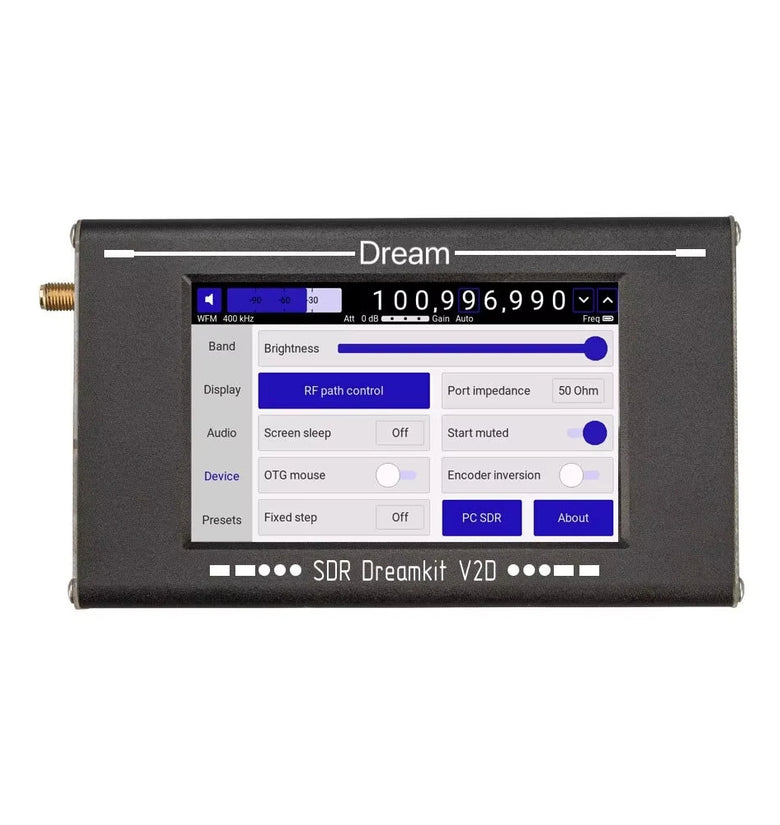

- Touch display

- Screen resolution: 800x480 pixels

- Computer mouse connection via USB-C

- Battery capacity: 5000mAh

- Battery life: approx. 4h

- PC connection interface: USB 2.0 type C for updates & control via various SDR programs

- Aluminum housing powder coated

- Dimensions (LxHxD): 150 x 81 x 27 mm

Package Included:

1 x HAMGEEK Dreamkit V2D

1 x Touch input pen

1 x USB C charging/PC cable

1 x SMA extension cable

1 x English instruction manual
