Description:

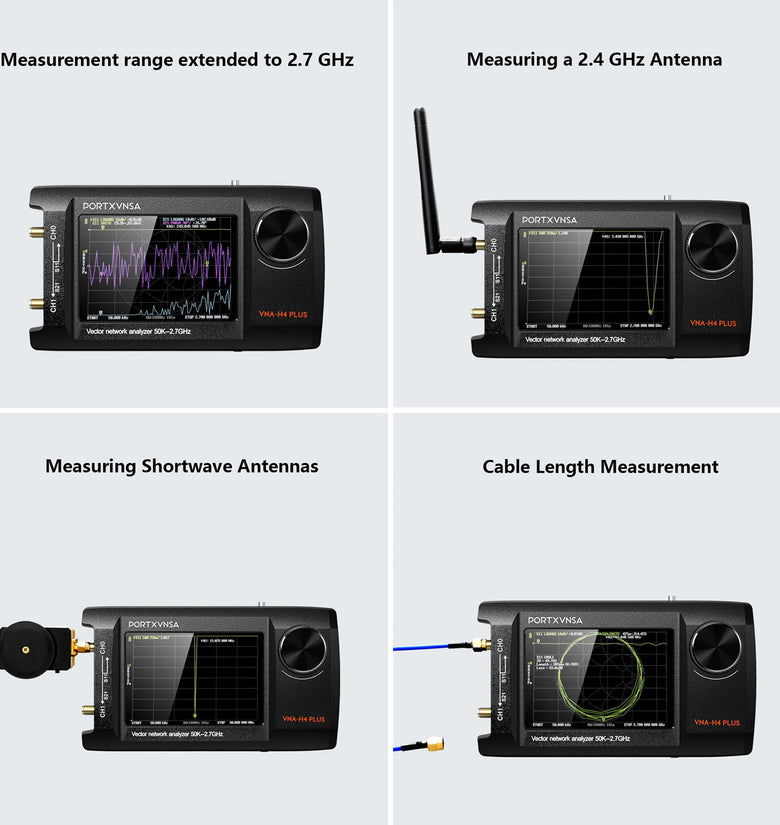

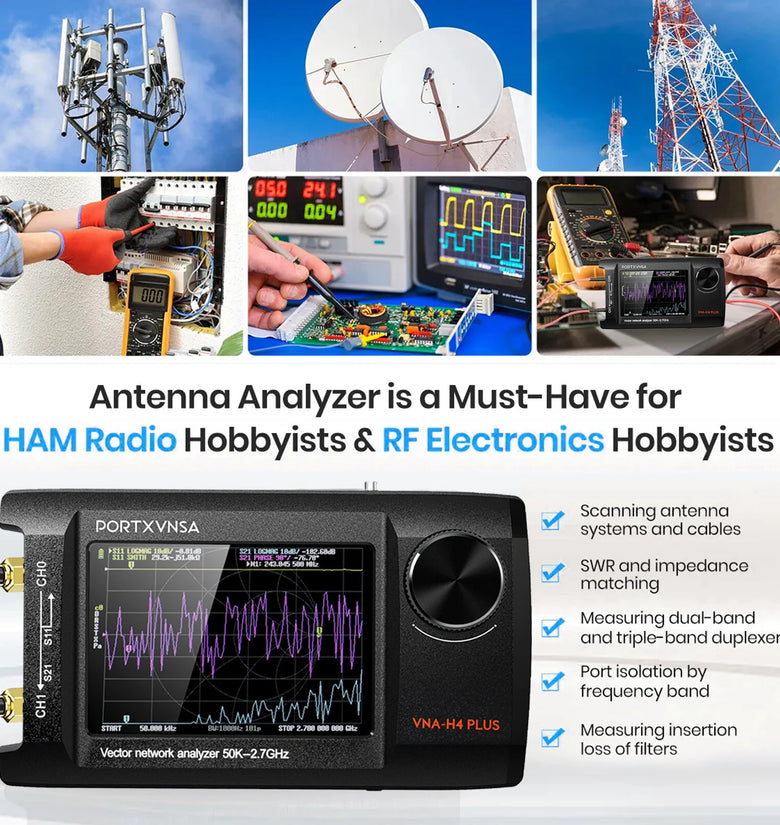

PORTXVNSA VNA-H4 Plus, is a portable handheld vector network analyzer (VNA) designed to measure reflection and transmission coefficients. Originally designed by edv555. After several upgrades, VNA-H4 is the highest performance version at present. The measurement frequency range is upgraded to 50KHz-2.7GHz, and the performance is better than the previous version.

Specifications:
Bandwidth: 50KHz-2.7GHz
Dynamic range: 80dB (50KHz-900MHz) 60dB (900MHz-1.5GHz) 50dB (1.5GHz-2.7GHz)
Reflection coefficient: SWR: <1.1
Frequency accuracy: <0.5 ppm
Frequency stability: <2.5 ppm
Scan points: 401
Product size: 160x92x35mm

Features:
1. Ergonomic design, fully upgraded appearance.

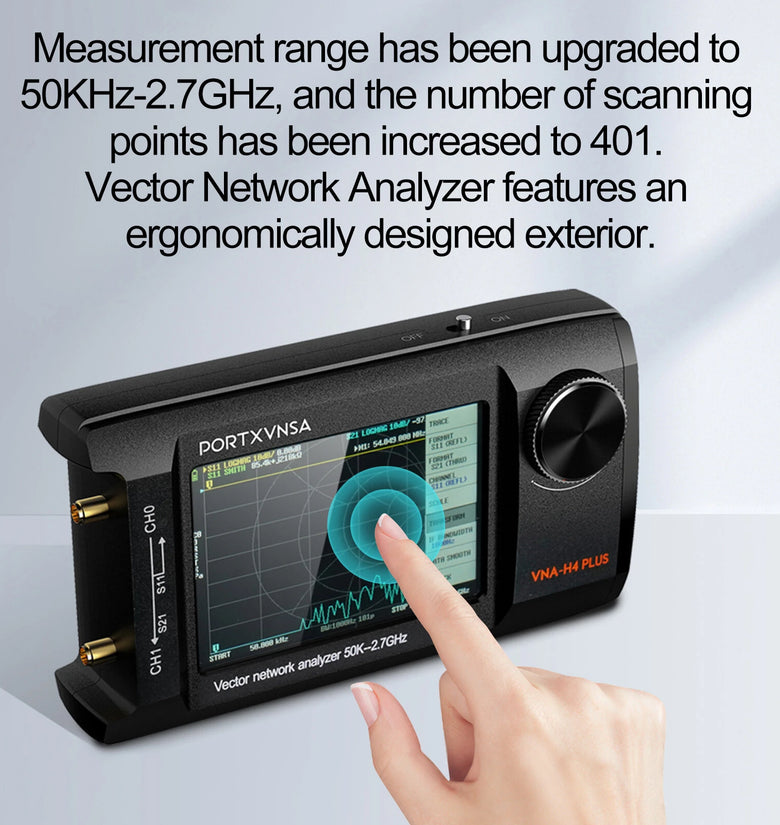

2. The measurement range is upgraded to 50KHz-2.7GHz, and the number of scanning points is increased to 401 points.
3. Support SD card to save test data and export data conveniently.

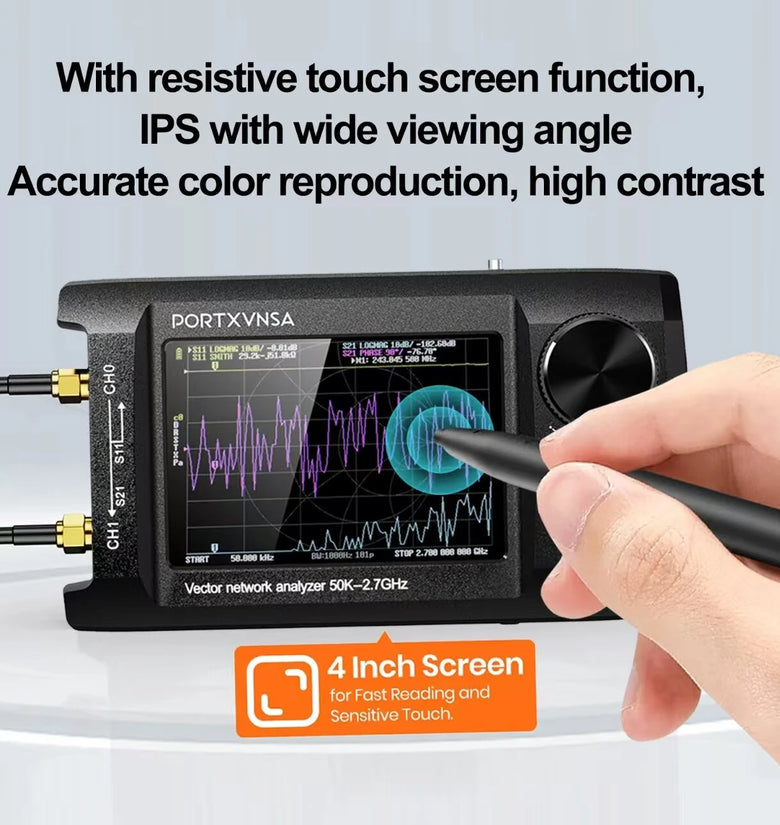

4. With resistive touch screen function, and upgraded large knob operation, the operation is more convenient.

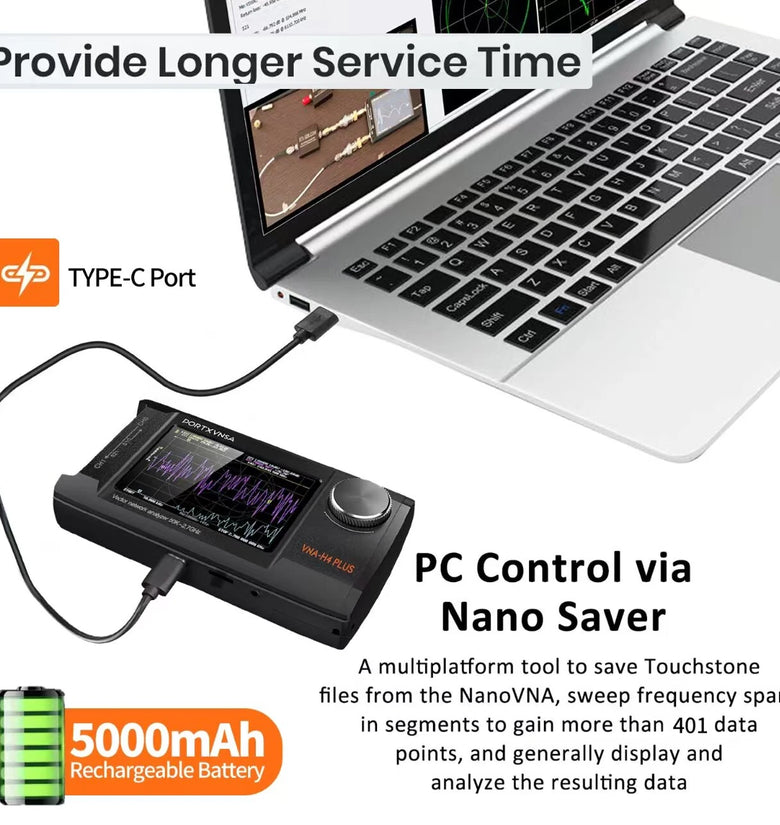

5. Large capacity built-in 5000mAh battery for longer battery life.
6. 4-inch IPS LCD display, IPS has wide viewing angle, accurate color reproduction, high contrast and uniform brightness.

Package Include:
1x NanoVNA-H4 PLUS host
1x USB type-c cable
2x 15 cm SMA male to male TG316 RF cables
1x SMA male calibration kit OPEN
1x SMA male calibration kit short
1x SMA male calibration kit LOAD
1x SMA female to female connector
1x Type-c to Type-c cable
1x Stylus pick
1x 32G memory card (Optional)
