Description:

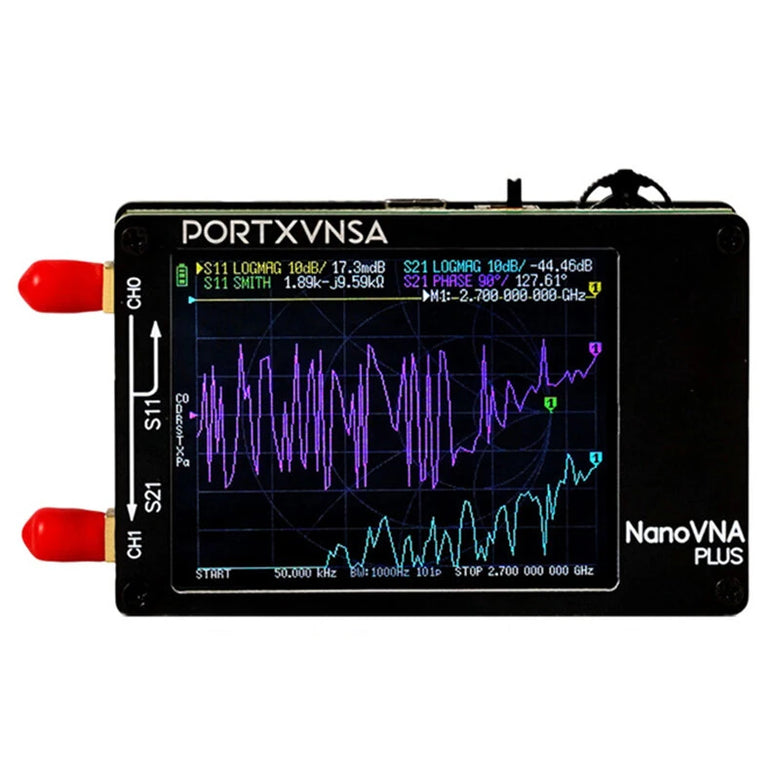

NanoVNA Plus is a portable handheld vector network analyzer (VNA) designed to measure reflection and transmission coefficients. Originally designed by edv555. After several upgrades, NanoVNA Plus is the highest performance version at present, with the measurement frequency range upgraded to 50KHz-2.7GHz, and the performance is better than the previous 1.5GHZ old version

Specifications:
Bandwidth: 50KHz-2.7GHz
Dynamic range: 80dB (50KHz-900MHz) 60dB (900MHz-1.5GHz) 50dB (1.5GHz-2.7GHz)
Reflection coefficient: SWR : <1.1
Frequency accuracy: <0.5 ppm
Frequency stability: <2.5 ppm
Scan points: 101

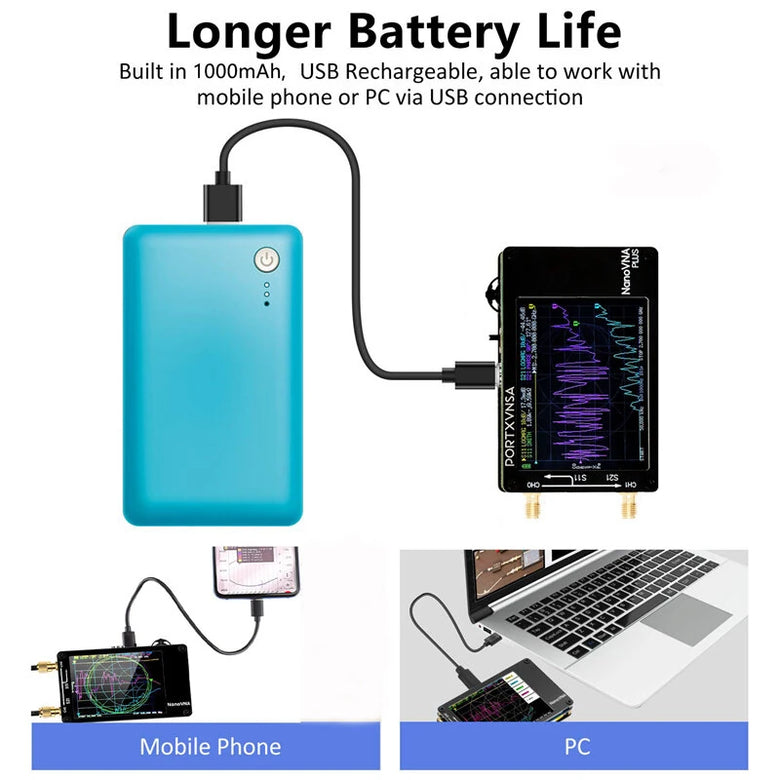

Built-in battery capacity: 1000mAh
MicroSD supports up to 32GB, and only supports SPI mode.
Add RTC support;
Change port names to Port1 and Port2
Measure S parameters, VSWR, phase, delay, Smith chart, etc.;

Package Include:
1x NanoVNA host (with 2.8-inch touch screen, 1000mAh battery)
2x 20cm SMA male to male RG174 RF cable
1x Type-C to Type-C cable
1x USB Type-C data cable *1
1x Instruction manual
1x Touch pen
1x Pick

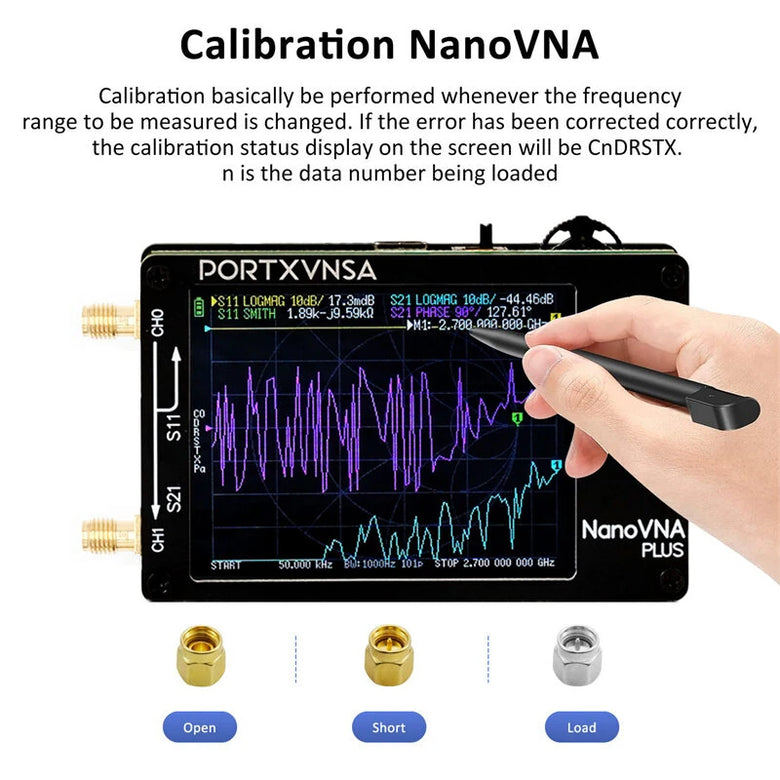

1x SMA simple calibration kit LOAD
1x SMA simple calibration kit OPEN
1x SMA simple calibration kit SHORT
1x SMA female to female connector
