Specifications:

Model: HHJ60-PRO

Solar Input Parameters:

Max. Solar Array Open-Circuit Voltage: 160V

Maximum Input Power:

12V System: 720W

24V System: 1440W

36V System: 2100W

48V System: 2800W

Input Voltage Range:

12V System: (20V-80V)

24V System: (30V-150V)

36V System: (50V-160V)

48V System: (72V-160V)

Battery Charging Parameters:

Charging Technology: MPPT

Charging Algorithm: 3 stages

Battery Voltage Auto-Detection:

12V System: (DC9V-DC15V)

24V System: (DC18V-DC31V)

36V System: (DC30V-DC39V)

48V System: (DC40V-DC60V)

Overcharge Protection Voltage: 60V

Charging Limit Current: 60A

Maximum Efficiency: 98.1%

Solar Utilization Rate: ≥99%

Load Terminal Output:

Rated Output Current: 6A

Maximum DC Output Current: 8A

Protection:

Temperature Protection: 75°C/167°F

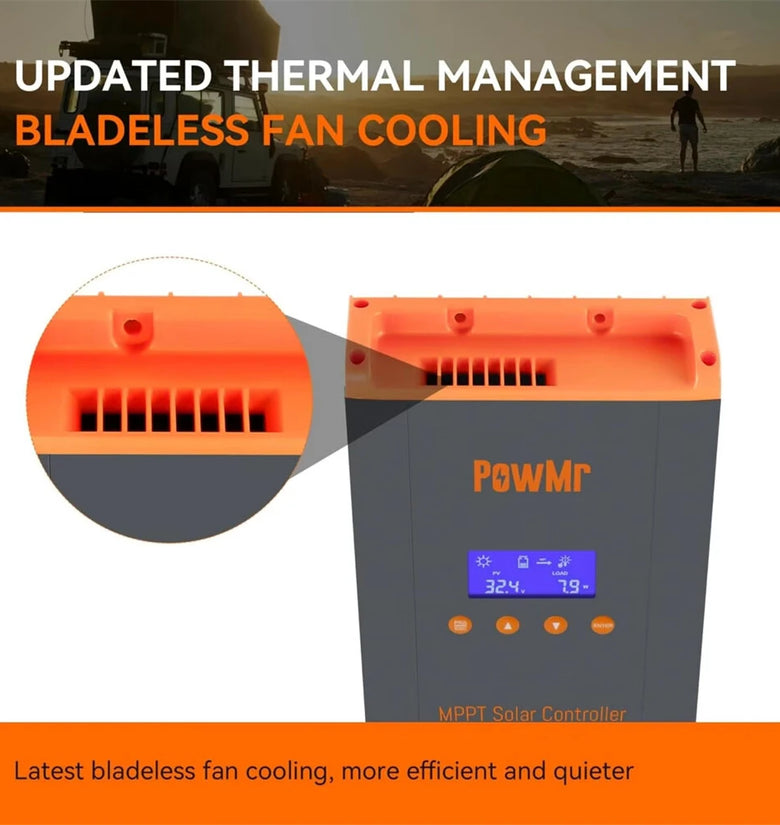

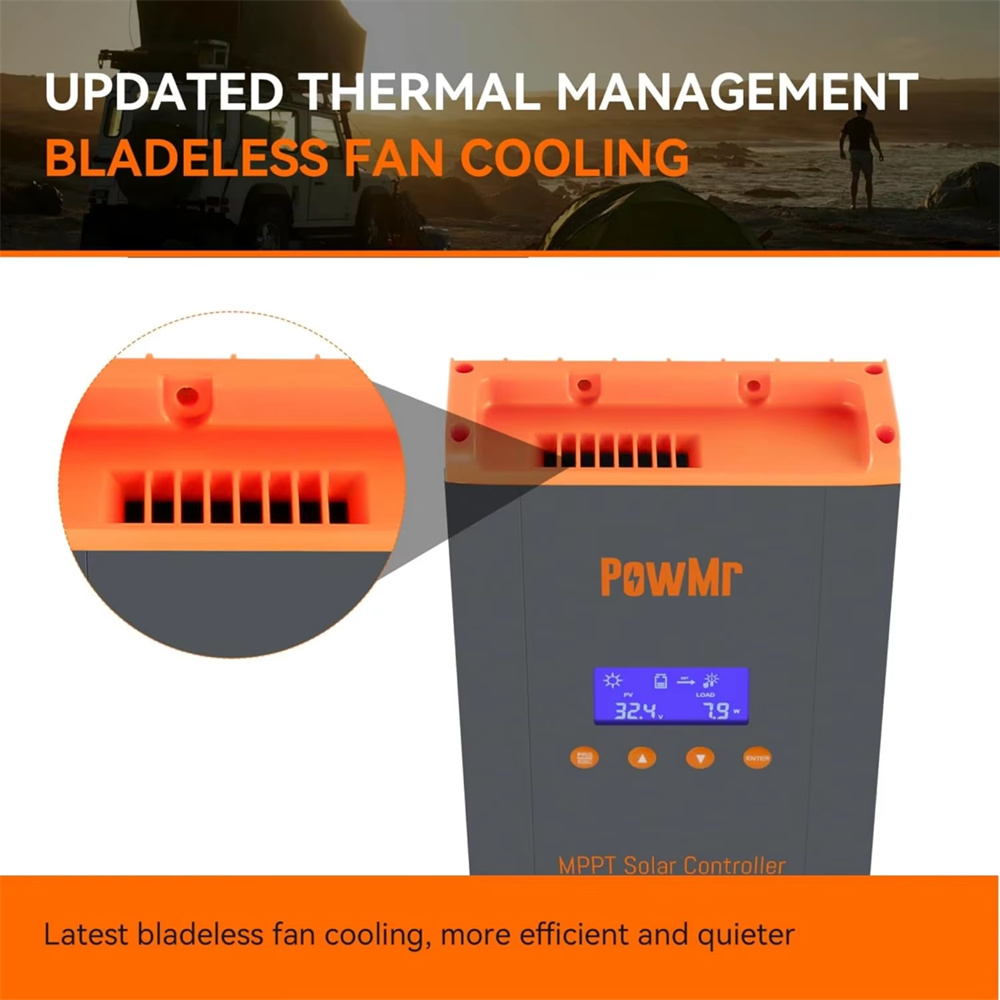

Fan Start Temperature: 45°C/113°F

Fan Shutdown Temperature: <40°C/95°F

General Specification:

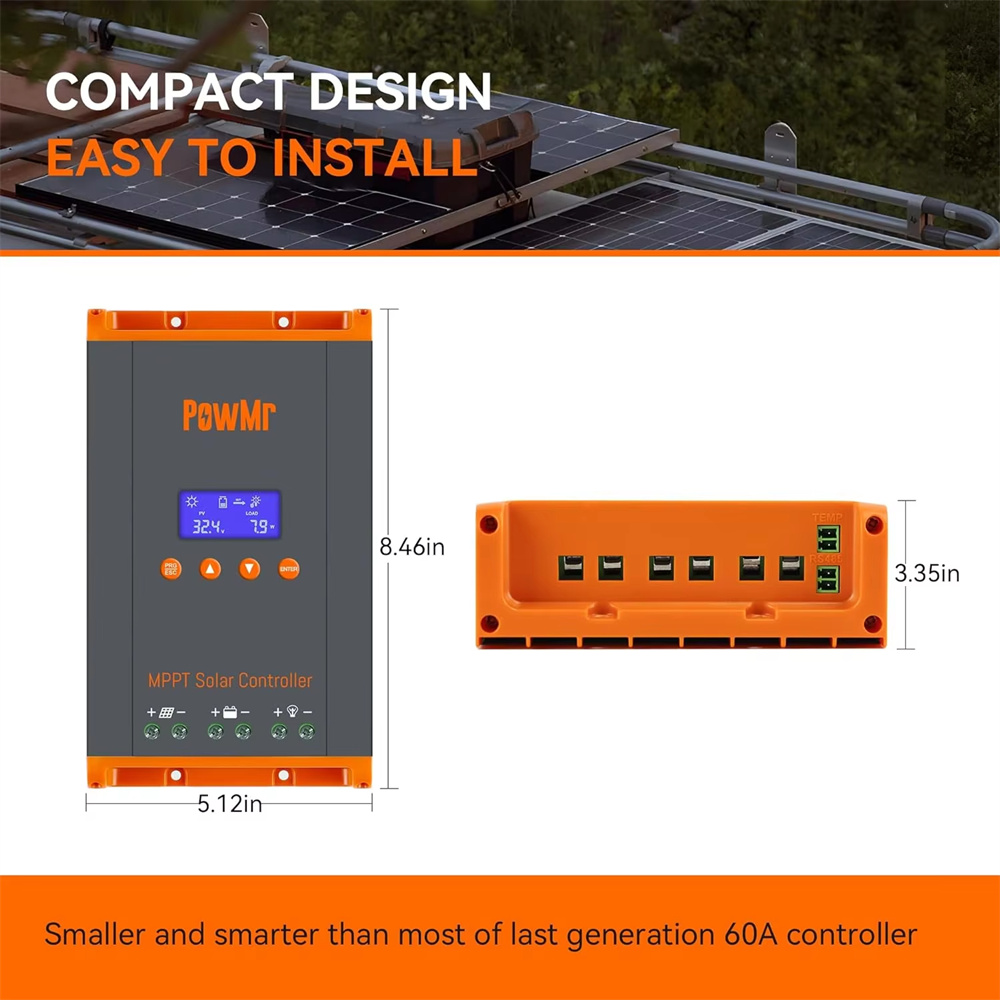

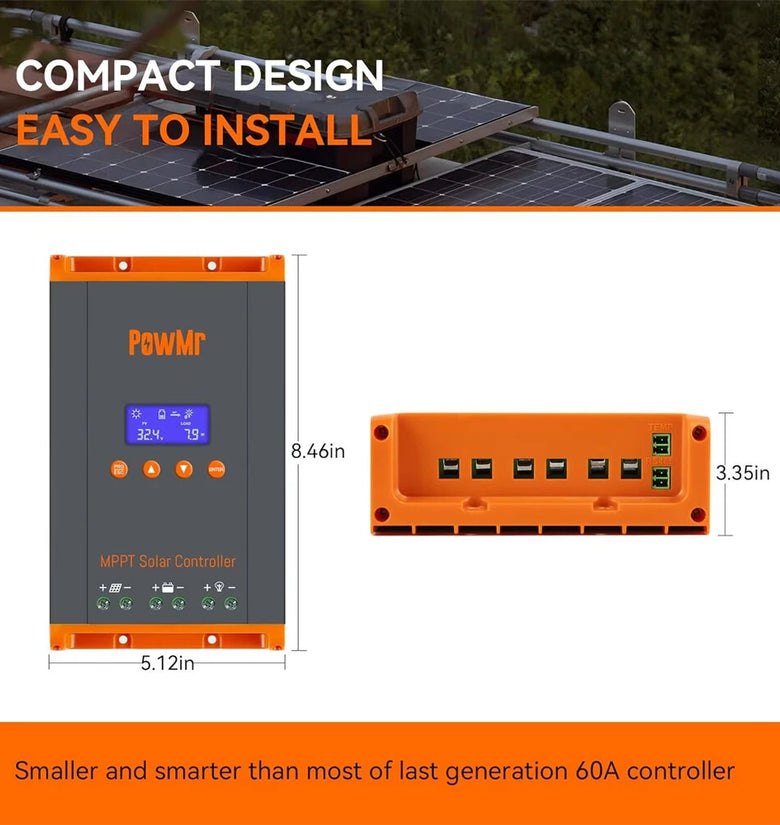

Dimensions: 215 x 190 x 86 mm / 8.46 x 7.48 x 3.35 in

Net Weight: 989g / 2.18lb

Electromagnetic Compatibility: EN61000, EN55022, EN55024

Protection Level: IP21

Operating Temperature: -20°C ~ +75°C / -4°F ~ +131°F

Storage Temperature: -40°C ~ +75°C / -40°F ~ +167°F

Features:

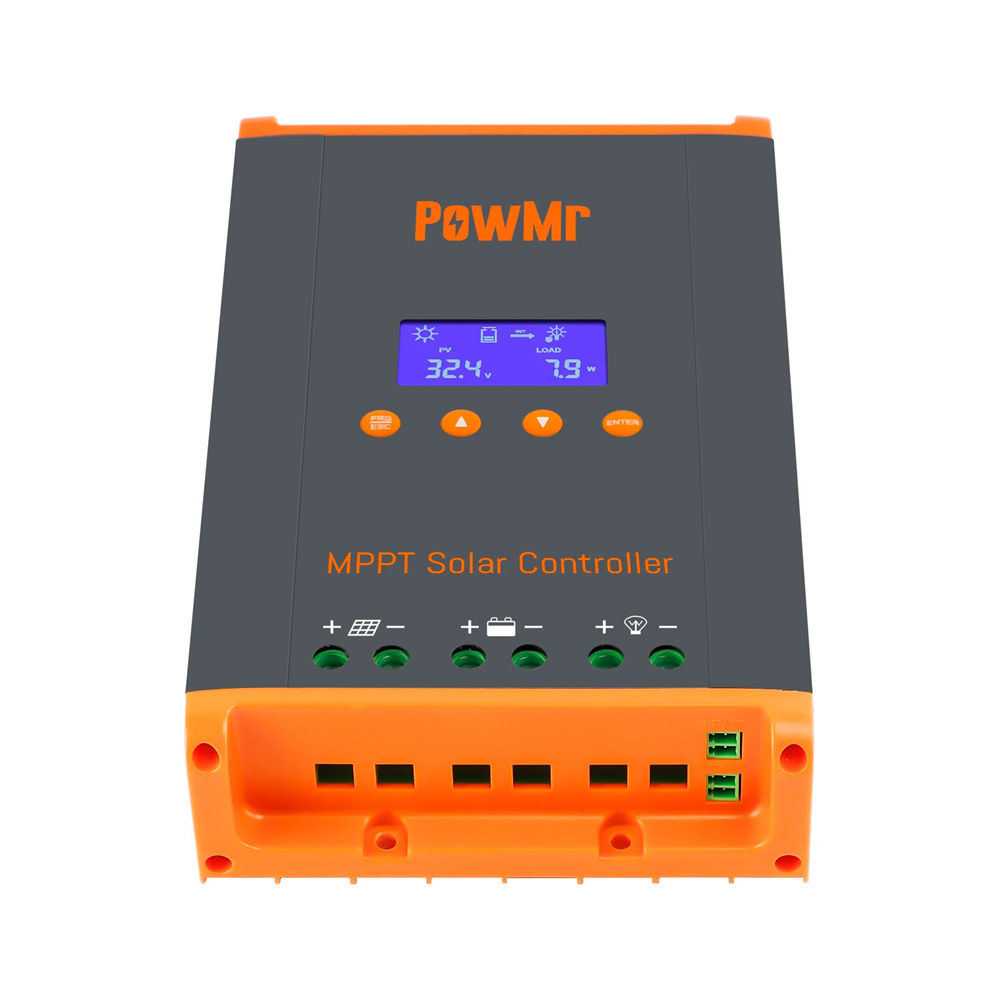

1. Advanced MPPT Technology: The PowMr HHJ60-PRO Solar Charge Controller employs cutting-edge MPPT technology with a tracking efficiency of up to 99.9% and a peak conversion efficiency of up to 97%. This technology ensures optimal power extraction from solar panels, significantly reducing energy loss and improving overall system performance.

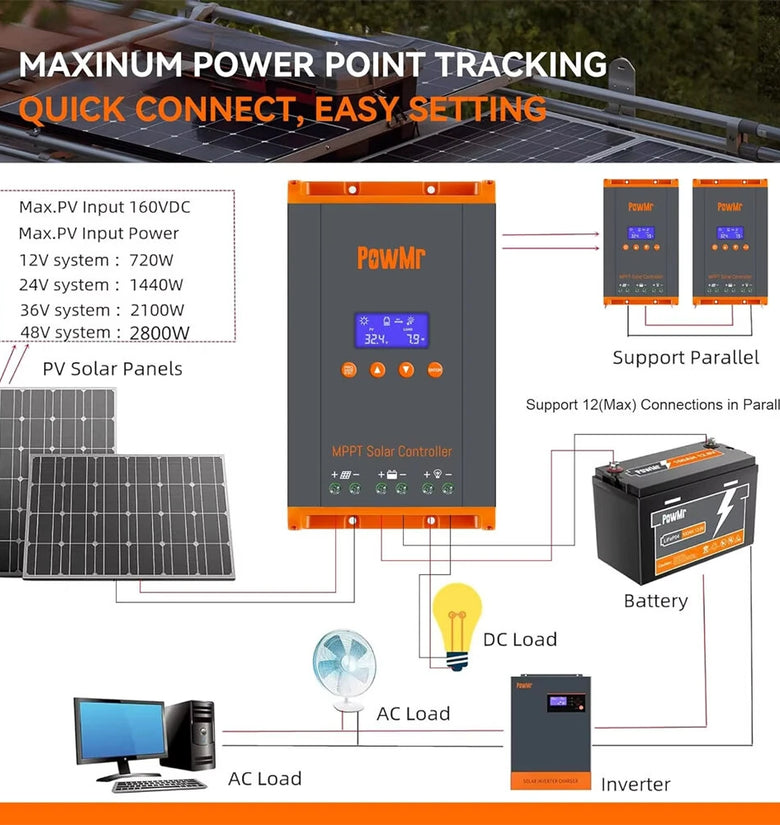

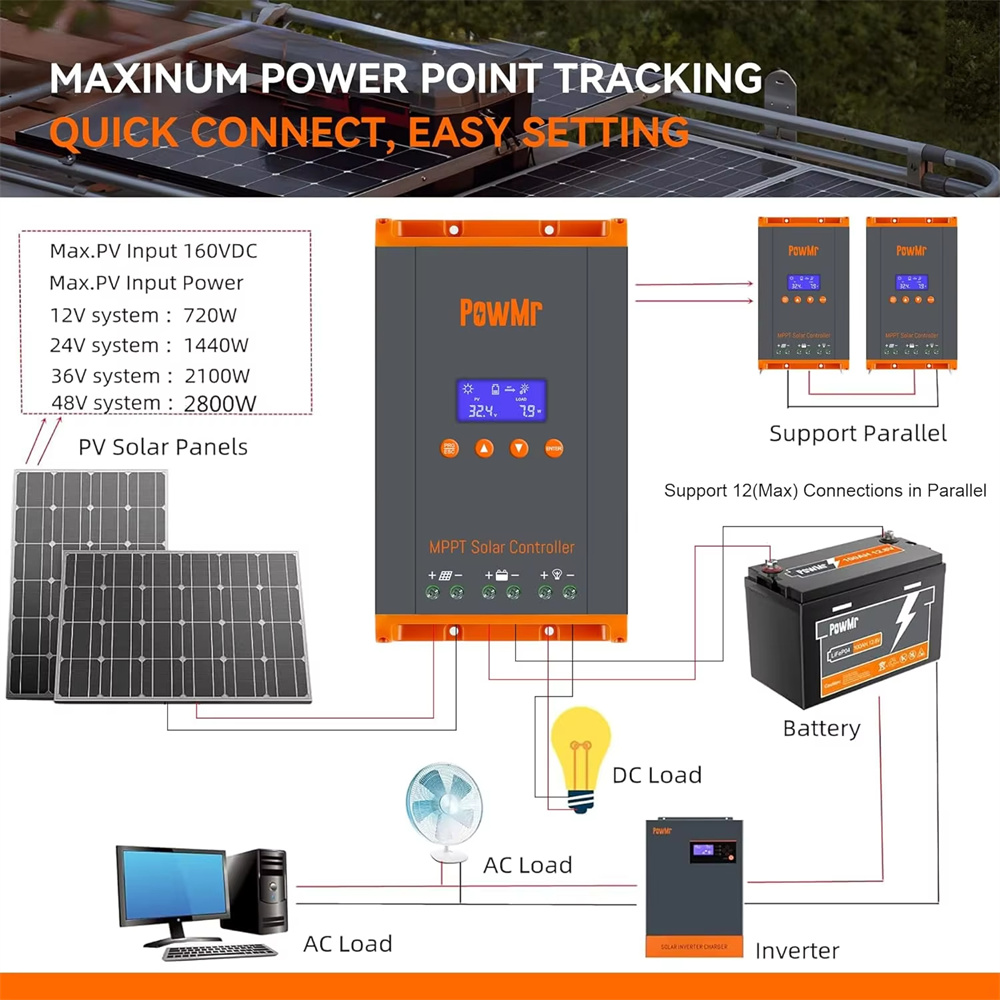

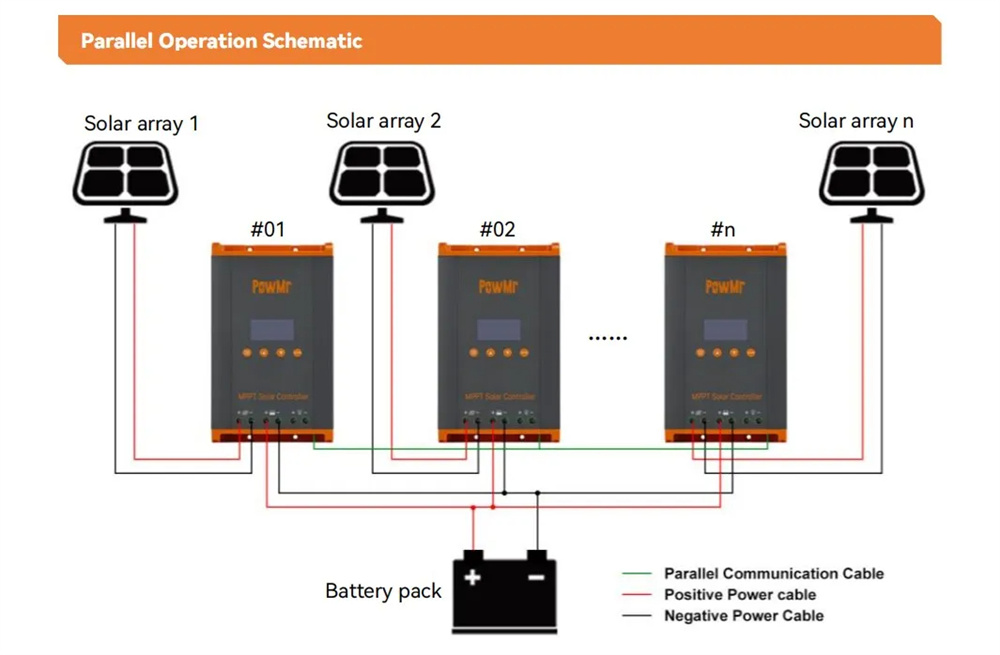

2. Extensive Parallel Operation: This solar charge controller supports up to 12 units connected in parallel, enabling easy expansion of your solar panel configuration and energy storage capacity. This scalable design is perfect for growing renewable energy installations, allowing for greater flexibility and increased energy storage potential.

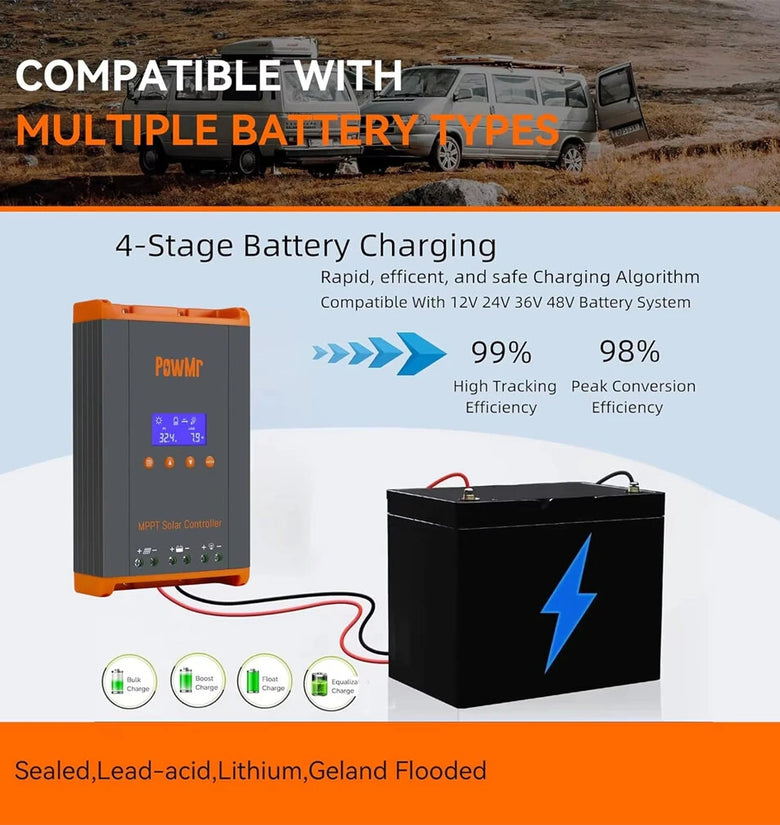

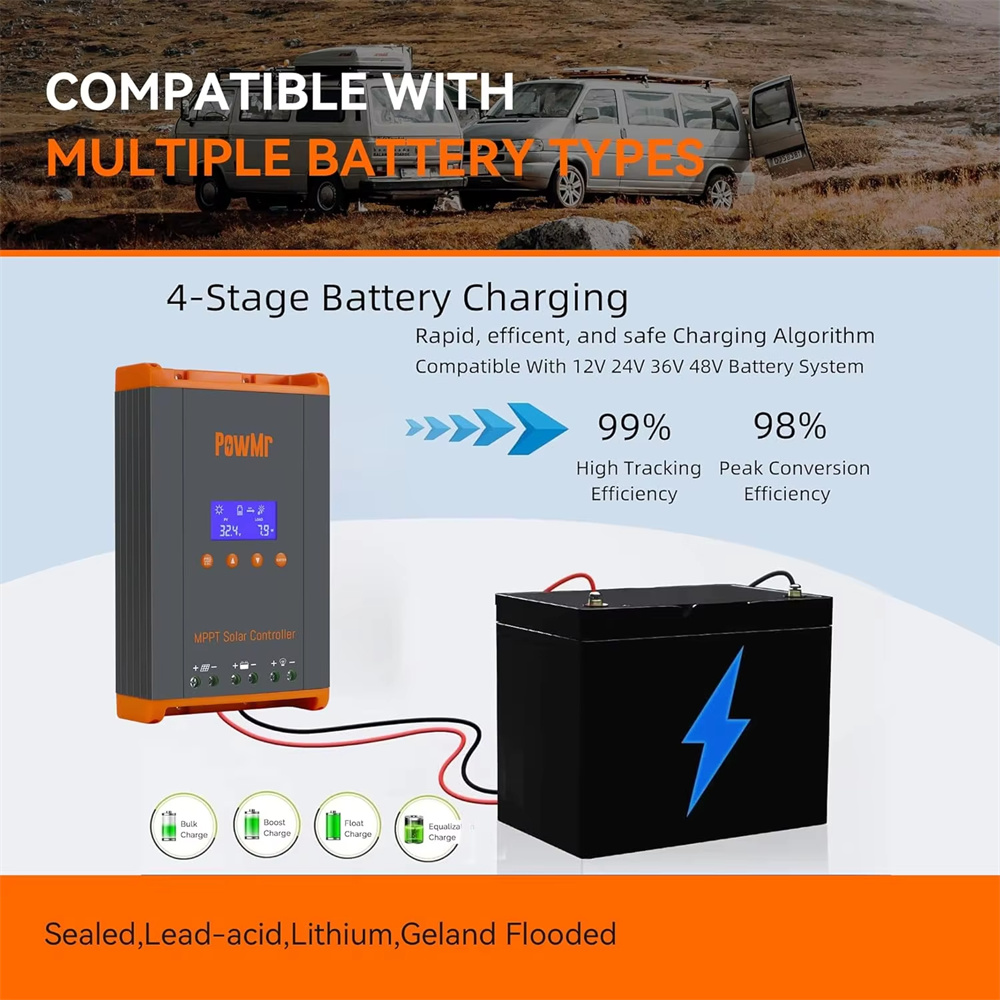

3. Comprehensive Battery Compatibility: The HHJ60-PRO is compatible with a wide range of battery types including User-configurable Lithium, Lifepo4, Li(NiCoMn)O2, Vented, Flooded, Sealed, Gel, and NiCd batteries. This versatility makes it suitable for various energy storage solution, providing reliable charging performance across different battery technologies.

4. Multi-Stage Charging Algorithm: The multi-stage charging algorithm optimizes each charging cycle through precise control of the charging stages. This ensures that the batteries are efficiently charged and maintained, extending their life and preserving their capacity. The stages include bulk charge, boost charge, float charge, and equalization charge.

5. Enhanced Safety Measures: Safety is a priority with integrated temperature protection, fan start and shutdown controls, and overcharge protection voltage. These features help prevent overheating and overcharging, ensuring the sustainable and safe operation of your solar energy system. With IP21 protection level and compliance with EN61000, EN55022, and EN55024 standards, the HHJ60-PRO is built to withstand various environmental conditions.

Package Included:
