Specifications:
Product Model: PT-0008
Product Type: DC Power Filter
Circuit Structure: Three-stage filter circuit
Stage 1: Class I LC filter circuit
Stage 2: Common mode EMI filter
Stage 3: Class II LC filter circuit
Input: DC
Output: DC
Voltage: 63V

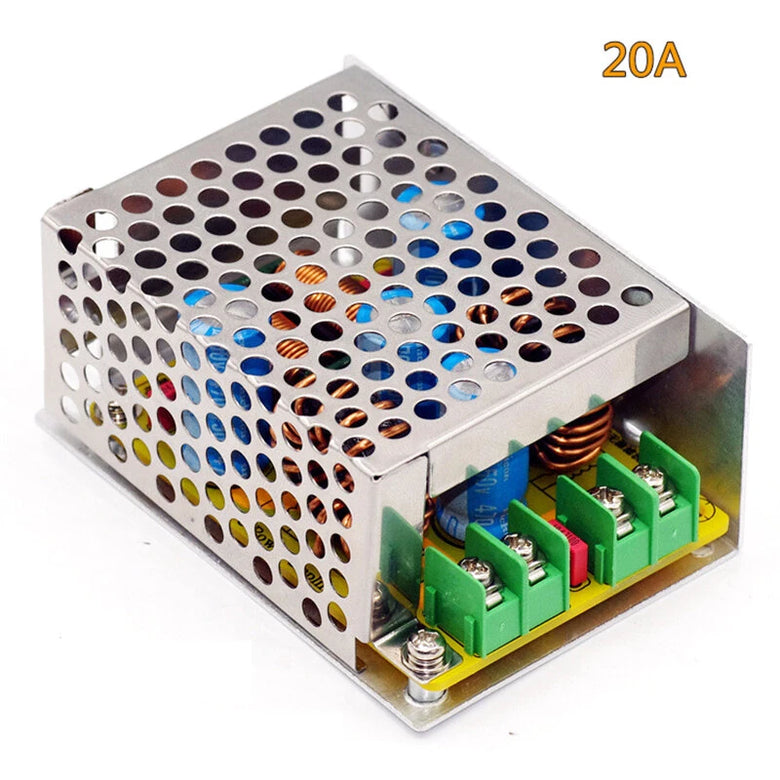

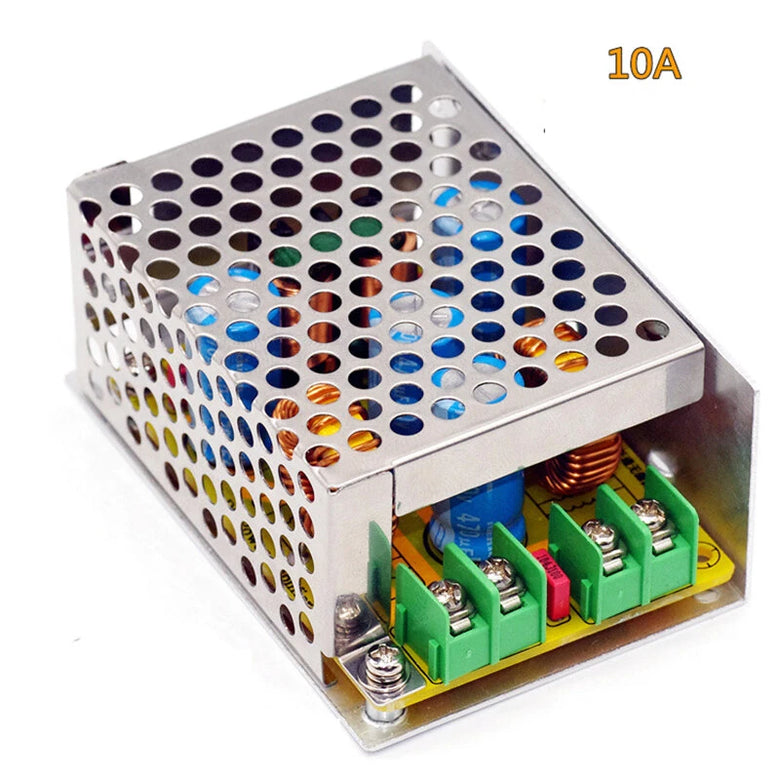

Current: 10A / 20A
PCB: Double-sided FR4 fiberglass board

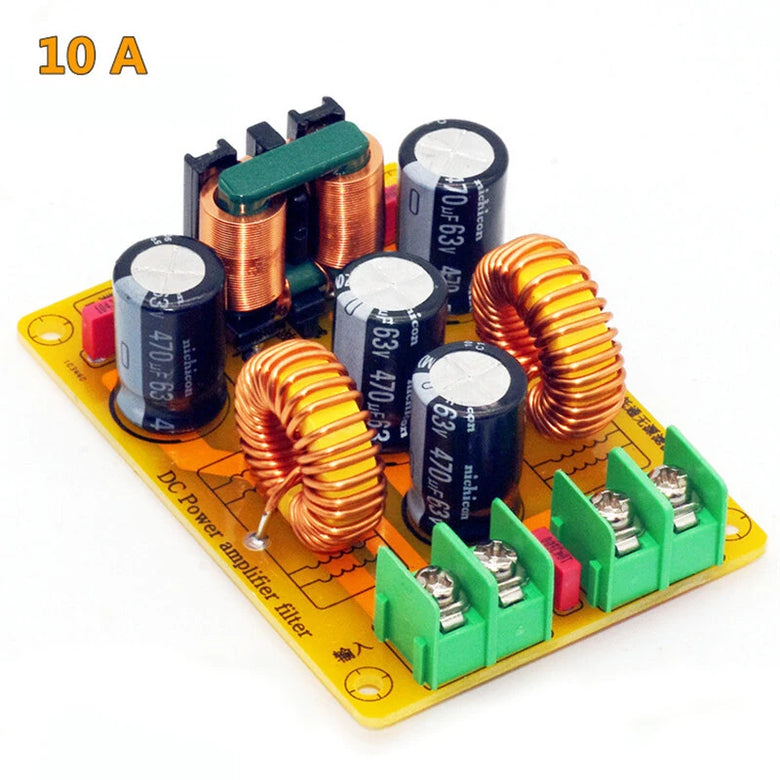

Electrolytic Capacitor: 63V 470UF, diameter 13mm, 4 pcs
Film Capacitor: 100NF, 3 pcs

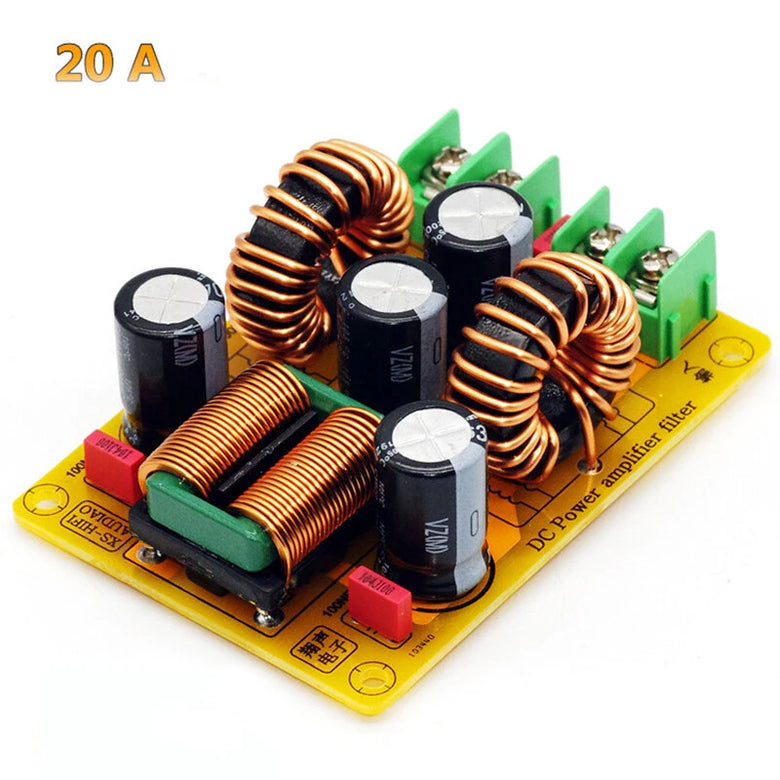

Ferrite Inductor: 2 pcs, 20A version uses iron silicon aluminum
Common Mode Inductor: 1 pc, 20A version uses flat copper strip inductor
Terminal Block: 7.62 terminal, 2PIN, 2 pcs
Features:
1. Three-stage filter circuit design, including Class I LC filter, common mode EMI filter, and Class II LC filter.
2. Helps remove power supply noise and purify DC power supply.
3. Supports single or multiple filtering to reduce harmonics in the power supply.
4. Suitable for suppressing fast pulse interference in complex frequency environments.
5. Can be used for post-output filtering of switching power supplies, automobiles, motorcycles, and DC circuits with strong electromagnetic interference.
Package Included:
1 x DC Power Filter
