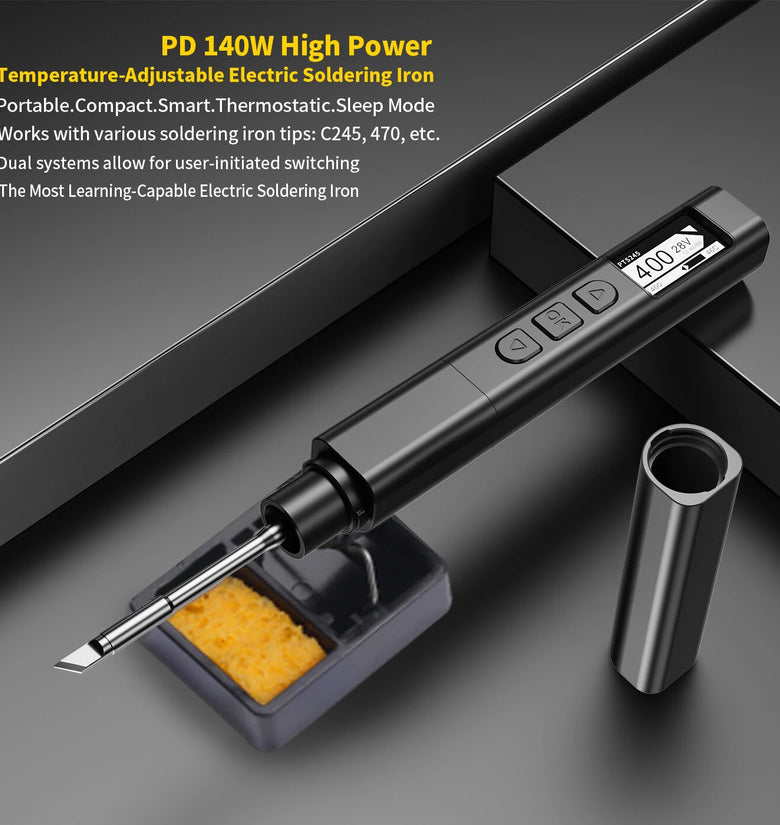

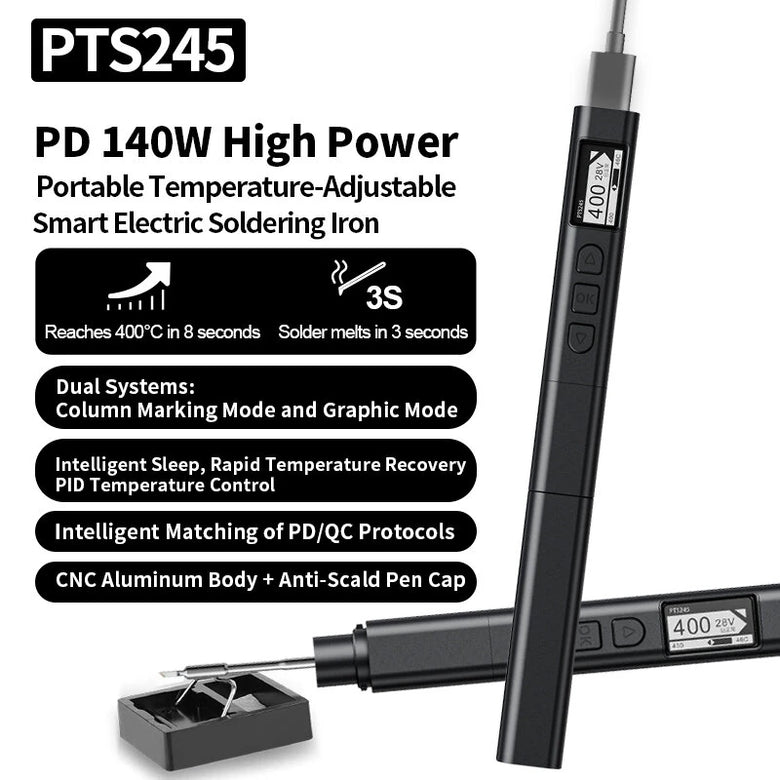

Features:
1. High Power Output: Supports PD 18-140W max power, melts solder in 3 seconds at 28V, extremely high heating efficiency;

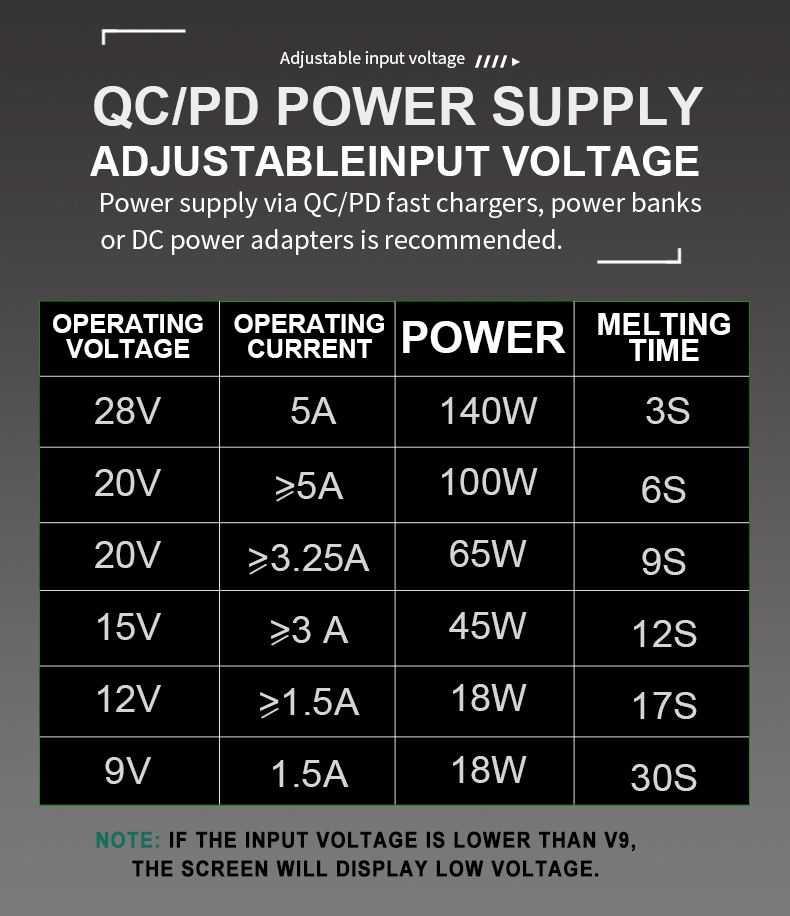

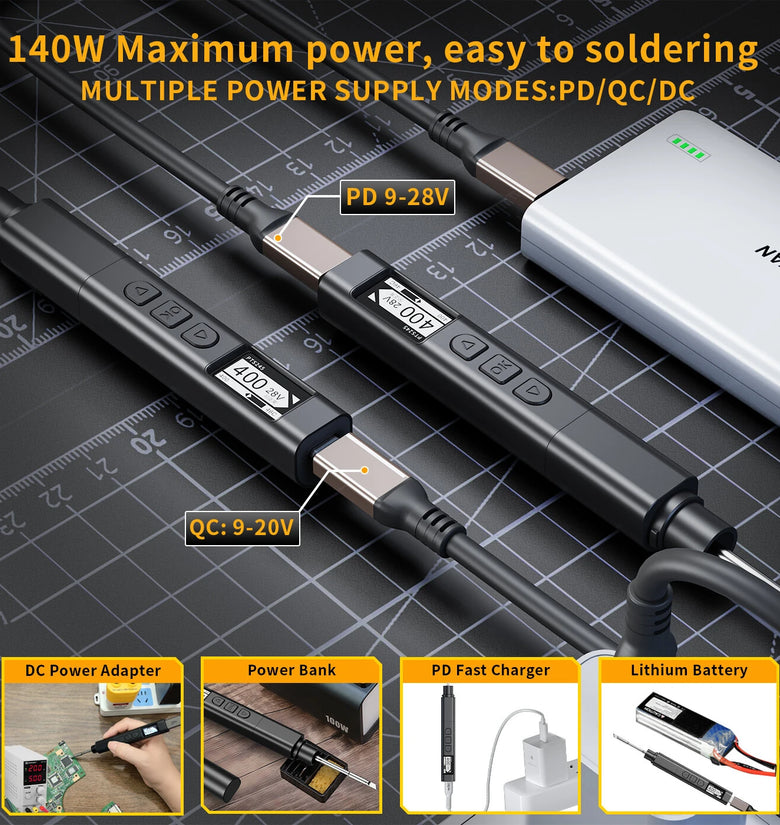

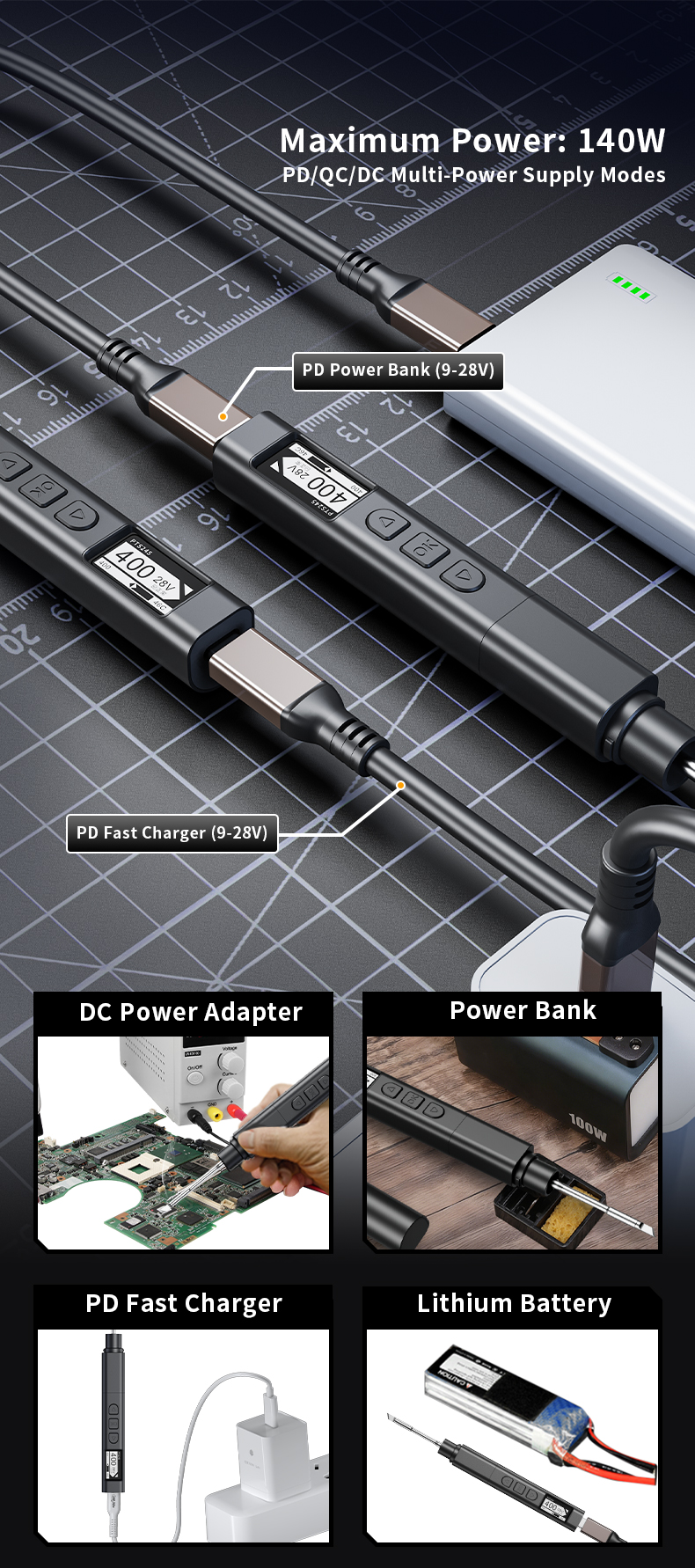

2. Multiple Power Supply Modes: Supports multiple power levels including 9V 2A/12V 3A/15V 3A/20V 3.25A/20V 5A/28V 5A (PD 20V has adaptive power function), voltage can be changed and power limit adjusted from 1% to 100% via menu;
3. Soldering Tip Compatibility: Compatible with JBC245 series soldering irons and C245/470 soldering tips, C245 soldering tips effectively reduce consumable costs;

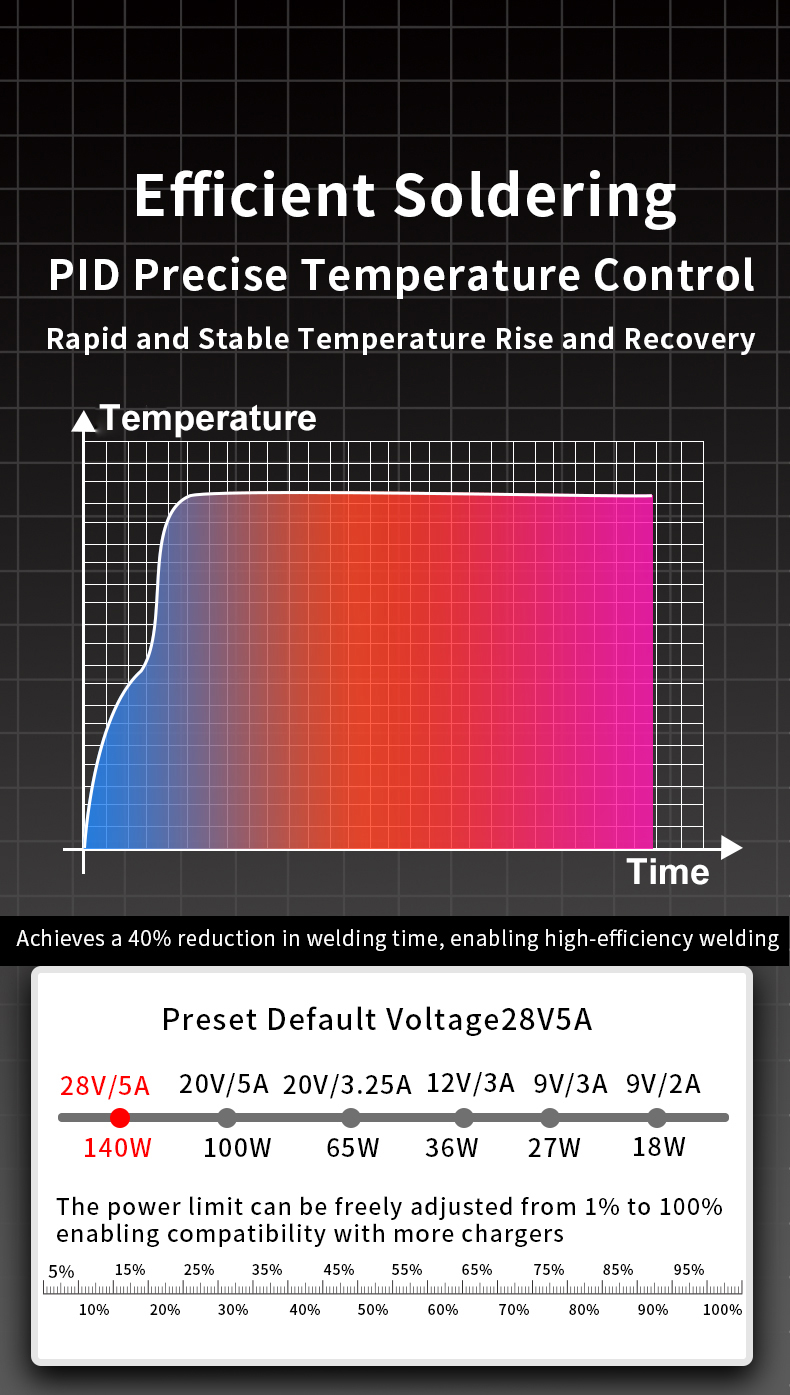

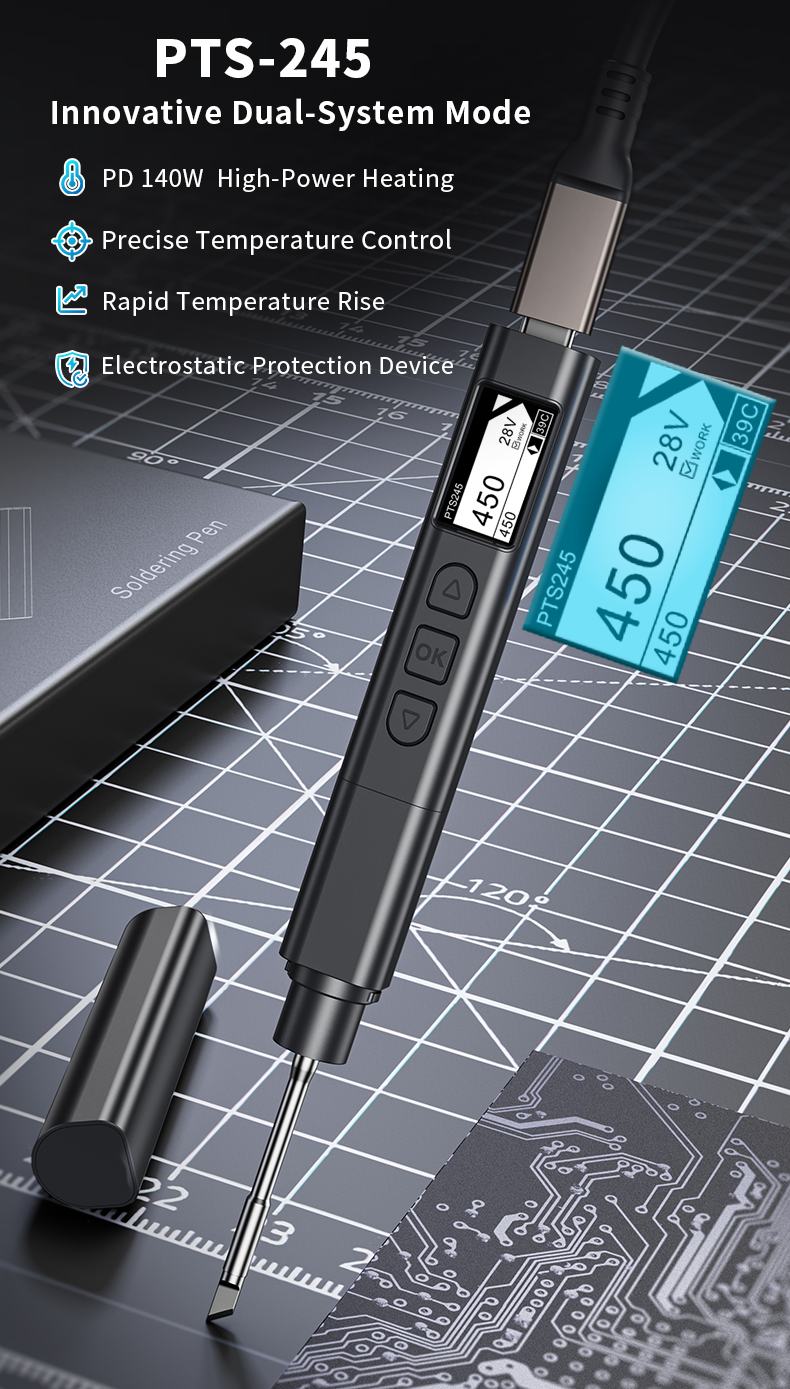

4. Precise Temperature Control: Employs PID temperature control technology, temperature control range 20℃-450℃, supports temperature compensation function;

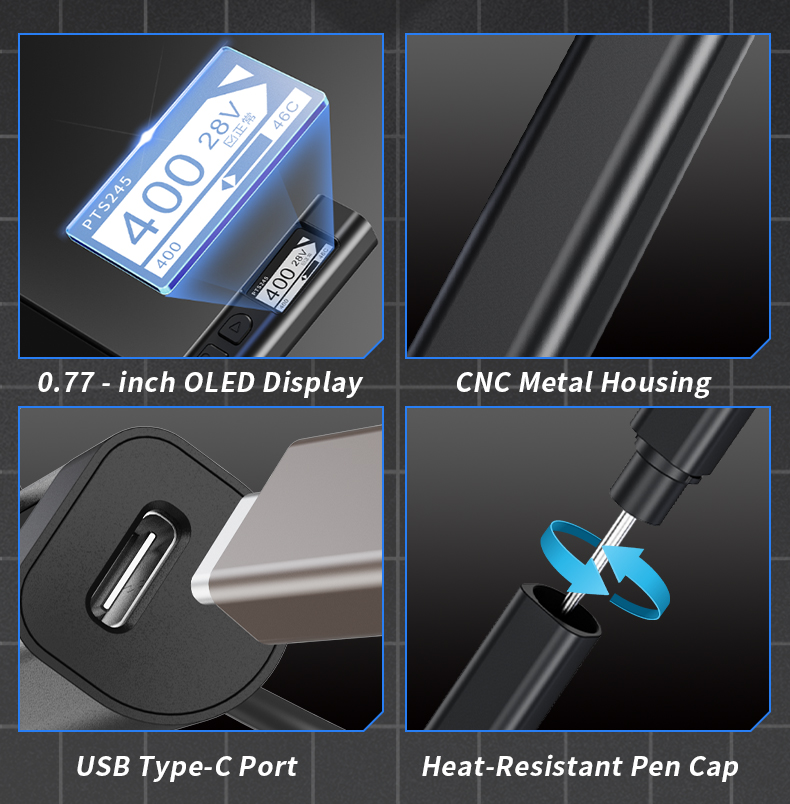

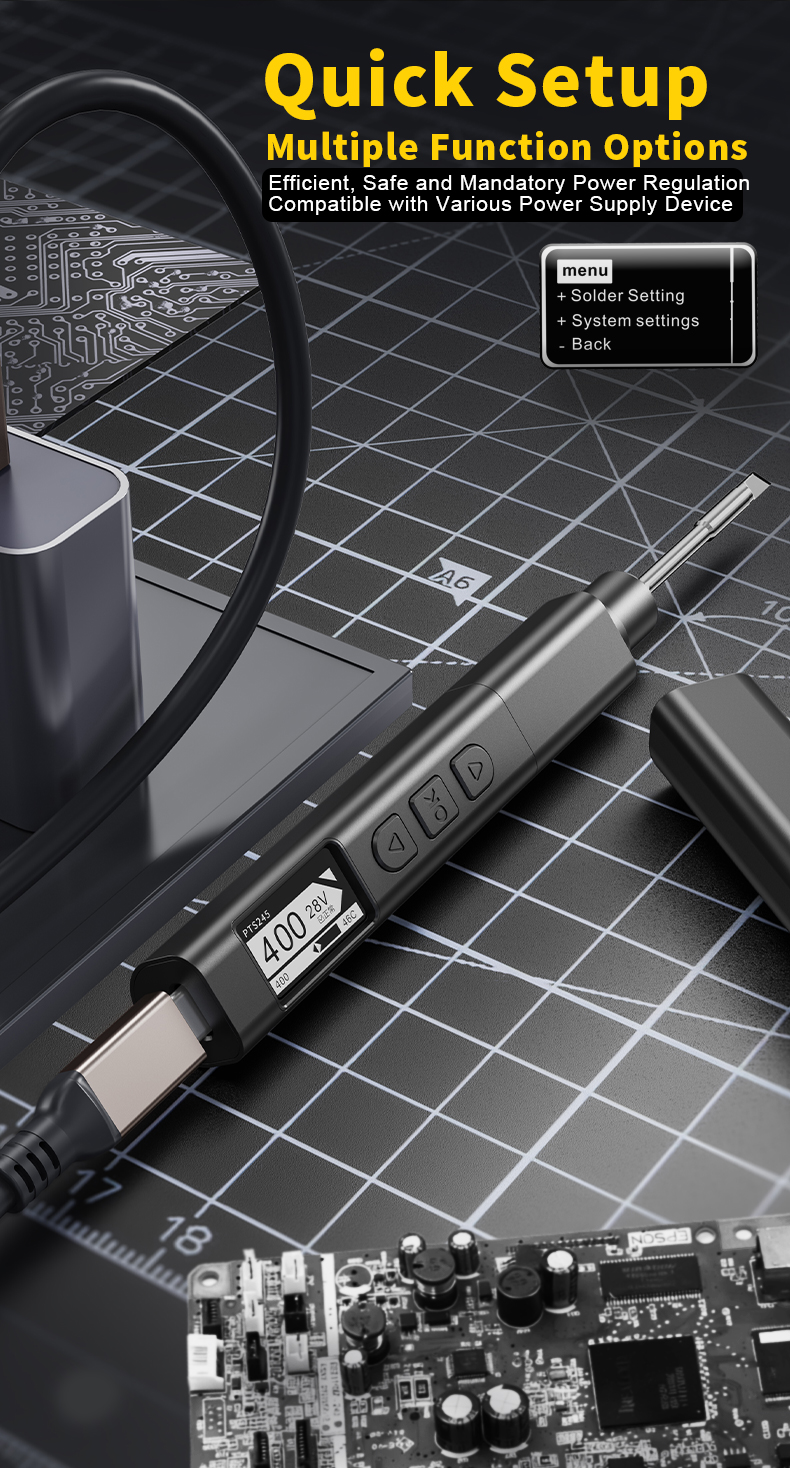

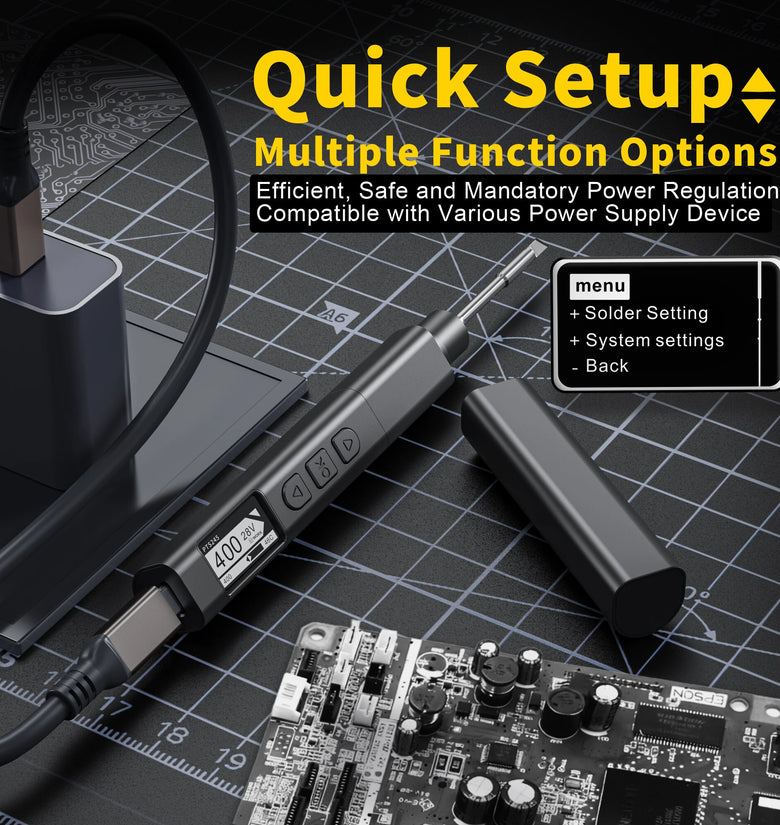

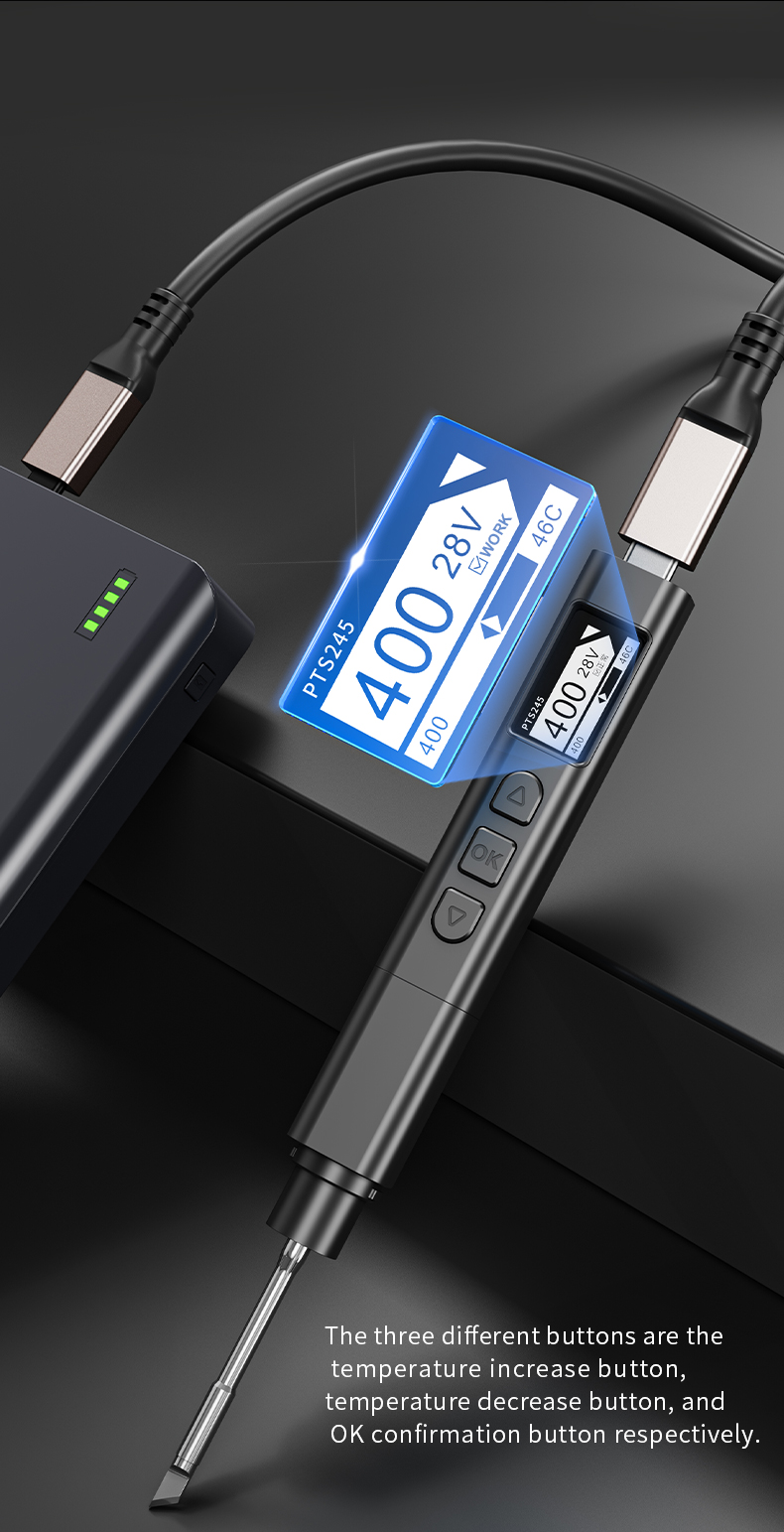

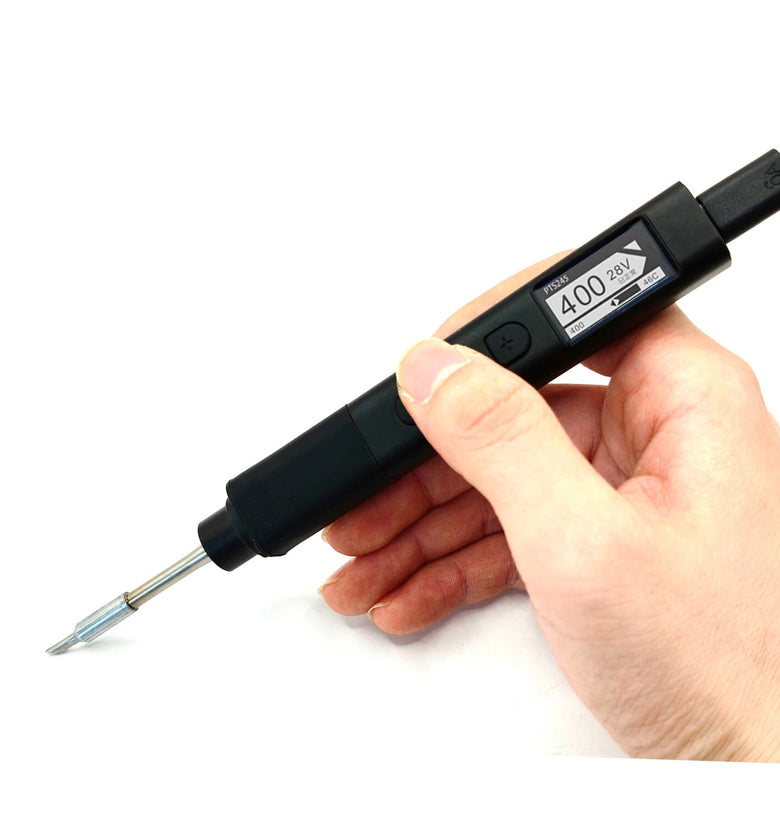

5. Interactive Experience: Equipped with a 0.77-inch OLED screen, suitable for low light/ Clearly displays temperature, voltage, and other information under backlight; supports dual UI switching between list mode and graphical mode;
6. Ergonomic Design: Adopts a U-shaped structure design, metal shell + metal pen cap, weighing only 47g, suitable for outdoor, mobile, and other scenarios;

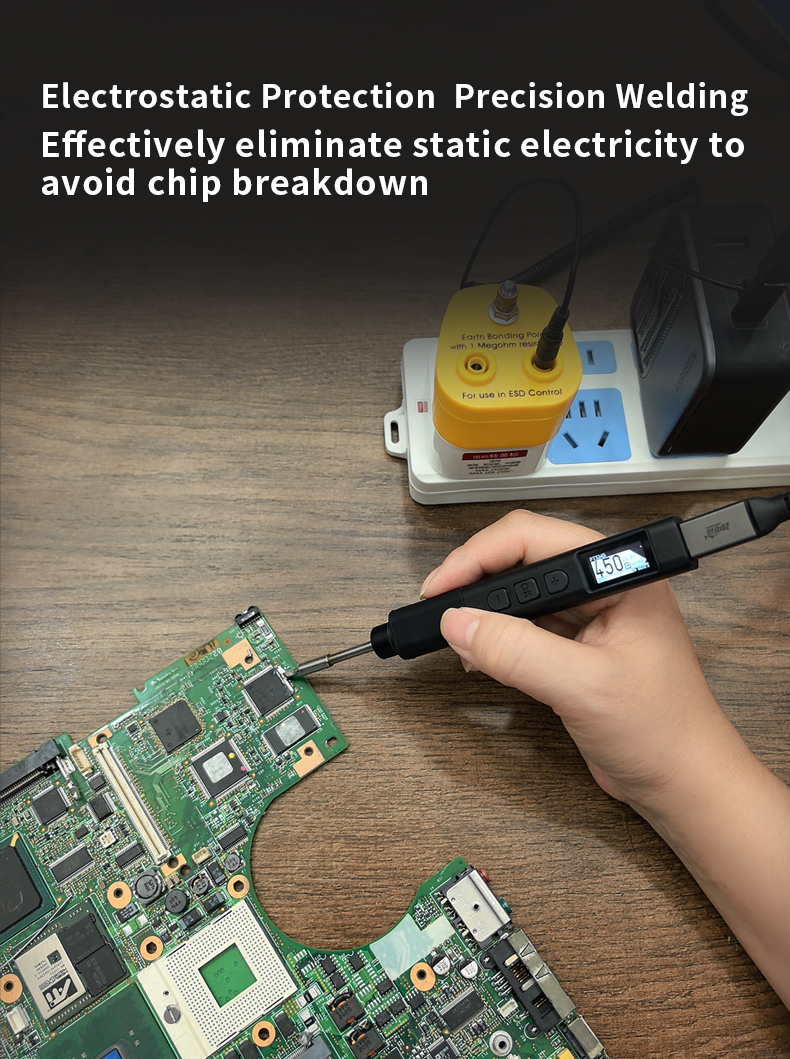

7. Multi-Scenario Adaptability: Supports motherboard soldering, mobile phone repair, home appliance repair, DIY, and other scenarios;

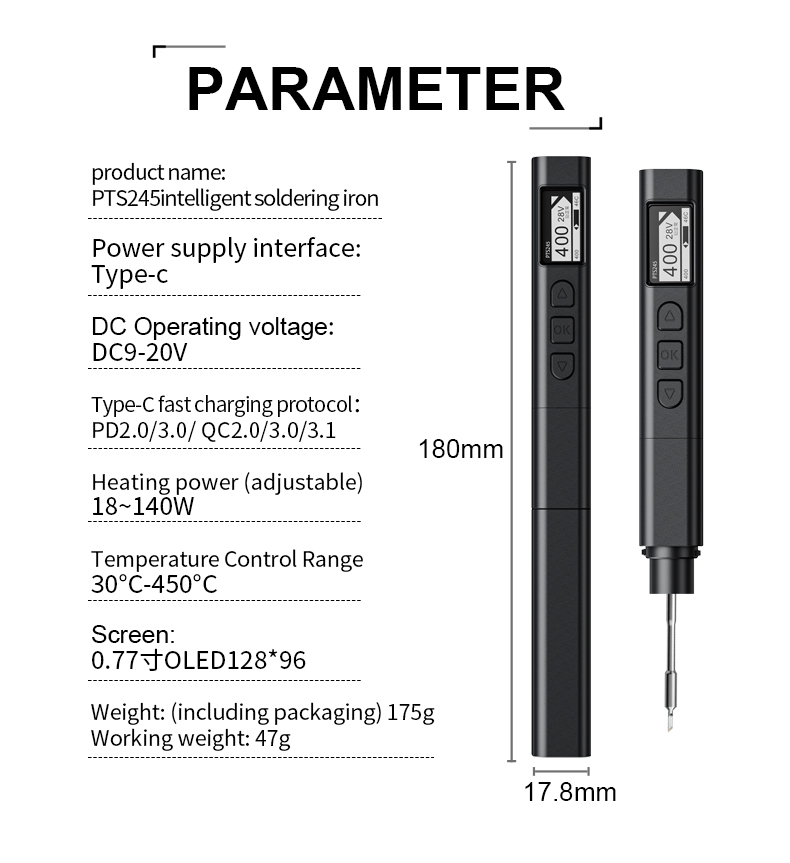

Specification:
Power Interface: Type-C
Supported Power Protocols: PD2.0/3.0/3.1, QC2.0/3.0
Operating Voltage: DC 9-28V
(Software supports independent selection of 9V/12V/15V/20V/28V, factory default is 20V)
Heating Power: PD 18-140W max (adjustable)
Temperature Control Range: 20℃-450℃
Screen: 0.77-inch OLED (128*96 resolution)

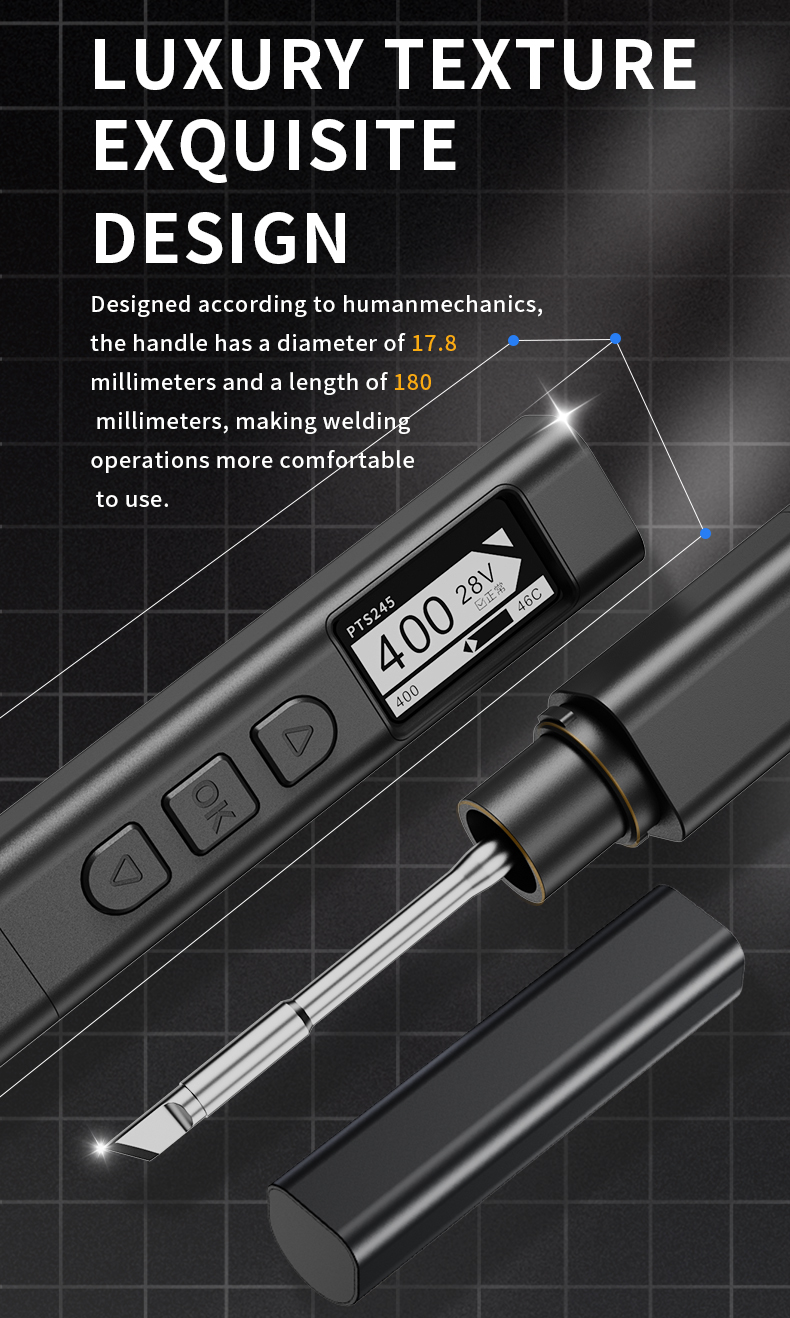

Dimensions: Handle diameter 17.8mm, total length when folded 19cm, 18mm in diameter
Weight: 47g

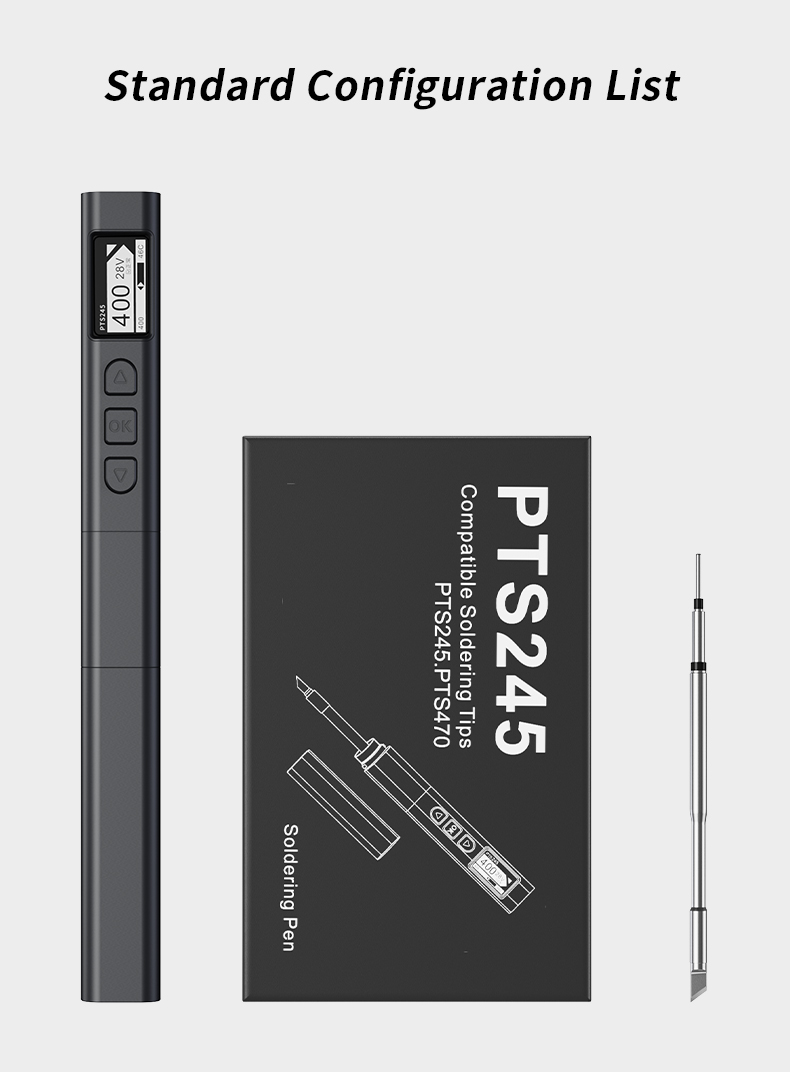

Package Included:
1 x PTS245 soldering iron main unit
1 x KU heating element
