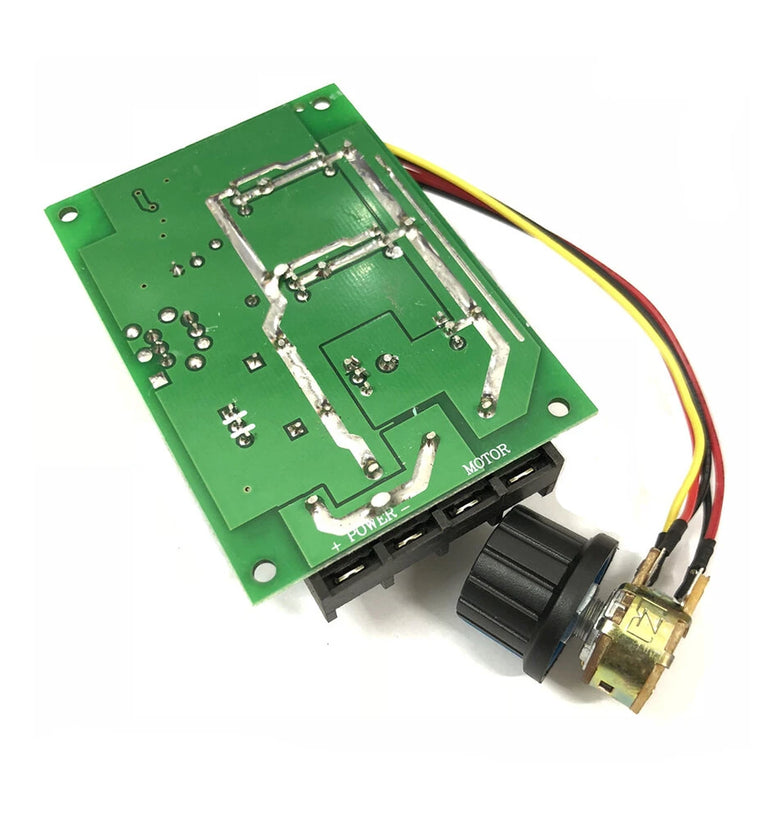

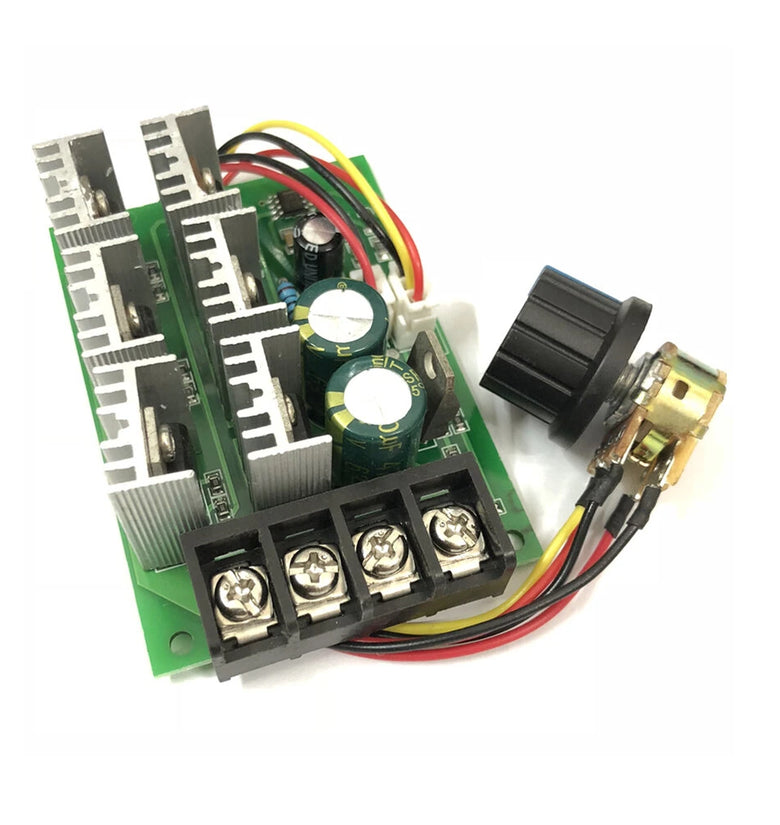

This DC motor governor can linear under load and has a speed regulation duty cycle range of 0-100%.
The control frequency is 25KHZ, and the wiring type is barrier terminal block.
The knob cable length is 20CM.
The product net yield is 135g.
The motherboard according to installation size is 83MM * 56MM * 26MM, and the potentiometer according to installation hole is 7MM.
The package includes 1 x PWM DC Motor Governor.
Notice:
The motor is connected to the motor, and the power is connected to the DC power supply. Note that the positive and negative power supply cannot be reversed. When wiring, pay attention that the wiring head must not touch the heat sink. Better not to wire
Technical indicators:
Input voltage: DC9-55V
Output Voltage: Linear under load
Output limit current: 40A (20A for long-term use, pay attention to keep the module unobstructed for heat dissipation)
Limit power: 2000W
Speed regulation type: flow regulation
Speed regulation mode: potentiometer (linear) with switch
Speed regulation duty cycle range: 0-100%
Control frequency: 25KHZ
Wiring Type: Barrier Terminal Block
Knob cable length: 20CM
Product Net Yield: 135g
Motherboard according to installation size: length * width 83MM * 56MM * 26MM
Potentiometer according to the installation hole: 7MM
Package includes:
1 x PWM DC Motor Governor
