Specifications:
Power Input: DC 9-26V / 100W
Power Output: Max Current 2.5A; Max Voltage Based on Input Power
VADJ Output: Voltage Range: 1.25-14.5V; Max Current: 1.5A
DMM Functions: Voltage (DC 0-30V), Resistance (DCR 0-1MΩ), Current (DC 0-1.8A), Capacitance (10nF-1000uF)
PWM Signal: Frequency Range: 1-100kHz; Duty Cycle: 0-100%; Voltage Variance: 1.25-14.5V
Drive Output: Max Current: 3A
Stepper Motor Output: Max Current: 1.5A
Operating Temperature Range: 0-55°C
Features:
1. Multifunctional Diagnostic Capability: Combines oscilloscope, multimeter, PWM generator, and stepper motor tester for comprehensive automotive diagnostics.
2. Adjustable Signal Output: Fine-tune frequency (1-100kHz), duty cycle (0-100%), and voltage (1.25V-14.5V) for precise testing.

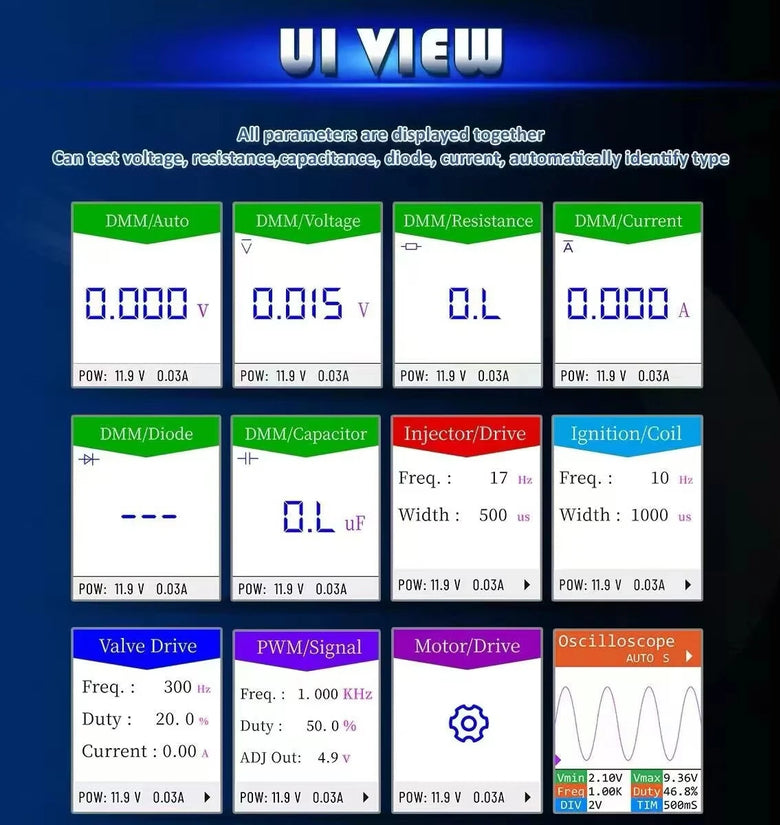

3. User-Friendly Display: Features a high-resolution TFT color screen for waveform visualization and parameter control.
4. Wide Range Compatibility: Supports 12V/24V systems and works with solenoids, injectors, air pressure sensors, and ignition coils.
5. Compact Design: Lightweight and portable, ideal for professional auto repair shops or DIY mechanics.

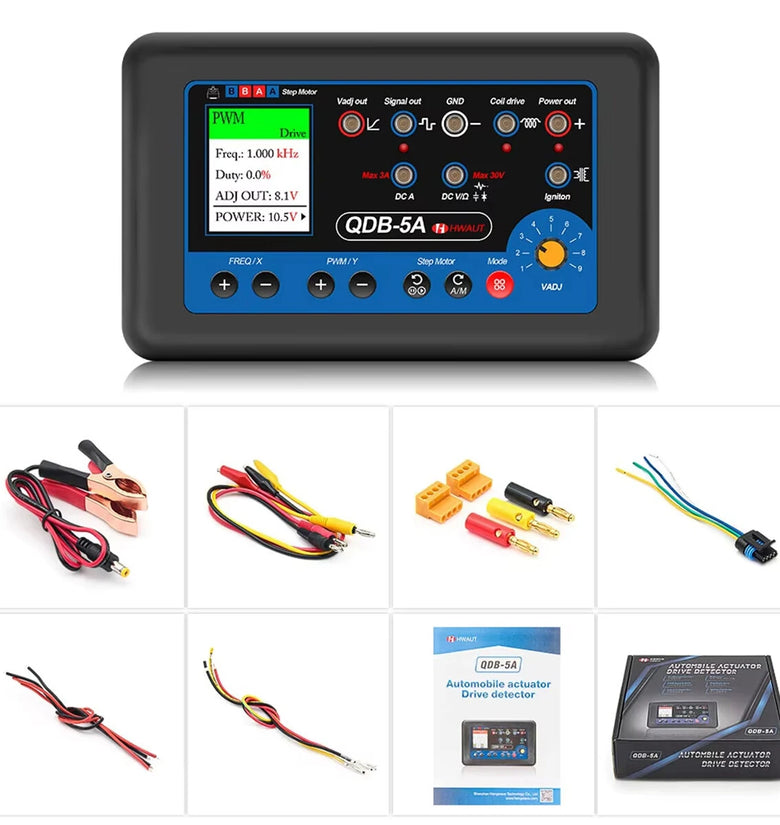

Package Included:
1 x QDB-5A Diagnostic Tool
1 x Power Cable
2 x Test Connection Lines
1 x Stepper Motor Welding Wire
1 x Idle Speed Stepper Motor Plug
1 Set x Single Plugs
