Overview

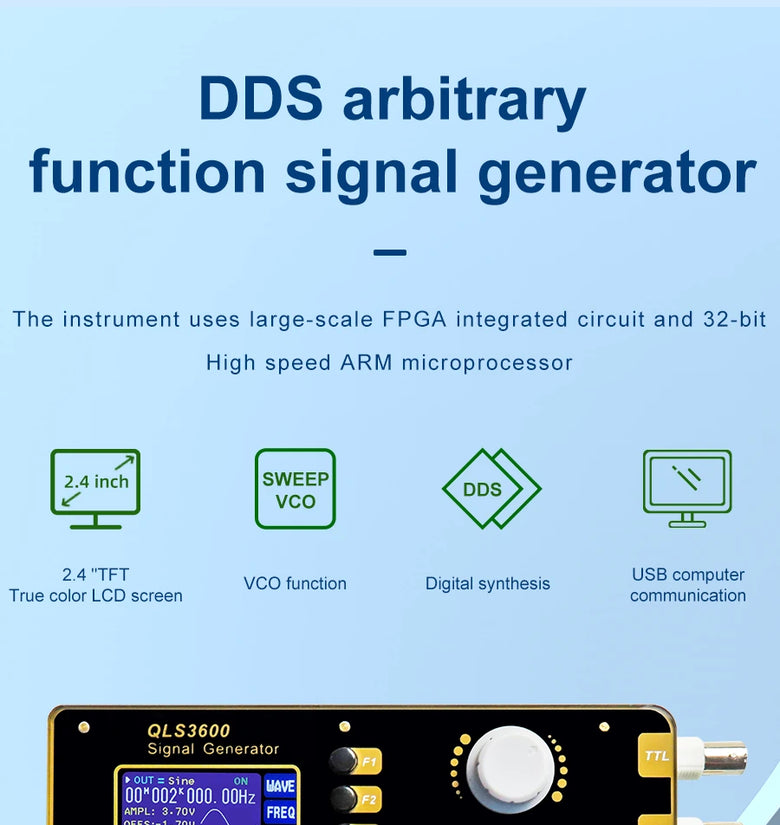

 QLS3600S series instrument utilizes large-scale FPGA integrated circuit

 and 32-bit high-speed ARM microprocessor. the internal circuit adopts surfacemount technology, which greatly enhances the instrument's interferenceresistance and service life. The display interface uses a 2.4-inch TFT LCDscreen with 320*240 high resolution. It can display all channel parameters andprompt current key functions, efficiently utilizing key resources and avoidingfrequent key operations, significantly enhancing operability. This instrumenthas significant advantages in terms of signal generation, waveform scanning,parameter measurement, and usage. It is an ideal test and measurement devicefor electronic engineers, electronic laboratories, production lines, and educationalresearch.

II.Instrument Features

1.Adopts Direct Digital Synthesizer (DDS) technology, FPGA design, ultra-lowpower consumption;

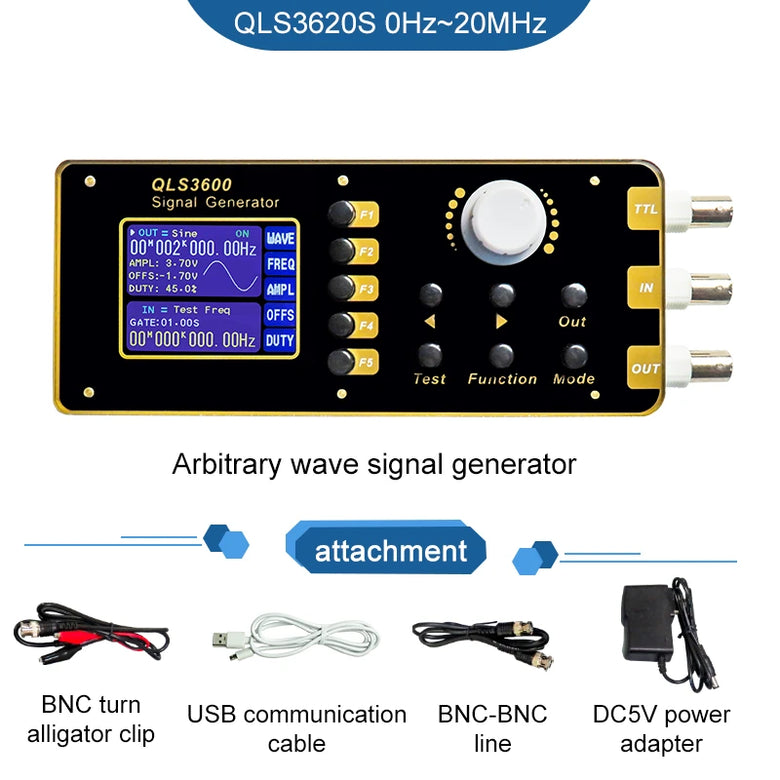

2.Operates with a single DC5V power adapter, convenient for carrying;

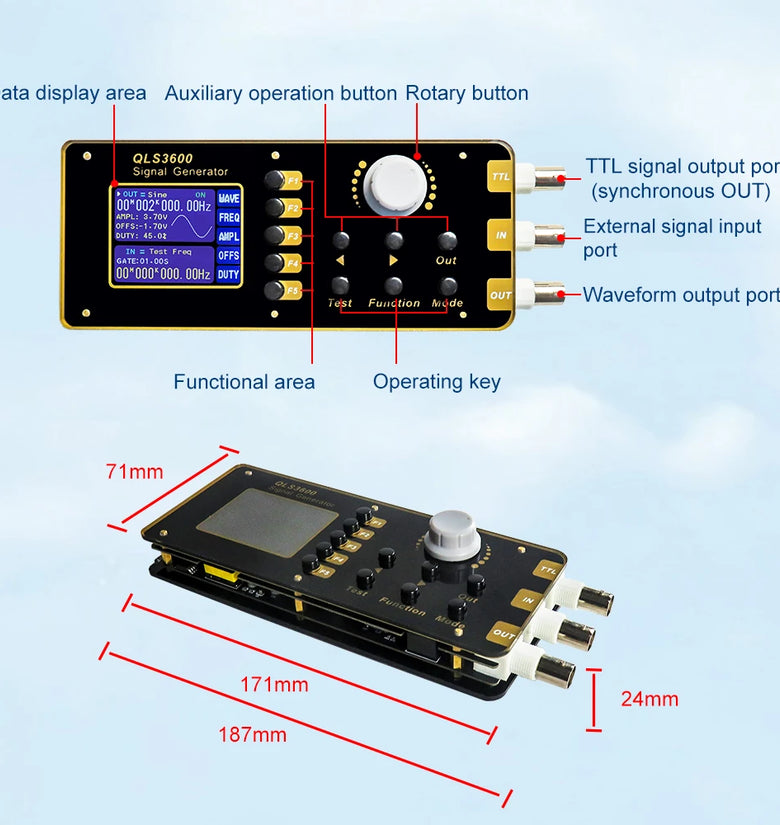

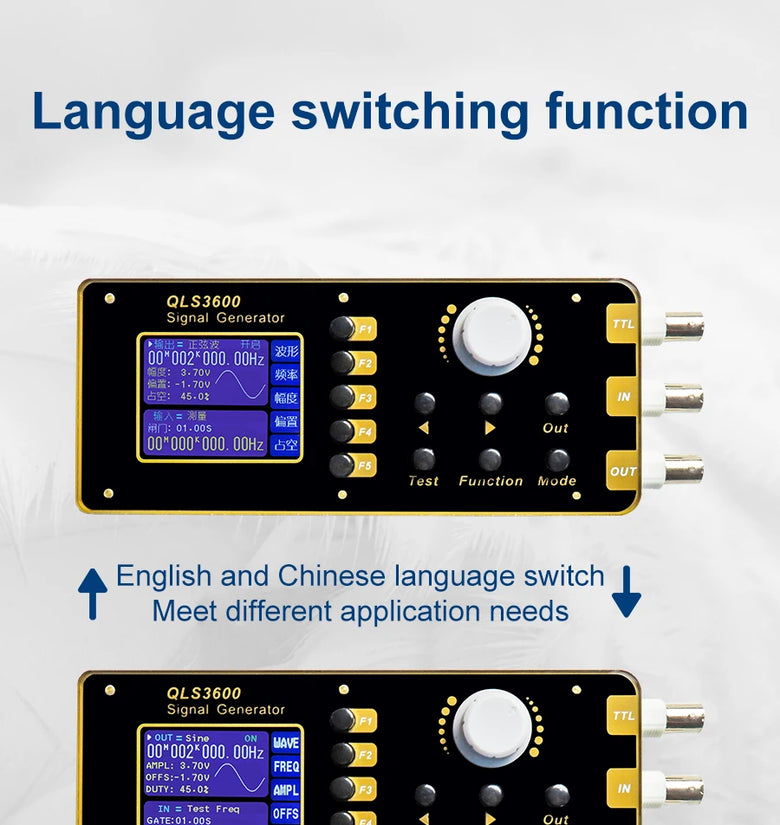

3.Uses 2.4-inch TFT true color LCD screen, combined with variable function keysand rotary encoder, greatly enhances the ease of use of this machine;

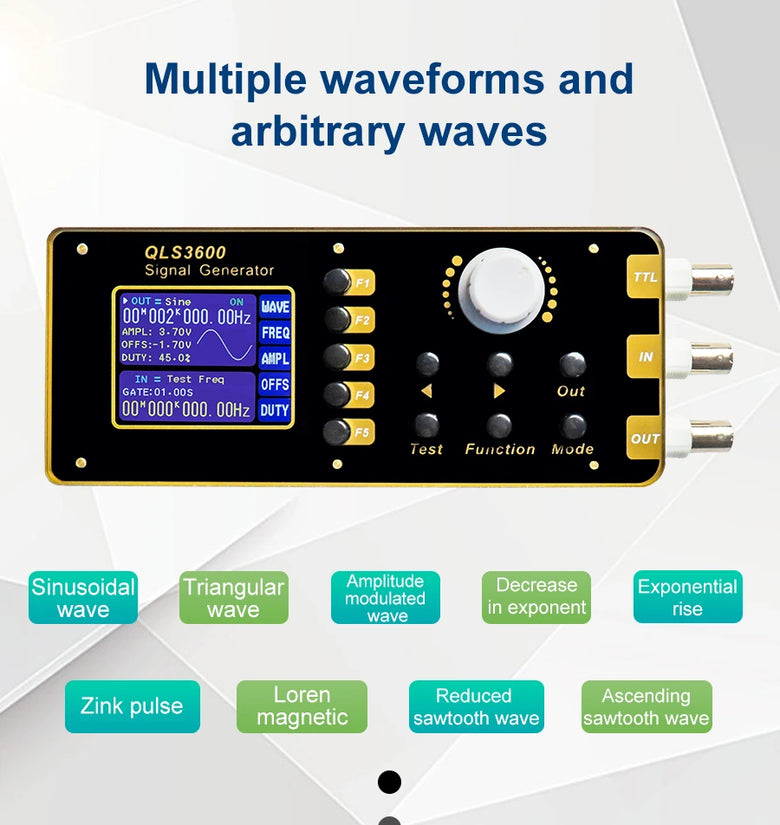

4.Features 18 types of built-in waveforms including sine wave, triangle wave,squar wave, rising sawtooth wave, falling sawtooth wave, Lorentzian, sincpulse, amplitude modulation wave, exponential rise, exponential fall, and 15types of arbitrary waveforms;

5.Minimum output signal frequency can reach 0.01 Hz;

6.There are M0~M15, totaling 15 parameter storage slots, automatically retrievingdata from M1 upon startup;

7 Minimum waveform frequency resolution can reach 0.01 Hz, minimum amplituderesolution can reach 10 mV;

8.Two trigger modes: manual and external, allowing the machine to output anynumber of pulse bursts from 1 to 999999;

9.Pulse wave duty cycle adjustment precise to 0.1%;

11.Frequency scanning with endpoint, frequency measurement, duty cyclemeasurement, pulse width measurement, cycle measurement, and countingfunctions;

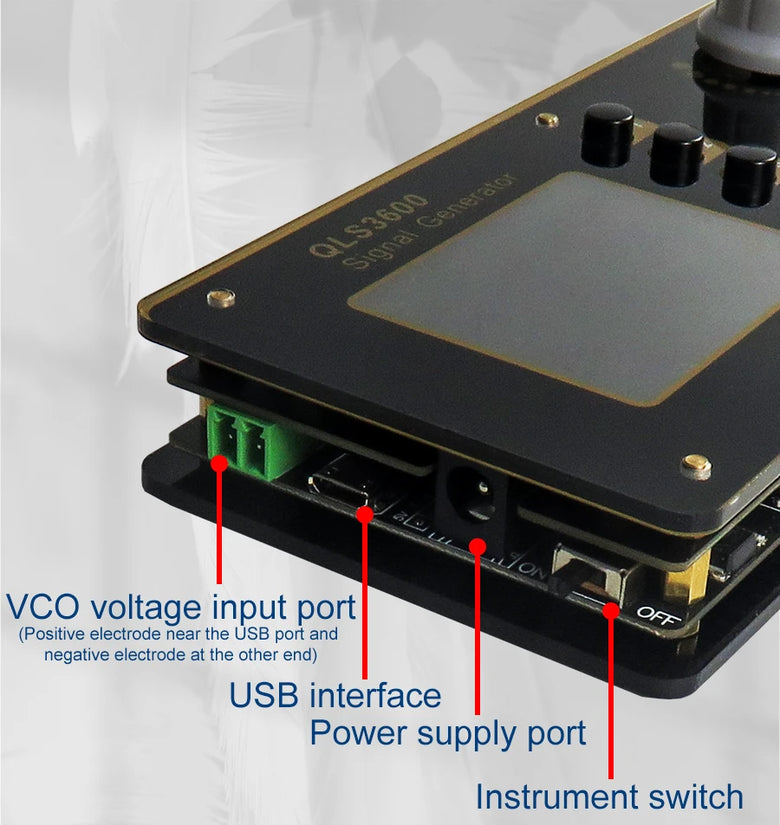

12.Voltage-controlled (VCO) function, with voltage-controlled frequency,voltage-controlled amplitude, and voltage-controlled duty cycle;

13.Calibration of all parameters can be completed by internal programming;

14.Robust communication capabilities and fully open communication protocol, makingsecondary development very simple;

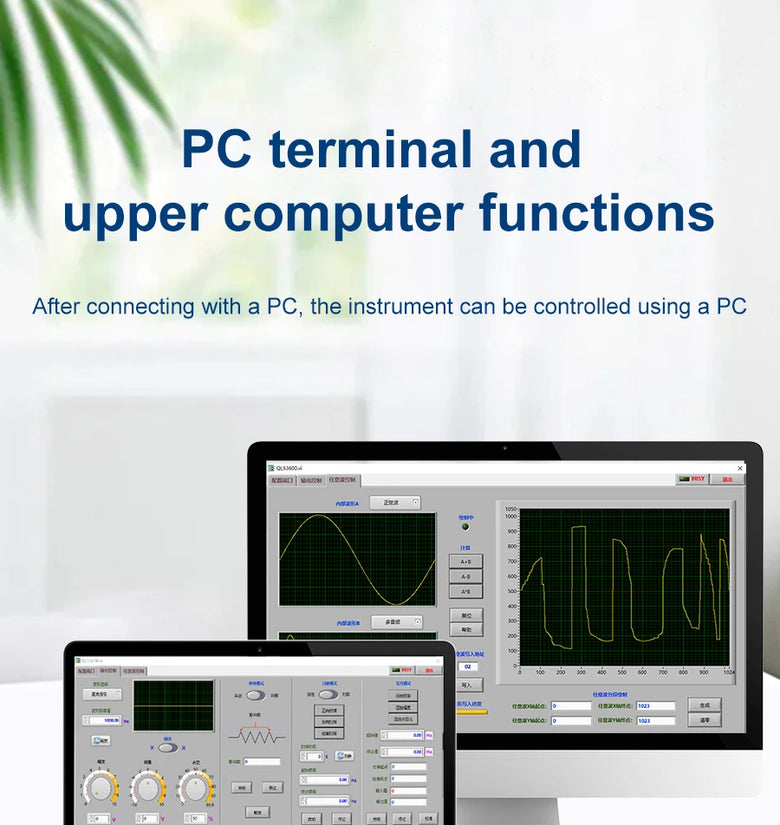

15.When connected to a PC, it allows using a PC to control this instrument;

III.Technical Specifications
