Features:
1. Integrated image collecting and algorithm chip together, ALL-in-One
2. The flexibility to adapt to the conditions was the fingers, whether it is dry fingers, wet fingers, light texture fingerprints fingers, and old fingers, all have high recognition rate
3. The main application areas: can be embedded into a variety of end products, such as: access control, attendance, safety deposit box

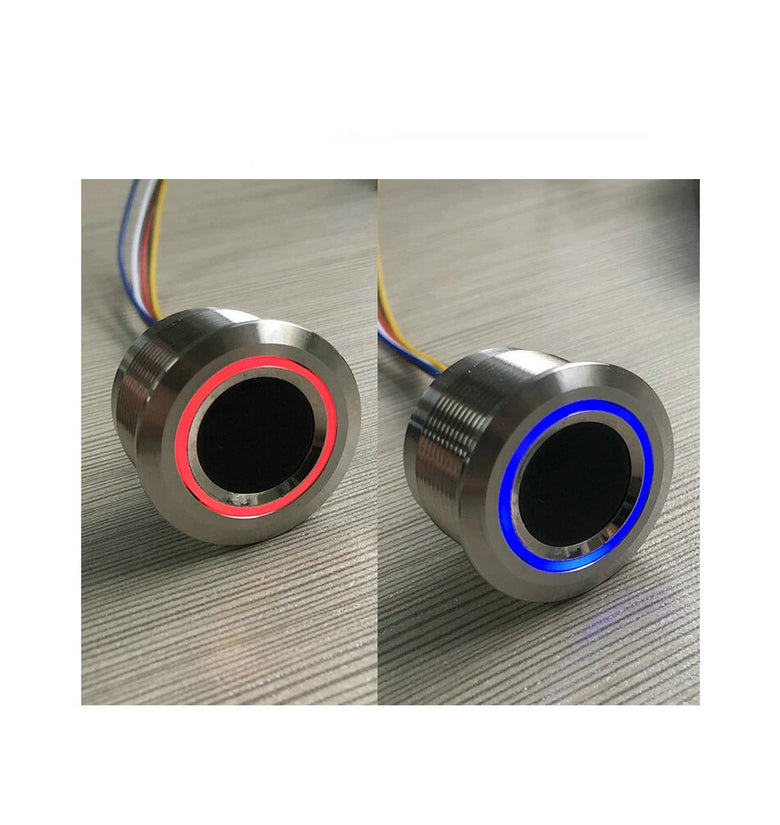

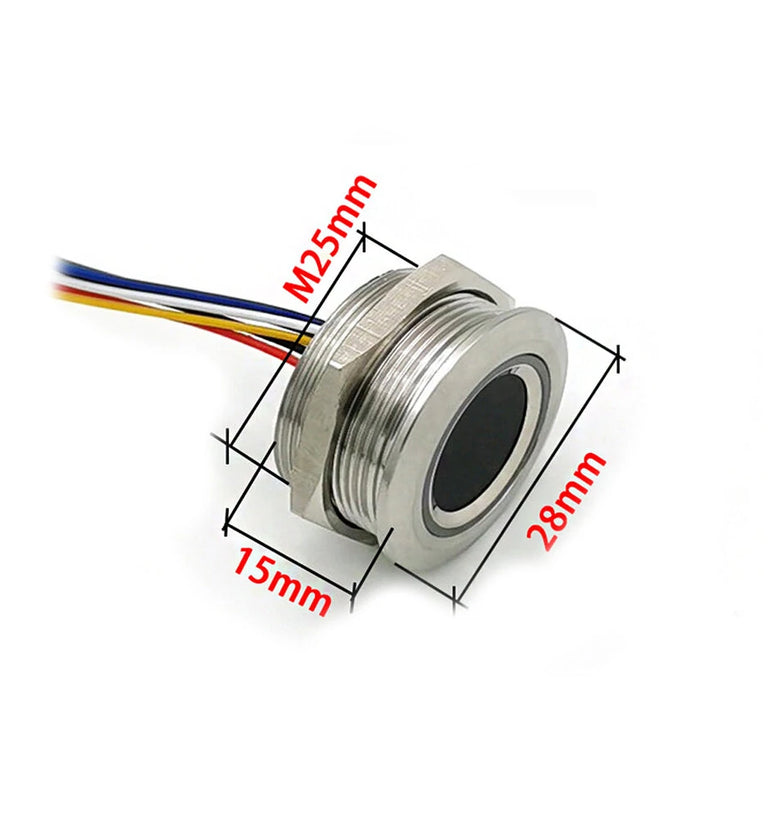

4. The R503 has circular indicator light that can be controlled by command and provides threads with a diameter of 25mm for your easy installation.
Specifications:
Model |
R503 |
Type |
Capacitive Fingerprint Module |
Interface |
UART(TTL) |
Resolution |
508 DPI |
Voltage |
DC 3.3V |
Fingerprint Capacity |
200 |
Sensing array |
192*192 pixel |
Working current |
20mA |
Standby current |
Typical touch standby voltage: 3.3V, Average current: 2uA |

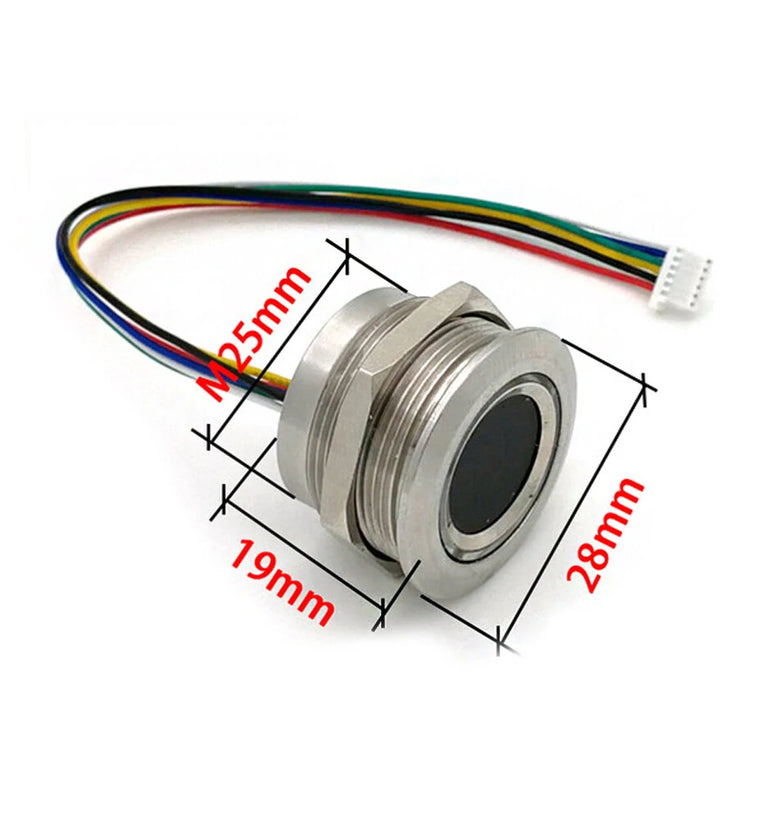

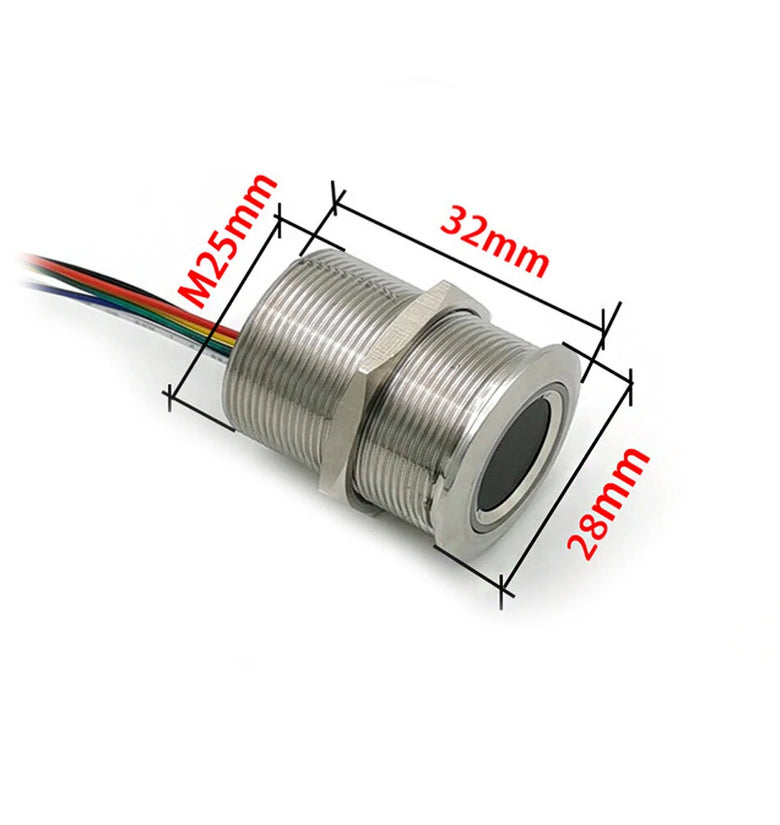

Fingerprint module external size |
Diameter 28 (mm) |
Fingerprint module inner size |
Diameter 23.5 (mm) |
Fingerprint module height |
19 (mm) |
Effective collection area |
Diameter 15.5 (mm) |

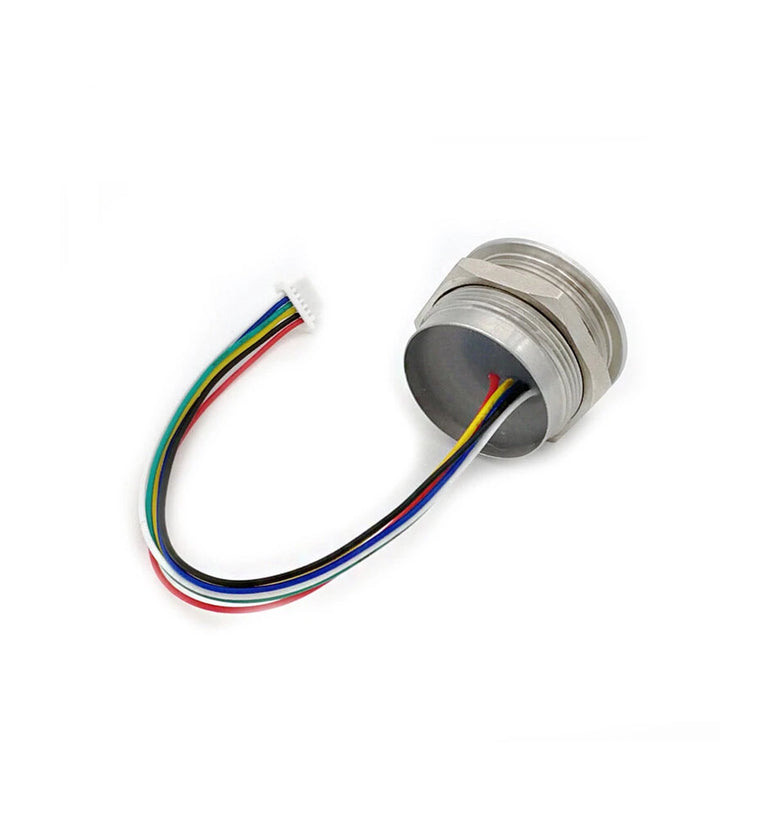

Connector |
MX1.0-6Pin |
LED Control |
YES |
LED Color |
Blue and Red |
Scanning Speed |
< 0.2 second |
Verification Speed |
< 0.3 second |
Matching Method |
1:1; 1:N |
FRR |
≤1% |
FAR |
≤0.001% |
Work environment |
-20C ---60C |
Work Humidity |
10-85% |
Anti-static capacity |
15KV |
Abrasive resistance intensity |
1 million times |
Communications baud rate (UART): |
(9600 × N) bps where N = 1 ~ 12(default N = 6, ie 57600bps) |
·Provide Free Reference SDK Files for Arduino, Android,.Net,Windows and so on.
·Provide User Manual
Package Included:

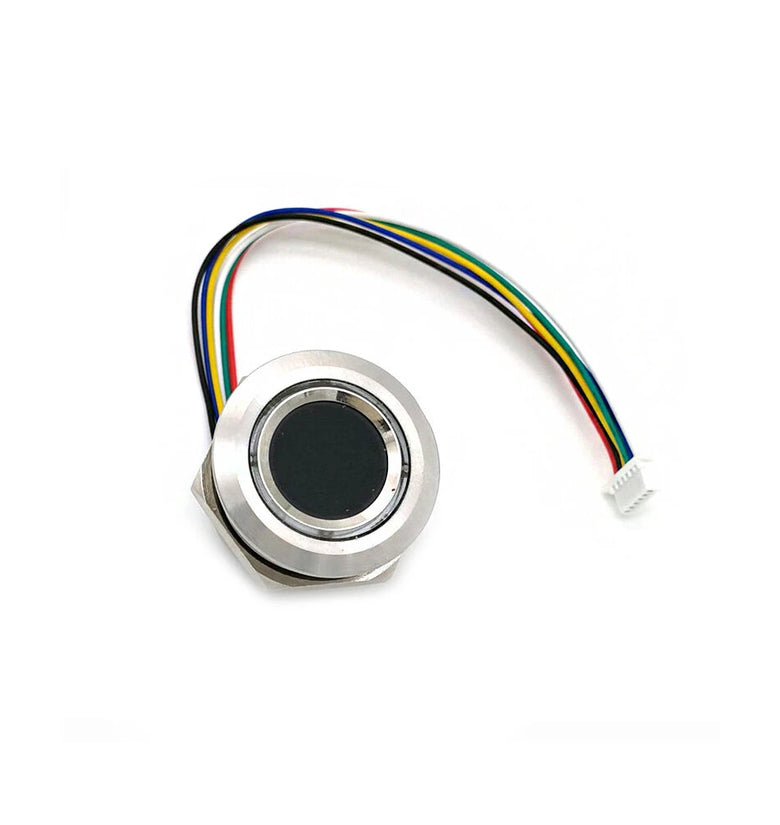

1 x R503 Capacitive Fingerprint Module Sensor Scanner

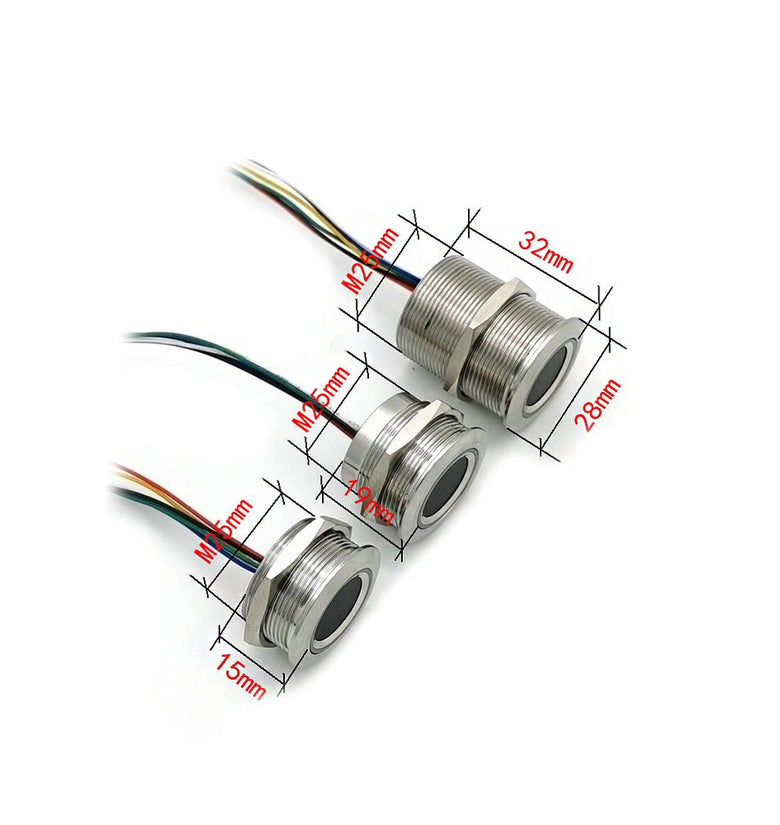

| Model | R501 | R502 | R502-A | R502-AW | R503 |
| Diameter | 36mm | 22mm | 22mm | 55*50*8.4mm | 28mm |
| Interface | UART | UART | UART | UART | UART |
| Voltage | DC4.2-6V | DC3.3V | DC3.3V | DC3.3V | DC3.3V |
| Resolution | 508DPI | 508DPI | 508DPI | 508DPI | 508DPI |
| Working current | 42mA | 18mA | 20mA | 20mA | 20mA |
| Fingerprint capacity | 500 | 200 | 200 | 200 | 200 |
| Sensing Array | 190*192 pixel | 190*192 pixel | 190*192 pixel | 190*192 pixel | 190*192 pixel |
| Effective collection area | diameter 15.5 mm | diameter 15.5 mm | diameter 15.5 mm | diameter 15.5 mm | diameter 15.5 mm |
| Finger touch function | YES | YES | YES | YES | YES |
| LED Color | Red/Blue | Purple/Red/Blue | Purple/Red/Blue | Purple/Red/Blue | Purple/Red/Blue |
| LED Control | No | Yes | Yes | Yes | Yes |
| Connector | MX 1.25mm 6pin | MX 1.0mm 6pin | MX 1.0mm 6pin | MX 1.0mm 6pin | MX 1.0mm 6pin |
| Connect control board | K200/K202/K212/K215 V1.2/K216 | K200-3.3/K202/K215-V1.2/K216 | K200-3.3/K202/K215-V1.2/K216 | K200-3.3/K202/K215-V1.2/K216 | K200-3.3/K202/K215-V1.2/K216 |
