Specification:
Featuring a 64-bit quad-core Arm Cortex-A76 processor running at 2.4GHz, Raspberry Pi 5 delivers a ×2 to ×3 increase in CPU performance relative to Raspberry Pi 4. Alongside a substantial uplift in graphics performance from an 800MHz VideoCore VII GPU; dual 4Kp60 display output over HDMI; and state-of-the-art camera support from a rearchitected Raspberry Pi Image Signal Processor, it provides a smooth desktop experience for consumers, and opens the door to new applications for industrial customers.For the first time, this is a full-size Raspberry Pi computer using silicon built in-house at Raspberry Pi. The RP1 provides the bulk of the I/O capabilities for Raspberry Pi 5, and delivers a step change in peripheral performance and functionality. Aggregate USB bandwidth is more than doubled, yielding faster transfer speeds to external UAS drives and other high-speed peripherals; the dedicated two-lane 1Gbps MIPI camera and display interfaces present on earlier models have been replaced by a pair of four-lane 1.5Gbps MIPI transceivers, tripling total bandwidth, and supporting any combination of up to two cameras or displays; peak SD card performance is doubled, through support for the SDR104 high-speed mode; and for the first time the platform exposes a single-lane PCI Express 2.0 interface, providing support for high-bandwidth peripherals.
| Parameter comparison between Raspberry Pi 5 and Raspberry Pi 4B | ||
| Name | Raspberry Pi 5 | Raspberry Pi 4B |
| CPU | Broadcom BCM2712 Quad-core Cortex-A76(ARMv8) 64-bit SoC Main frequency 2.4GHz |
Broadcom BCM2711 Quad-core Cortex-A72(ARM v8) 64-bit SoC Main frequency 1.5GHz |
| Cache | L1 cache: 64KB Data + 64KB Instruction per-core L2 cache: 512KB Per-core L3 cache: 2MB shared |
L1 cache: 32KB Data + 48KB Instruction per core L2 cache: 1MB shared L3 cache: None |
| GPU | 800 MHz VideoCore VII Support OpenGL ES 3.1, Vulkan 1.2 |
600 MHz VideoCore VI Support OpenGL ES3.0 |
| Memory | LPDDR4X-4267 SDRAM | LPDDR4-3200 SDRAM |
| Memory model | 4GB, 8GB available | 1GB, 2GB, 4GB, 8GB available |
| Operating system and data storage | Micro SD card slot, supports high-speed SDR104 mode | Micro SD card slot |
| WIFI | 2.4GHz and 5.0GHz 802.11ac wireless networks | 2.4GHz and 5.0GHz 802.11ac wireless networks |
| Bluetooth | Bluetooth 5.0, BLE | Bluetooth 5.0, BLE |
| Network port | Gigabit Ethernet (position symmetrical to PI4B) | Gigabit Ethernet |

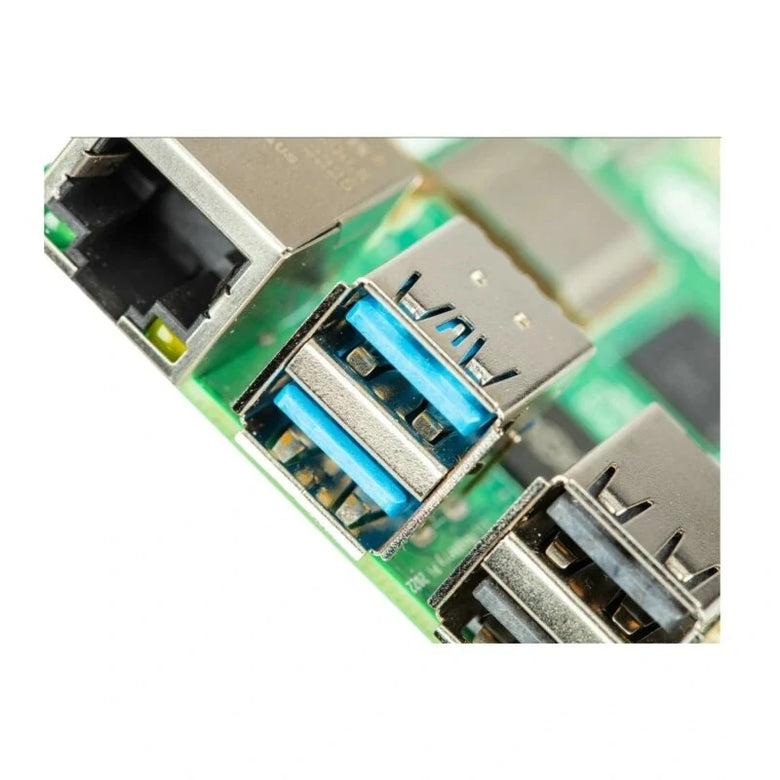

| USB interface | 2xUSB 3.0, supports 5Gbps simultaneous operation 2xUSB 2.0 (position symmetrical to PI4B) |
2 x USB 3.0, 2 x USB 2.0 |
| CSI interface | 2x4lane MIPI Camera Display bidirectional transmission interface 22pin small port | 1x2lane MIPI Camera 15pin large port |
| DSI interface | 1x2lane MIPI Display 15pin large port | |
| HDMI | Two micro HDMI ports Can support dual-channel 4Kp60 and HDR |
Two micro HDMI ports |
| PCIe | One PCIe 2.0X1 interface FPC connector | none |
| GPIO interface | Standard 40 pins | Standard 40 pins |
| Audio and video composite output interface | None (A pair of thick disks with 0.1' spacing are available) | have |
| power input | 5V/5A DC via USB-C interface (supports PD) | 5V/5A DC via USB-C interface (PD not supported) |
| Other interfaces | 5V/5A DC via GPIO interface PoE passes a separate new POE HAT (network port location change) |
5V/3A DC via GPIO interface PoE via standalone PoE HAT |
| Switch | ON/OFF switch button | none |
| Real-time clock (RTC) | RTC battery connector (2pins JST) | none |
| UART | Dedicated UART interface (3 pins JST) | none |
| Fan interface | PWM control and tacho Feedback (4 pins JST) | none |
| Product Size | 85mm x 56mm | 85mm x 56mm |
Q&A:
1.Will older versions of Raspberry Pi OS work with Raspberry Pi 5?Answer: You will need the latest version of Raspberry Pi OS, Bookworm, for your Raspberry Pi 5.2.Will my Raspberry Pi 4 power supply work with Raspberry Pi 5?Answer: Raspberry Pi 5 is a higher-performance computer than Raspberry Pi 4, and you may have problems using an under-powered supply. We recommend a high-quality 5V 5A USB-C power supply, such as the new Raspberry Pi 27W USB-C Power Supply.3.Will my Raspberry Pi 5 fit my Raspberry Pi 4 case?Answer: Raspberry Pi 5 won't fit the Raspberry Pi 4 Case. We recommend the Raspberry Pi Case for Raspberry Pi 5, designed to help you get the most out of our newest computer.4.Does Raspberry Pi 5 need active cooling?Answer: Raspberry Pi 5 is faster and more powerful than prior-generation Raspberry Pis, and like most general-purpose computers, it will perform best with active cooling. The Raspberry Pi Case for Raspberry Pi 5, with its integrated fan, is one way to provide this.
Package includes:
1 x Raspberry Pi 5
