Features:
1. Raspberry Pi 5 itself only supports PCle x1, and supports Gen2 and Gen3 modes.
2. Support NVMe solid state disk and support 2242/2230 size SSD (only 2242 copper pillars are welded by default)
3. Supports booting the system from NVME SSD hard disk and storage expansion. SSD can also be used only for storage expansion and the system boots from TF.
4. The power supply circuit of the adapter board adopts a 2A current design, which is limited by the current limit of the PCIE interface of the Raspberry Pi 5 (5V1A). The adapter board can provide the solid-state drive with an output capability of more than 3.3V 1.5A.
5. Generally, the rated current marked on the solid-state disk may be 2.5A, 2.7A or even 3A, but this current corresponds to the limit value of the X4 mode, and the Raspberry Pi 5 only supports the X1 mode, so the actual current used is smaller than the rated current. Lots of them, designed to meet most hard drive needs.
6. Onboard power indicator ('PWR') and M. 2Hard disk operation indicator light ('ACT')
7. Use high-quality electronic components; immersion gold technology, lead-free production.
8. Four M2.5 fixing holes and a concave design on the top of the board facilitate the operation and use of 40Pin GPIO.

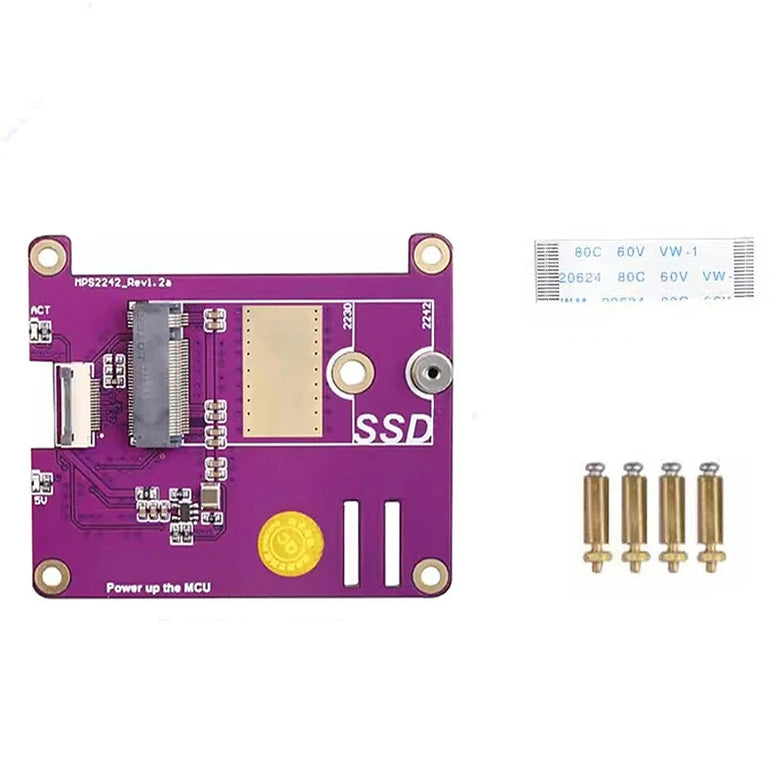

Package Include:
1x Module Board(MPS2242-2230&MPS2242-2242 optional)
1x FPC
4x Copper Pillars

(The Raspberry Pi 5 is not includes)
