Description:
This kit combines the RP2040-PiZero board with a 1.3-inch game console, which is very suitable for creating Raspberry Pi PICO RP2040 projects, such as game consoles and digital photo albums.

Specifications:
【RP2040-PiZero board】
1. The RP2040 microcontroller chip designed by Raspberry Pi is adopted.
2. Dual-core ARM Cortex M0+ processor with flexible clock running at 133MHz.
3. Built-in 264KB SRAM and 16MB on-chip Flash.
4. On-board DVI interface can drive most HD screens (DVI interface is required).
5. onboard PIO-USB interface, which can be used as USB master and slave.
6. onboard Micro SD card holder, which can read and write Micro SD cards.
7. On-board lithium battery charging and discharging interface, which is beneficial to mobile scenes.
8. USB1.1 host and device support
9. The drag-and-drop download program can be recognized as a mass storage by USB.
10. Support low-power sleep and hibernation modes.
11. 2 SPI, 2 I2C, 2 UART, 4 12-bit ADC and 16 controllable PWM channels.
12. Accurate on-chip clock and timer
13. Temperature sensor
14. On-chip accelerated floating-point library
15. Eight programmable I/O (PIO) state machines for customizing peripheral support.

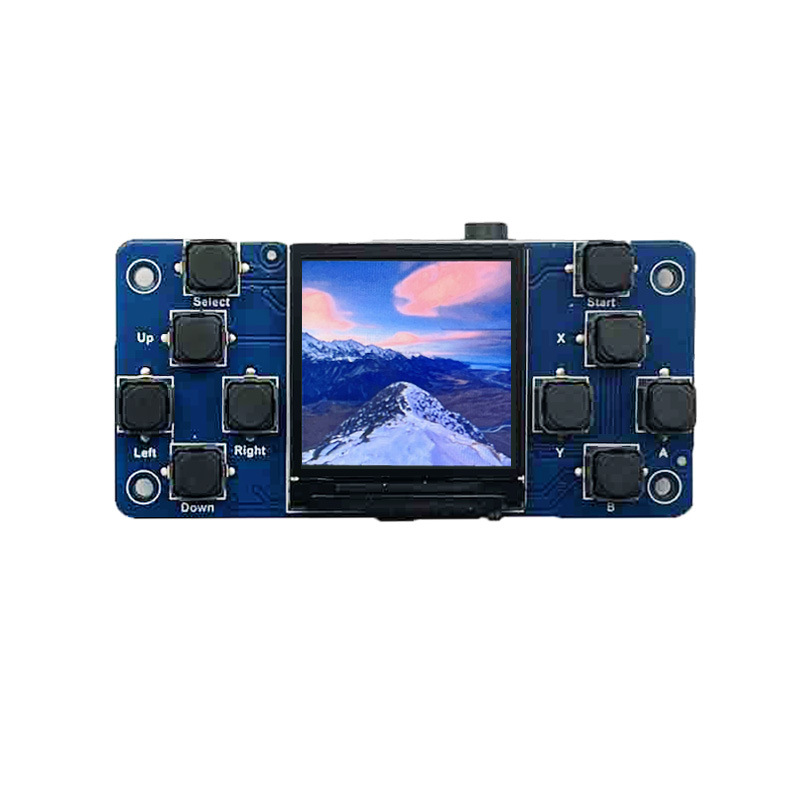

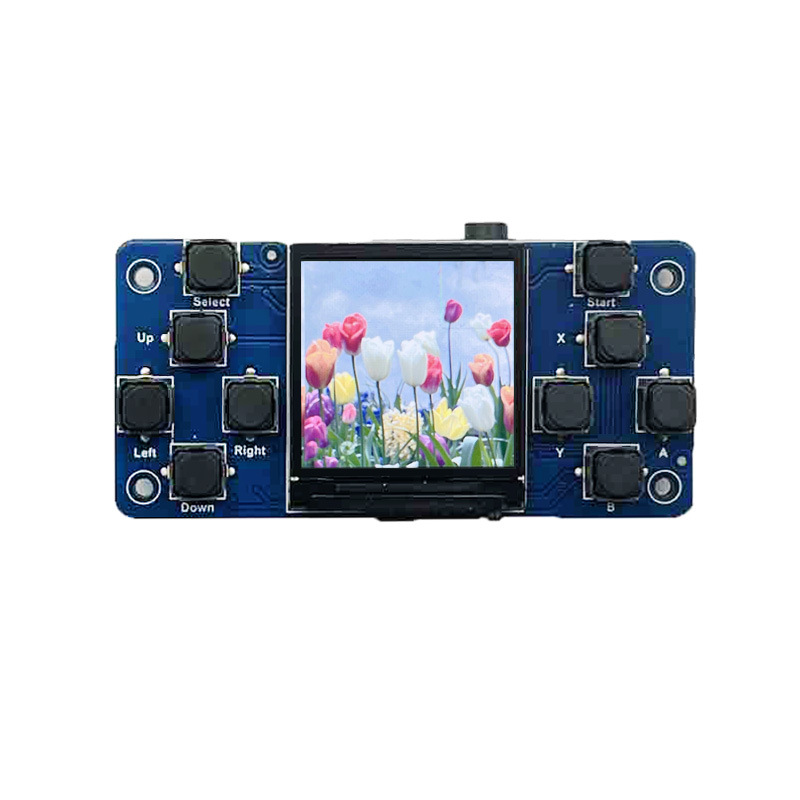

【1.3inch GAME HAT】
Working voltage: 3.3V
Interface: SPI
LCD type: TFT
Display controller: ST7789V
Resolution: 240 * 240
PWM audio output: buzzer and headphone port
12 keys

Features:

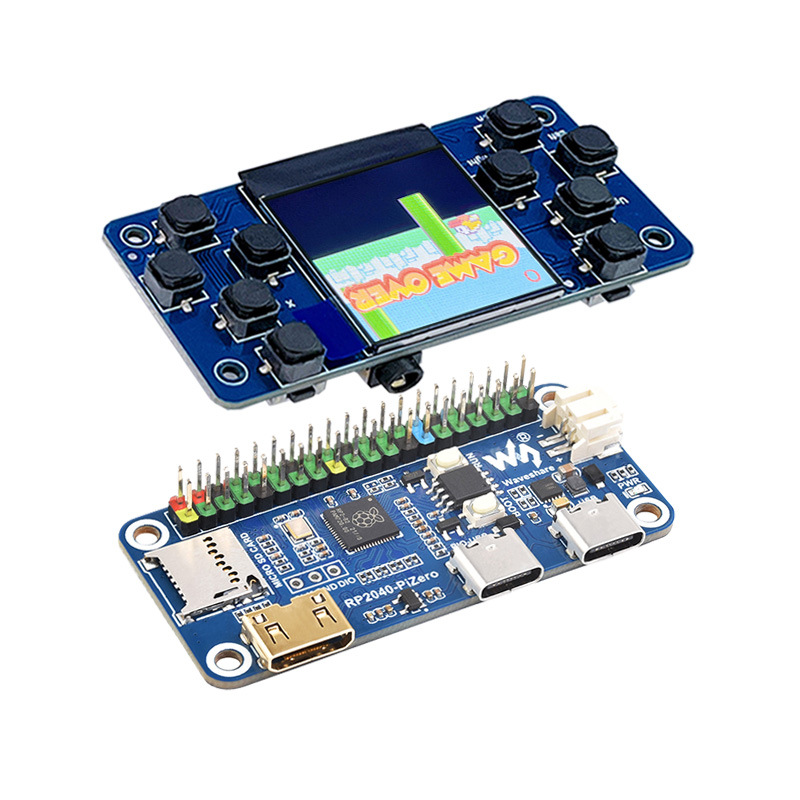

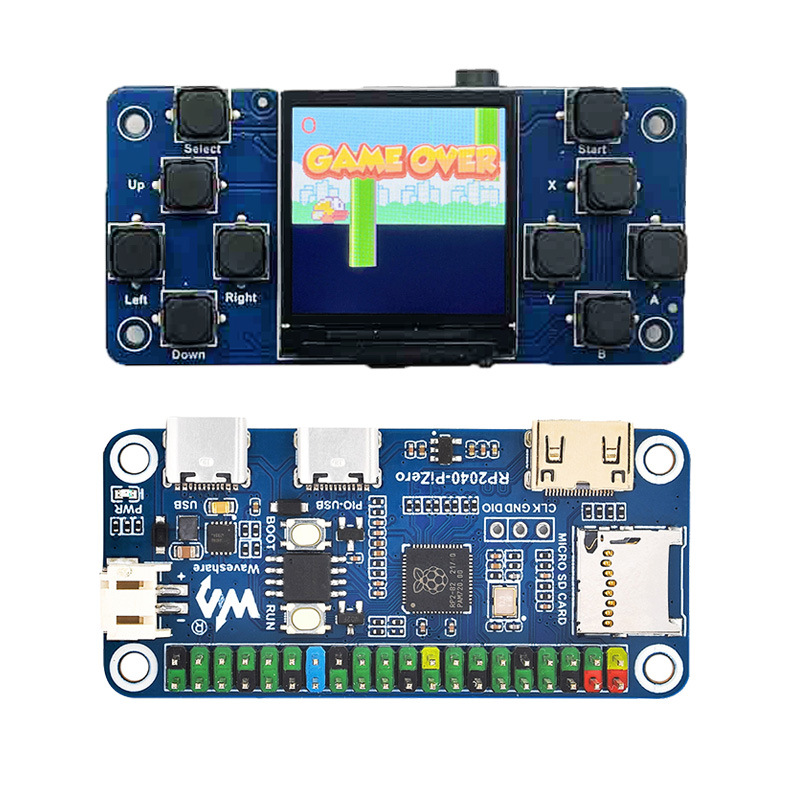

1. This product is a kit, including two products: RP2040-PiZero and 1.3-inch game machine.
2. With this kit, you can run Raspberry Pi PICO RP2040 related projects, such as games and digital photo frames.
3. The 1.3-inch game machine is compatible with RP2040-PiZero, and can also be used on Raspberry Pi Zero.

Package Include:
1 x 1.3inch RP2040-PiZero board

1 x Expanding board

Note: RP2040-PiZero is not Raspberry Pie Zero, so it can't run Linux, but Raspberry Pie PICO RP2040 board.
