Specifications:

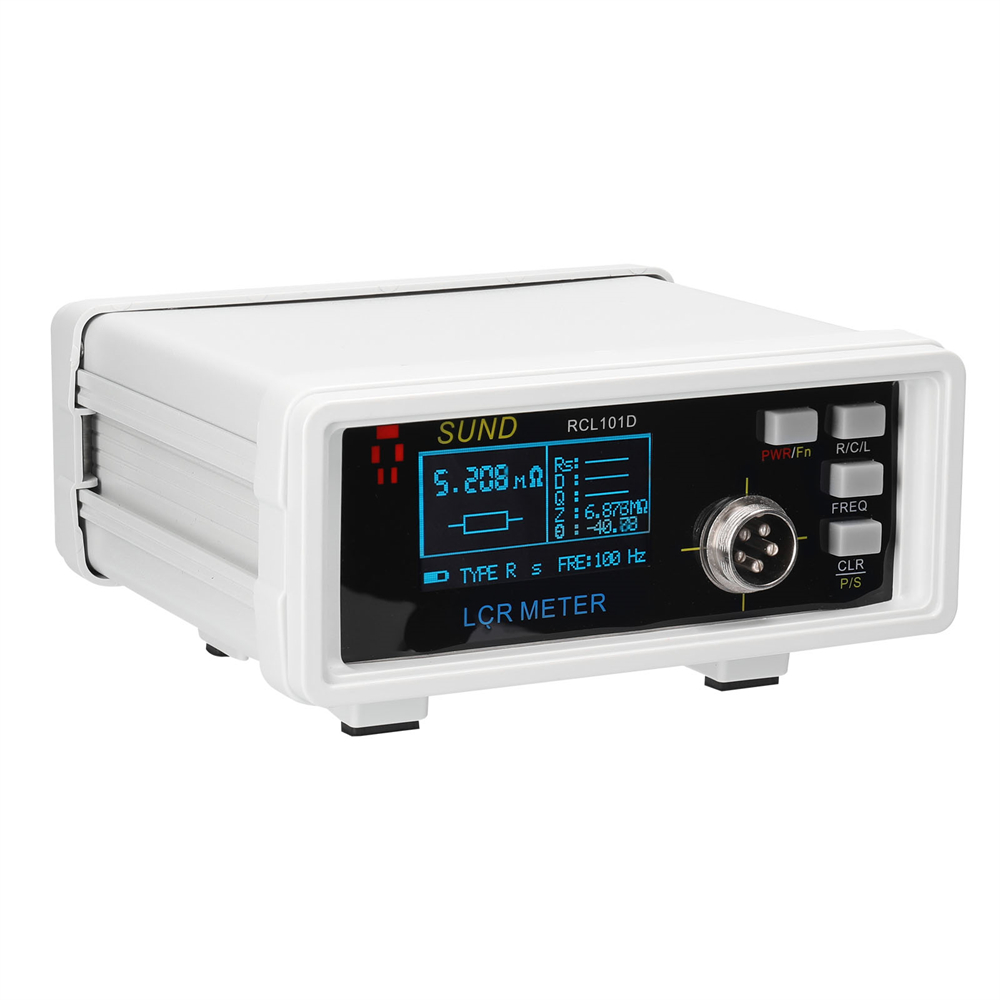

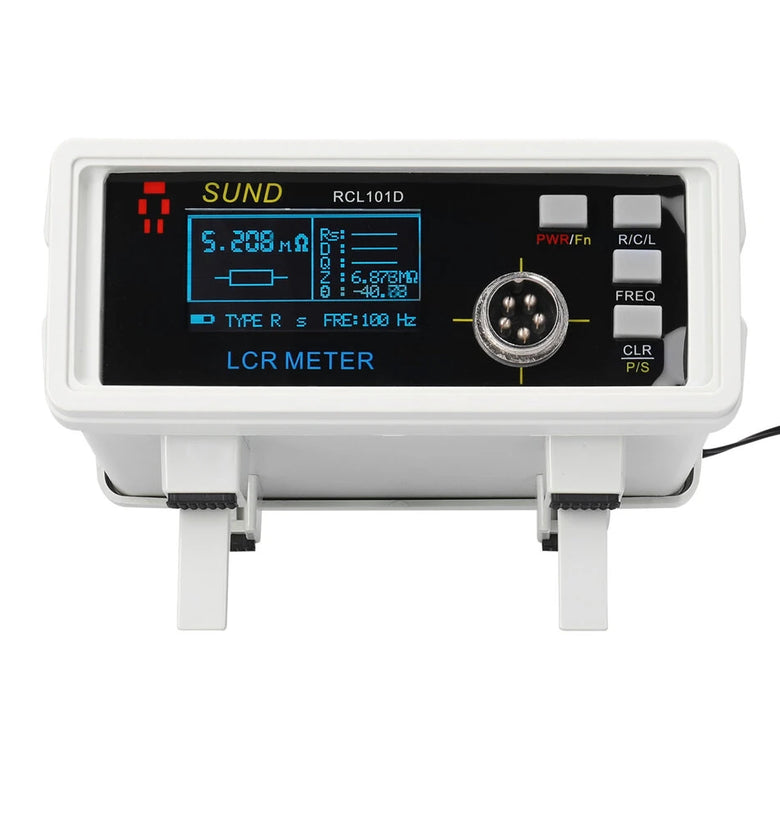

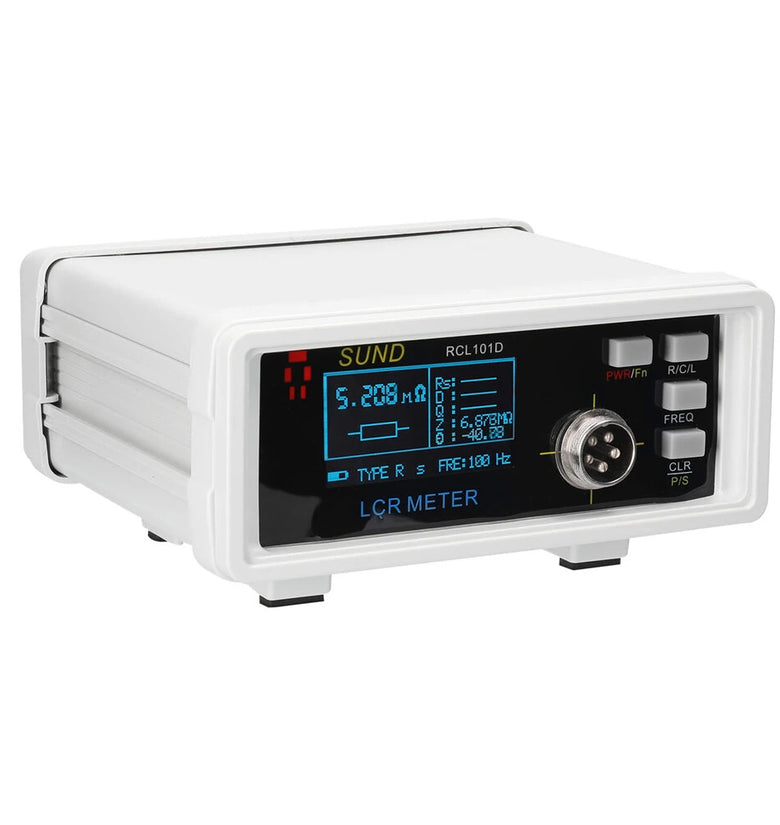

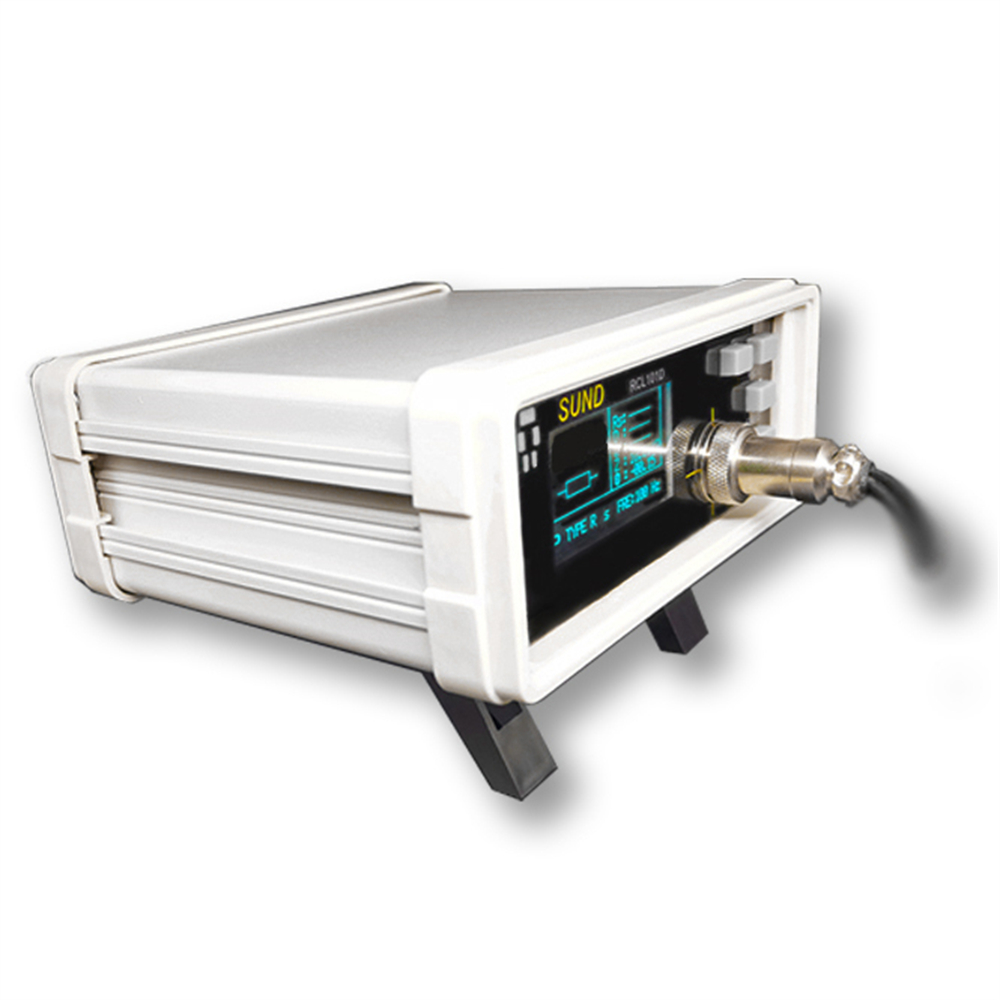

Model: RCL101D
Measurement Parameters: L, C, R, D, Q, ESR, θ
Basic Accuracy: 0.25%
Equivalent Circuit: Series/Parallel
Test Signal: Frequency: 100Hz, 1kHz, 10kHz; Output Impedance: ≥200Ω; Maximum Level: 2.5Vrms
Range Mode: Auto
Test Speed: 2 readings per second
Calibration & Test Terminals: One-key zero calibration; 4-terminal Kelvin test leads

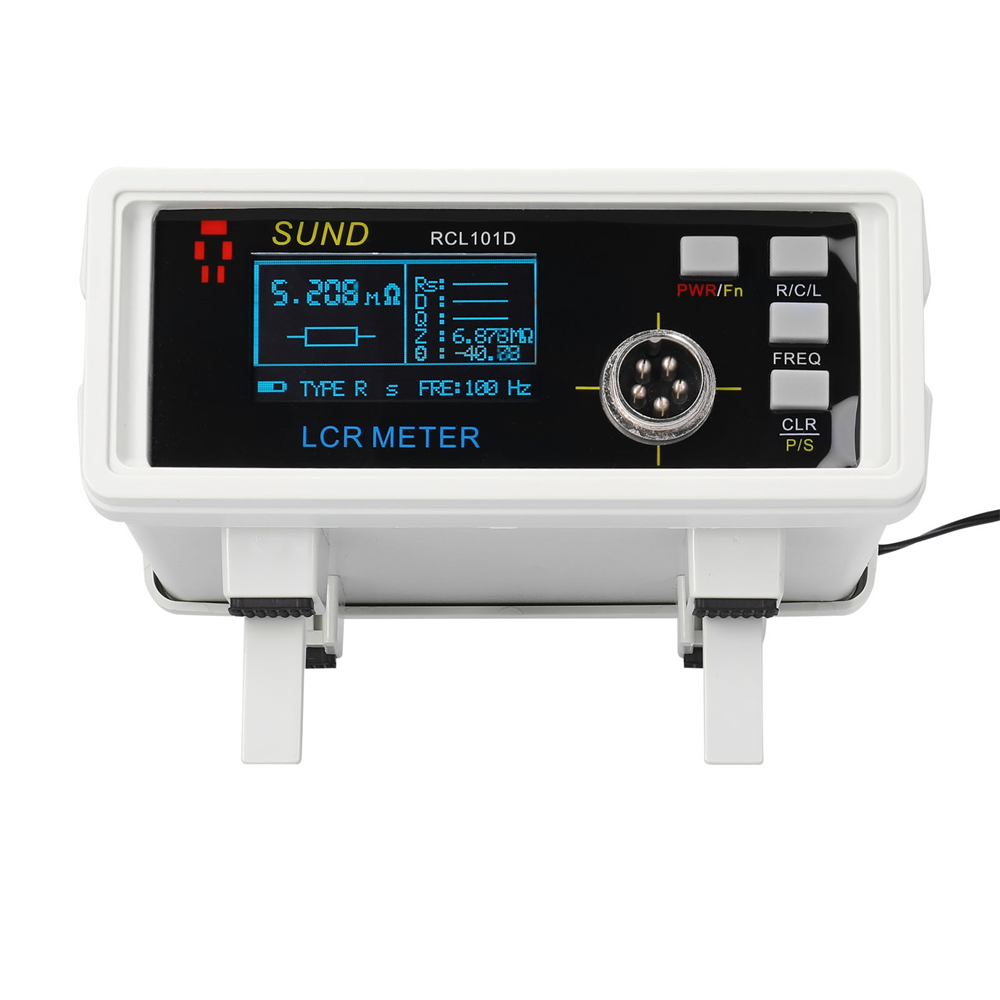

Display Type: Self-luminous OLED display with graphical representation and battery indicator

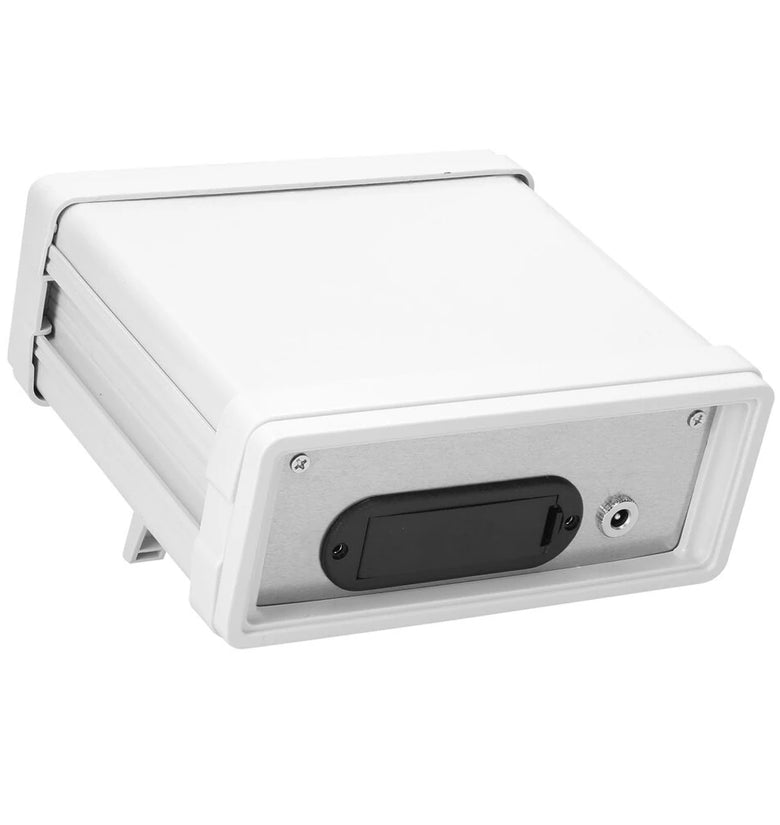

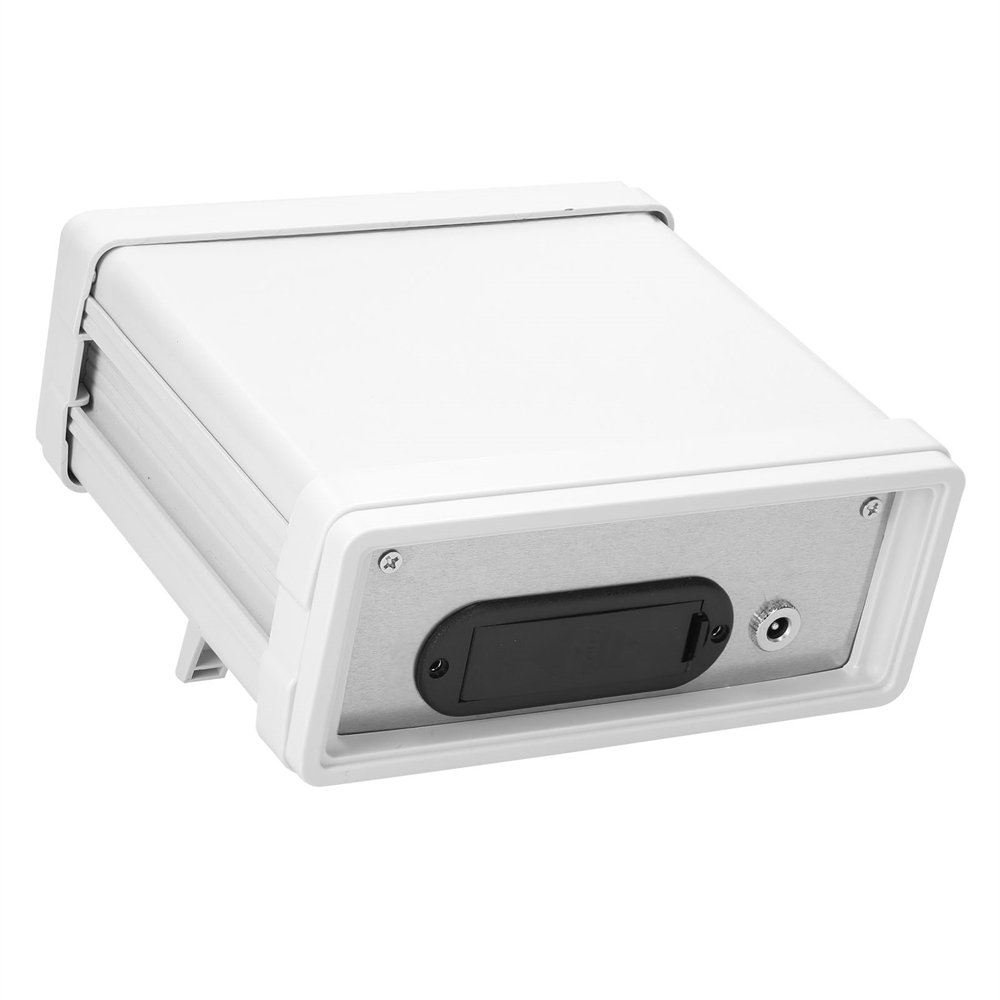

Power Supply: DC9V adapter + built-in rechargeable lithium battery
Battery Life: Over 4 hours of continuous usage; low-battery shutdown support
Measurement Range:
R: 0.001Ω – 99.99MΩ
C: 0.001pF – 999.9mF
L: 0.001μH – 9999H
D, Q: 0.001 – 9999
Operating Conditions: Temperature: 0°C–40°C

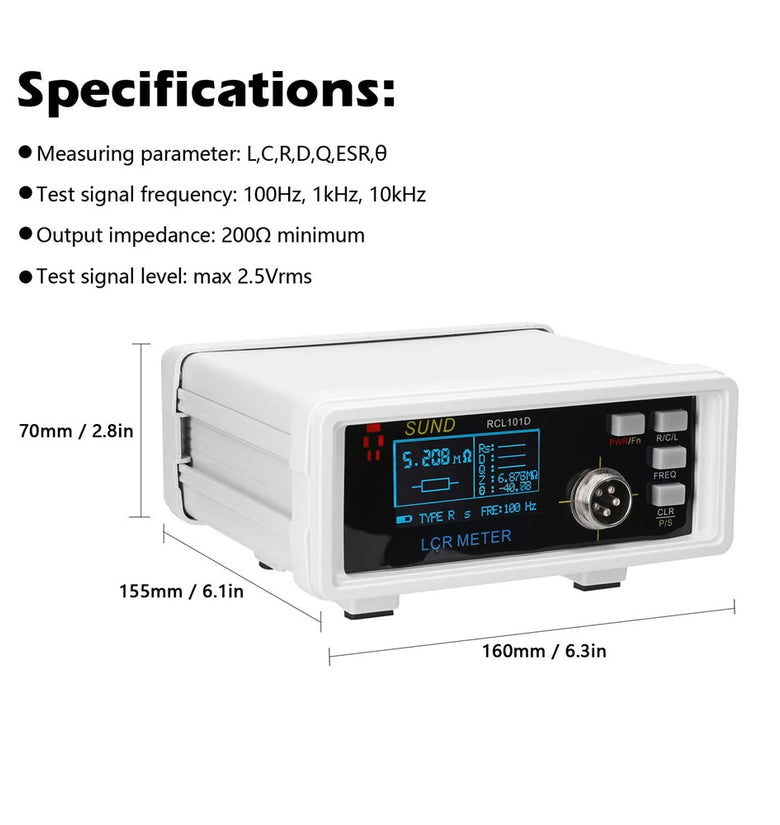

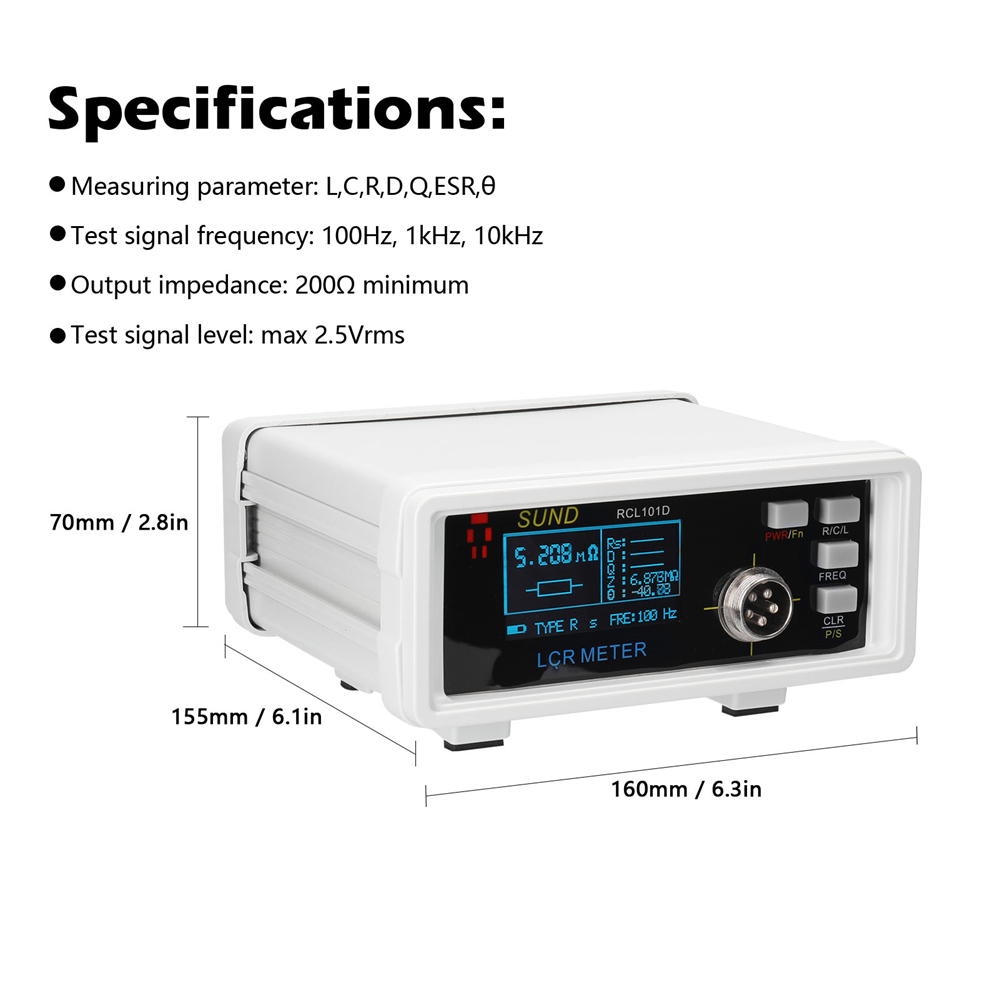

Physical Dimensions: 160 × 155 × 70mm
Weight: 810g

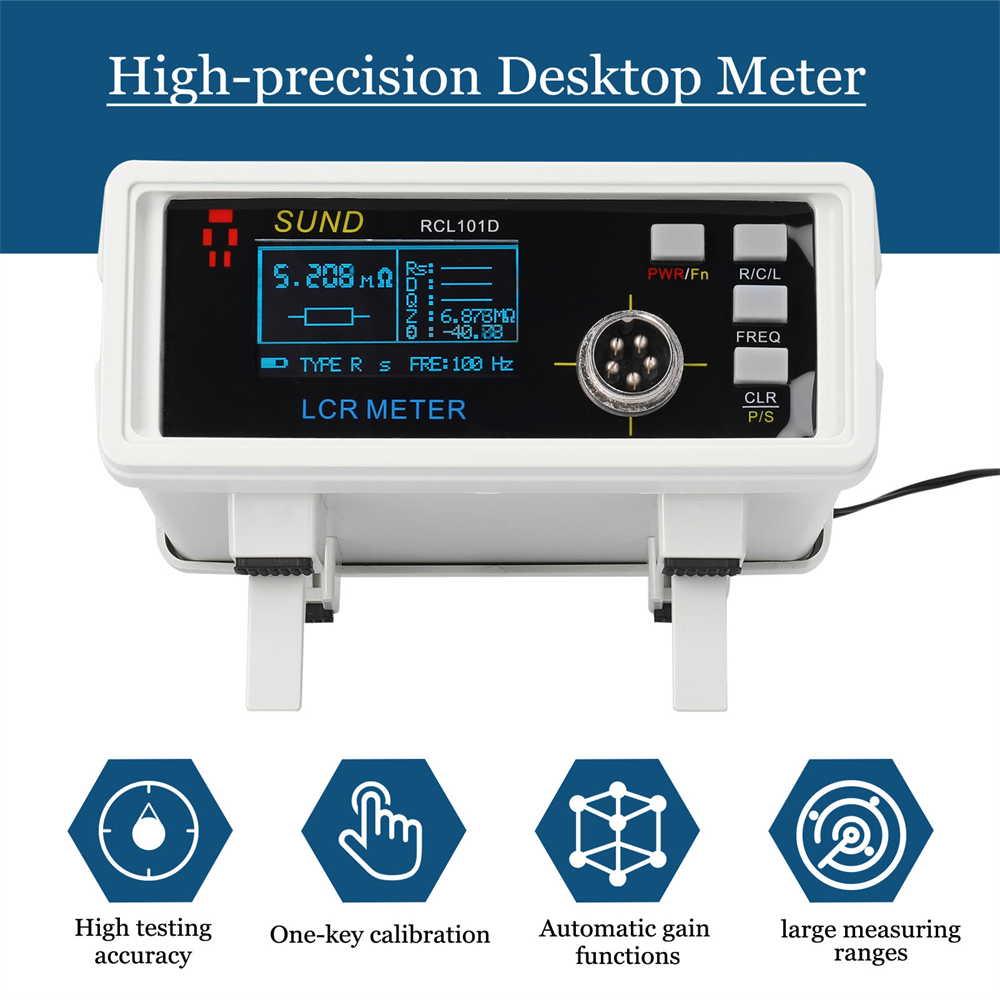

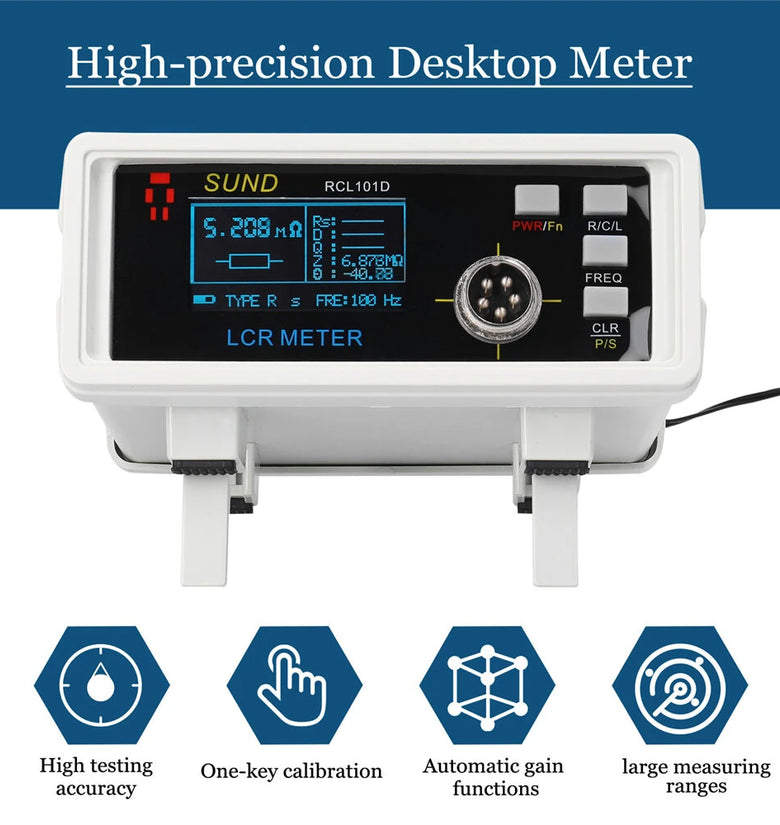

Features:
1. Advanced Processor: Industry-first ARM architecture processor ensures precise and rapid results, combining intelligent auto-ranging and automatic gain control for optimal accuracy and speed.
2. Enhanced Measurement Precision: Improved algorithm enables 0.25% high precision while effectively minimizing interference for reliable, consistent readings.

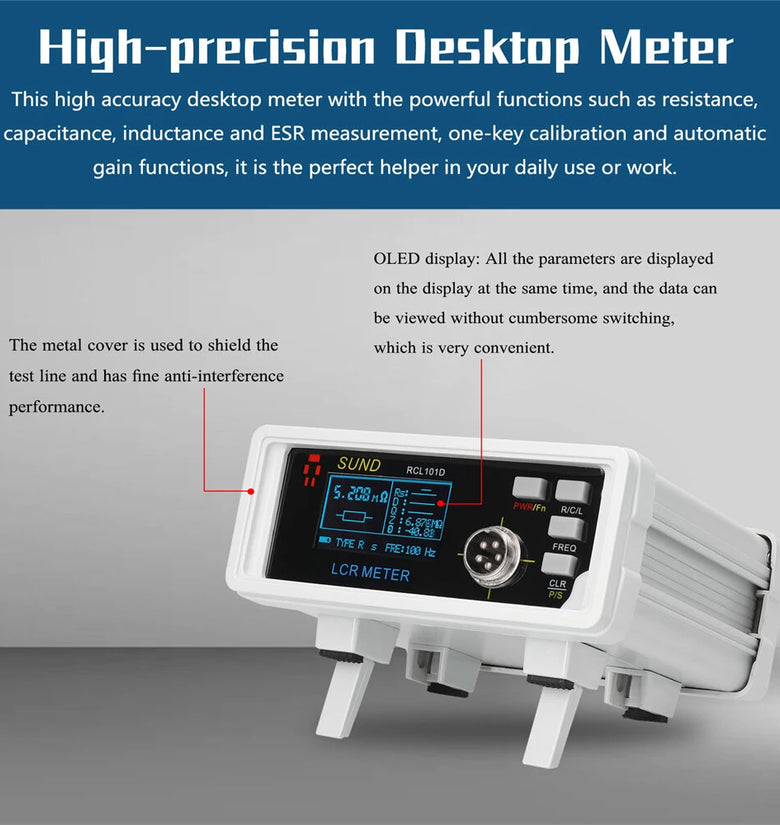

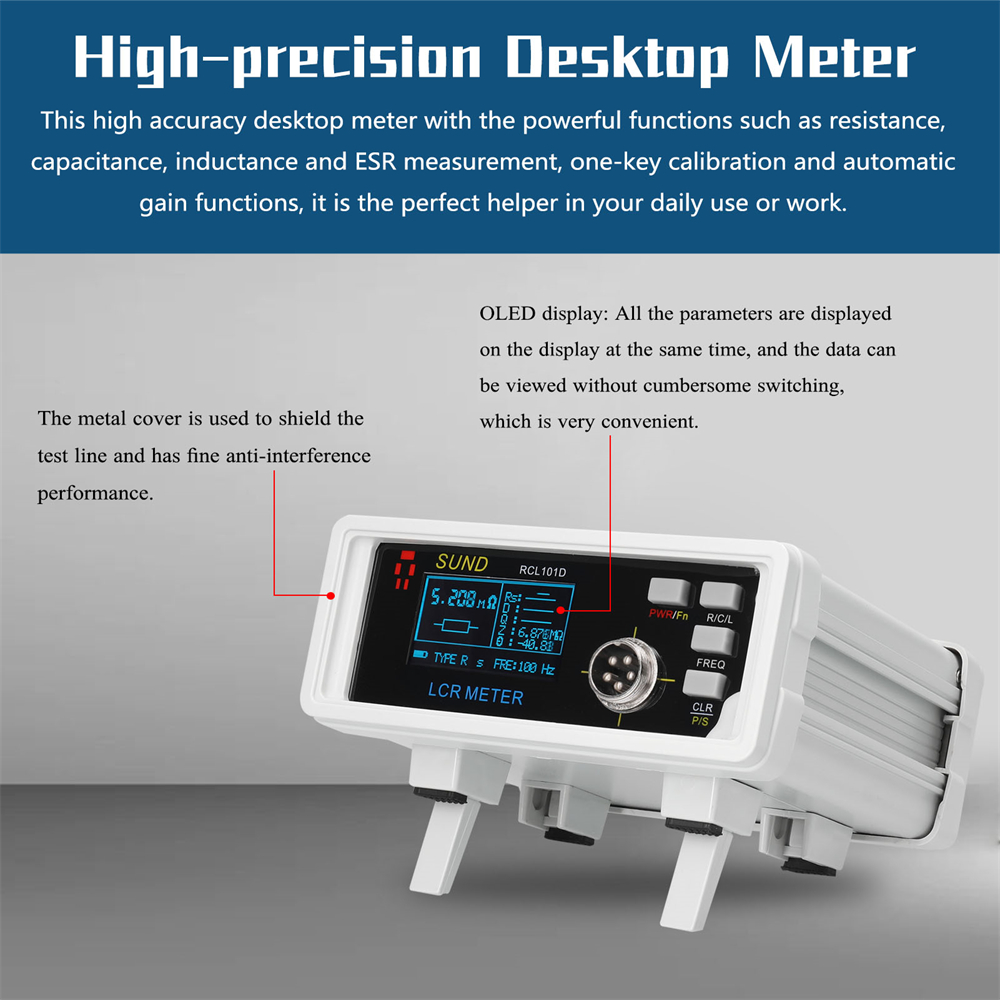

3. Premium Display Technology: Self-luminous OLED display delivers high visibility in sunlight with vivid and uniform output, paired with tactile silicone touch buttons for seamless operation.
4. Compact and Robust Design: Metal casing paired with shielded Kelvin leads reduces electromagnetic interference while providing high mechanical strength in a compact lightweight structure.
5. Extended Battery Performance: Built-in rechargeable lithium battery supports 4+ hours of uninterrupted operation, with real-time battery level indicator and low-battery safety shutdown.

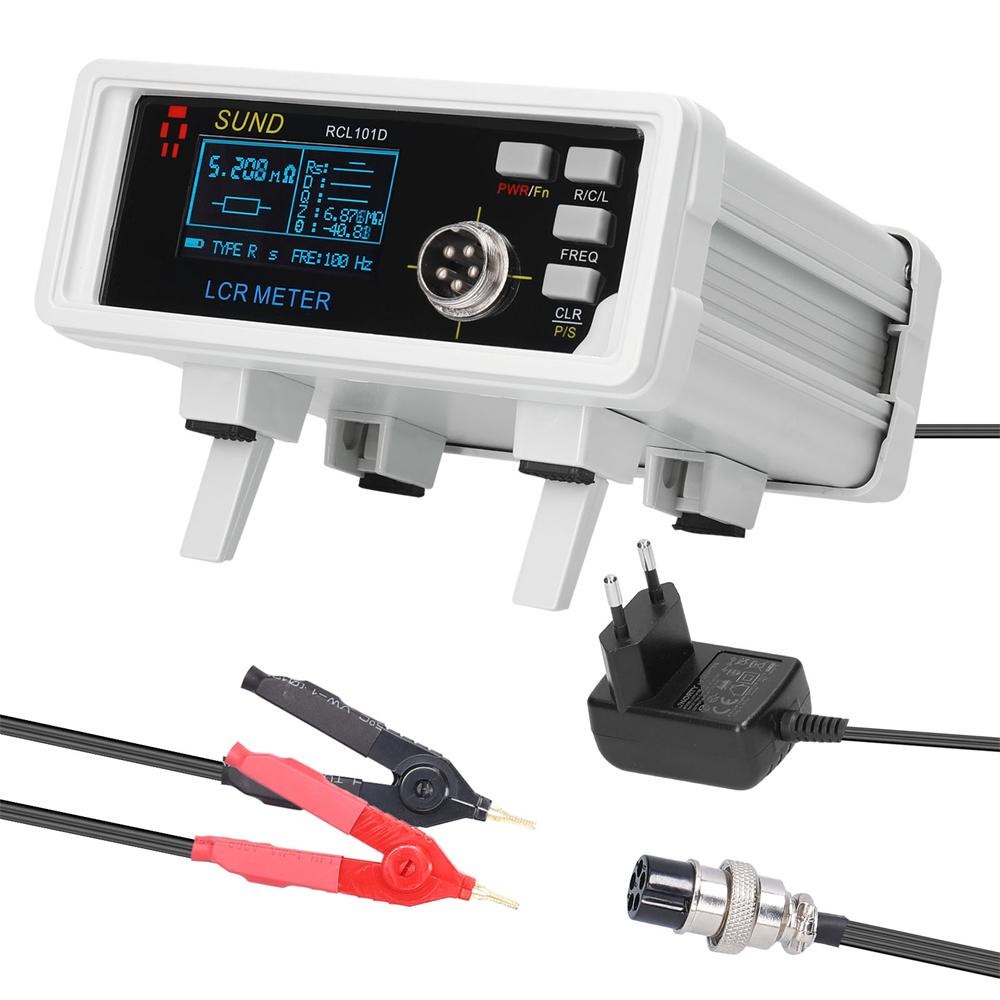

Package Included:
1 x RCL101D Unit
1 Pair x Kelvin clamps
1 x Power Adapter
