Core Function:
| Model | RD6006/ | RD6006P/ |
| RD6006-W | RD6006P-W | |
| Suitable Shell | / | / |
| Suitable power supply | ID: 1594324 | / |
| Input voltage range | 6-70.00V | 7-70.00V |
| Output voltage range | 0-60.00V | 0-60.000V |
| Output current range | 0-6.000A | 0-6.0000A |
| Output power range | 0-360W | 0-360W |
| Input voltage measurement resolution | 0.01V | |
| Output voltagesetting measurement resolution | 0.01V | 0.001V |
| Output current setting measurement resolution | 0.001A | 0.0001A |
| Battery voltage measurement resolution | 0.01V | |
| Input voltage measurement accuracy | ±(1%+5 digits) | |
| Output voltage accuracybetween setting and measurement | ±(0.3%+3 digits) | ±(0.5‰+4 digits) |
| Output currentaccuracybetween setting and measurement | ±(0.5%+5 digits) | ±(1‰+6 digits) |
| Battery voltage measurement accuracy | ±(0.5%+3 digits) | |
| Automatic cut off current valuewhen charging | 10mA | Set by yourself |
| Output ripple typical | 100mV VPP | 20mV VPP |
| Working temperature range | -10℃~40℃ | |
| External sensor Temperature range: | -10℃~100℃/0℉~200℉ | |
| External sensor Temperature accuracy: | ±3℃/±6℉ | |
| Constant voltage moderesponse time | 2ms (0.1A-5A Load) | |
| Constant voltage mode load regulation | ±(0.1%+2 digits) | |
| Constant current mode load regulation | ±(0.1%+3 digits) | |
| Capacity measurement range | 0-9999.99Ah | |
| Energy measurement range | 0-9999.99Wh | |
| Capacity and energy statistical error | ±2％ | |
| Buck working mode | Voltage drop >1Vand >10% | (input voltage÷1.1) -2 |
| Cooling fan start condition | Output voltage>40V or Output current>4A or System temperature>45℃ | Output current >4A or System temperature>45℃ |
| Cooling fan shut down condition when working | Output voltage<40Vand Output current<3.9Aand System temperature<45℃ | Output current <3.9A and System temperature <45℃ |
| Over temperature protection | System temperature>80℃ | |
| Screen brightness setting | 0-5(6 level in total) | |
| Screen | 2.4inch color HD display | |
| Weight(with package) | About 0.58kg | About0.62kg |
| Product dimension | 167*81*65mm | 167*81*65mm |
| Support USB communication | YES | |
| Support WiFicommunication | Only W version has WiFi communication | |
Package includes:

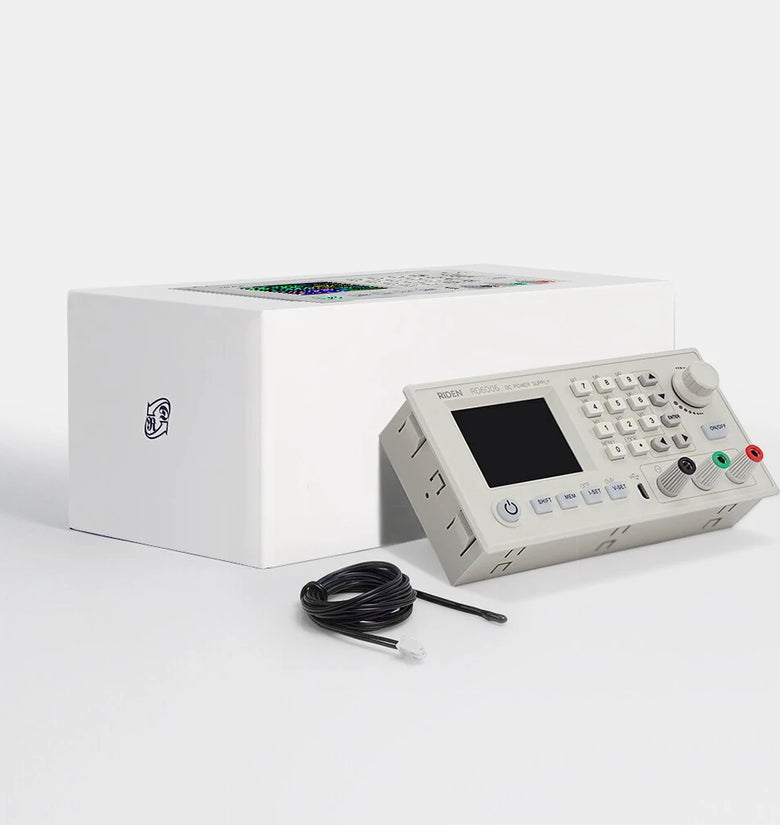

1 x Digital Control Switch Adjustable Power Supply
Note before buying:
1. RD6006 has two versions: RD6006 and RD6006-W, RD6006-W have WIFI board, RD6006 doesn't have. RD6006-W can use the WIFI board to connect APP and software, also use USB micro cable to connect PC software. RD6006 doesn't have WIFI board, it only supports PC software by connecting with USB micro cable, no support APP.
2. For PC software, it only supports win 7 and above for now. For APP, it only supports Android 5.0 and above. for APP and PC software, please download first before buying, if you can download and install, you can make the order, or else stop buying.
3. For APP and PC software, before buying, please download and install first, if it can't be installed, stop buying. because of some PC language and phone system problems, it can't be install. so please check first before buying.
Document download:
Document download:
A: Main download llink in English and Russian: https://drive.google.com/open?id=17V-JWHvqMF-NuWSznEiJ4RKrnn_Pkt5v
B: Back up download link: http://www.ruidengkeji.com/rddata/RD6006/RD6006.rar
2. Android APP: Search RdPower to download at Google Play, or download at file link https://drive.google.com/open?id=17V-JWHvqMF-NuWSznEiJ4RKrnn_Pkt5v, Support android 5.0 and above phone
IOS APP download: Search RdPower to download, support IOS8.0 and above phone
Instruction video:
a.section 1.4.2.1Battery Charging Function Introduction:https://youtu.be/irTbqfqtgU0b.section 1.4.2.2Output Voltage and Output Current Setting:https://youtu.be/S6Kan66dNskc.section 1.4.2.3Data Group Quick Storage and Call out:https://youtu.be/eo5saPjOGpod.section 1.4.2.4Keypad lock and unlock:https://youtu.be/zxpmasJyQ6Ye.section 1.4.2.5System Setting:https://youtu.be/Q9d3rIgIrOcf.section 1.4.2.6Main Page Style Setting:https://youtu.be/f51VDiY2VHEg:section 1.4.2.7Storage Data Setting:https://youtu.be/i1kTeurS13Ih:section 1.4.2.8System Information:https://youtu.be/Um4NQObeeJEi:section 2.1.2IOS APP Download, Installation and Connection:https://youtu.be/nH2HYwop0TEj:section 2.4.2IOS APP Operation:https://youtu.be/lXSw1CM9IY8k:section 3.1.1/3.2.3.2Android APP Download, Installation and Connection:https://youtu.be/QwyBEUCnp9cl:section 3.2.3.3Anroid APP Operation:https://youtu.be/hqrF4keTfbEm:section 4.1/4.3.1PC Software Download and basic operation:https://youtu.be/mjt1RMaah1Yo:section 4.3.2Firmware Upgrade:https://youtu.be/NOoLfDw0DiYp:section 4.3.3Calibration:https://youtu.be/c9sn1wY2mjEq:section 4.3.4Logo Update:https://youtu.be/vuVhBsohWtsr: RD6006 wifi connection Problem and solution:https://www.youtube.com/watch?v=7sTtc1kweJM
