Please according to your own measurements to choose your suitable size. The tags inside the items will show in our Asian (Type) size.
Support Power Supply: (Product ID: 1689167)
Support S800 Case: (Product ID: 1995241)
Technical Parameter:
| Model | RD6006 | RD6006-W | RD6012 | RD6012-W |
| Input voltage range | 6-70.00V | |||
| Output voltage range | 0-60.00V | |||
| Output current range | 0-6.000A | 0-12.00A | ||
| Output power range | 0-360W | 0-720W | ||
| Input voltage measurement resolution | 0.01V | |||
| Output voltage setting measurement resolution | 0.01V | |||
| Output current setting measurement resolution | 0.001A | 0.01A | ||
| Battery voltage measurement resolution | 0.01V | |||
| Input voltage measurement accuracy | ±(1%+5 digits) | |||
| Output voltage accuracy between setting and measurement | ±(0.3%+3 digits) | |||
| Output current accuracy between setting and measurement | ±(0.5%+5 digits) | |||
| Battery voltage measurement accuracy | ±(0.5%+3 digits) | |||
| Automatic cut off current value when charging | 10mA | 100mA | ||
| Output ripple typical | 100mV VPP | 250mV VPP@6A | ||
| Working temperature range | -10℃~40℃ | |||
| External sensor Temperature detection range: | -10℃~100℃/0℉~200℉ | |||
| External sensor Temperature detection accuracy | ±3℃/±6℉ | |||
| Constant voltage mode response time | 2ms（0.1A-5A Load） | 2ms（0.1A-5A Load） | ||
| Constant voltage mode load regulation | ±(0.1%+2 digits) | |||
| Constant current mode load regulation | ±(0.1%+3 digits) | |||
| Capacity measurement range | 0-9999.99Ah | |||
| Energy measurement range | 0-9999.99Wh | |||
| Capacity and energy statistical error | ±2％ | |||
| Buck working mode | Voltage drop >1V and >10% | |||
| Cooling fan start condition |
Output voltage >40V or Output current >4A or System temperature >45℃ |
Output current>8A or System temperature>45℃ | ||
| Cooling fan shut down condition when working |
Output voltage <40V and Output current <3.9A and System temperature<45℃ |
Output current <7.9A and System temperature <45℃ | ||
| Over temperature protection | System temperature >80℃ | |||
| Screen brightness setting | 0-5(6 level in total) | |||
| Screen | 2.4 inch color HD display | |||
| Weight(with package) | About 607g | About 642g | ||
| Product dimension | 167*81*65mm | |||
| Support USB communication | YES | |||
| Support WiFi communication | No | yes | No | yes |

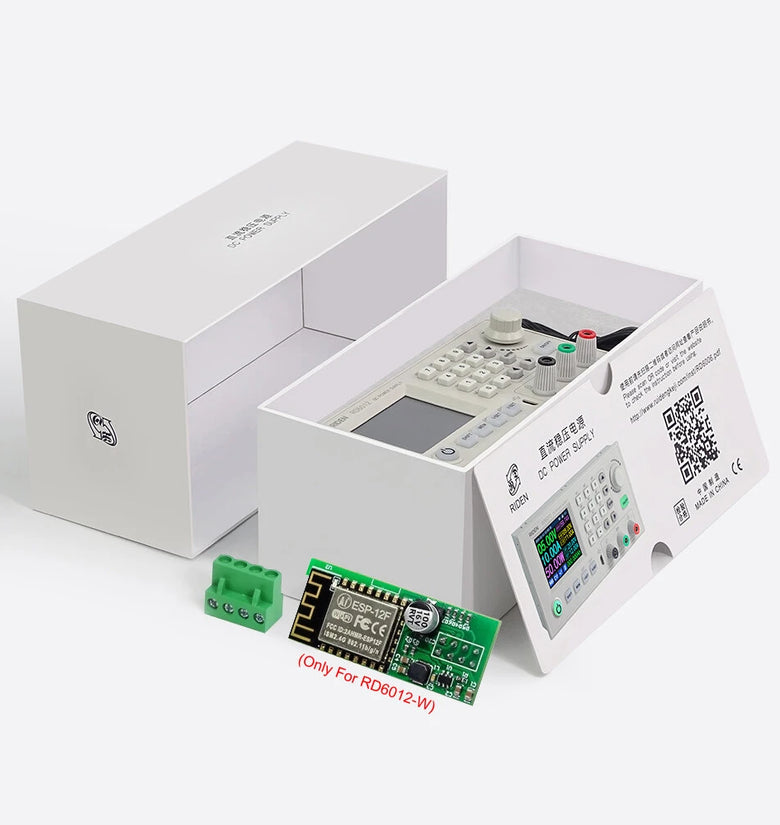

Package includes:
1 x Power module
Note before buying:
1. RD6012 series has two versions: RD6012 and RD6012-W, RD6012-W have WIFI board, RD6012 doesn't have. RD6012-W can use the WIFI board to connect APP, also use USB micro cable to connect PC software. RD6012 doesn't have a WIFI board, it only supports PC software by connecting with USB micro cable, no support APP. For wifi board to connect PC software, now it did not support.
Note: WiFi connection is a test function, due to poor compatibility of some computers, if you cannot connect PC software via WiFi, please ignore this function. For this function, we do not provide any guarantee and technical support, and we will decide whether to keep this function based on customer feedback.
2. For PC software, it only supports win 7 and above for now. For APP, it only supports Android 5.0 and above. For APP and PC software, because there may be incompatibilities problems, please download first before buying, if you can download and install, you can make the order, or else stop buying. If you don't test the PC software and APP function before buying and find that the products work fine except the PC software or APP, we refuse to refund.
3. For the S12A case, not containing any power supply. some picture show installation finished by RD6012, switch power and case.
For the S12A case, it is just case, not containing any power supply, but it is suitable for RD6012/RD6012W and AC-DC 800w 70V switch power supply, you can buy them separately to assemble easy.
Assemble instruction in English: https://drive.google.com/drive/folders/1LNymuq8olL32XDJXZFeQow7xtbuP6bMI?usp=sharing
All RD6012/RD6021W instruction and case installation instruction download Link:
1. RD6012(W) operation instructon, PC software instruction , APP instruction ,APP and PC software download link:
A: Main download llink: https://drive.google.com/drive/folders/1LNymuq8olL32XDJXZFeQow7xtbuP6bMI?usp=sharing
B: Mediafire: http://www.mediafire.com/folder/k5q2ecp9hnvyd/RD6012
C: Back up download link: http://www.ruidengkeji.com/rdupdate/software/RidenPower/RidenPowerSupply_V1.0.0.6.rar
2. Android APP: download at file link https://drive.google.com/drive/folders/1LNymuq8olL32XDJXZFeQow7xtbuP6bMI?usp=sharing, Support android 5.0 -android 10.0
IOS APP download: Search RdPower to download, support IOS10.0-IOS13.4 System
3. RD6012/RD6012W Operation instruction video(similar to RD6006): https://youtu.be/fn6ROhGrLtI
