Specifications:
Model: RD6012H （optional）
Screen: 2.4 inch color HD display
Screen brightness adjustment: 0 - 5 levels
Input voltage range: 6 - 70V
Maximum output voltage: 60V (Buck-boost)
Maximum input current: 16A
Output voltage range: 0 - 60V
Output current range: 0 - 12A
Output power range: 0 - 720W
Voltage resolution: Input: 0.01V, Output: 10mV
Voltage accuracy: Input: ±0.05V (1%), Output: ±0.03V (0.3%)
Current resolution: 1mA
Current accuracy: ±5mA (0.5%)
Battery voltage resolution: 0.01V
Battery voltage accuracy: ±0.03V (0.5%)
Output ripple typical (VPP): 75mV
Response Time (Constant Voltage Mode): 2ms (0.1A-5A load)
Regulation Accuracy (Voltage mode): ±2mV
Regulation Accuracy (Current mode): ±3mA
Capacity measurement range: 0 - 9999.99Ah
Energy measurement range: 0 - 9999.99Wh
Capacity & energy statistical error: ±2%
Working temperature range: -10°C to 40°C
External sensor temperature range: -10°C to 100°C (14°F to 212°F)
External sensor error: ±3°C (±6°F)
Cooling fan activation condition: Output current > 4A or System temperature > 45°C
Dimensions: 167 x 81 x 67 mm
Features:
1) 5-Digit Precision: Equipped with high-resolution measurement capabilities, the RD6012H ensures accurate readings for voltage and current adjustments, empowering users in complex testing scenarios.

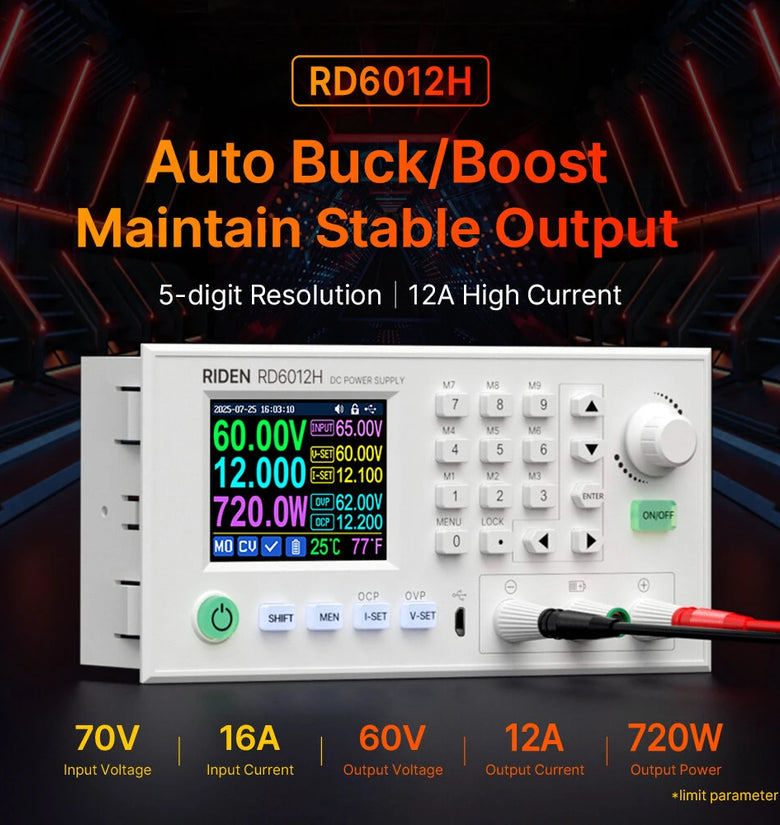

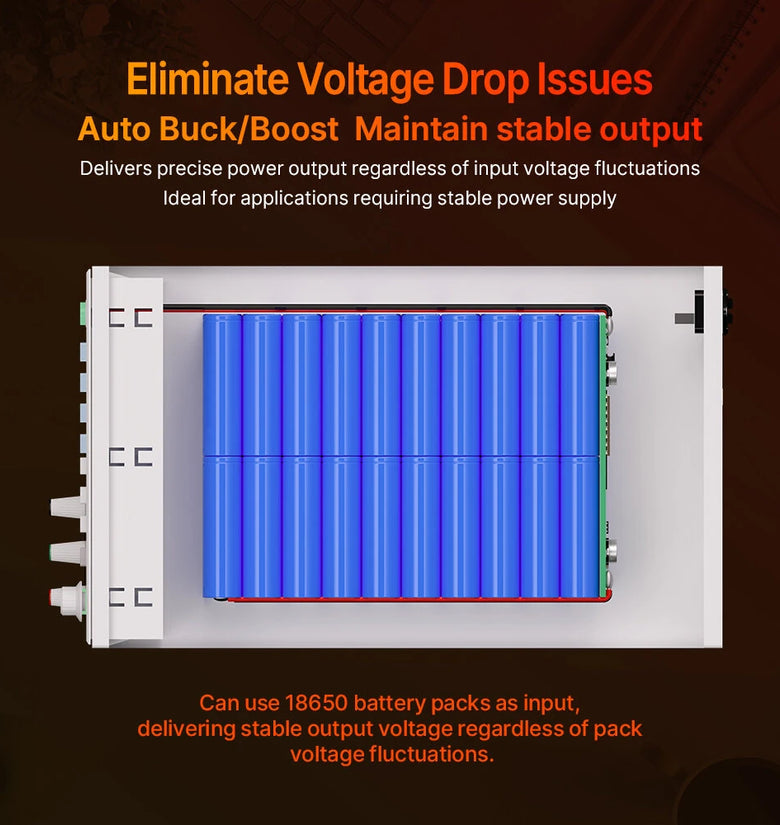

2) Wide Input and Output Range: With a broad range of 6-70V input and 0-60V output, this device adapts to diverse voltage requirements, making it suitable for numerous applications.
3) Efficient Power Output: Supports up to 720W of output power, allowing it to handle high-demand tasks while maintaining consistent performance levels.
4) Real-Time Monitoring: Includes a vibrant 2.4-inch HD display with adjustable brightness levels, providing clear and immediate data visualization in various lighting conditions.
5) Enhanced Thermal Management: Designed with an intelligent cooling system triggering at specific conditions to ensure optimal operation and system safety even during extended periods of usage.
Package Included:
