NOTE:1. RK6006-C has bluetooth function, and it does not have AC power cord, you need to prepare it by yourself, and it does not have external temperature sensor cable, please notice that
2. RK6006-C is set to use 200-240V AC input by default, if you use 100-120V AC, please put the AC selector to 110V gear
File Download:
1. RK6006-C manual, PC software, APP download link: https://drive.google.com/drive/folders/1V9CMtTBnc4Ww-sNHrabN8522YPYQcrNI?usp=sharing
2. IOS APP download: search 'RUIDENG' in STORE
Android app download link: https://drive.google.com/drive/folders/1V9CMtTBnc4Ww-sNHrabN8522YPYQcrNI?usp=sharing
Specification:
| Model | RK6006-C |
| Input voltage range | 100-120V/200-240V AC |
| Output voltage range | 0-60.00V |
| Output current range | 0-6.000A |
| Output power range | 0-360W |
| Output voltage setting/reading resolution | 0.01V |
| Output current setting/reading resolution | 0.001A |
| Output voltage setting/reading accuracy | ±(0.3%+3 digits) |
| Output current setting/reading accuracy | ±(0.5%+5 digits) |
| Output ripple typical | 100mV VPP① |
| Working temperature range | -10℃~40℃ |
| Constant voltage moderesponse time | 2ms（0.1A-5A Load） |
| Constant voltage mode load regulation | ±(0.1%+2 digits) |
| Constant current mode load regulation | ±(0.1%+3 digits) |
| Capacity measurement range | 0-9999.99Ah |
| Energy measurement range | 0-9999.99Wh |
| Capacity and energy statistical error | ±2％ |
| Over temperature protection | System temperature>90℃ |
| Screen brightness setting | 0-5(6 level in total) |
| Screen | 1.54 inch 240*240 color LED display |
| Weight(with package) | About 1.3 kg |
| Product dimension | 200*115*57mm |
| Support USB/Bluetooth communication | YES |
①: Ripple measurement method: noise and ripple are measured at X1 range, AC coupling, 20MHz of bandwidth on your oscilloscope, with a 0.1uF parallel capacitor at the output terminals
FAQ:
1. Q: What is included in RK6006-C?A: RK6006-C is AC to DC power supply, in this option, you can get RD6006 assembled set*1, X15A cable*1, micro USB cable*1 and a backup fuse(check the picture above), the bluetooth board is inserted at the communication interface. This set does NOT have AC power cable and external temperature sensor cable.2. Q: How do I choose the AC input?A: this device is default 200-240V AC input, if you use 100-120V AC input, you can put the AC selector to 110V gear, and there is no problem.3. Q: Why the product I get is a bit different with the picture?A: We keep updating the product hardware and software to make the device better, so the internal material details may be different, but it does not affect you to use the functions.4.Q: Can I use it to power on inductive load?A: If you connect inductive load (such as motor), the max working voltage and current is 1/3 of full range. don't exceed it.5. Q: Why there is a fuse in the box? Should I install it?A:It is a BACKUP fuse in the, if you burn the fuse with wrong operation, you can replace the fuse with the backup fuse to fix it.SOFTWARE QUESTIONS:1. Q: The APP crashes on my phone, what the problem is?A: For APP and PC software, because there may be incompatibilities problems, please download first before buying , if you can download and install, you can make order, or else stop buying. If you don't test the PC software and APP function before buying and find that the products works fine except the PC software or APP, we refuse to refund.For PC software, it only support win 7 and above for now. For APP, it only support android 8.0 and above.
Package Include:

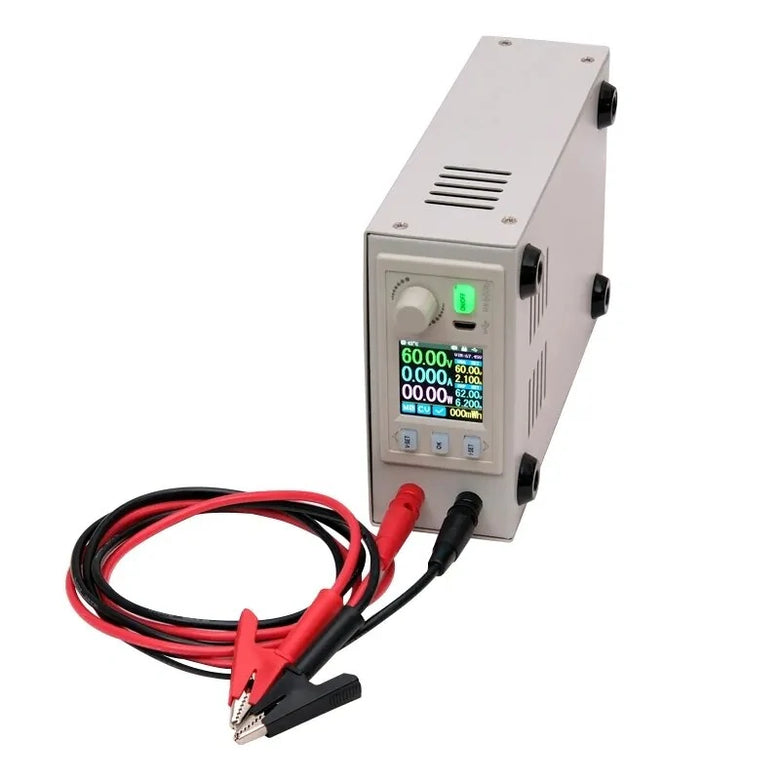

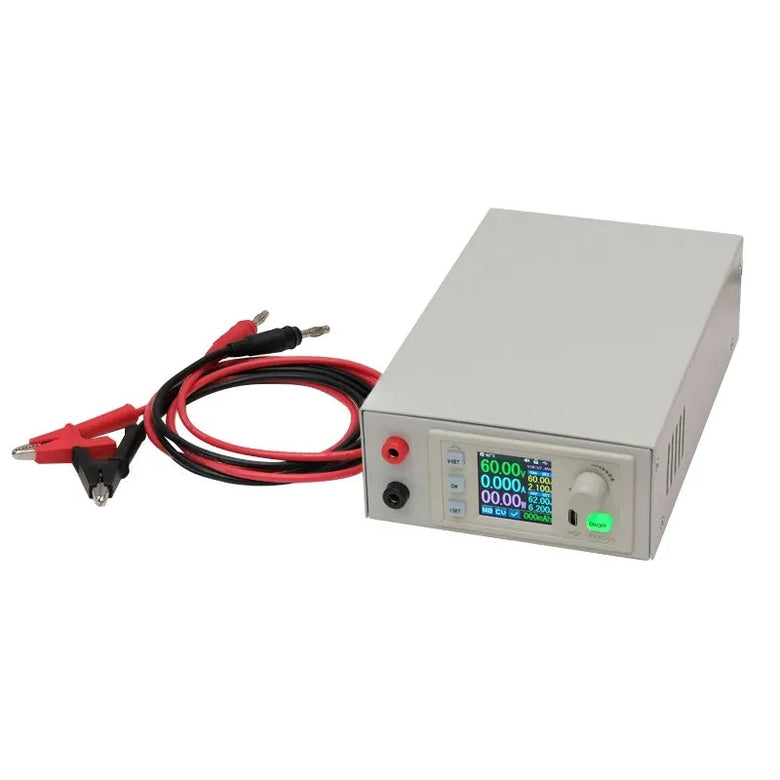

1x RIDEN RK6006-C Machine
1x X15A Output Cable
1x Backup Fuse
1x Micro Communication Cable
