Specifications:

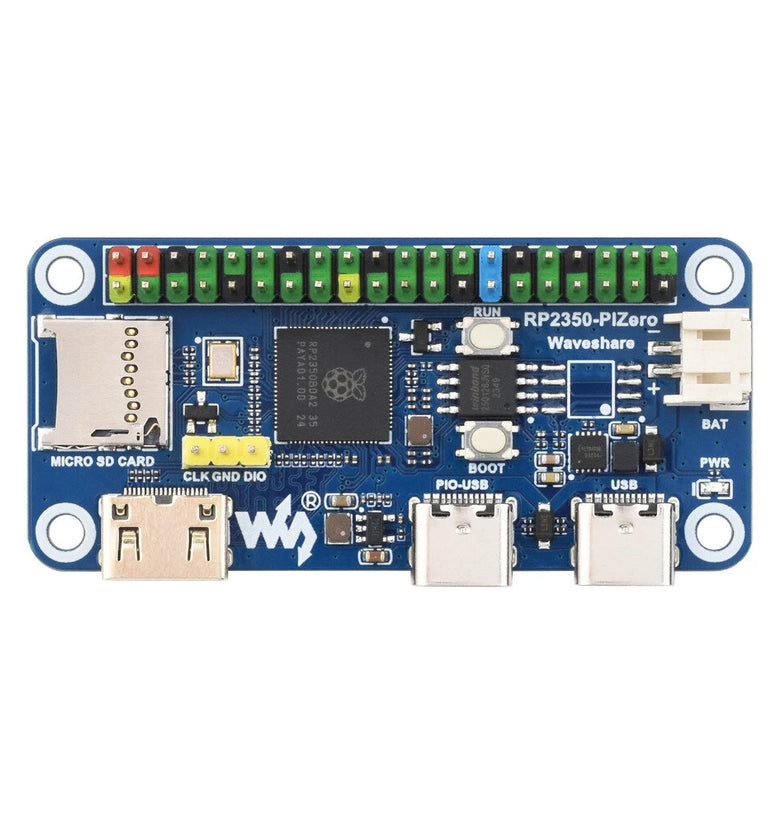

RP2350-PiZero is a high-performance and cost-effective microcontroller board, onboard DVI interface, TF card slot and PIO-USB port, compatible with Raspberry Pi 40PIN GPIO header, with reserved solder pads for PSRAM chip expansion, easy to develop and integrate into products.

1. RP2350B microcontroller chip designed by Raspberry Pi in the United Kingdom2. Adopts unique dual-core and dual-architecture design: dual ARM Cortex-M33 or dual Hazard3 RISC-V processors support, flexible clock running up to 150 MHz3. 520KB of SRAM, and 16MB of onboard Flash memory, with reserved solder pads for PSRAM chip expansion4. Type-C connector for easier use5. Onboard DVI interface can drive most HDMIscreens (DVI compatibility required)6. Supports using as a USB host or device via onboard PIO-USB port7. Onboard TF card slot for reading and writing TF card8. Onboard Lithium battery recharge/discharge header, suitable for mobile scenarios9. USB 1.1 with device and host support10. Low-power sleep and dormant modes11. Drag-and-drop programming using mass storage over USB12. Adapting 5 × multi-function GPIO pins13. 2 × SPI, 2 × I2C, 2 × UART, 2 × 12-bit ADC, 16 × controllable PWM channels14. Accurate clock and timer on-chip15. Temperature sensor16. Accelerated floating-point libraries on-chip17. 12 × Programmable I/O (PIO) state machines for custom peripheral support

Package includes:

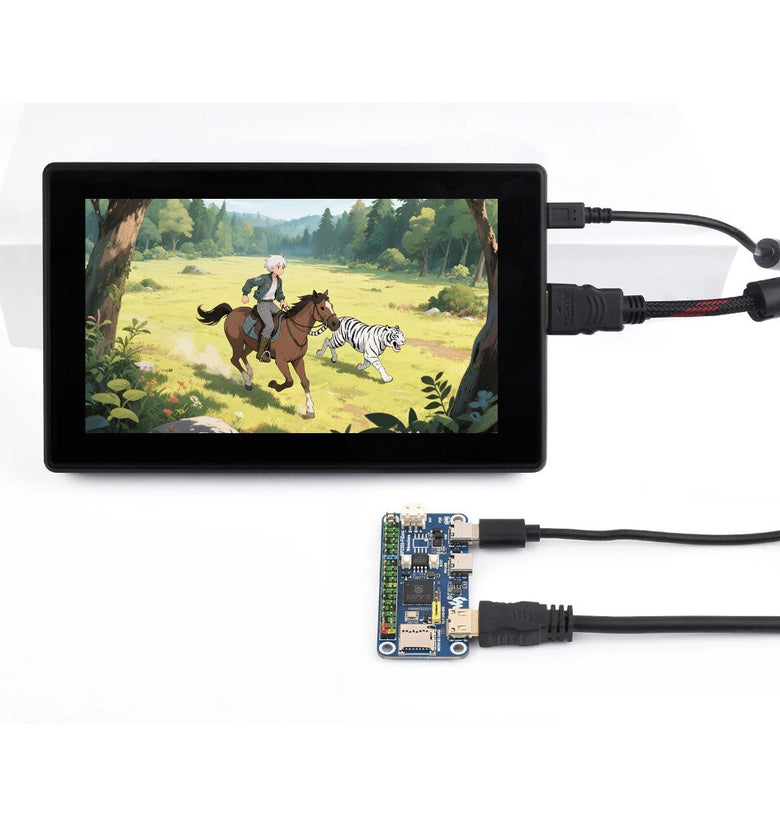

1 x RP2350-PiZero
