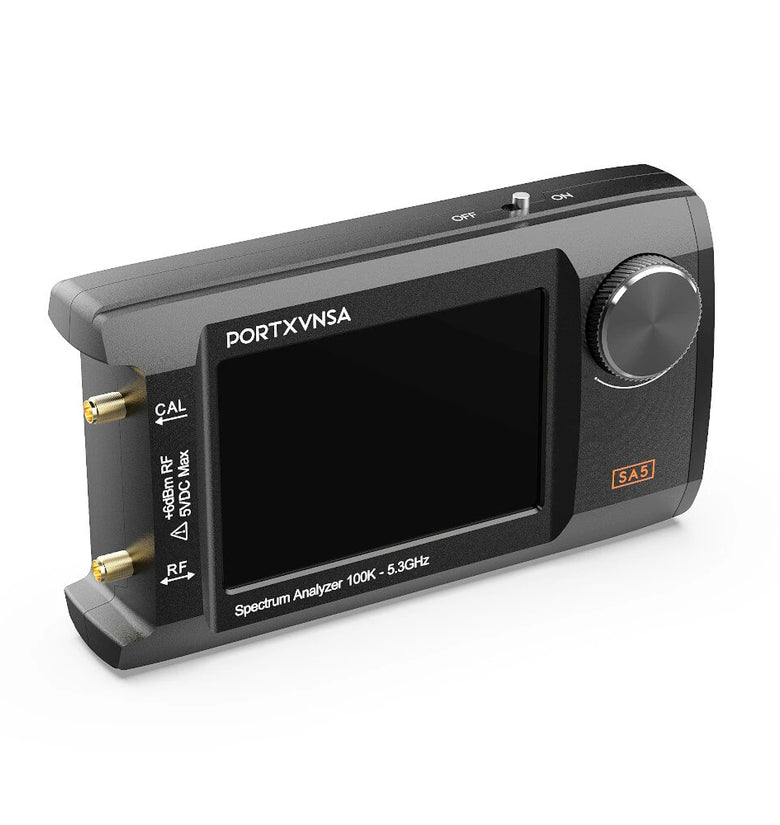

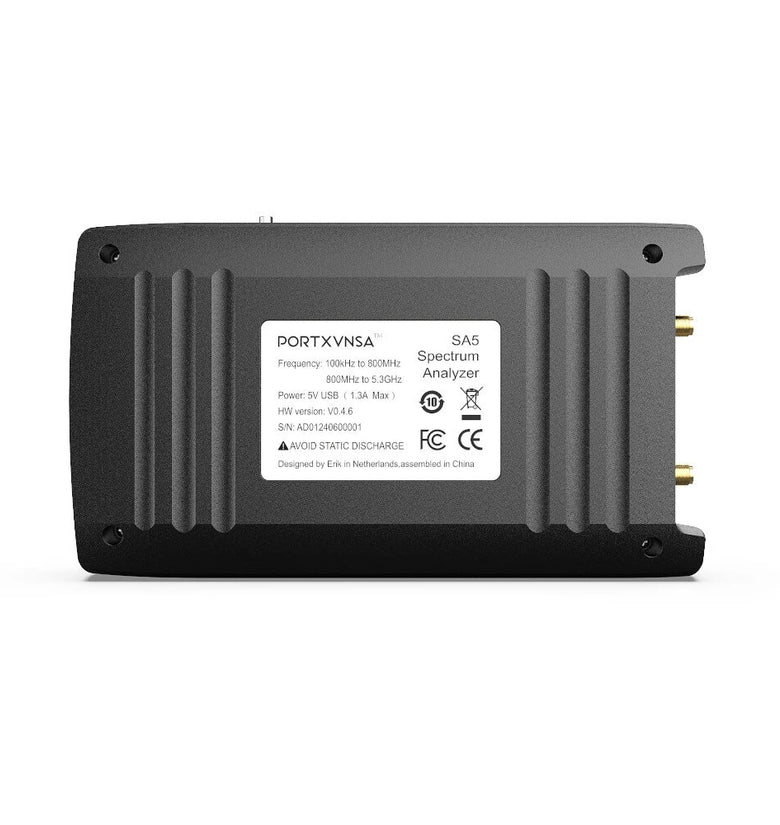

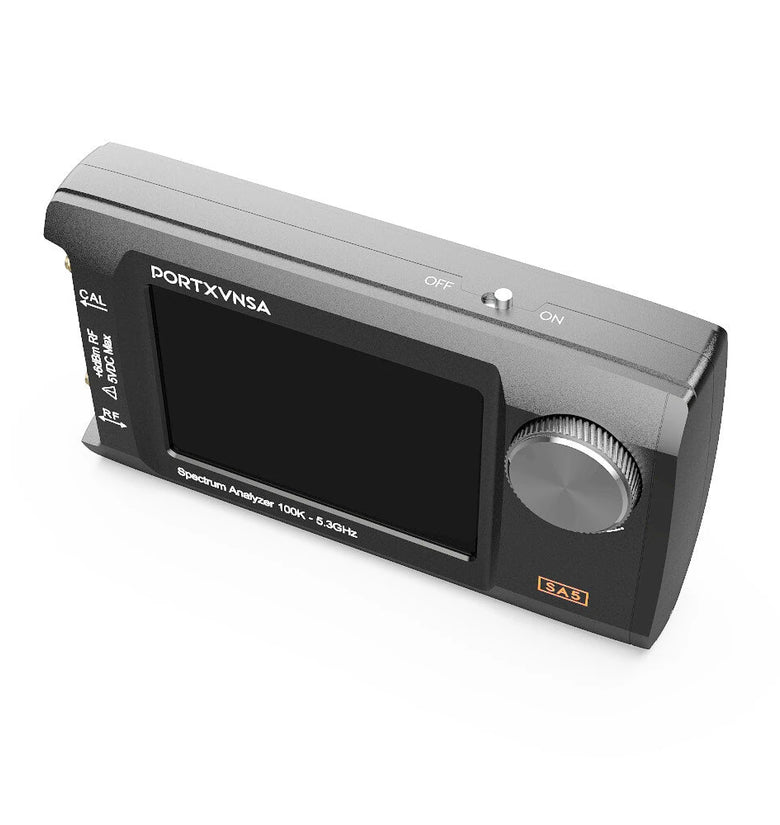

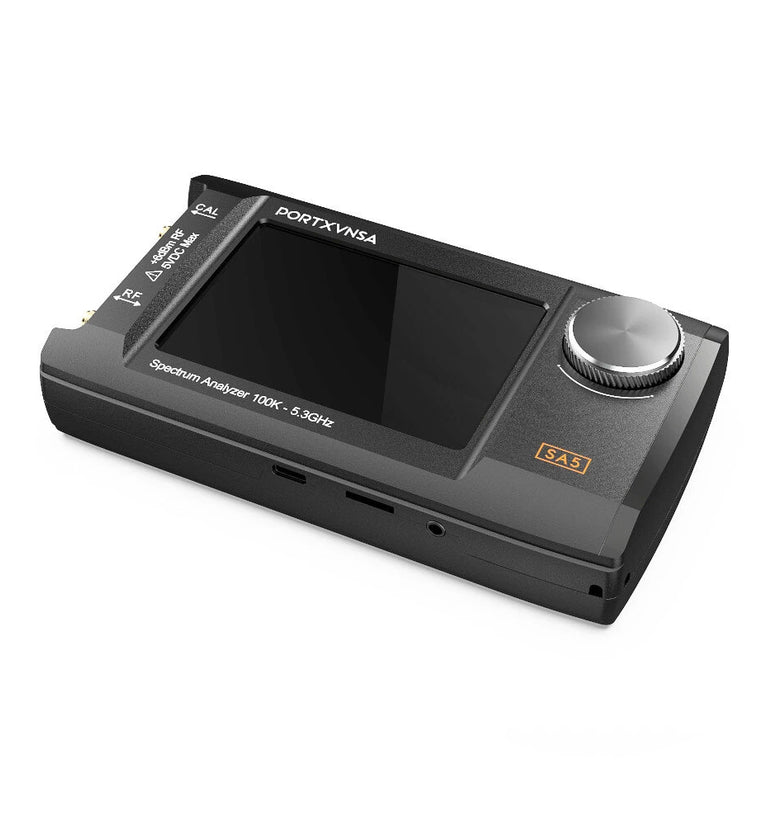

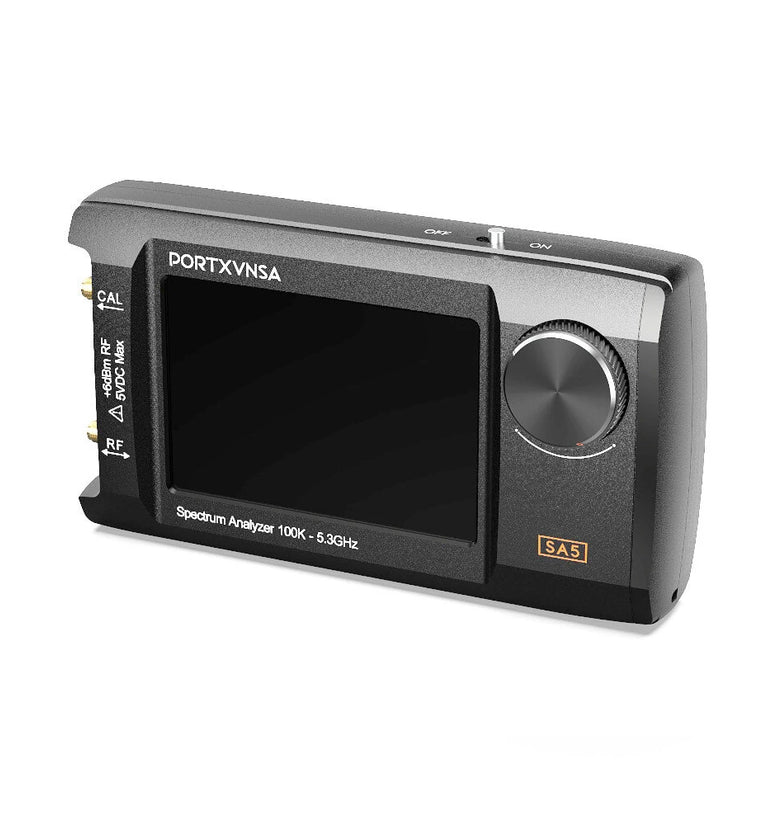

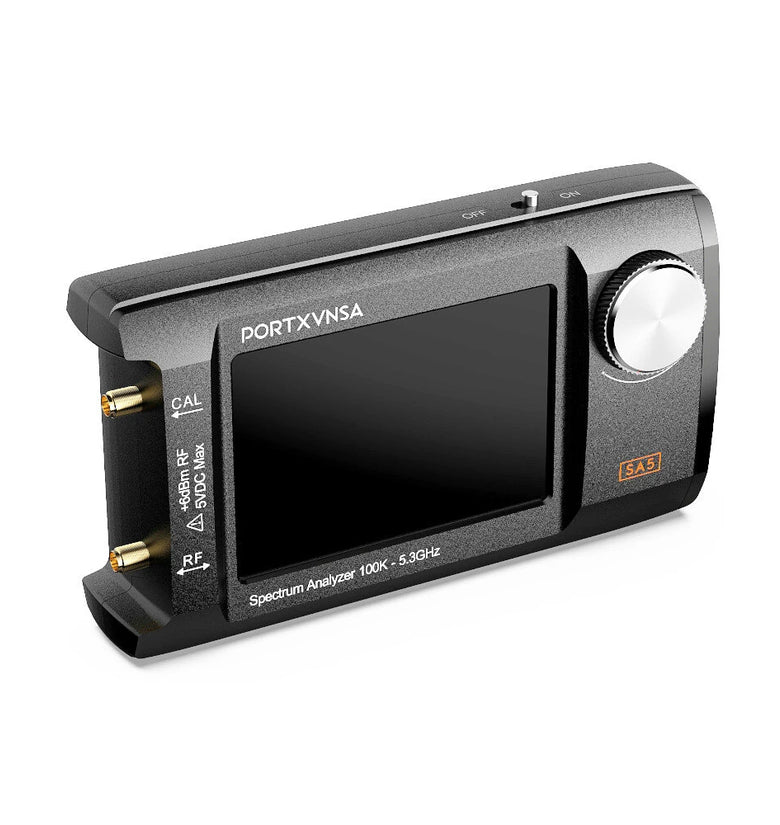

SA5 Product Features:Screen Size: 4 inches IPS LCD, featuring a large knob for easy operation.Spectrum Analyzer: Normal mode：0.1-800MHz, Ultra mode：provides level calibration up to 5.3GHz, and can observe signals up to 12GHz. Signal Generator: Outputs sine waves between 0.1-800MHz, square waves up to 4.4GHz, or RF test signals up to 5.3GHz when not used as a spectrum analyzer.Switchable resolution bandpass filters: from 200Hz to 850kHz.Optional LNA: Built-in 20dB Low Noise Amplifier (LNA).Spectrum Display: Display up to 450 points, Display four independently configured traceStorage: MicroSD card slot for storing measurements, settings, and screen captures(SD card Not includes).
Input Attenuator: Step attenuator adjustable from 0dB to 31dB (not usable with LNA).Calibration: Includes a built-in calibration signal generator for automatic self-test and input calibration.PC Connectivity: Connects via USB to function as a PC-controlled spectrum analyzer or signal generator.Battery: 5000mA, Rechargeable battery providing at least 10 hours of portable use.Max Input Level: +10dBm. Ensure not to exceed this to avoid damage.
Specifications:
| Specification | Details |
| Input Frequency Range | 100kHz to 800MHz in normal mode; up to 6GHz with ULTRA mode enabled |
| Input Impedance | 50 ohm when input attenuation set to 10dB or more |
| Input Attenuation | Selectable manual and automatic input attenuation between 0dB and 31dB in 1 dB steps when LNA not active |
| Maximum DC Input | ±5V DC |
| Absolute Maximum Input Level | +6dBm with 0dB internal attenuation |
| Absolute Maximum Short-Term Peak Input Power | +20dBm with 30dB internal attenuation |
| Suggested Maximum Input Power | +0dBm with internal attenuation in automatic mode |
| Best Measurement Input Power | Below -25dBm |
| Input Intercept Point (IIP3) | +15dBm with 0dB internal attenuation |
| 1dB Compression Point | -1dBm with 0dB internal attenuation |
| Power Detector Resolution | 0.5dB |
| Linearity vs Frequency | ±2dB below 5.3GHz, ±5dB between 5.3GHz and 6GHz |
| Absolute Power Level Accuracy | ±2dB after power level calibration |
| Built-in Optional LNA | 20dB LNA with Noise Figure of 5dB |
| Lowest Discernible Signal without LNA | -102dBm at 30MHz using a resolution bandwidth of 30kHz |
| Lowest Discernible Signal with LNA | -145dBm at 30MHz using a resolution bandwidth of 200Hz |
| Frequency Accuracy | Equal to the selected resolution bandwidth |
| Phase Noise | -108dB/Hz at 100kHz offsetand -115dB/Hz at 1MHz offset@ 30MHz |
| Spur-Free Dynamic Range | 70dB when using a 30kHz resolution bandwidth |
| Resolution Filters | 0.2, 1, 3, 10, 30, 100, 300, 600, and 850 kHz |
| On-Screen Resolution | 51, 101, 145, 290, or 450 measurement points |
| Scanning Speed | Over 1000 points/second using largest resolution filters |
| Automatic Optimization of Scanning Points | Ensures coverage of the whole scan range regardless of the chosen resolution bandwidth |
| Spur Suppression Option | For assessing if certain signals are internally generated or actually present in the input signal |
| Headphone Output | For listening to the demodulated audio (AM only). Stereo connector only, high impedance is louder, short protected |
Package includes:
1 x 100k-5.3GHz Signal Generator
