Please click here to download the instruction manual

Specifications:

Model: SA6 Mini

Frequency Range Displayed: 35-4400MHz

Measurement Frequency Range: 45-4400MHz

Dynamic Range (45-3000MHz): 75dB

Dynamic Range (3000-4400MHz): 70dB

Maximum Bandwidth: 4355 MHz

Intermediate Frequency Bandwidth: 200 kHz (fixed)

Scanning Speed (>100MHz): 600MHz/s

Scan Time (100MHz Span): <0.25s

Minimum Detectable Signal Duration (10MHz Span): 20ms

Noise Floor (up to 3000MHz): <-95dBm

Input Impedance: 50 ohms

SWR across Operating Frequency Range: <1.5

Internal Attenuator: 0-30dB

Up to 10dB: ±2dB

10-20dB: ±5dB

20-30dB: ±8dB

Built-in Tracking Generator Frequency Range: 35-6200MHz

Tracking Generator Output Power: -15 to -25dBm

Signal Display Accuracy within Dynamic Range: ±2dB

Maximum Input Power (0dB Attenuator): +10dBm

Maximum Input Power (>20dB Attenuator): +20dBm

Maximum RF Input DC Voltage: 5V

Battery Capacity: 3000mAh

Continuous Operation Time: 3 hours

Battery Charging Time: ~4 hours

Dimensions: 155 x 81 x 27mm

Weight: 0.49kg

Features:

Wide Frequency Range: Covers 35-4400MHz for comprehensive signal testing and analysis.

Fast Scanning Speed: Over 600MHz/s scanning speed for efficient signal detection.

High Dynamic Range: Provides 75dB dynamic range up to 3000MHz and 70dB for 3000-4400MHz.

Built-in Tracking Generator: Enables detailed signal tracing and analysis up to 6200MHz.

Portable Design: Compact dimensions and lightweight make it ideal for field testing.

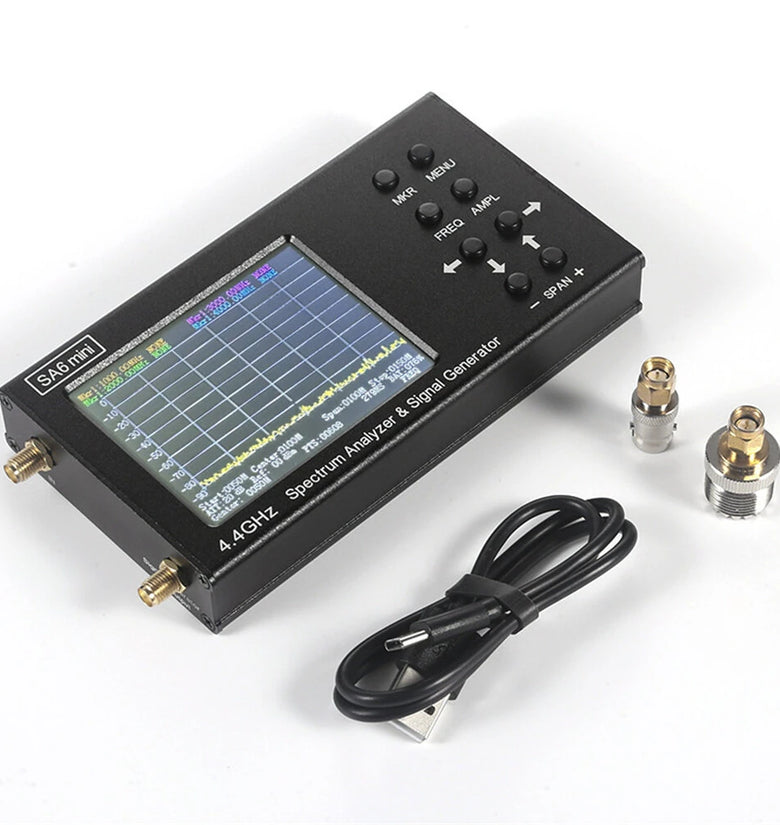

Package Included:

Type A:

1 x SA6 Mini Spectrum Analyzer

1 x USB Cable

1 x SMA Male to SMA Male Adapter

1 x User Manual Support Guide

Type B:

1 x SA6 Mini Spectrum Analyzer

2 x SMA-SMA Extension Cable

1 x Stylus

1 x SMA-KK Passed

1 x USB Cable

1 x SMA Male to SMA Male Adapter

1 x User Manual Support Guide
