Specifications:

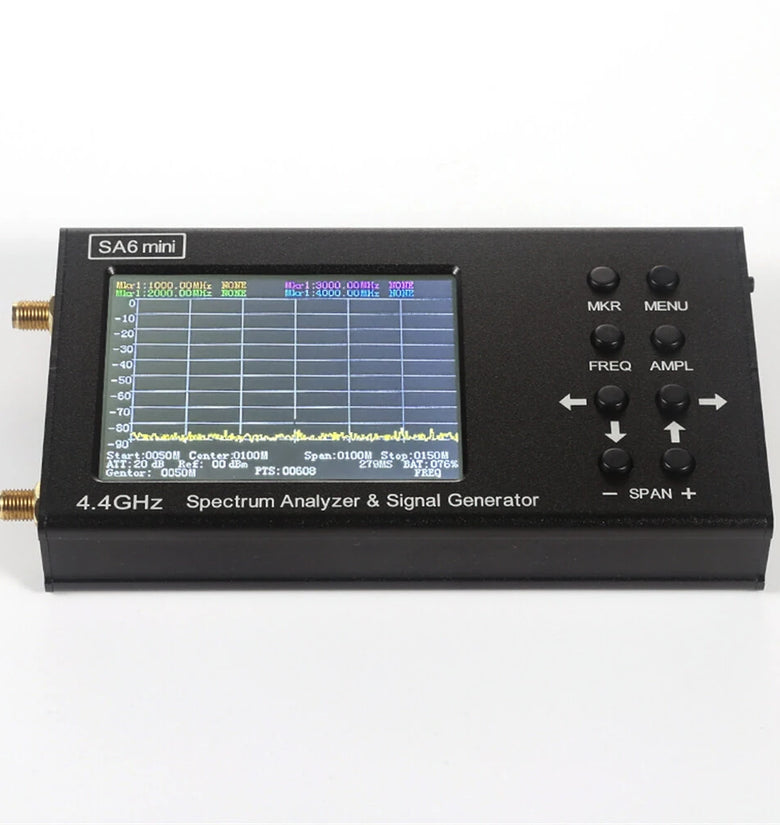

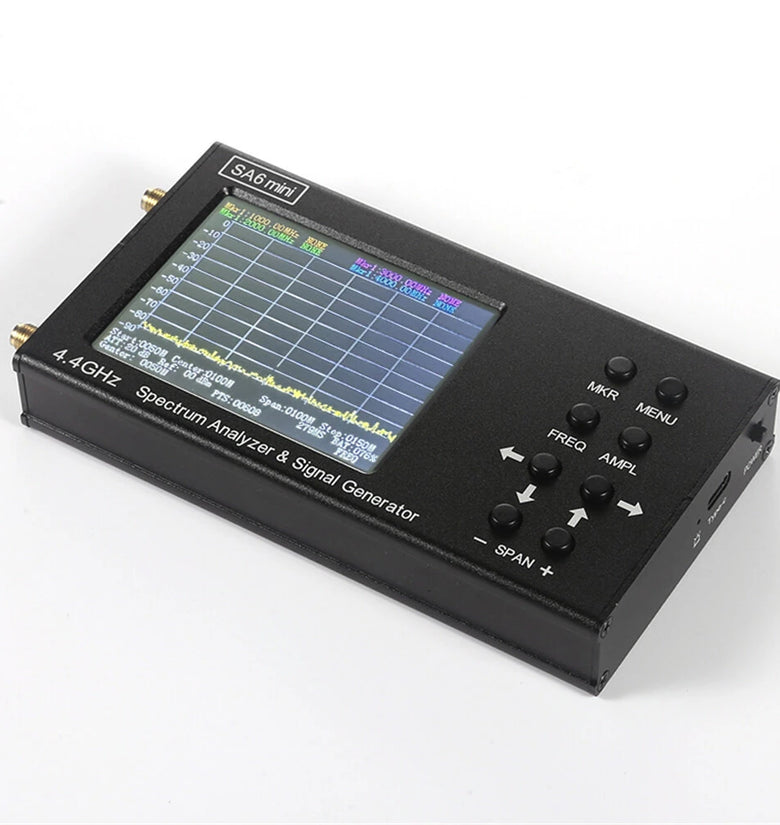

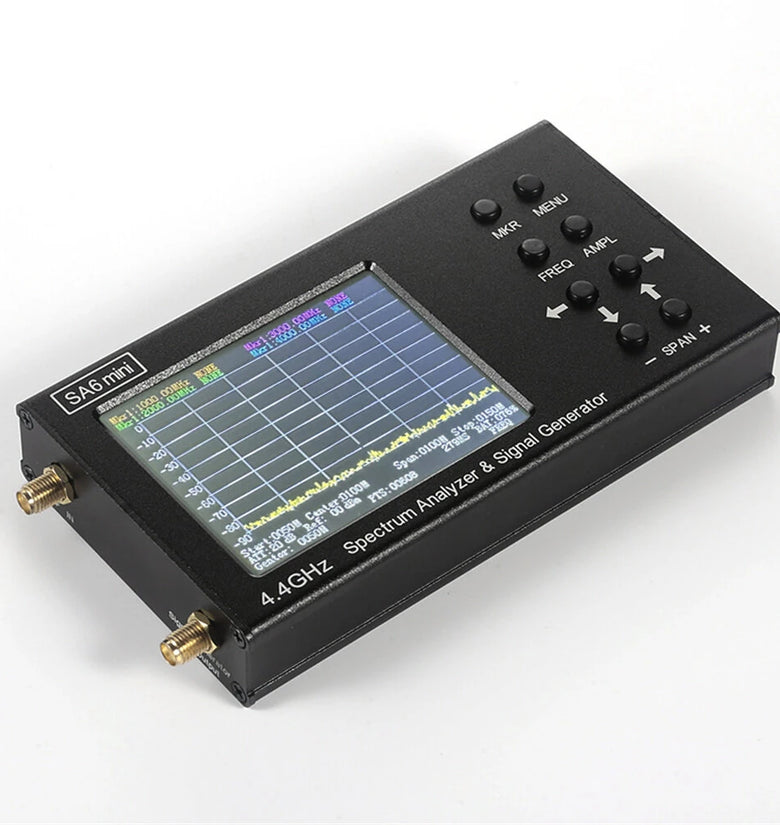

Product Name: Mini Portable Spectrum Analyzer SA6

Frequency Range:

Displayed: 35-4400 MHz

Measurement: 45-4400 MHz

Dynamic Range:

75 dB (45-3000 MHz band)

70 dB (3000-4400 MHz band)

Maximum Bandwidth: 4355 MHz

IF Bandwidth (Fixed): 200 kHz

Speed over 100 MHz: 600 MHz/s

Measurement Time: Less than 0.25 seconds for 100 MHz span

Detectable Signal Duration: 20 ms at 10 MHz span

Noise Floor:

Less than -100 dBm (up to 3000 MHz)

Less than -95 dBm (3000-4500 MHz)

Less than -90 dBm (4500-6200 MHz)

Input Impedance: 50 ohms

SWR: Less than 1.5 in the operating frequency range

Internal Attenuator: 0-30 dB

Attenuation Error:

Up to 10 dB: 2 dB

10 to 20 dB: 5 dB

20 to 30 dB: 8 dB

Built-in Tracking Generator Frequency Range: 35-6200 MHz

Tracking Generator Output Power: -15 to 25 dBm

Accuracy of Signal Display within Dynamic Range: 2 dB

Maximum Input Power:

0 dB Attenuator: +10 dBm

Greater than 20 dB Attenuator: +20 dBm

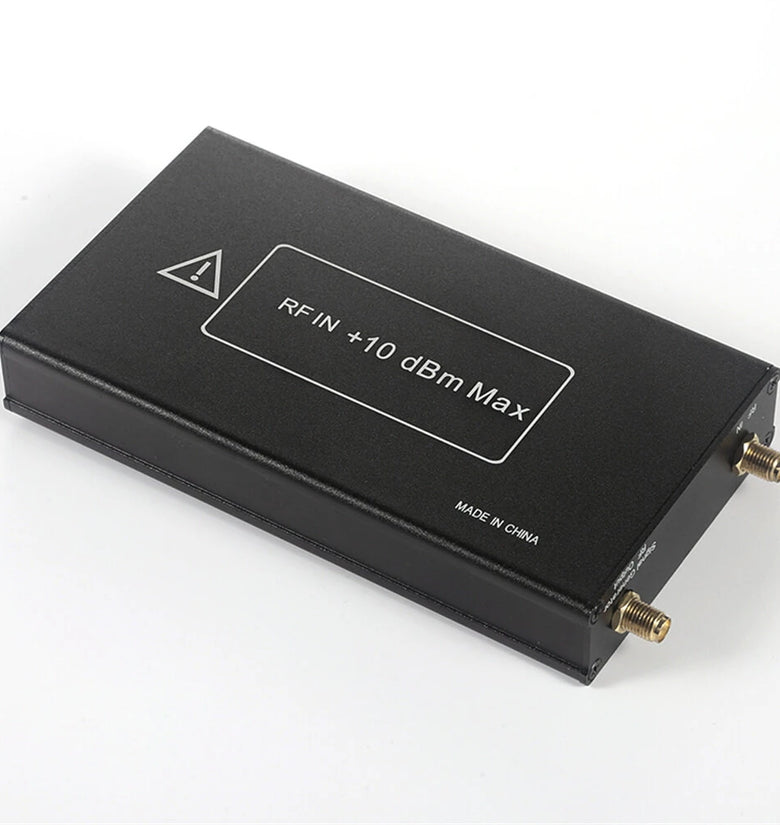

Measured Maximum Input Signal: +10 dBm

Maximum RF Input DC Voltage: 5V

Maximum Supply Cur
