Specification:

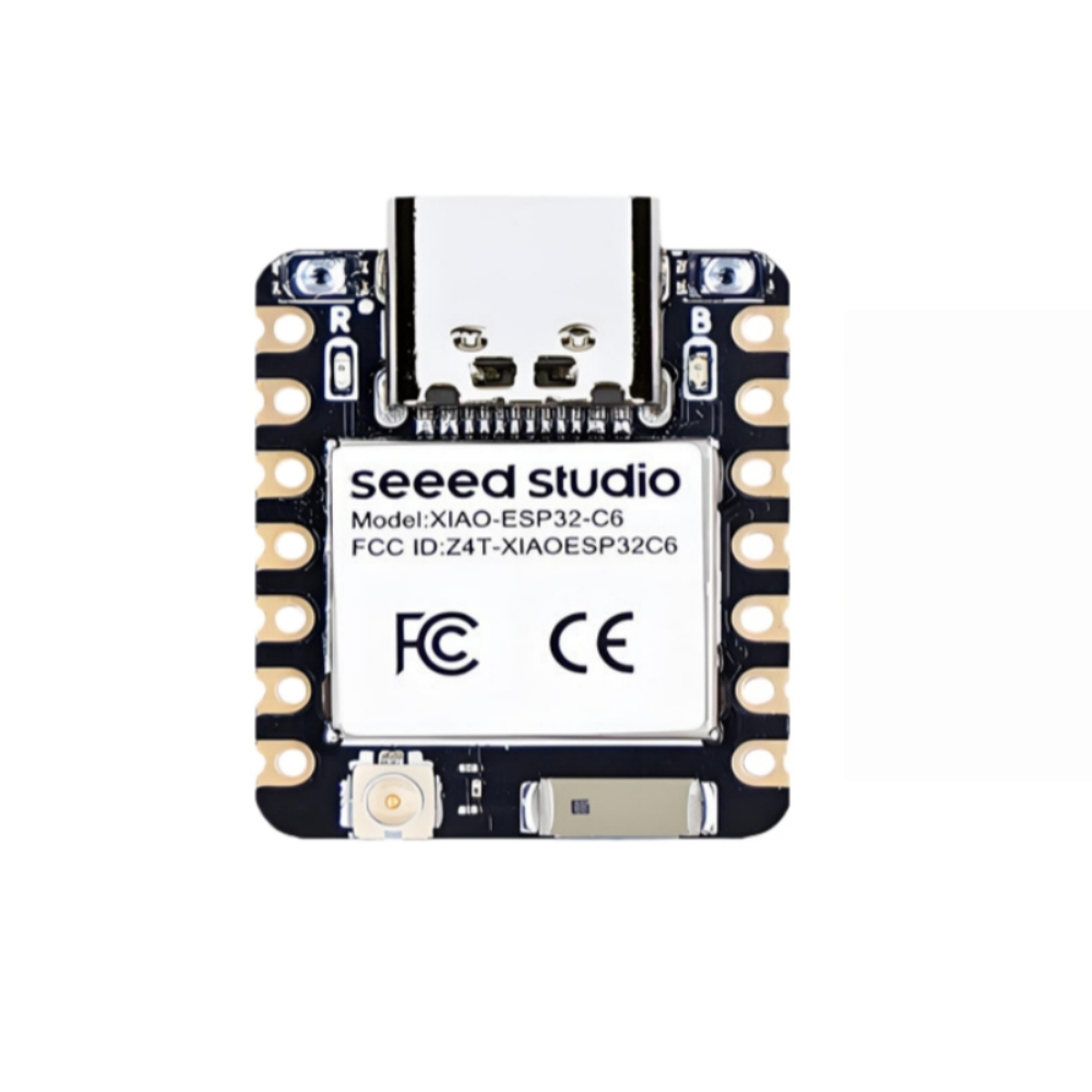

Product Name: Seeed Studio XIAO Development Board
Models: ESP32-C6

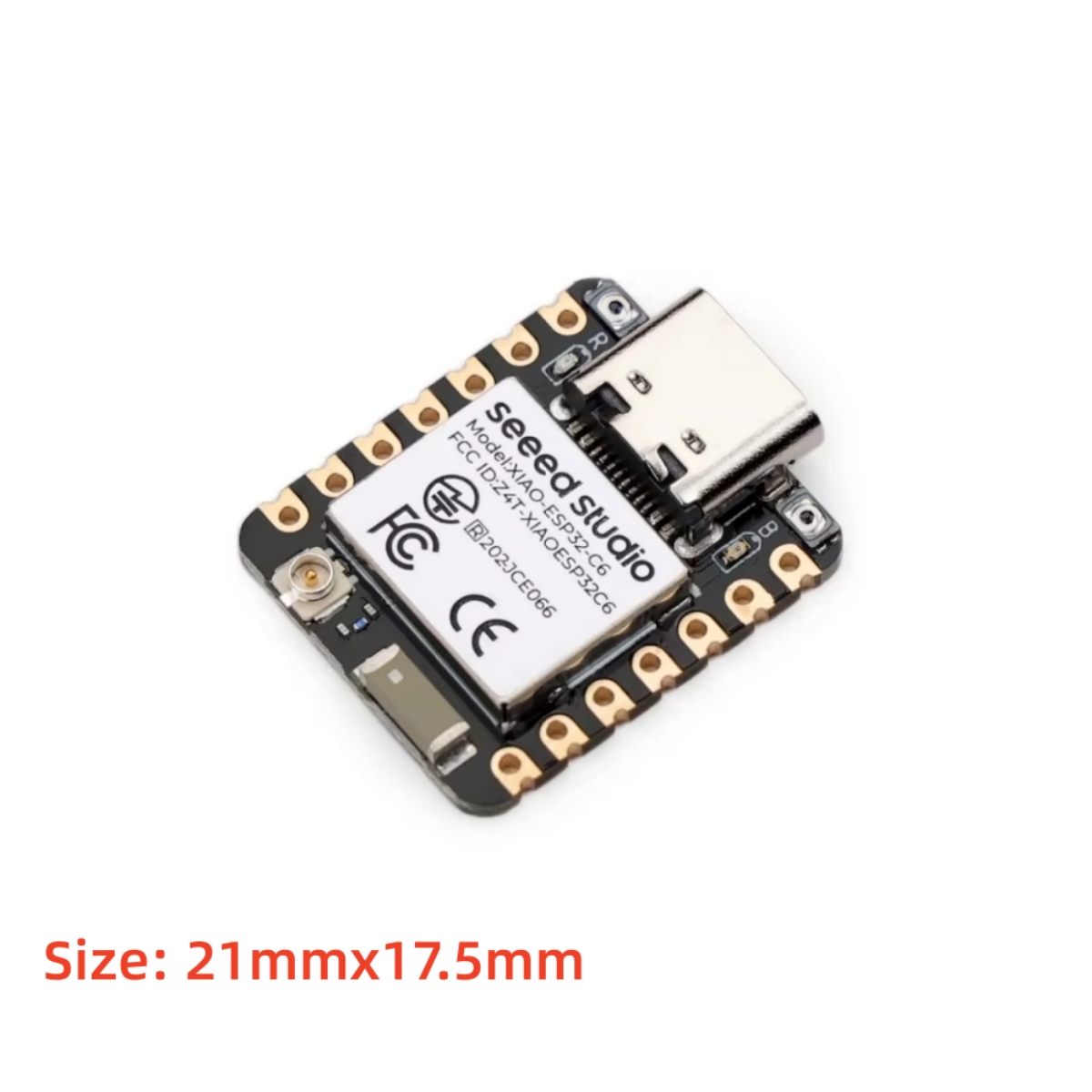

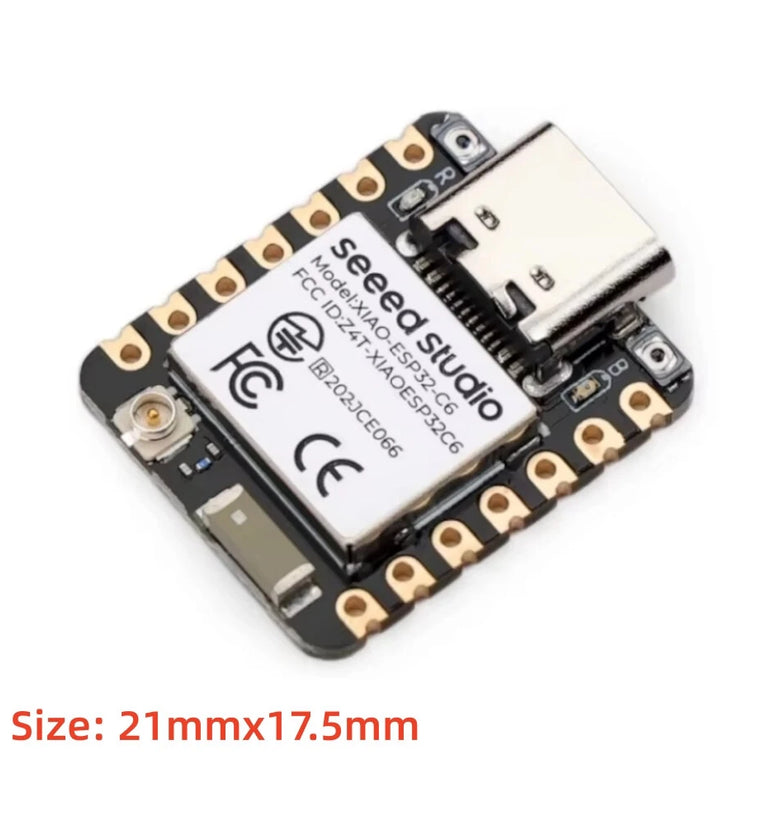

Dimensions: 21mm x 17.5mm
Features:
1. Compact Design: Small dimensions (21mm x 18mm) ideal for space-constrained projects.
2. Advanced Connectivity: Support for Wi-Fi 6 and Bluetooth 5.0.
3. Multiple Interface Options: UART, IIC, SPI, GPIO, ADC, and SDIO ports for versatile applications.
4. Memory Options: Available SRAM and Flash storage configurations for different use cases.
5. Low Power Consumption: Includes modem-sleep, light-sleep, and deep-sleep options.
6. Type-C Interface: Easy integration with modern USB Type-C connectivity.
Package Includes:
1x XIAO ESP32-C6 Development Board
| Product | XIAO ESP32-C6 (This item) | XIAO ESP32-C3 | XIAO ESP32-S3 |
| Processor | Espressif ESP32-C6 SoC | Espressif ESP32-C3 SoC | Espressif ESP32-S3R8 |
| two 32-bit RISC- Vprocessors, with the high-performance one running up to 160 M Hz, and the low-power one clocking up to 20 MHz | RISC-V single-core 32-bit chip processor with a four- stage pipeline that operates at up to 160 MHz | Xtensa LX7 dual-core, 32-bit processor running up to 240 MHz | |
| Wireless | Complete 2.4GHz Wi-Fi 6 subsystem | Complete 2.4GHz WiFi subsystem | Complete 2.4GHz Wi-Fi subsystem |
| BLE: Bluetooth 5.0, Bluetooth mesh | BLE: Bluetooth 5.0, Bluetooth mesh | BLE: Bluetooth 5.0, Bluetooth mesh | |
| Zigbee,Thread, IEEE 802.15.4 | / | / | |
| On-chip Memory | 512KB SRAM & 4MB Flash | 400KB SRAM & 4MB Flash | 8M PSRAM & 8MB Flash |

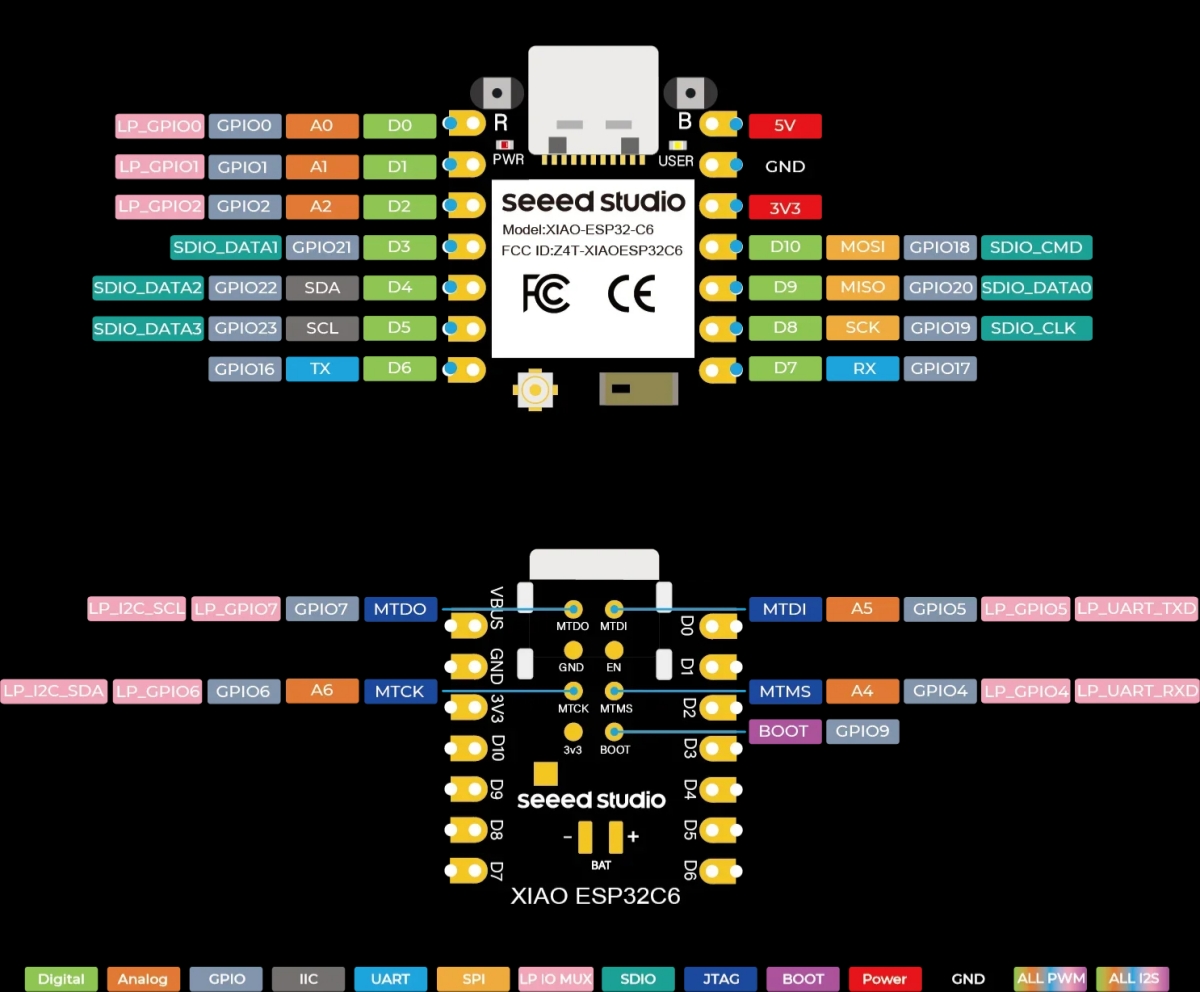

| Interface | 1x UART, 1x LP_UART, 1x IIC, 1x LP_IIC, 1x SPI, 11x GPIO(PWM), 7x ADC, 1xSDIO | 1 x UART, 1x IICr 1x SPI, 11x GPIO(PWM), 4x ADC | 1 x UART, 1x llC, 1x llS, 1x SPI,11x GPIO(PWM), 9x ADC, 1x User LED, 1x Charge LED |

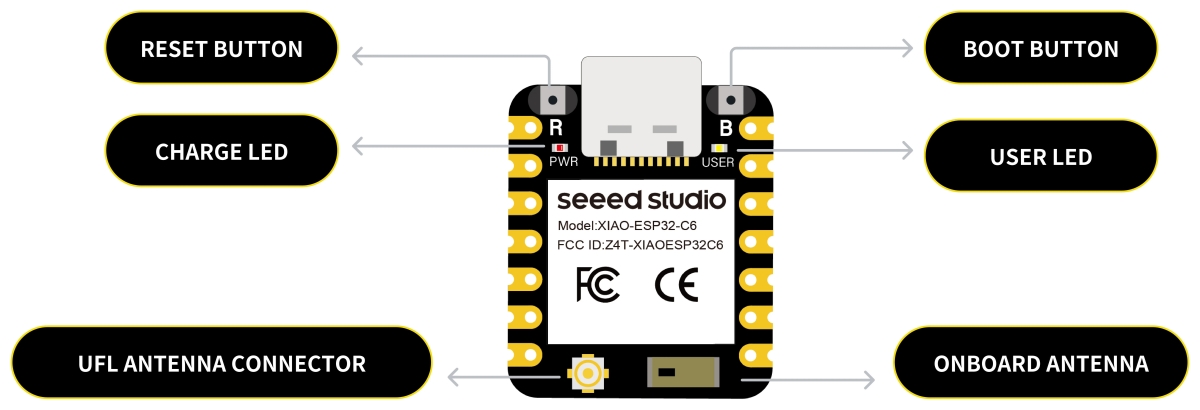

| 1x Reset button, 1x Boot button | 1x Reset button, 1x Boot button | 1x Reset button, 1x Boot button | |
| Dimensions | 21 x 17.5mm | 21 x 17.5mm | 21 x 17.5mm |
| Power | Input voltage (Type-C): 5V Input voltage (BAT): 4.2V | Input voltage (Typc-C): 5V Input voltage (BAT): 4.2V | Input voltage (Type-C): 5V Input voltage (BAT): 4.2V |
| Circuit operating Voltage (ready to operate): - USB: 5V@9mA - BAT: 3.8V@9mA | Circuit operating Voltage (ready to operate): - USB: 5V@9mA - BAT: 3.8V@9mA | Circuit operating Voltage (ready to operate ): - Type-C: 5V@19mA - BAT: 3.8V@22mA | |
| Charging battery currcnt: 100mA | Charging battery current: 350mA | Charging battery current: 100mA | |
| Power Consumption Model (Supply Power: 3.8V) | Modem-sleep Model: ~30 mA Light-sleep Model: ~2.5 mA Deep Sleep Model: ~15 uA |
Modem sleep Model: ~ 24 mA Light sleep Model: ~ 3 mA | Modem-sleep Model: ~25 mA Light-sleep Model: ~ 2mA Deep Sleep Model: ~ 14 uA |
| Working Temperature | -40℃ ~ 85℃ | -40℃ ~ 85℃ | -40℃ ~ 65℃ |
