Specifications:

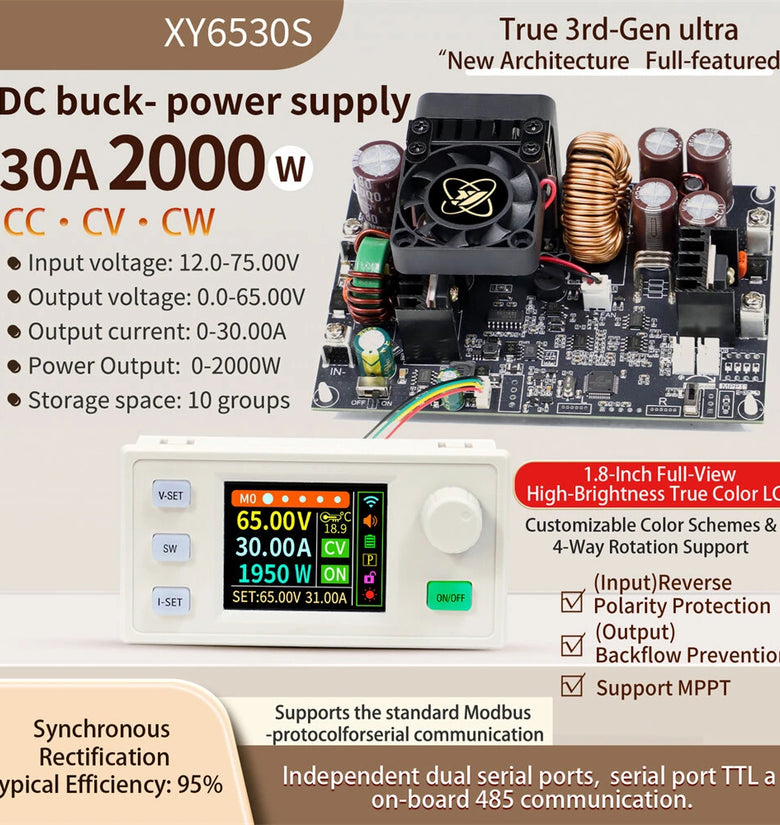

Product Name: DC Buck Power Supply
Model: XY6530S
Input Voltage: 12.00 ~ 75.00V
Output Voltage: 0 ~ 65.00V
Output Current: 0 ~ 30.00A
Power Output: 2000W
Voltage Accuracy: ±0.5% + 1 word
Current Accuracy: ±0.5% + 3 word
Voltage Resolution: 0.01V
Current Resolution: 0.01A
Storage Data Groups: 10 groups
Soft Start: Yes
Screen Size: 1.8-Inch Full-View High-Brightness True Color LCD
Output Ripple: vpp-200mv
MPPT Function: Support MPPT Solar Charging
Efficiency of Conversion: About 95%

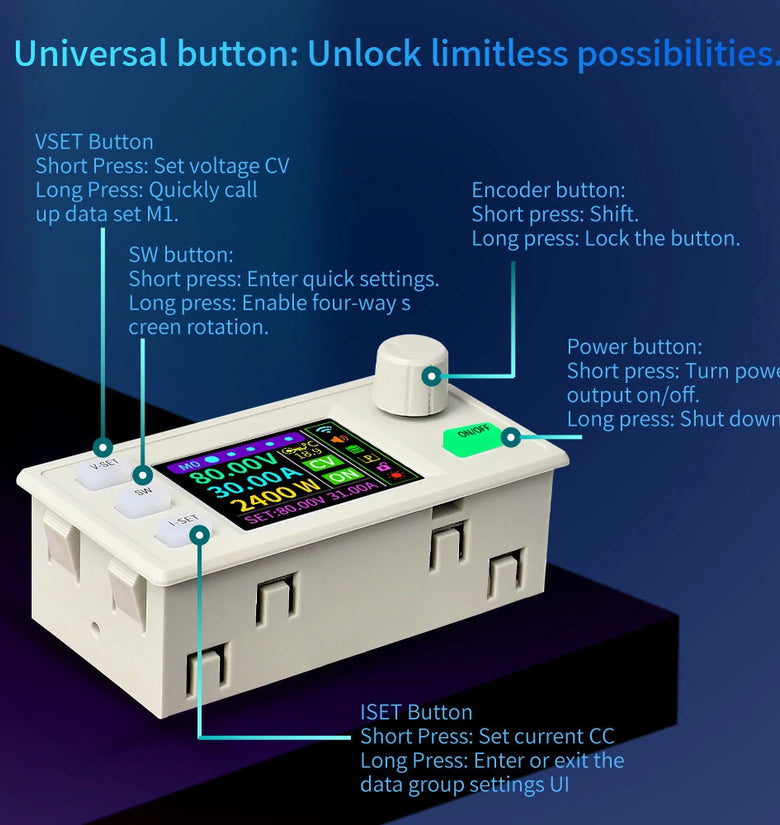

Buttons: 5

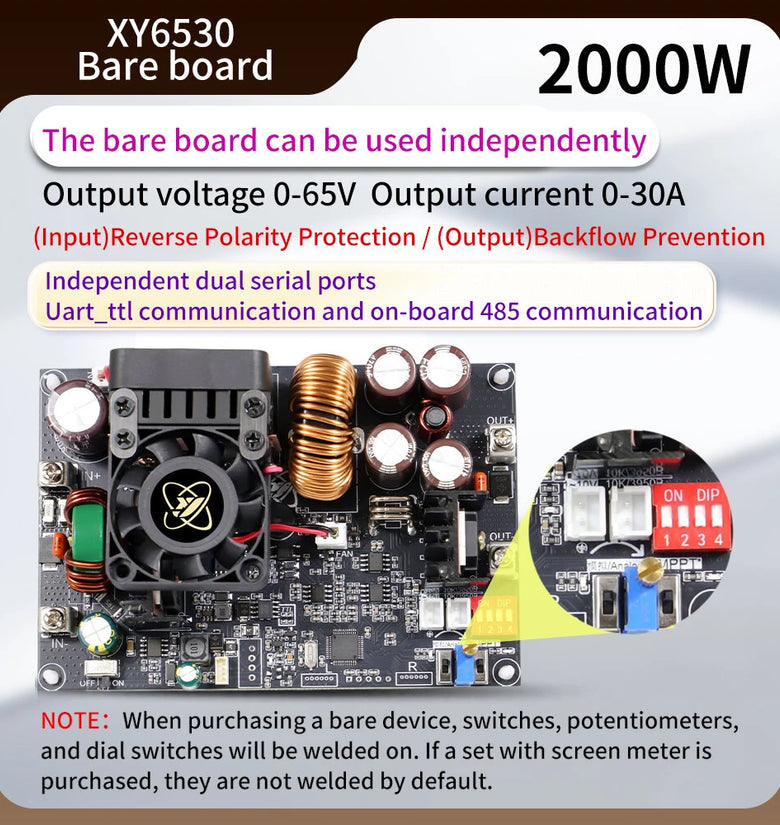

Bare Board Dimensions: 86x45x28mm / 126x85.5x43mm
Complete Product Dimensions: 170x134x52mm / 245x122x75mm
Protection mechanism:Anti-reverse: YESOutput reverse current protection: YESInput under-voltage(LVP): 10-75.00V, default 10Vover-voltage(OVP): 0-67.00V, default 67.00Vover-current(OCP): 0-32A, default 32Aover-power(OPP): 0-2100W, default 2000Wover-temp(OTP): 60-110 ℃, default 110 ℃over-time out(OHP): 1 minute - 99hours 59 minutes, off by defaultover-capacity(OAH): 0-4200KAh, off by defaultover-energy(OWH): 0-4200KWh, off by defaultEXT over-temp(ETP): 0-110 ℃, off by default
Features:
1. Wide Input & Output Voltage Range: Supports input voltage 12V to 75V and adjustable output voltage 0V to 65V.
2. High Power Capability: Delivers up to 2000W with precise real-time adjustments.
3. High-Visibility LCD Screen: 1.8-inch full-view color display ensures clear parameter monitoring.
4. Advanced MPPT Solar Charging: Optimized for solar applications to improve energy efficiency.
5. Comprehensive Protection Mechanisms: Includes anti-reverse, under-voltage, over-voltage, over-current, and over-temperature safeguards.
Package Included:

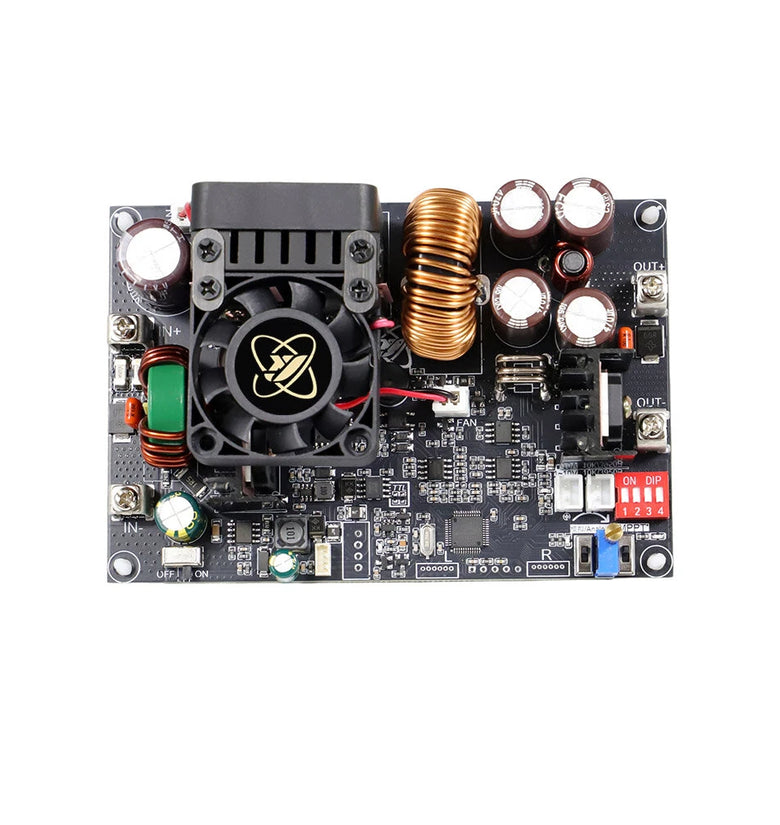

1 x XY6530S DC Buck Power Supply Module
