Specifications:

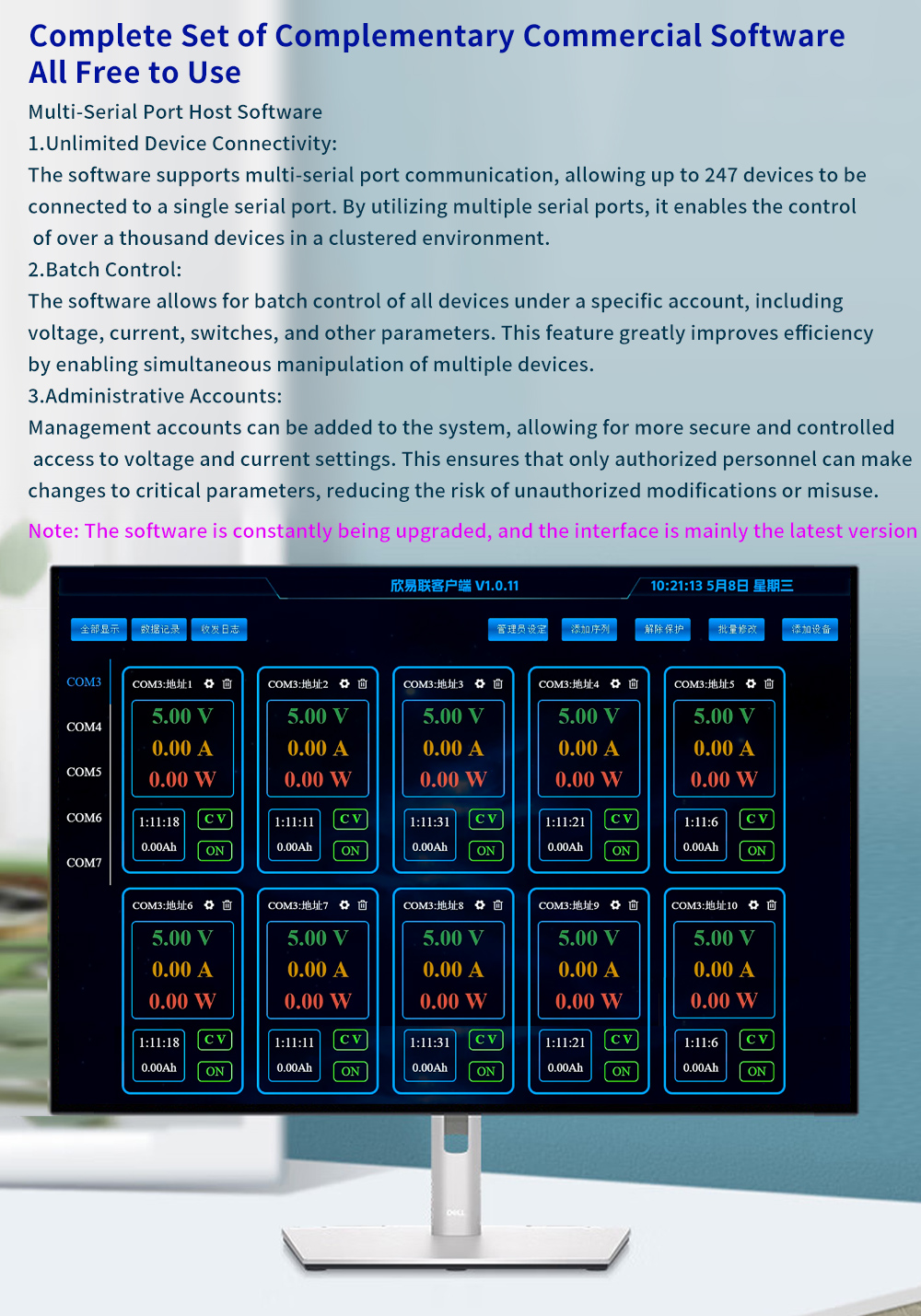

>>>PC Software: Click here to open<<<

Brand: Sinlink
Model: XY6020LV

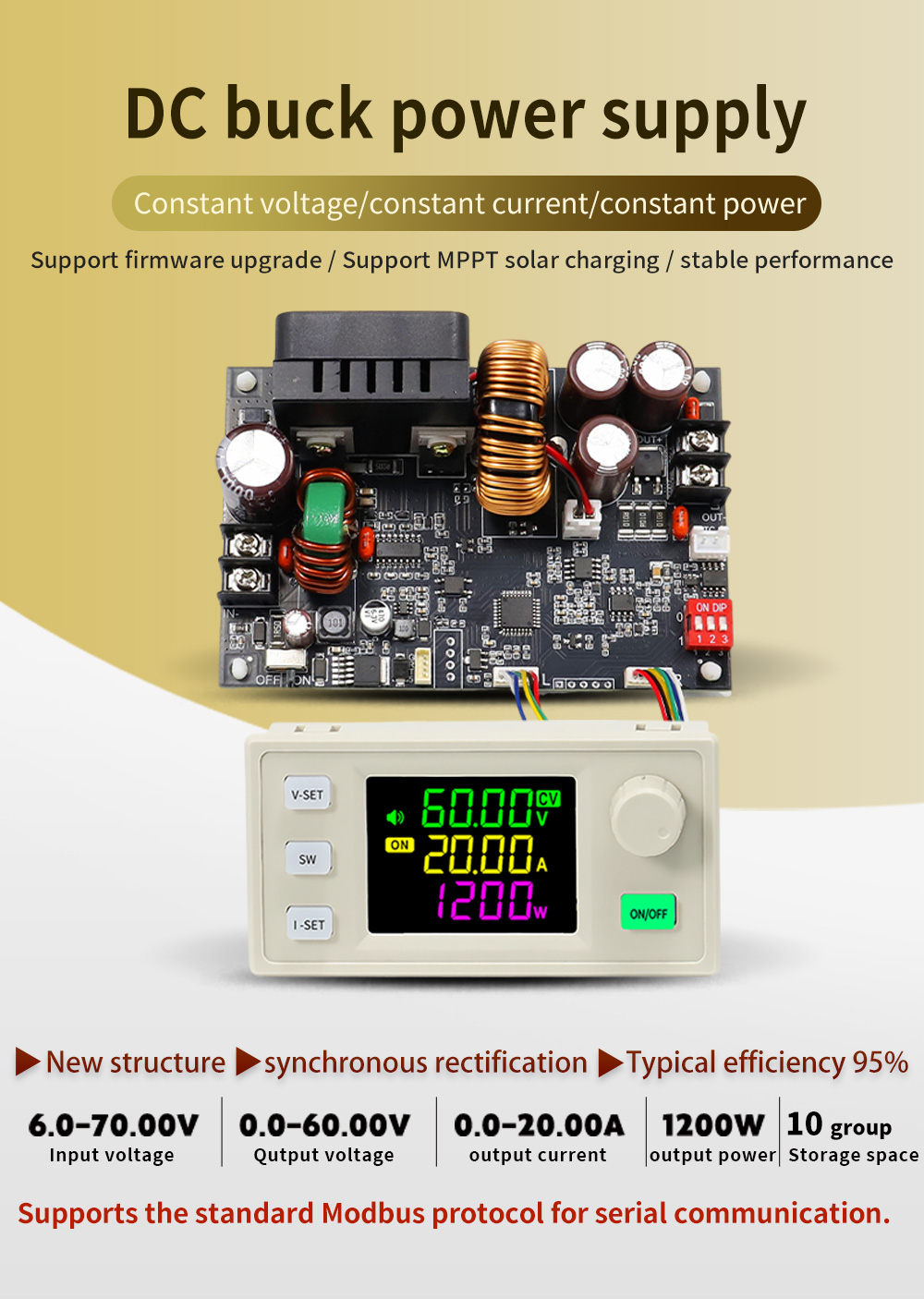

Product Name: DC Buck Power Supply
Input Voltage: 6.0 - 70V
Output Voltage: 0 - 60V
Input Current: 0 - 20.00A
Power Output: Up to 1200W
Output Ripple (Typical Value): 100mV VPP
Resolution of Measurement for Input Voltage: 0.01V
Resolution of Measurement for Output Voltage: 0.01V
Current Resolution of Measurement: 0.01A
Output Voltage Accuracy: ±0.4% + 1 Word
Output Current Accuracy: ±0.5% + 3 Words
Input Voltage Accuracy: ±1% + 5 Words
Heat Dissipation Fan On: Current > 2A, Power > 50W, Temperature > 50°C
Heat Dissipation Fan Off: Current < 1.5A, Power < 45W, Temperature < 45°C

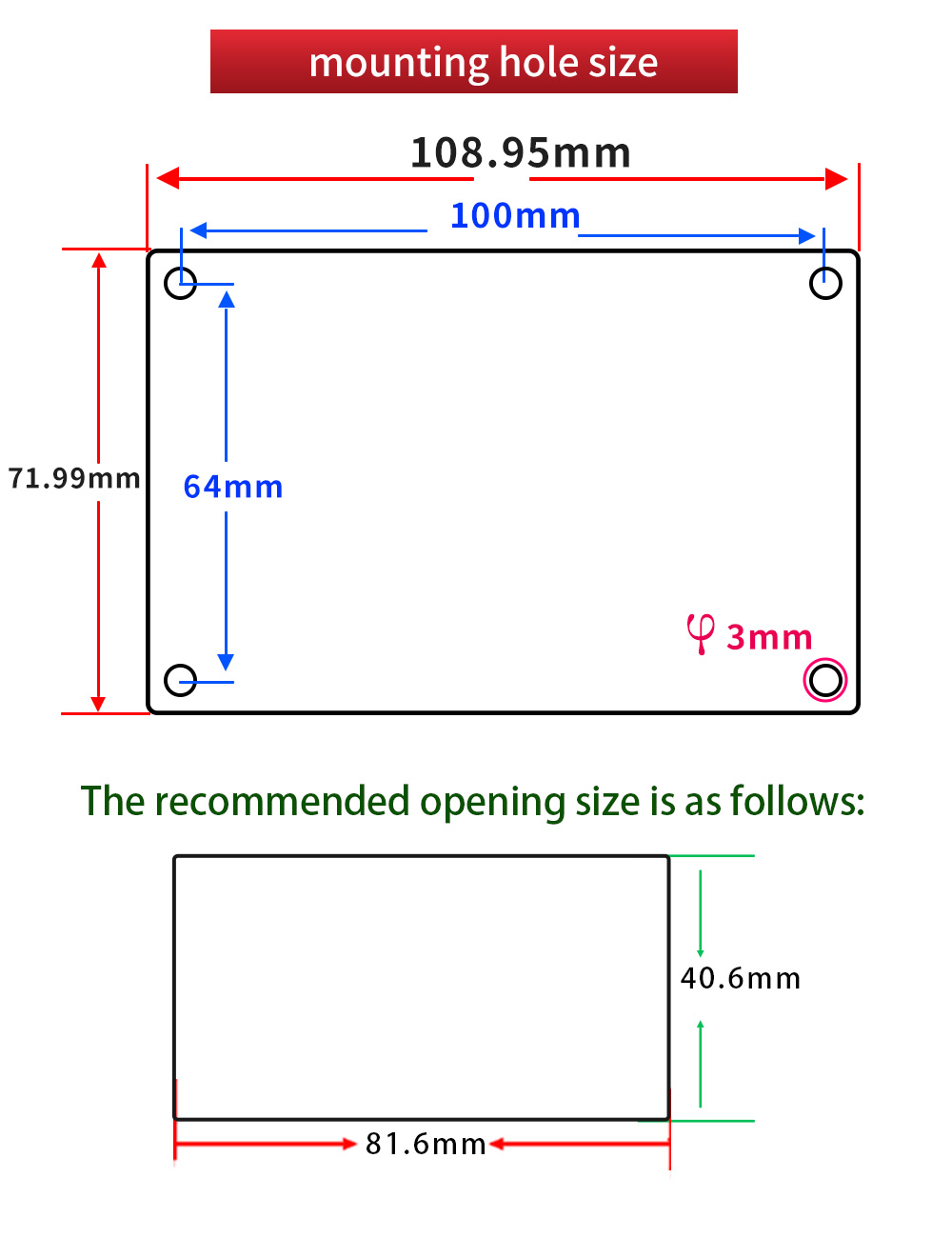

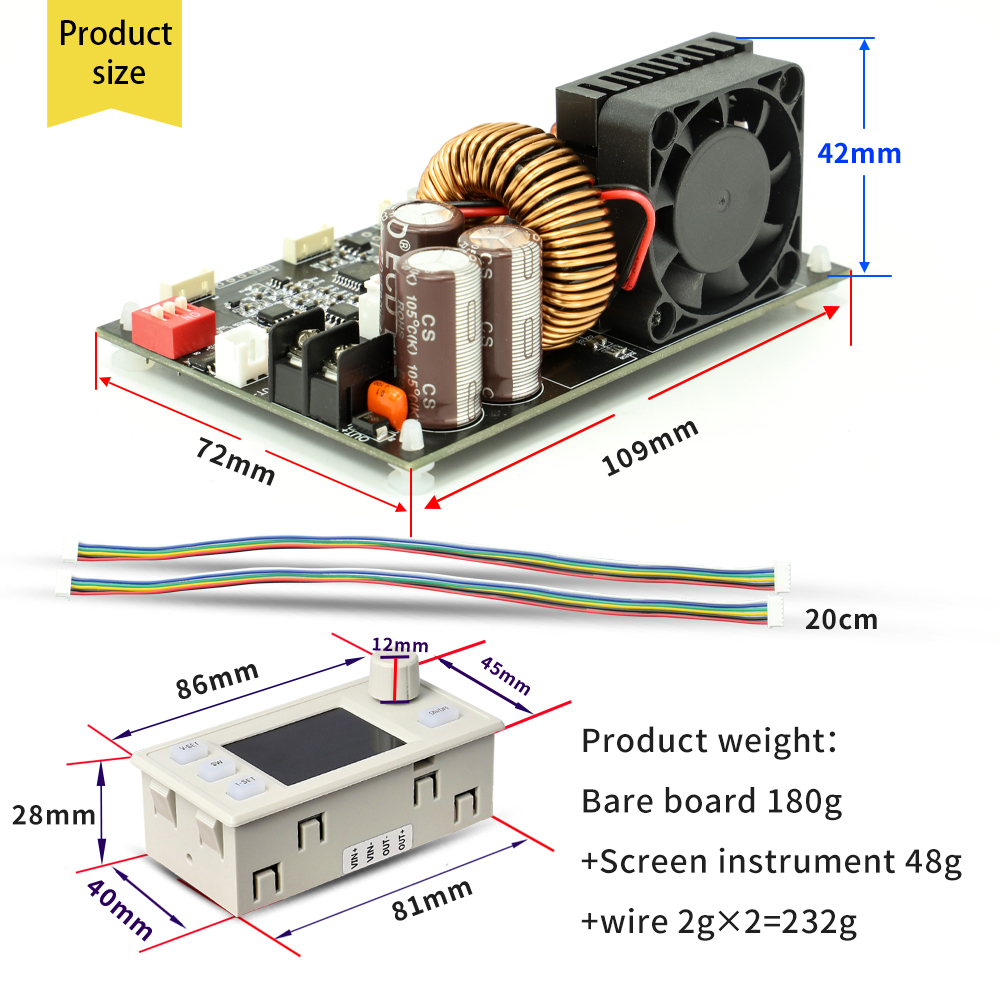

Dimensions:
Bare Board: 109*72*42mm
Screen Instrument: 86*45*28mm
Bareboard: 142*107*46mm
Package: 172*95*60mm
Weight:
Bare Board: 180g
With Packaging: 207g

Protection mechanism:External temperature protection: 0-110℃ off by defaultInput over-voltage protection: default 71VInput under-voltage protection: (Adjustable 4.8-71V, default 4.8V)Output over-voltage protection: (65V, default is 65V)

Over-current protection: (Adjustable from 0 to 22.0A, default 22.0A)Over power protection: (1250 W, default is 1250W)Over temperature protection: 60-110 °C, the default is 95 ℃Timeout protection: (Adjustable from 0 to 100h, off by default)Overcapacity protection: (Adjustable from 0 to 9999Ah, disabled by default)Super energy protection: (Adjustable from 0 to 9999Wh, off by default)

Precautions:

1. The input cannot be connected to AC power, nor can it be connected to 220V mains power.2. The maximum input voltage must not exceed 75V. It is recommended to use within 70V, and the positive and negative terminals must not be connected reversely.3. The output has no reverse current protection. When connecting the battery, ensure that the power supply's output voltage is always higher than the battery voltage. Alternatively, a diode can be connected in series with the positive output terminal to allow one-way conduction, preventing reverse current from the battery voltage from damaging the power supply.4. When connecting the battery to the output terminal, pay attention not to connect the positive and negative terminals reversely.5. This product is a DC buck power supply. The maximum output voltage = input voltage * 0.945.
Features:

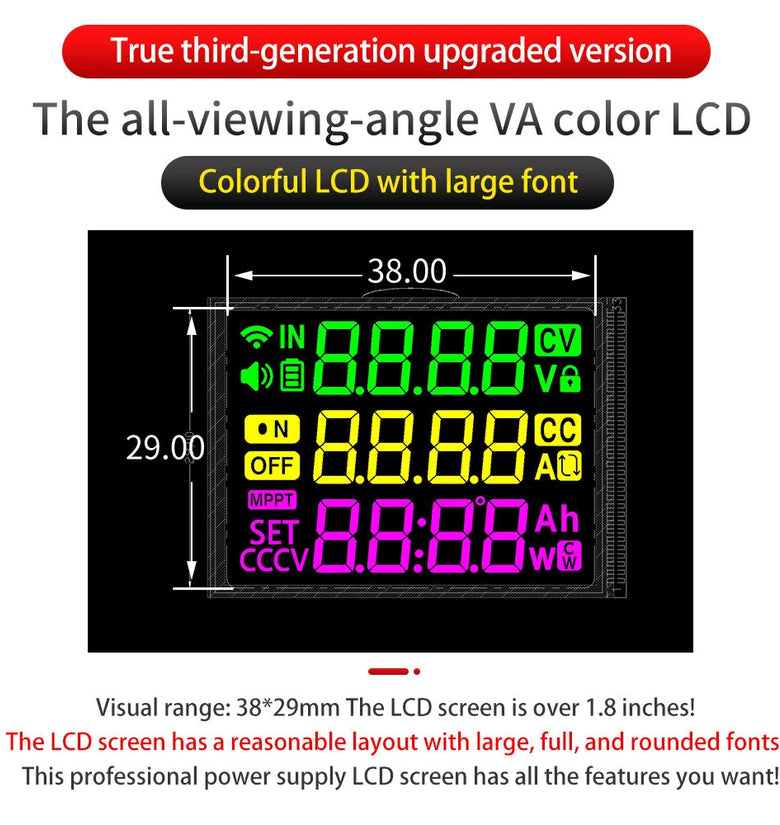

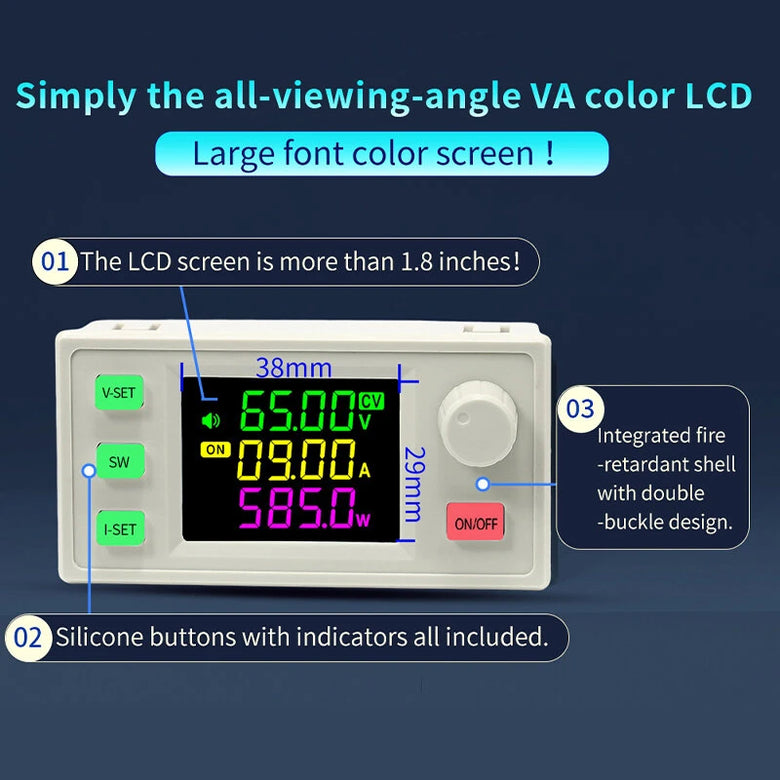

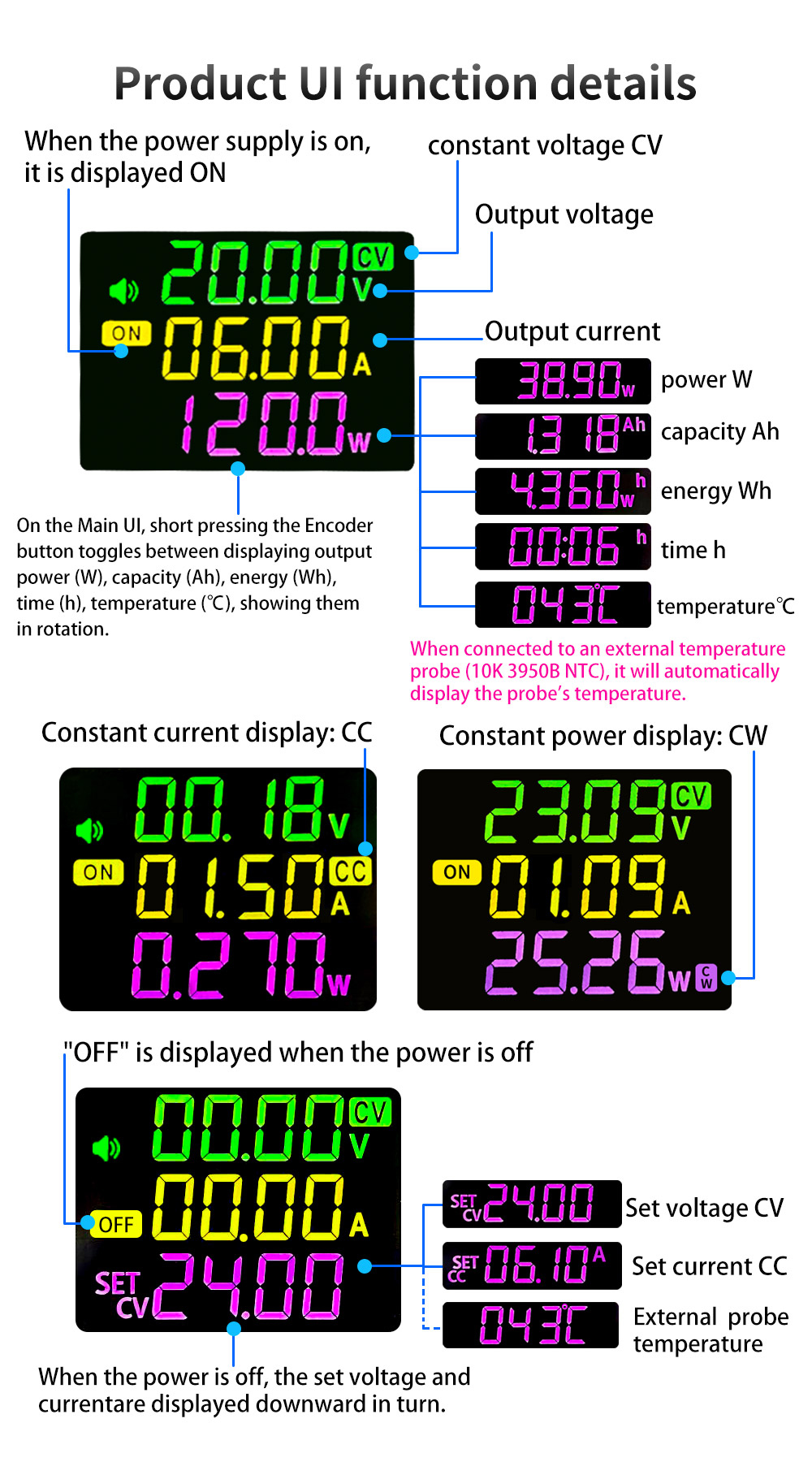

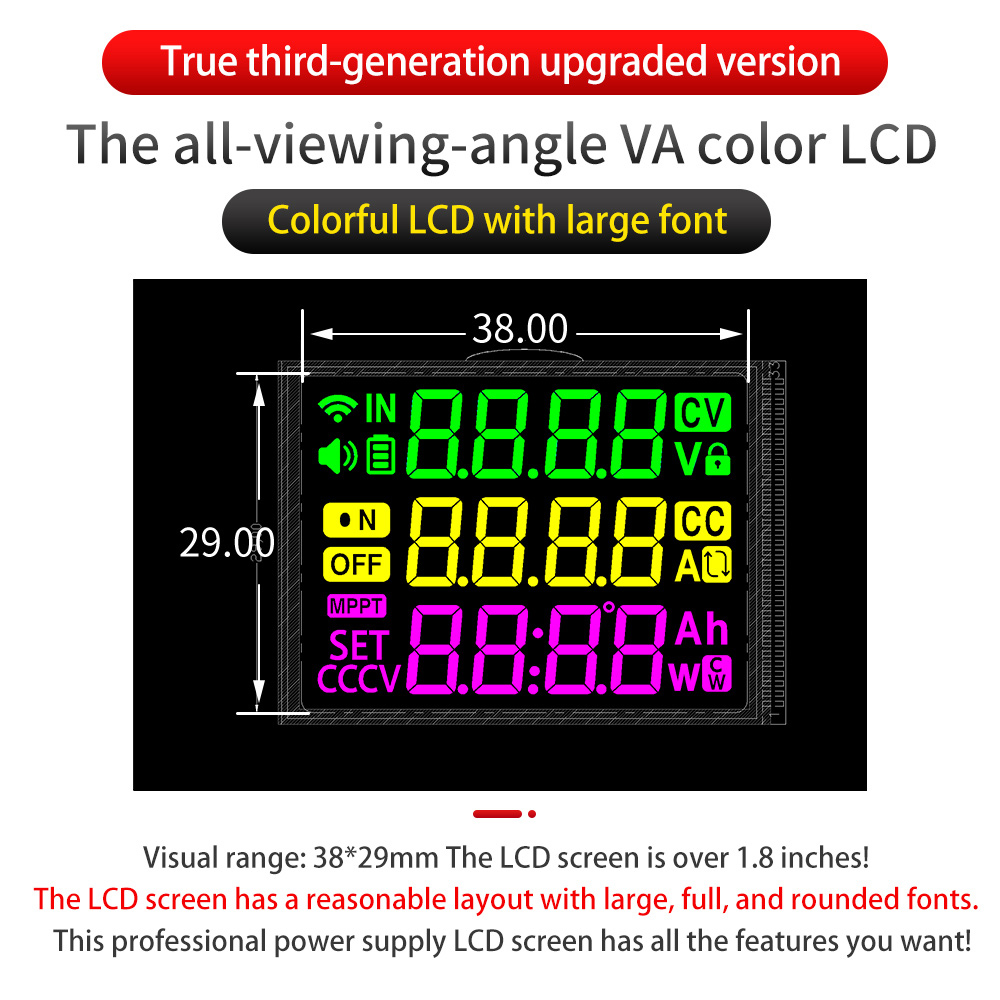

1. Third-Generation Upgrade: The all-viewing-angle VA color LCD screen is over 1.8 inches with a large font layout, ensuring better readability and user interface.

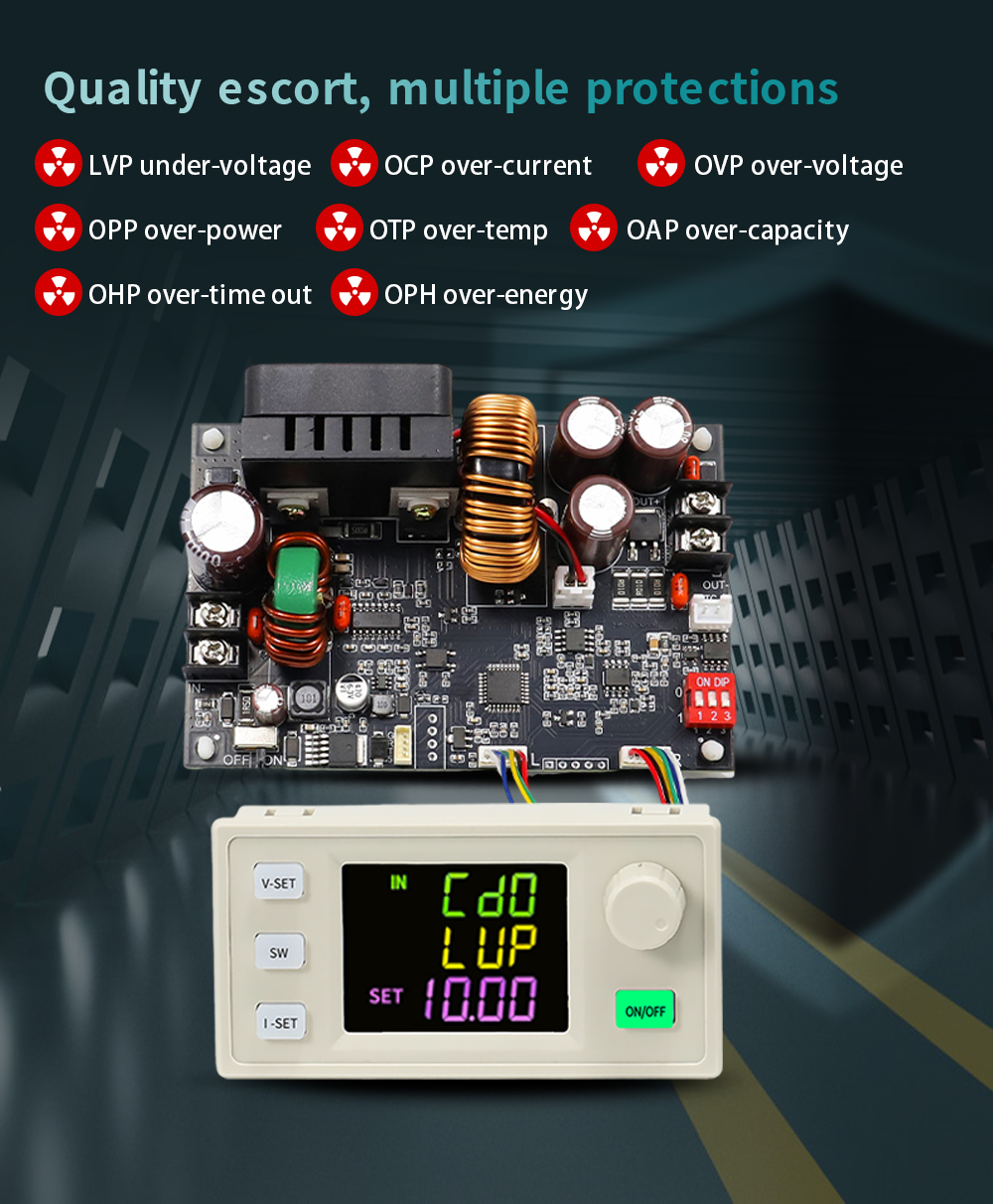

2. Multiple Protections: Over-voltage, under-voltage, over-current, over-power, over-temperature, time out and over-energy protections.

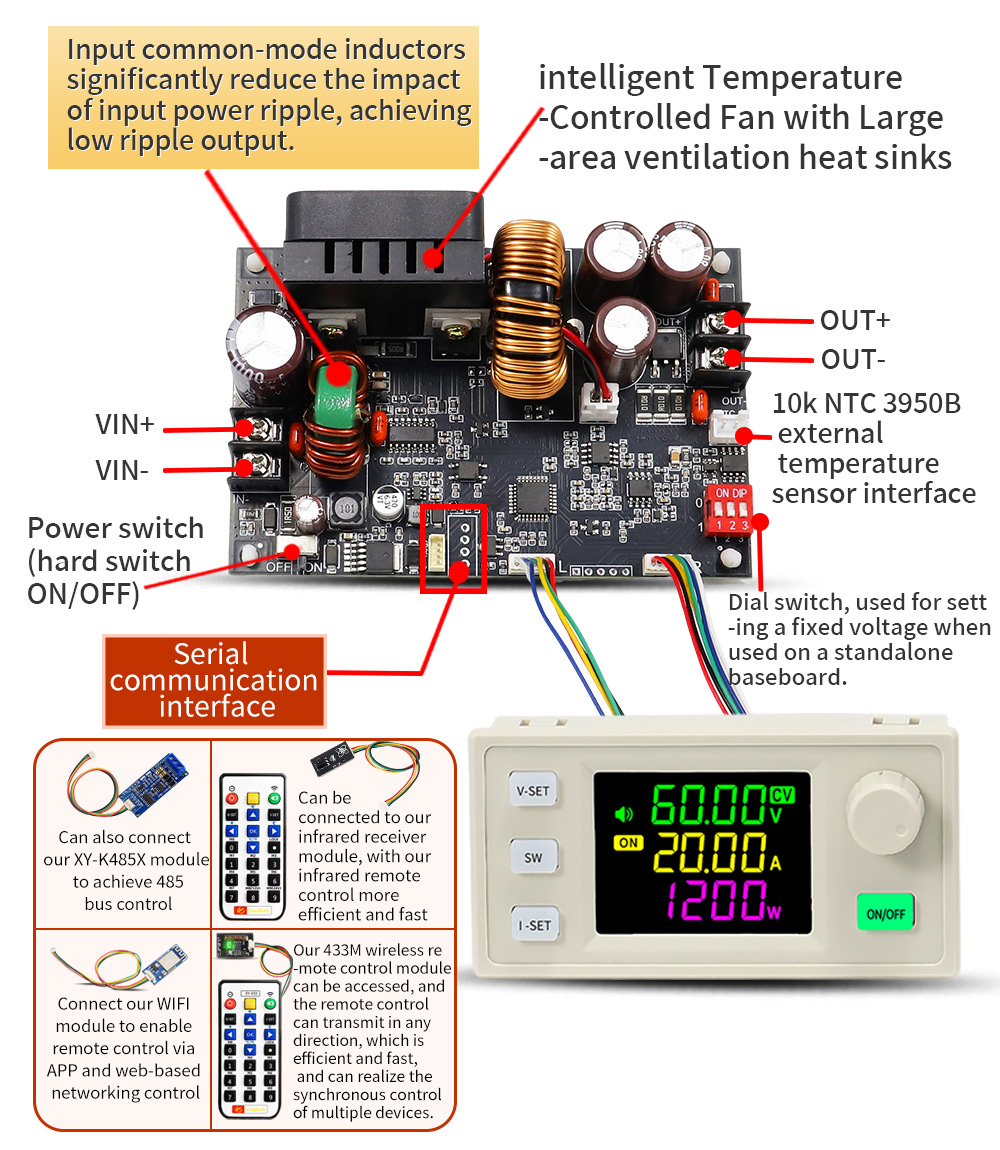

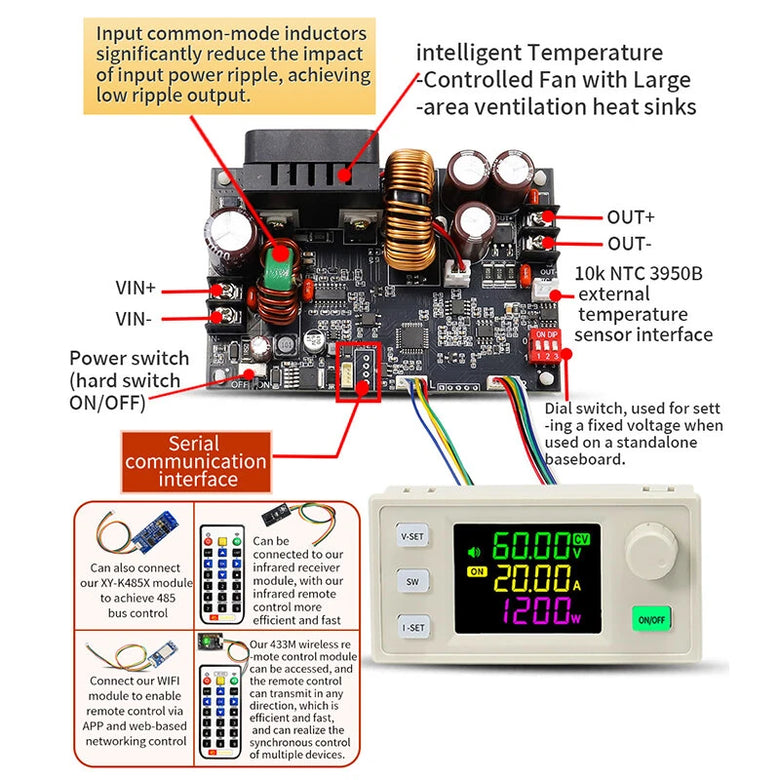

High Efficiency & Low Ripple: Typical efficiency of 95% with input common-mode inductors significantly reducing the impact of input power ripple.

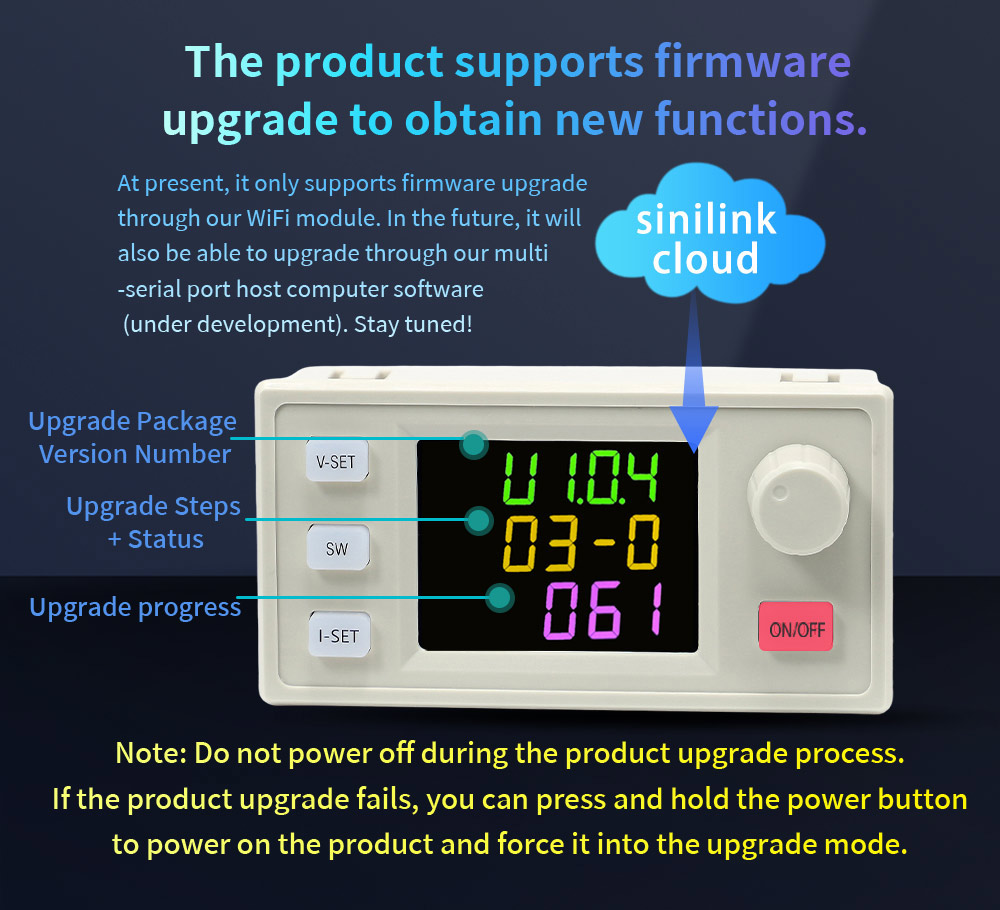

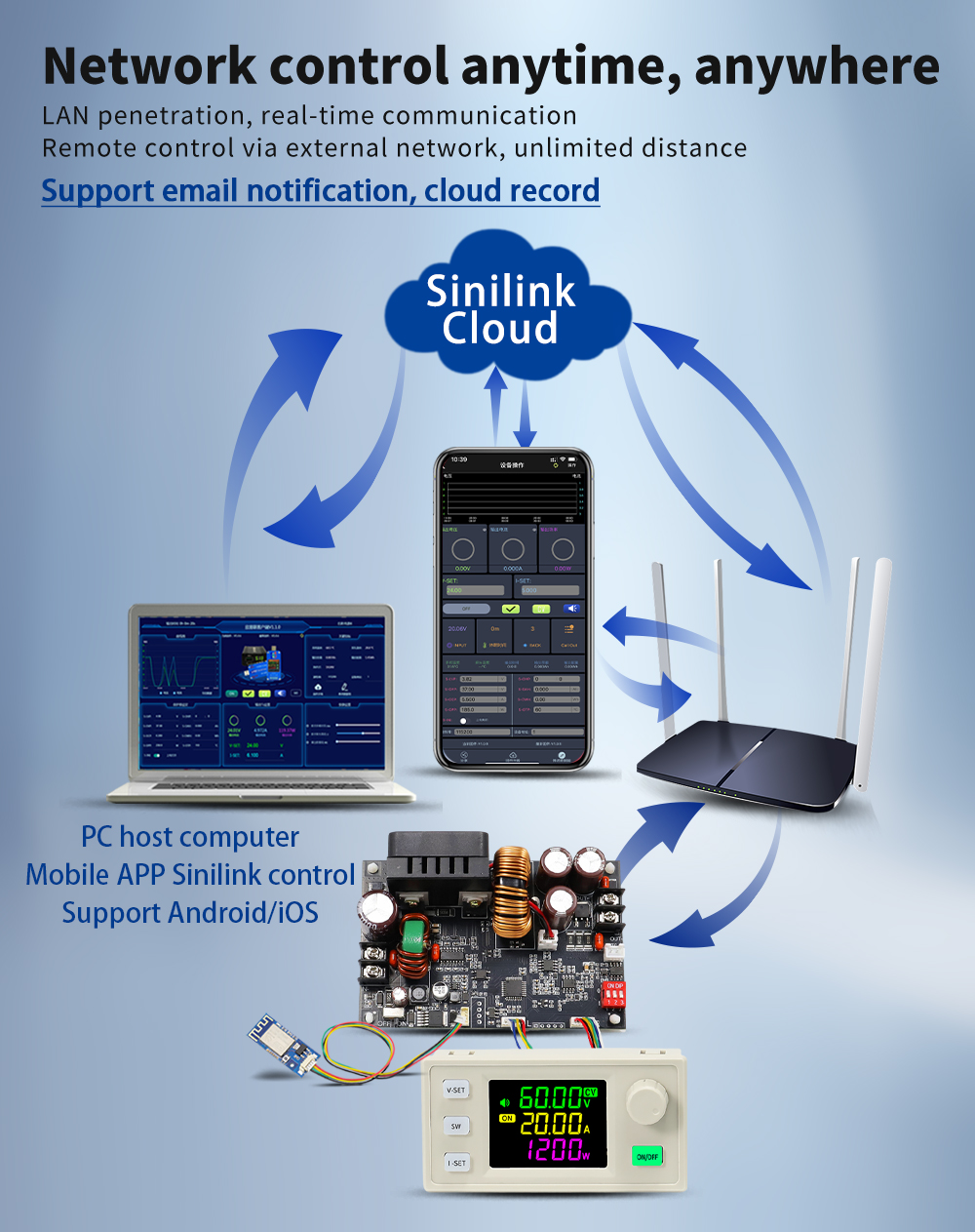

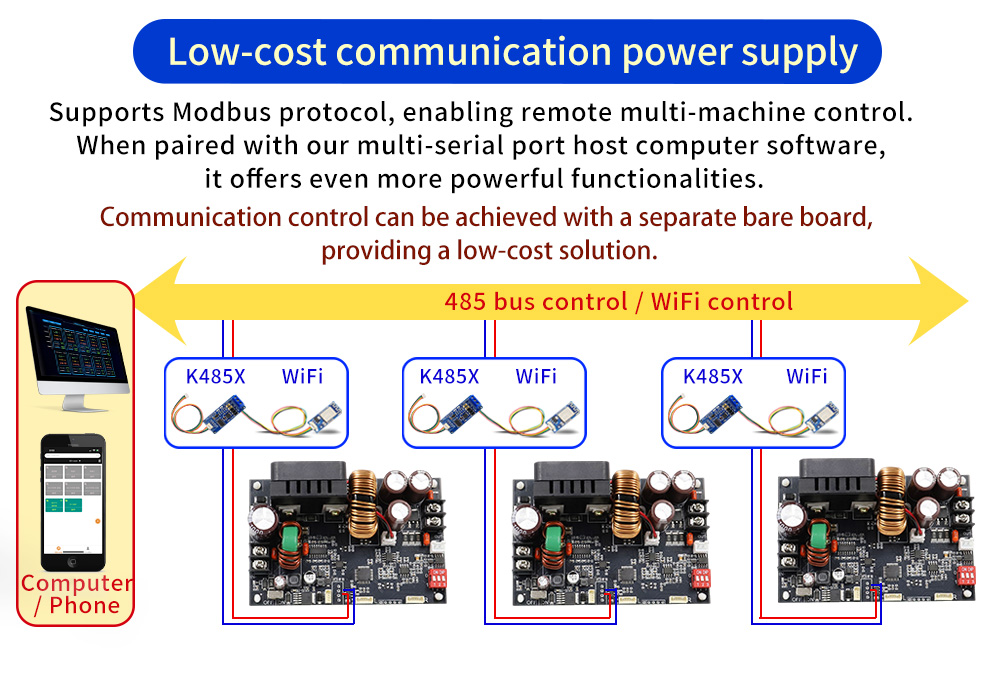

3. Flexible Control Options: Supports firmware upgrades, MPPT solar charging, and the Modbus protocol for serial communication. It can also be controlled remotely via 433M wireless modules.
4. Precision & Accuracy: High resolution of measurement for both input/output voltage (0.01V) and current (0.01A) with high accuracy.

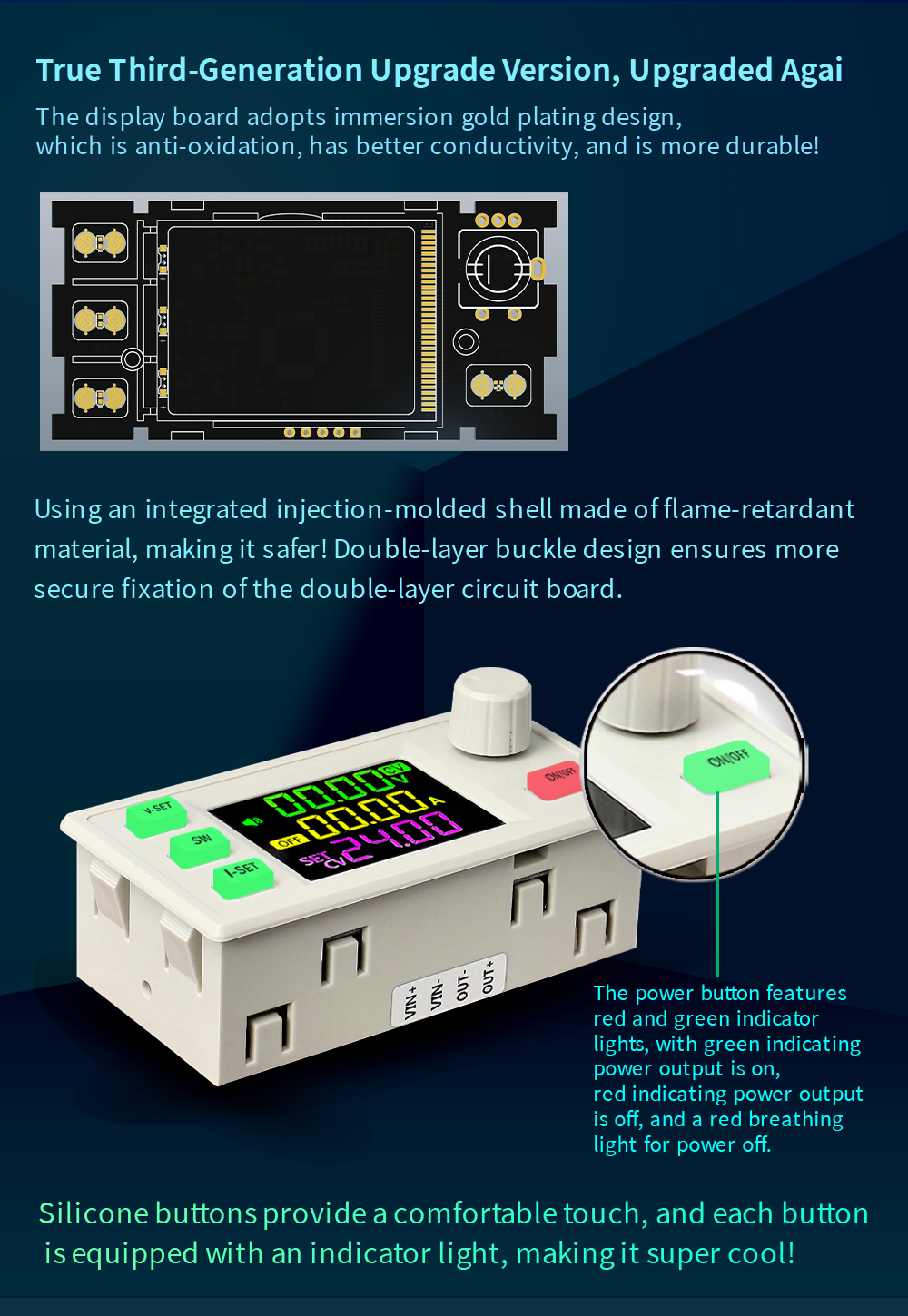

5. User-Friendly Design: Integrated fire-retardant shell with silicone buttons providing a comfortable touch, along with a double-buckle design for secure fixation.

Package Include:

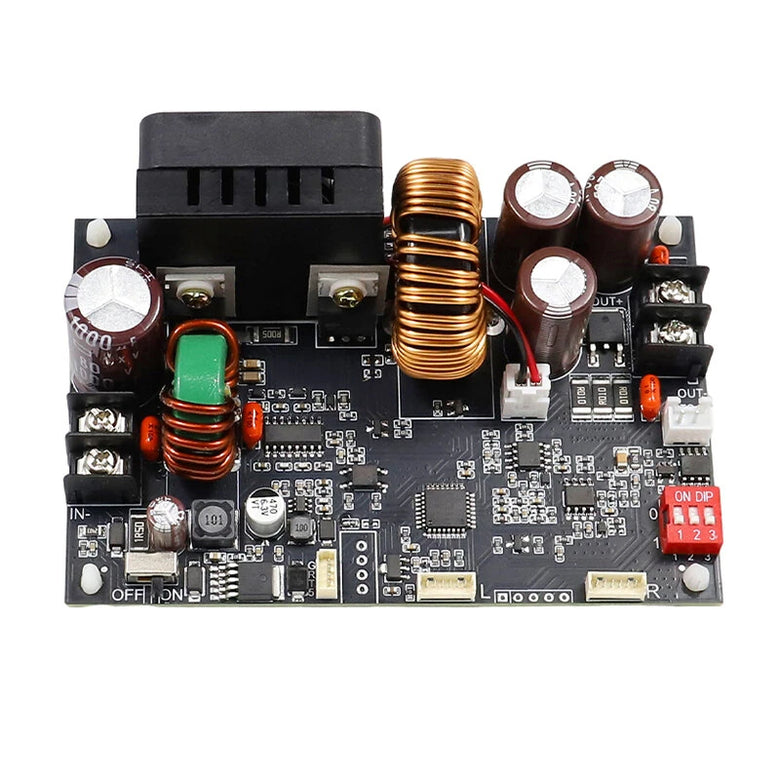

1 x XY6020LV DC Buck Power Supply Module
1 x LCD Screen Instrument
