Specifications:
Product Name: SMD Components Soldering Practice Test Kit
PCB Material: FR-4 PCB Board
PCB Size: 145mm x 100mm
Power Supply: DC9V Input
Target Audience: Beginner-level SMD soldering practitioners
Components Used: Common and standard surface-mount device (SMD) components

Note: This is a DIY kit and you will need to solder.

Features:

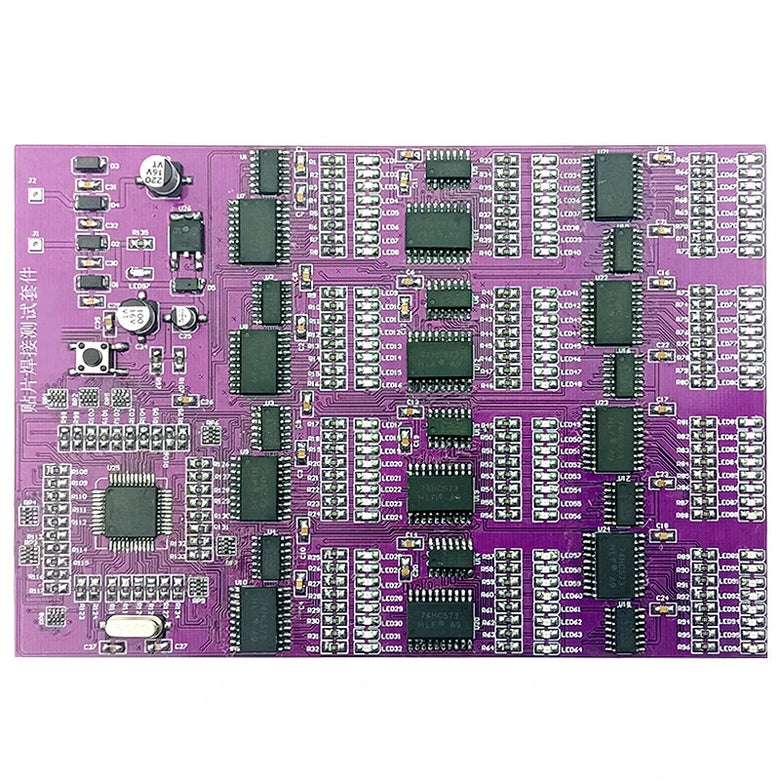

1. 12 Independent Circuits for LED Testing
Each kit includes 12 sets of 8 LEDs controlled by two chips (74HC573 and 74HC164). This enables users to identify soldering quality and functionality through LED flashing and sequential illumination patterns.
2. Step-by-Step Visual Feedback
During operation, the LEDs perform sequential flashing and steady lighting checks. This progressive testing ensures beginners can easily identify errors caused by soldering issues like virtual solder joints.
3. High-quality FR-4 PCB Construction
The FR-4 grade PCB offers reliable electrical insulation and efficient heat resistance, making it ideal for training and testing in various environments.
4. Compact and Beginner-Friendly Design
With a modest size of 145mm x 100mm, this kit is designed to fit comfortably on workbenches while maintaining a structure suitable for basic soldering exercises.
5. Comprehensive Circuit Design
The kit features a stable AC6V-DC9V power supply system equipped with diodes and capacitors that simplify the learning process for soldering and circuit assembly skills.

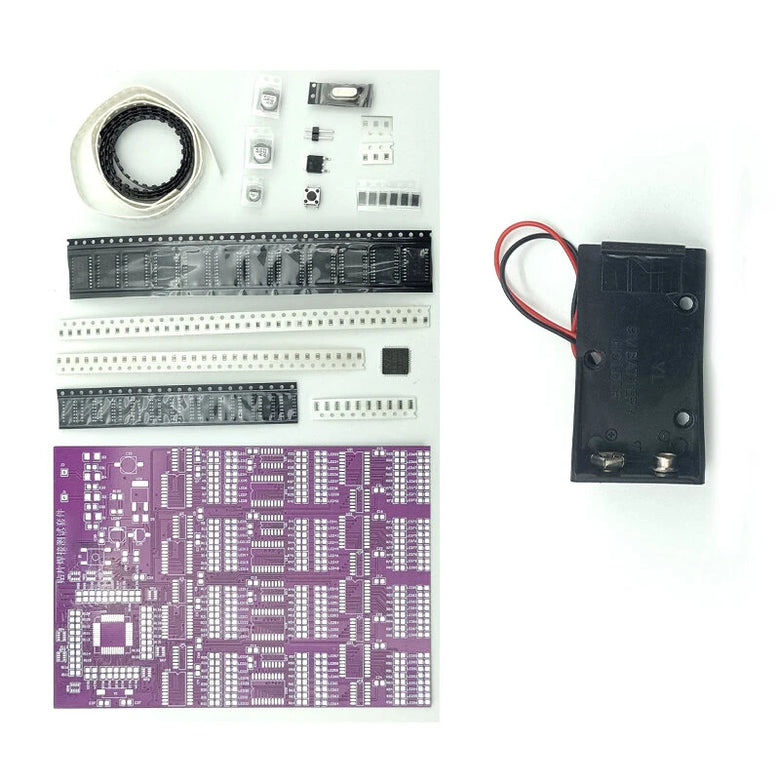

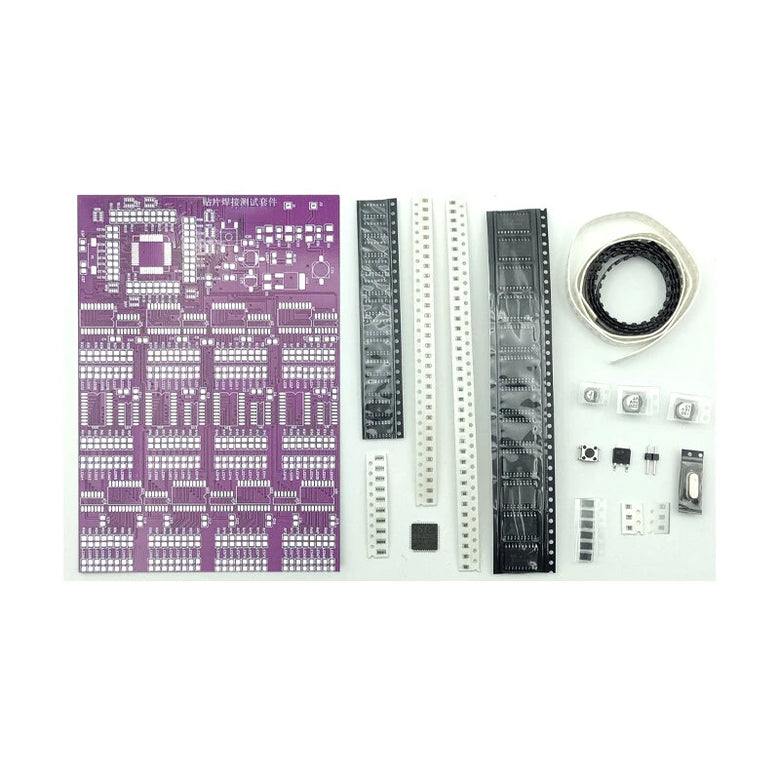

Package Included:
1 x SMD Components Soldering Practice Test Kit
