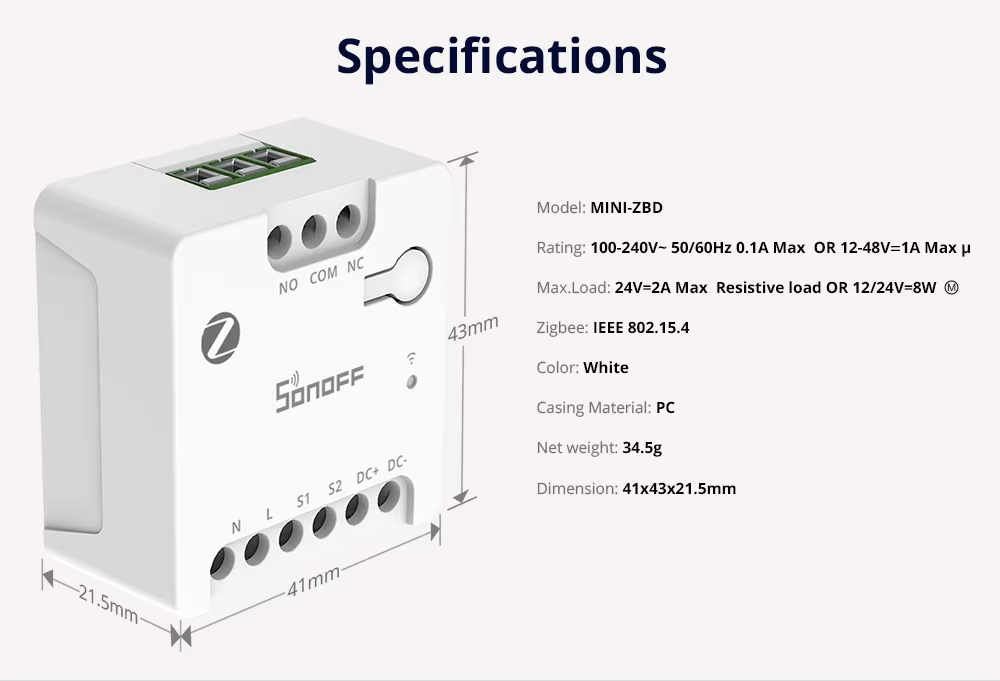

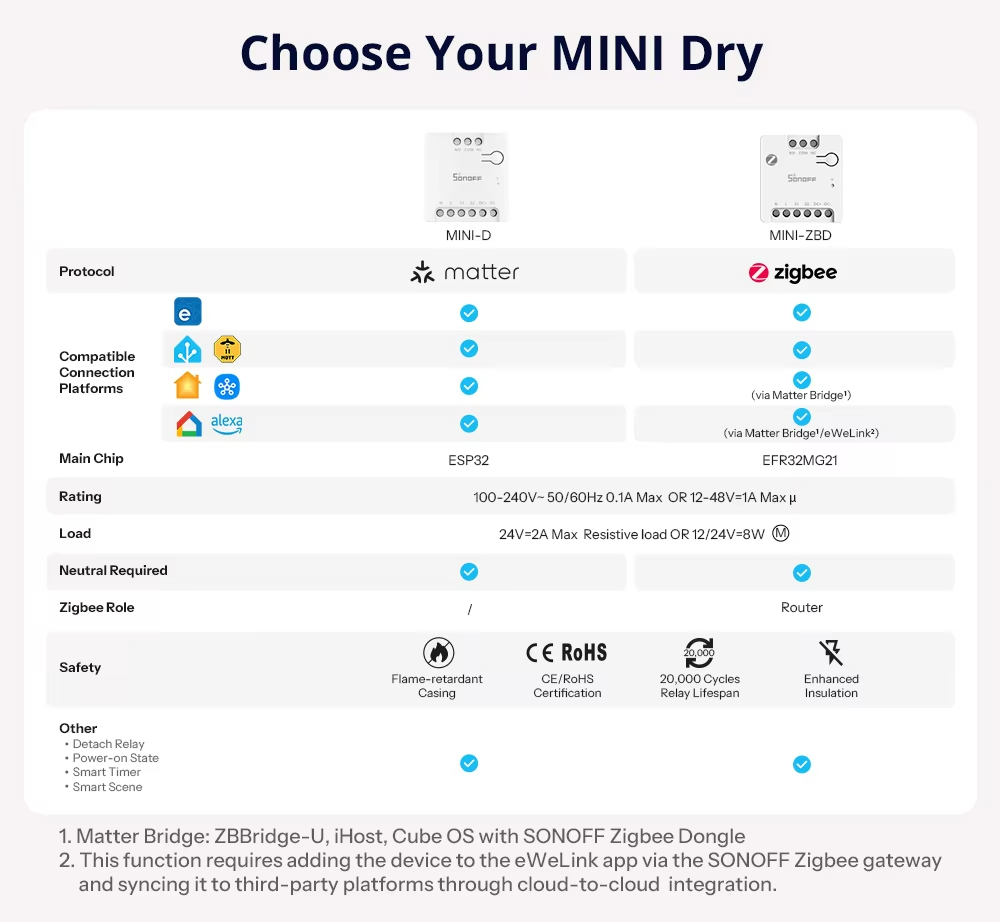

Specifications:
Brand: SONOFF
Model: MINI-ZBD

Wireless Protocol: Zigbee3.0 (IEEE 802.15.4)
Input Power: 100-240V~ 50/60Hz 0.1A Max OR 12-48V⎓1A Max
Dry Contact Output (Max Load): 24V⎓2A Max (Resistive load) OR 12/24V⎓8W (Motor)
Casing Material: PC V0 (Flame-retardant)

Main Control Chip: EFR32MG21

Core Ecosystem: eWeLink App (gateway required), compatible with ZHA/Zigbee2MQTT
Dimensions: 41 x 43 x 21.5mm
Net Weight: 34.5g
Certifications: CE / RoHS

Note: SONOFF ZigBe gateway is required. Please purchase in addition.(such as the SONOFF ZBDongle series)

Brand: SONOFF
Model: MINI-D

Wireless Connection: Wi-Fi IEEE 802.11 b/g/n 2.4GHz

Input Power: 100-240V~ 50/60Hz 0.1A Max OR 12-48V---1A Max

Dry Contact Output (Max Load): 24V⎓2A Max (Resistive load) OR 12/24V⎓8W (Motor)

Casing Material: PC V0 (Flame-retardant)

Main Control Chip: ESP32-D0WDR2

Core Ecosystem: eWeLink App, supports the Matter protocol

Net Weight: 34.5g

Certifications: CE / RoHS

Click here for more details.

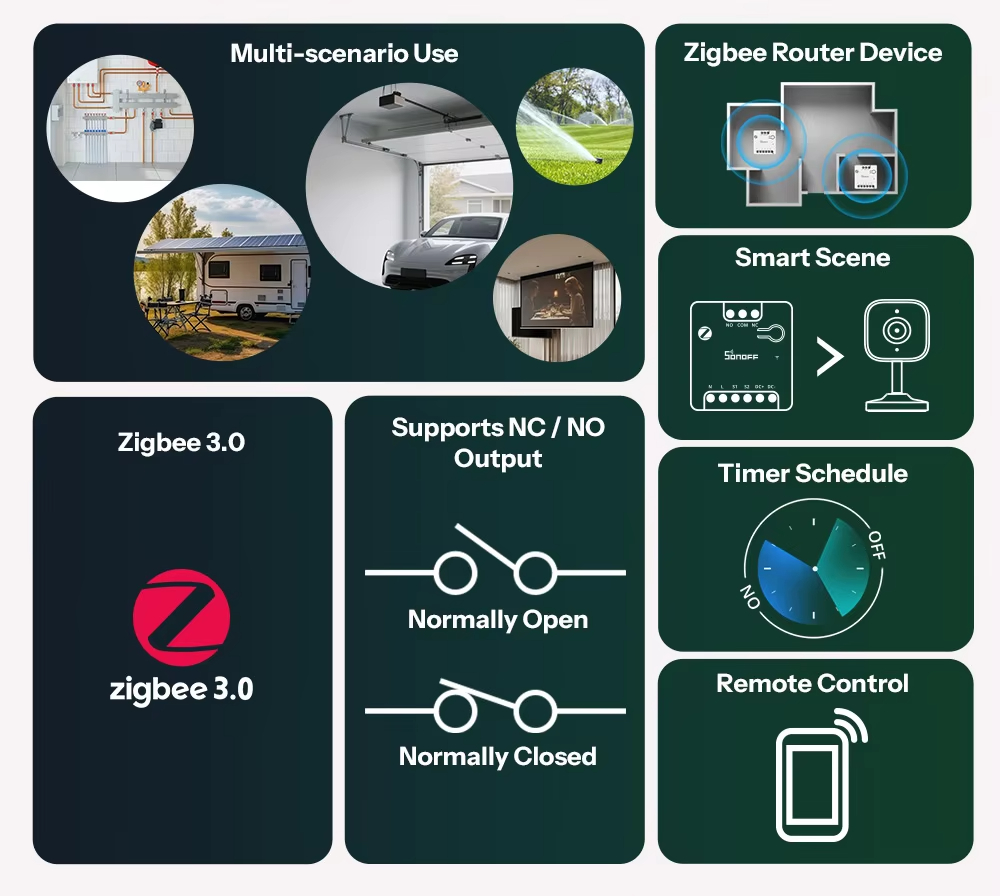

Features:

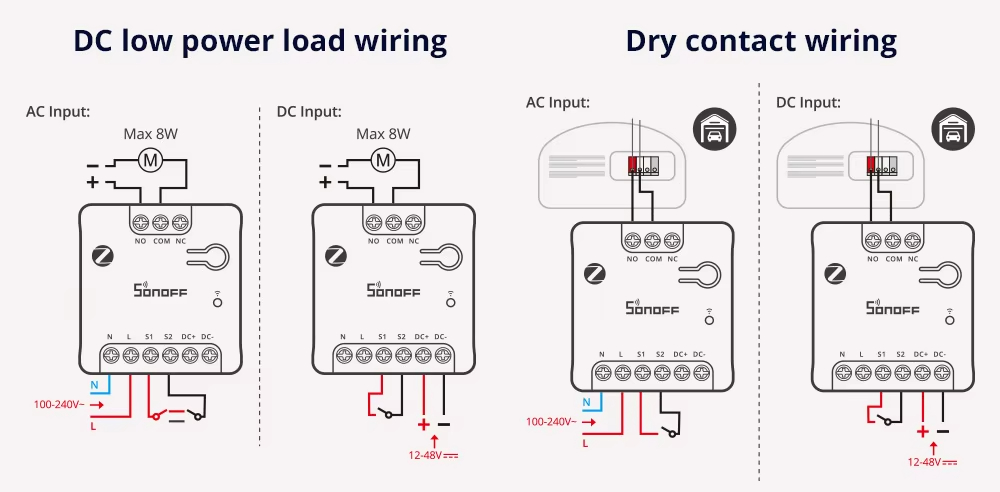

1. Dry Contact Output: Features a voltage-free output (NO/NC support) to control devices with different power sources, making it ideal for a wide range of DIY smart projects.

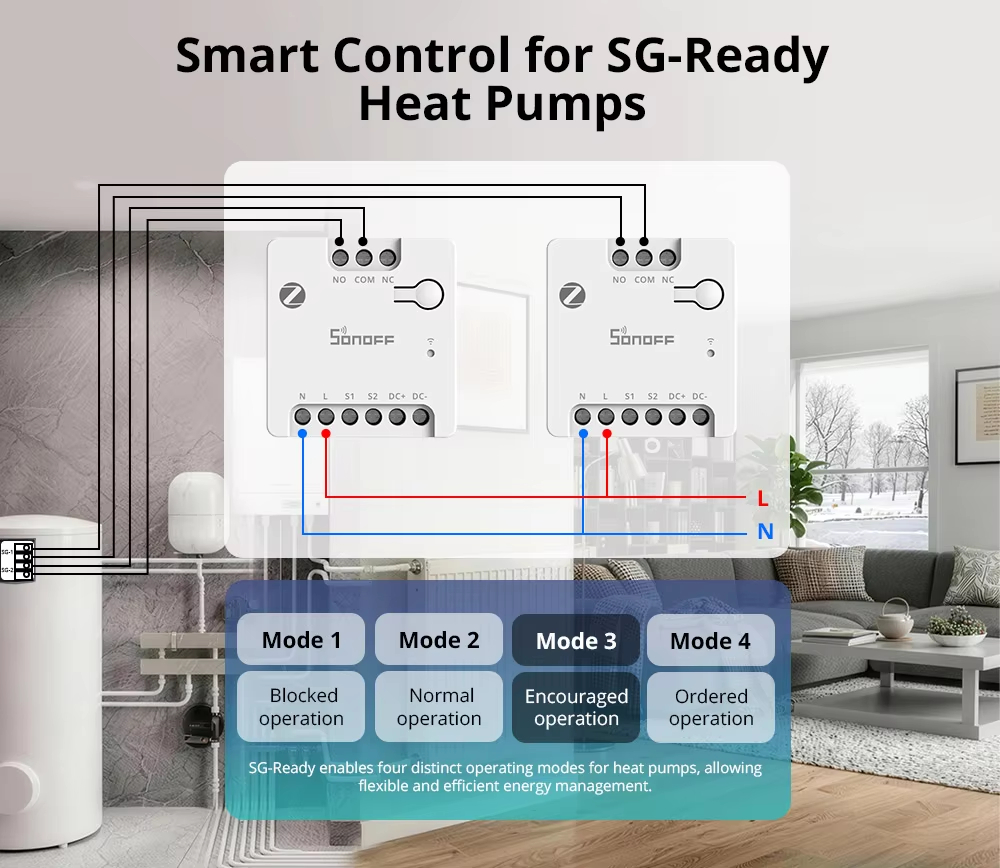

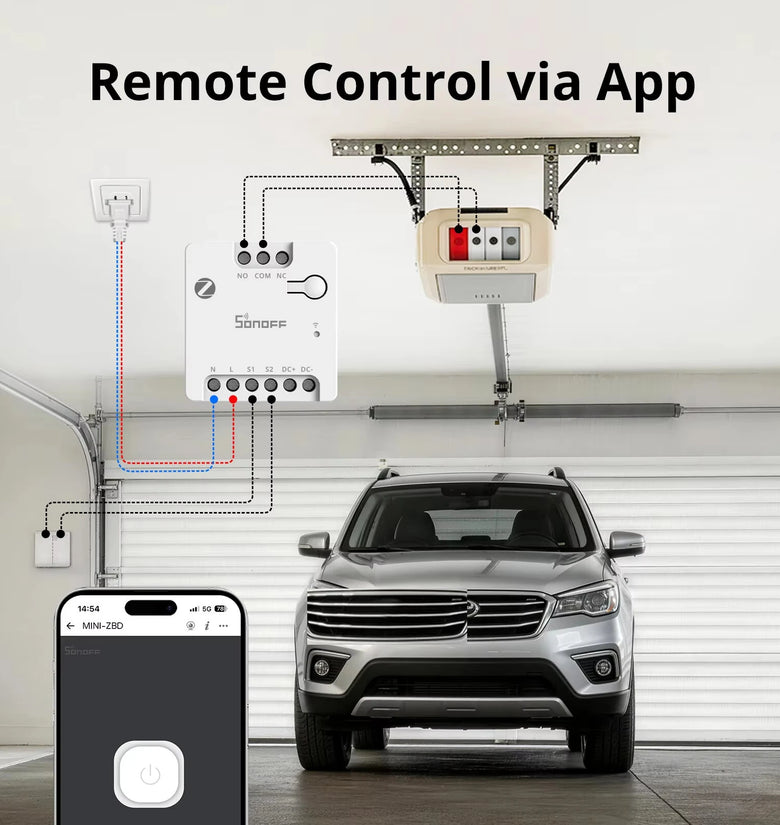

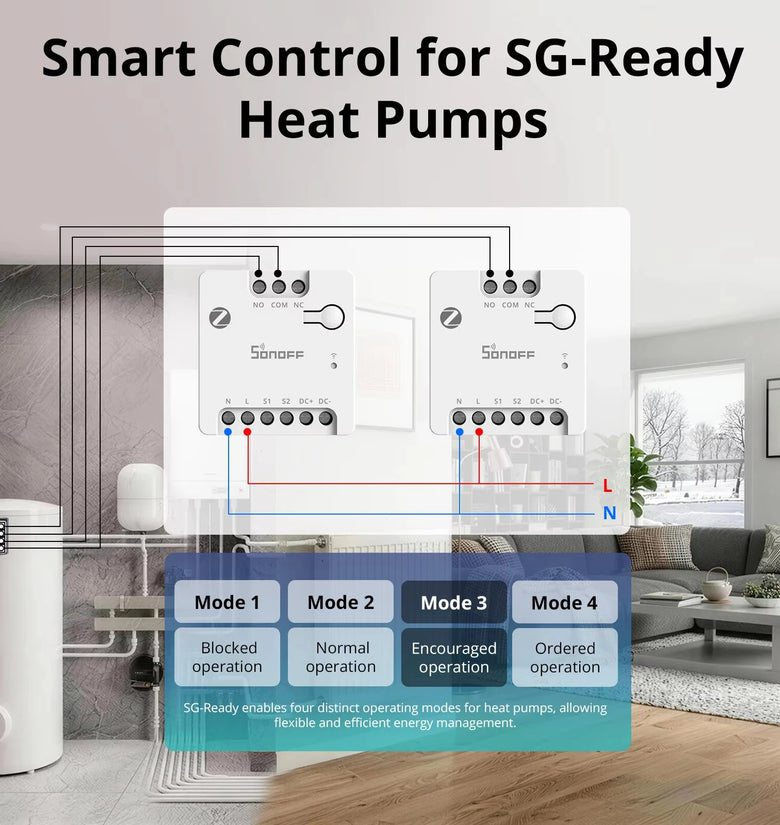

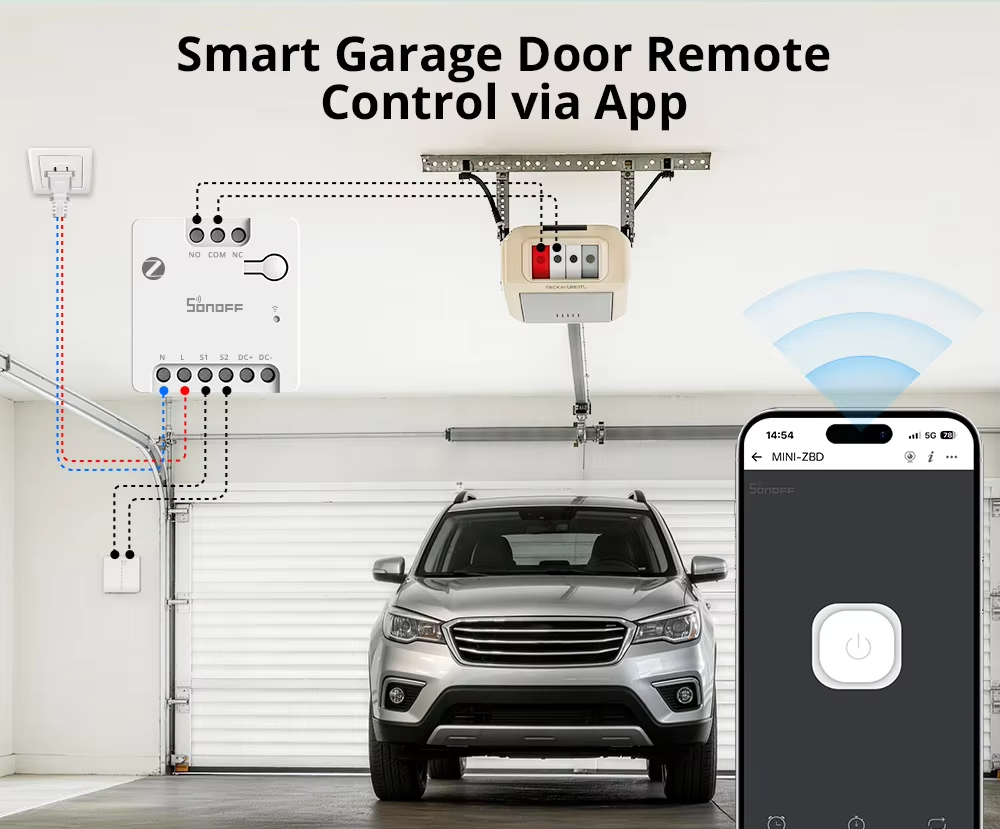

2. Extensive Application: Perfect for automating garage doors, heating systems, garden irrigation, home theater screens, and low-power DC devices like solenoid valves or pumps.

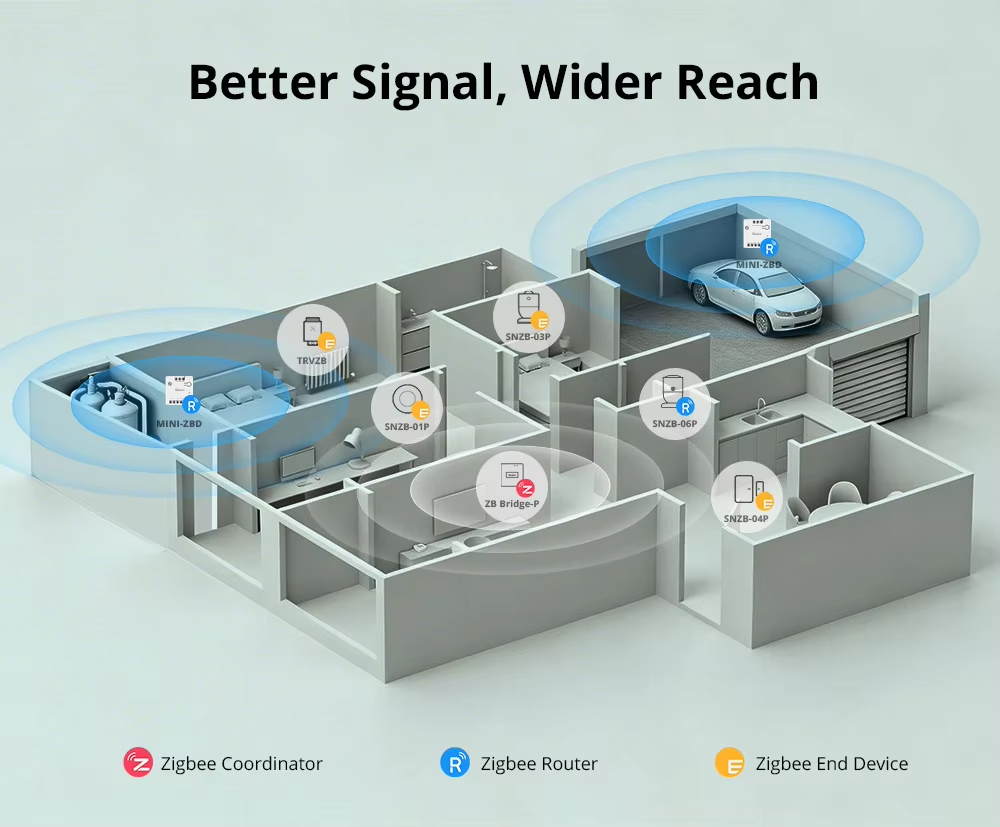

3. Zigbee3.0 Router: Utilizes the latest Zigbee3.0 protocol and acts as a network router to extend the range and improve the stability of your Zigbee3.0 mesh system.
4. APP Remote & Timer Control: Gain full control from anywhere using the app. Easily set schedules, timers, and countdowns to automate your connected appliances and save energy.
5. Create Smart Scenes: Link the switch with other smart sensors or devices. For example, have your garage door opening automatically trigger a light or a camera to turn on.

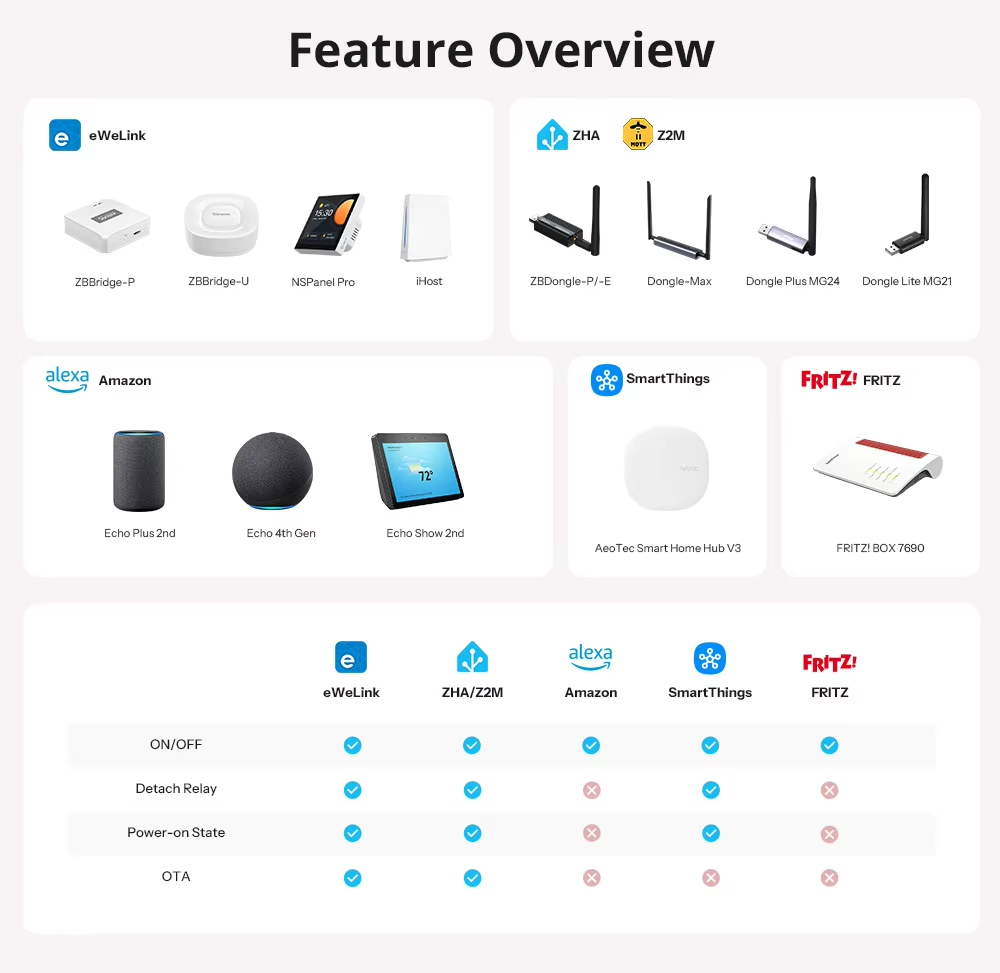

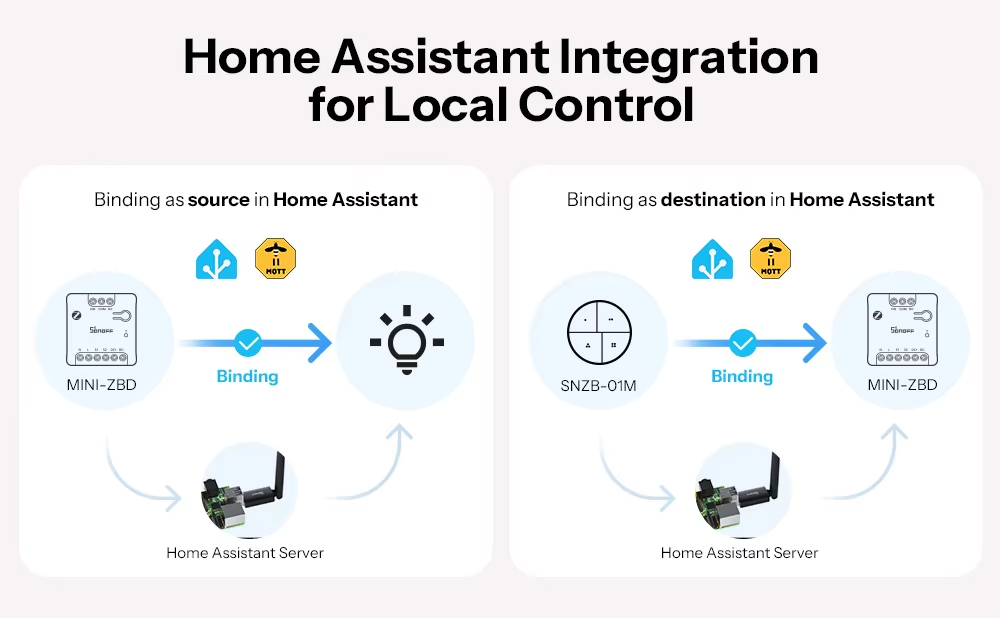

6. Wide System Compatibility: Works with a variety of Zigbee3.0 hubs and platforms, including SONOFF ZBBridge, Amazon Echo, SmartThings, and Home Assistant (via ZHA or Zigbee2MQTT).

Package Includes:

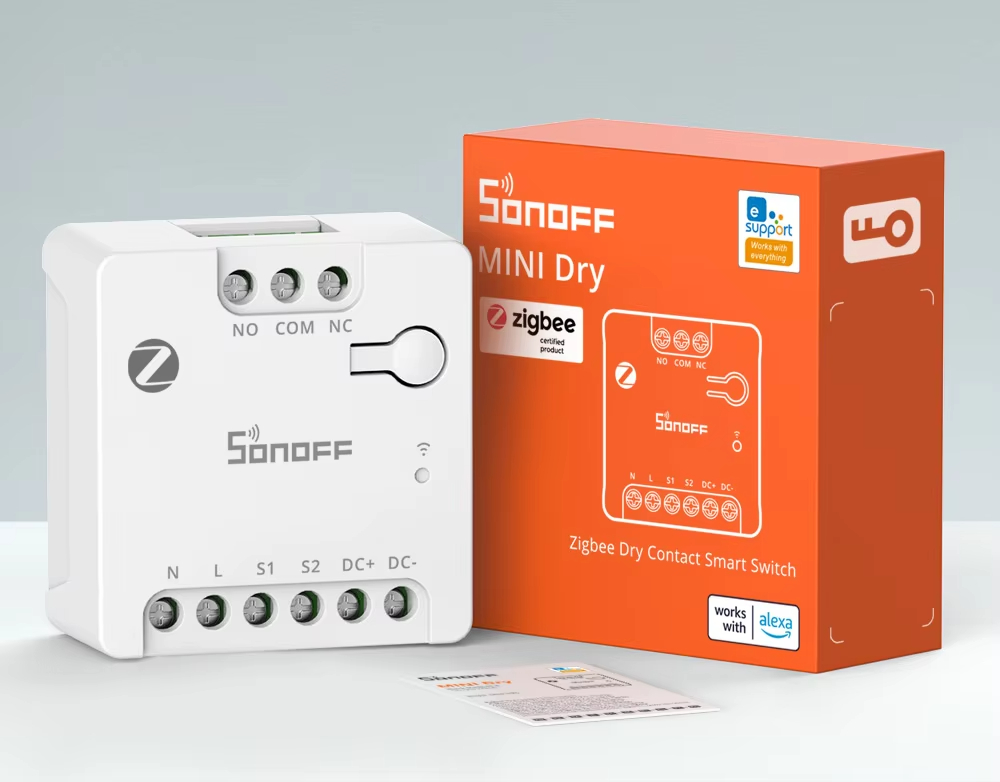

1 x SONOFF MINI Dry Smart Switch

1x User Manual
