#1 T2401-O : Active output
#2 T2401-N : No output

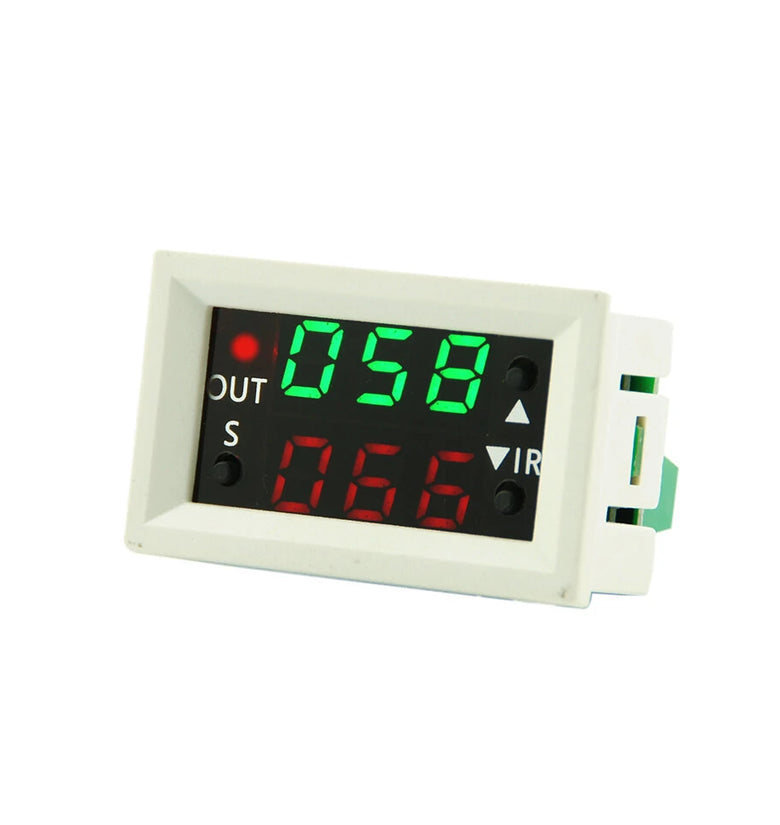

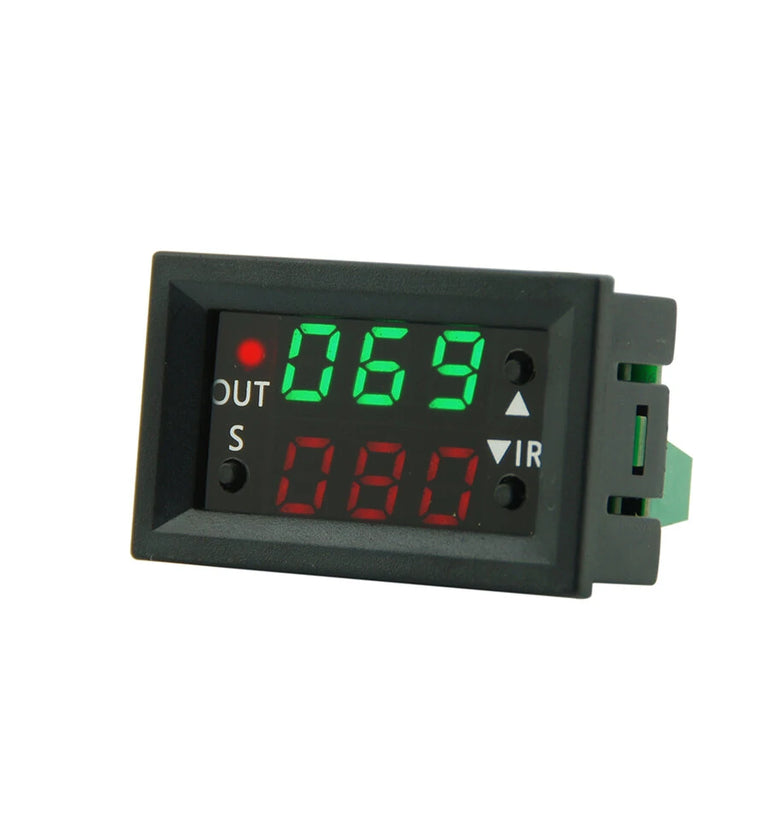

T2401-O
Product selling point:
1: Parameter setting is simpler
2: Small and exquisite appearance
3: Direct output type
4: Wide application
5: Timing range: 0~999 (seconds, minutes, hours) Minimum unit: 1 second
Parameter:
Product Model: T2401-O
Product weight: 30g
Product size: 48X29X34mm
Mounting opening: 45.5x26.1mm
Timing range: 0~999 (seconds, minutes, hours) Minimum unit: 1 second
Technical parameters: DC12V 2OA MAX 240W MAX
Working humidity: 35%~85%
Working temperature: -10~60℃
Size unchanged, compatible with installation, convenient for direct output wiring, green start and red stop, easy to set up, appearance patent

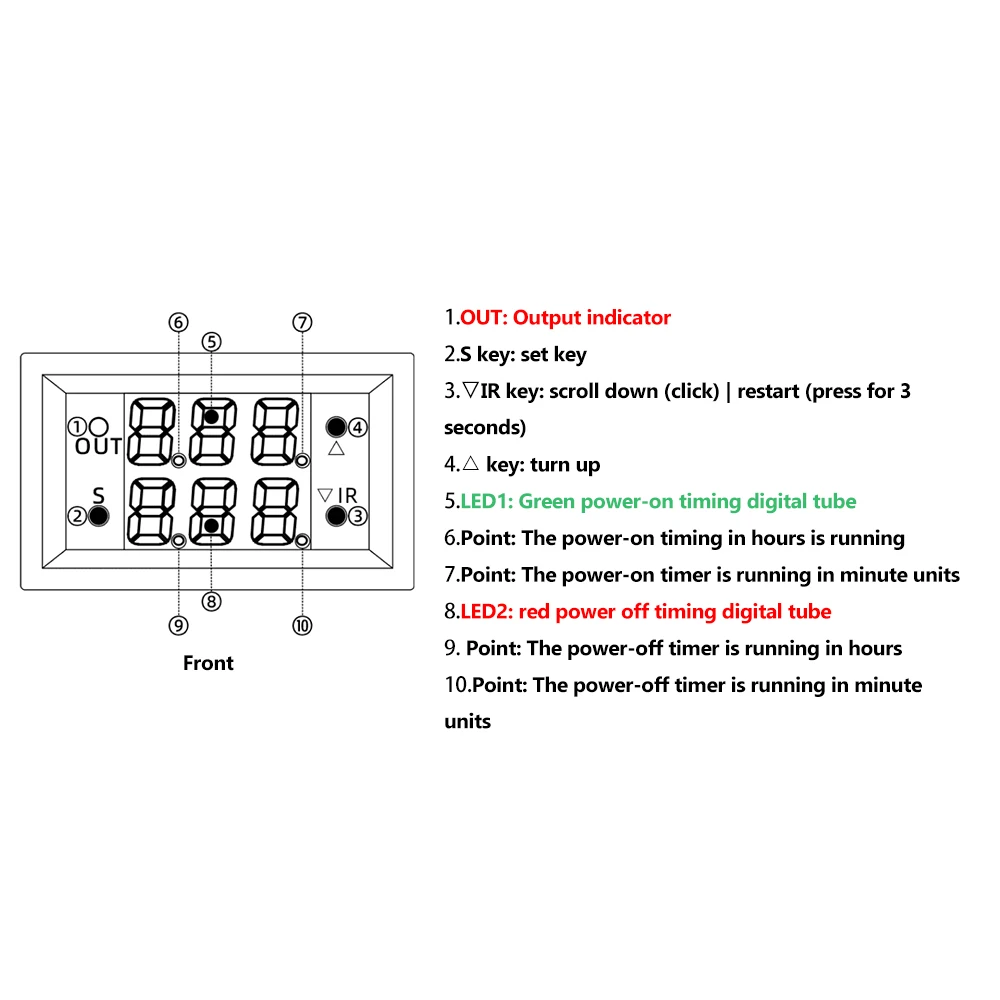

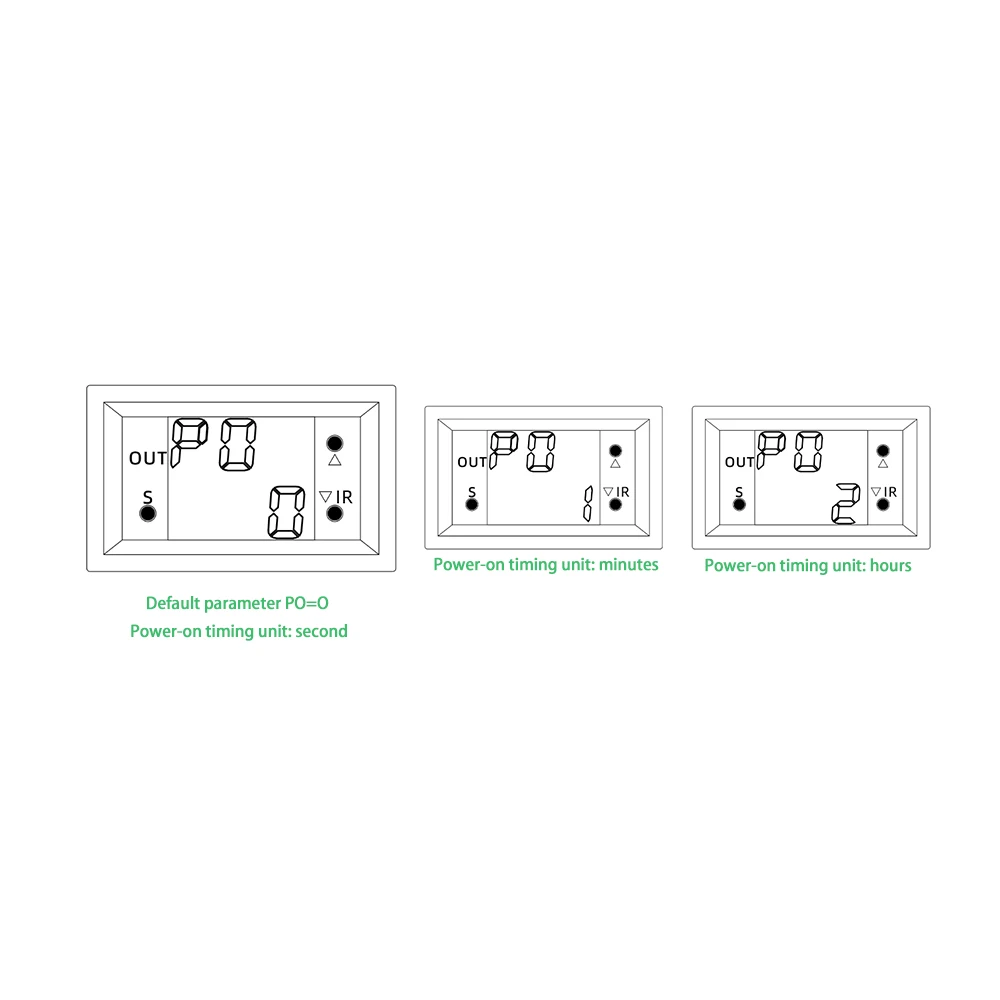

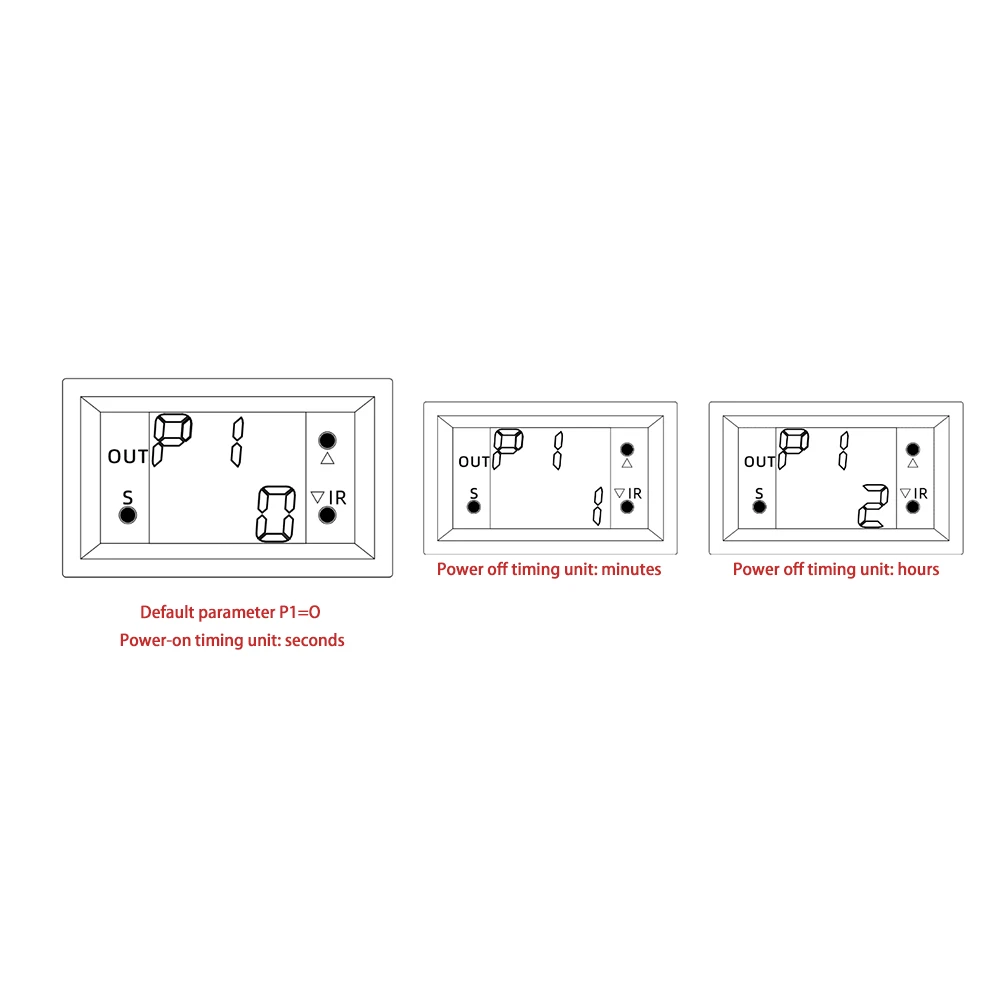

Code menu introduction:
Press and hold the S button for 6 seconds to enter the code menu

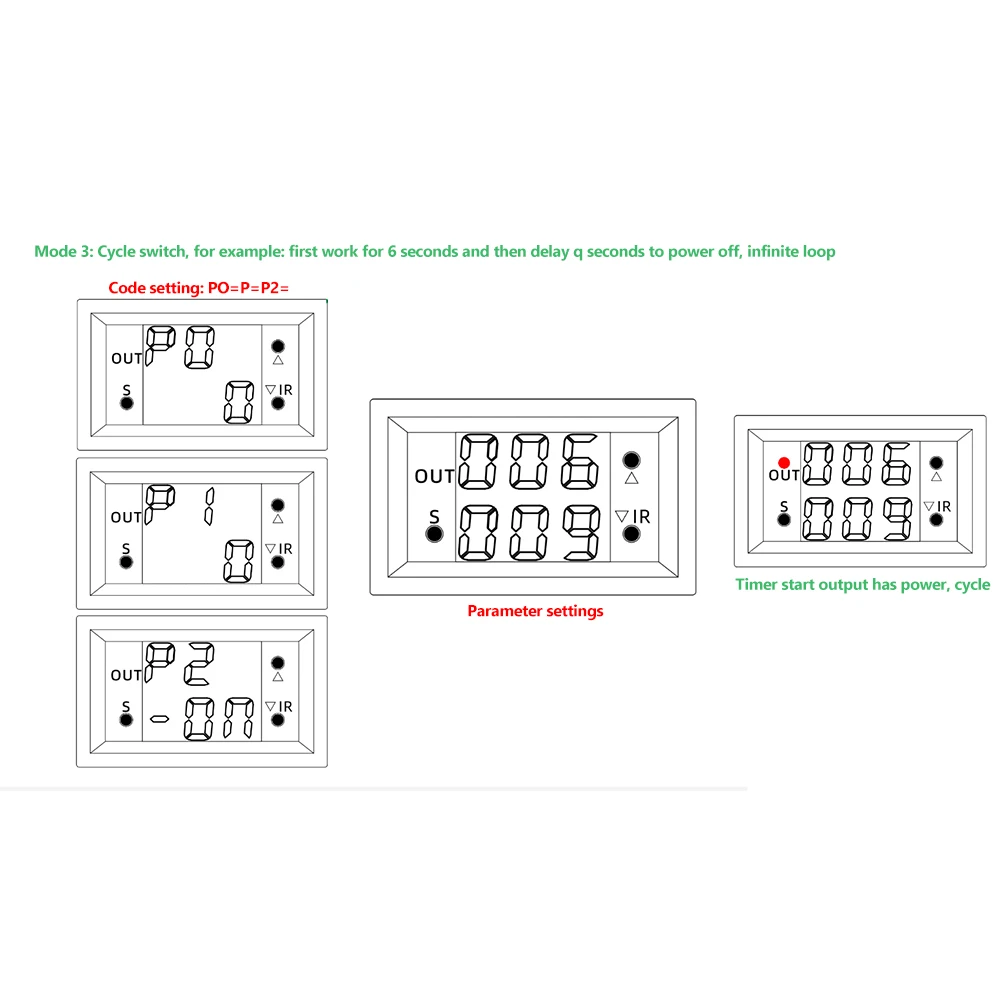

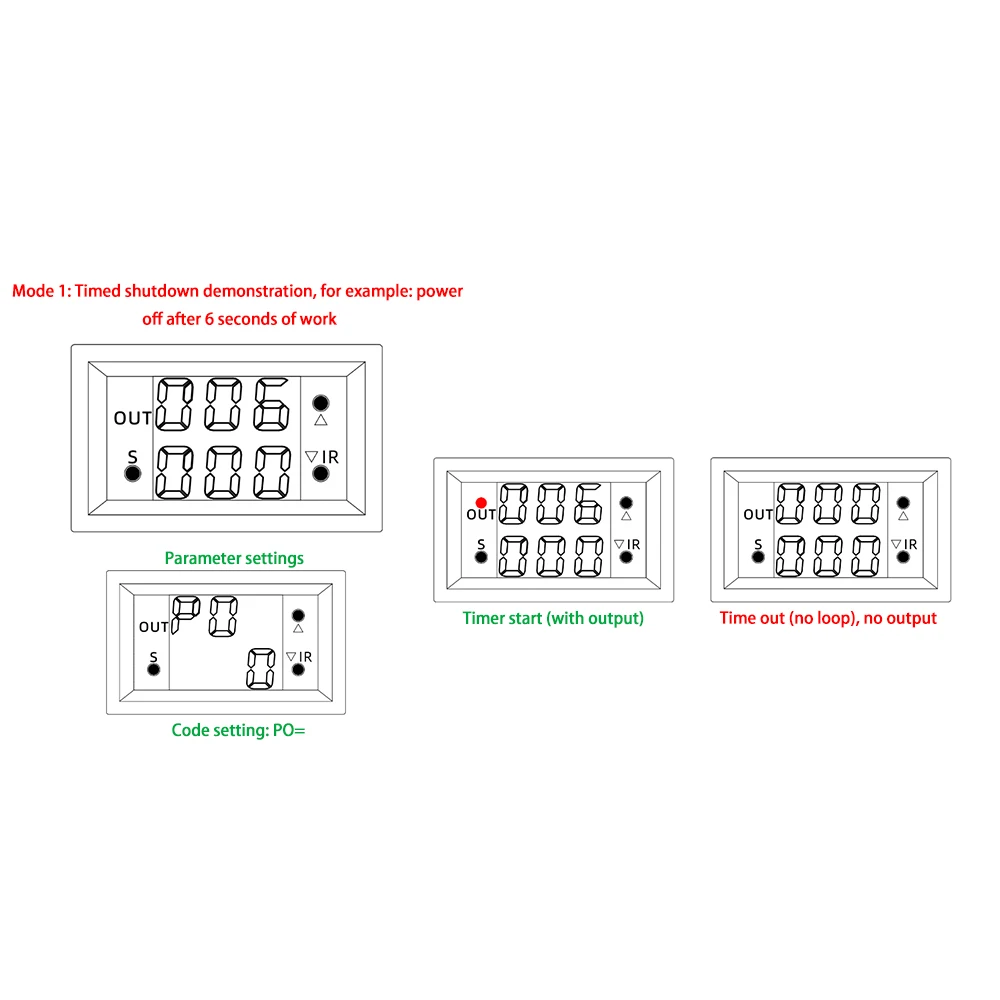

Mode setting demo
Double-click the S key to enter the parameter setting mode
Safety warning:

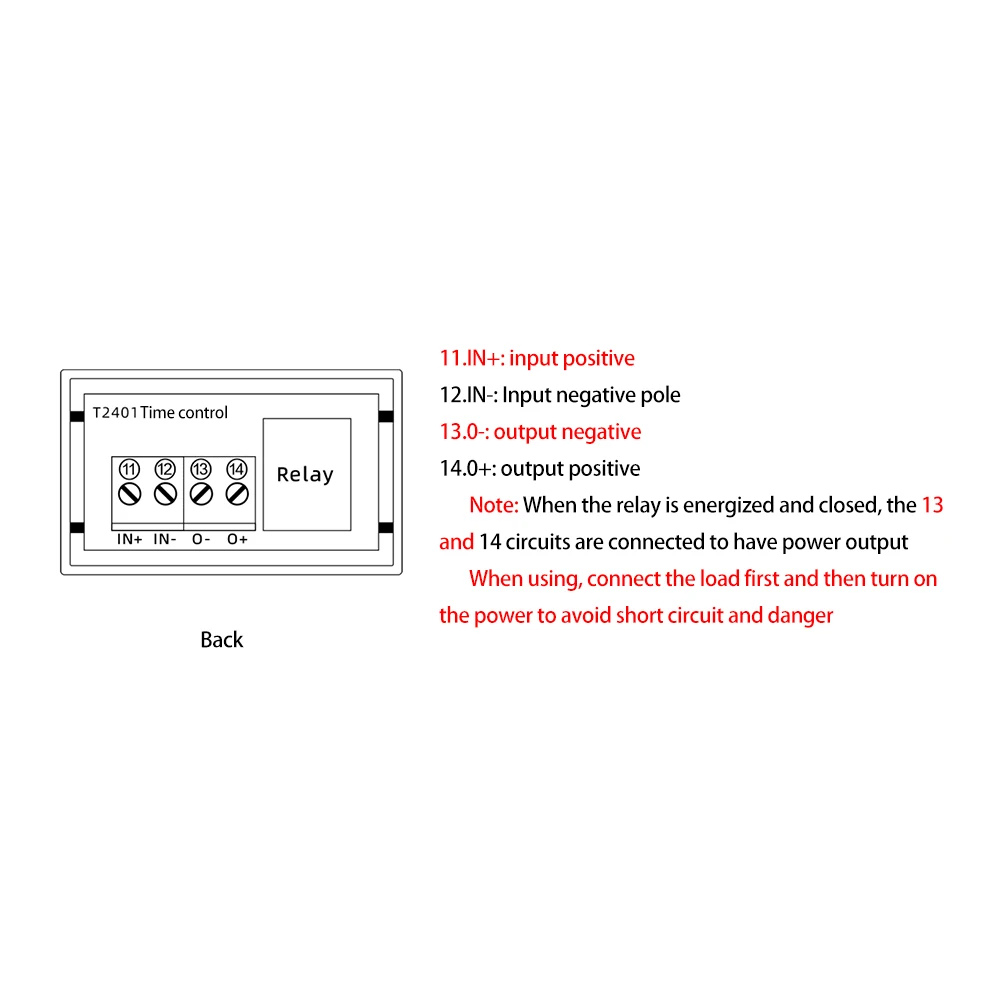

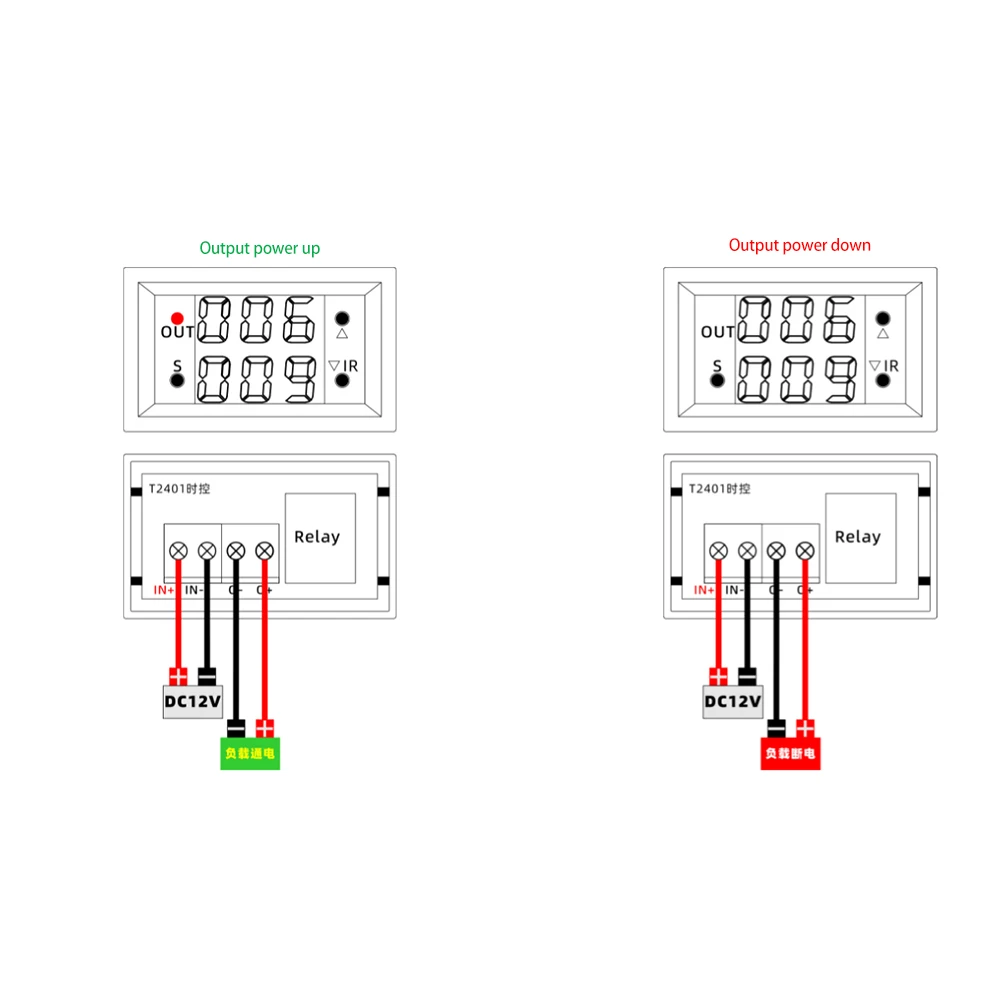

The output is active, connect the load and then power on to avoid short circuit
Package List:
1 x Digital display delay relay module
T2401-N
Description:
1: Wide range of applications
2: Exquisite appearance
3: Small size
4: Simple to use
5: Passive output
Parameter:
Contacts de-energized No output
Can be connected to loads other than 12V
Dimensions: 47.6x28.6x33.2mm
Embedded installation
Mounting opening: 45x26.1mm
Green on and red off and the timing display starts. The stop timer unit is easy to set independently and easy to use
1-way normally open relay control on-off

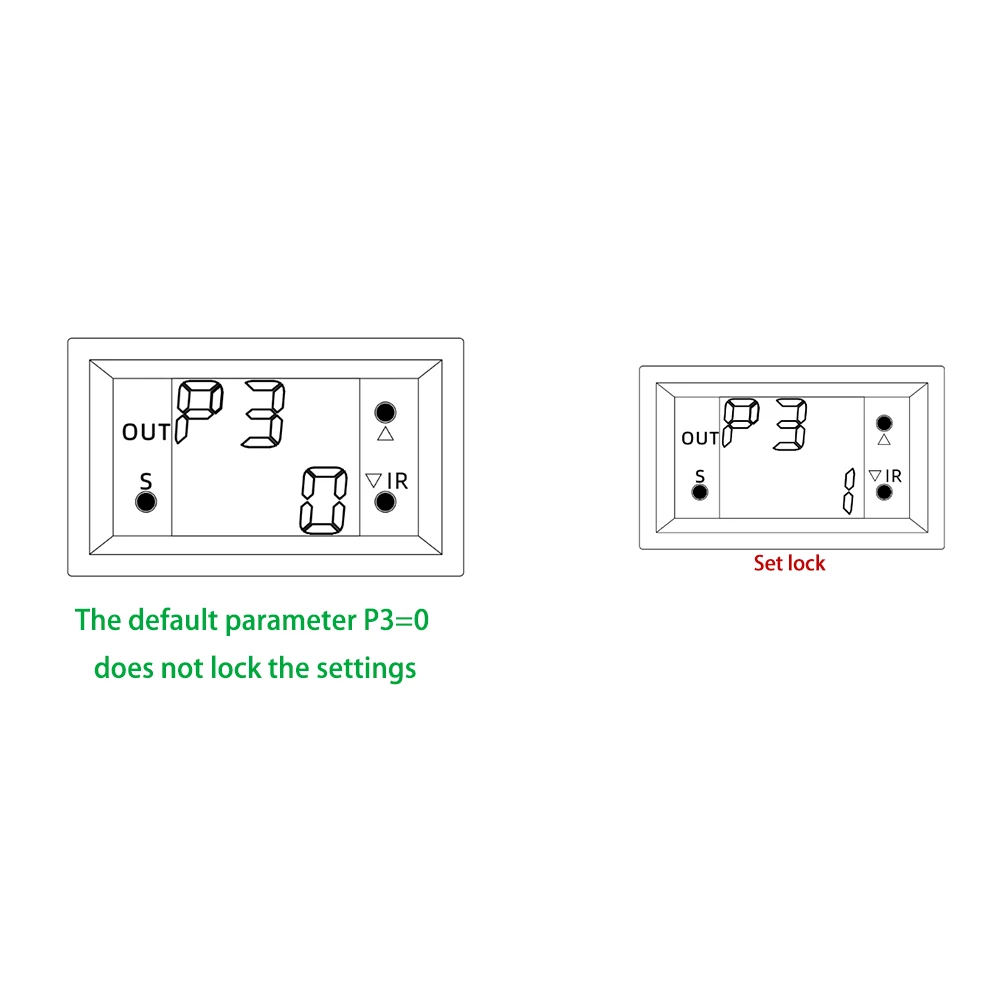

There is a setting lock to prevent accidental touch
The timing range is adjustable from 0 to 999 (seconds, minutes, hours)
Minimum timing unit: 1 second
Timing error: ±4.5%
Integrated crystal oscillator
Power-on auto-run power-off save settings
Working voltage: DC12V
Load power DC12V 20A240W AC220V 1500W ( max )
Loop switch supported
Alternate 1 switch is not supported
Package included:
1 x DC12V delay dual display digital time relay module
