Specification:

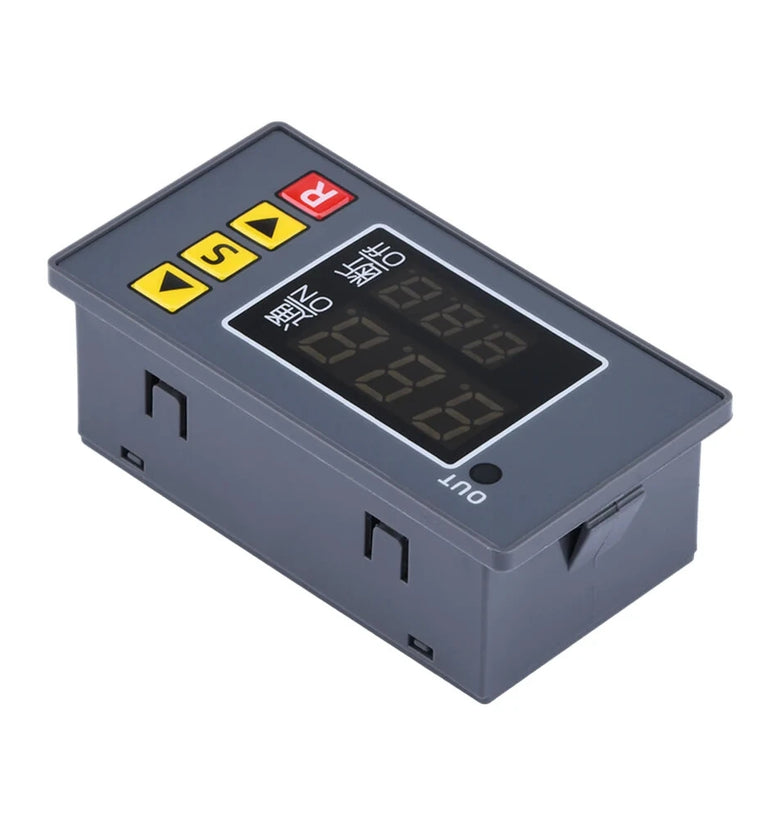

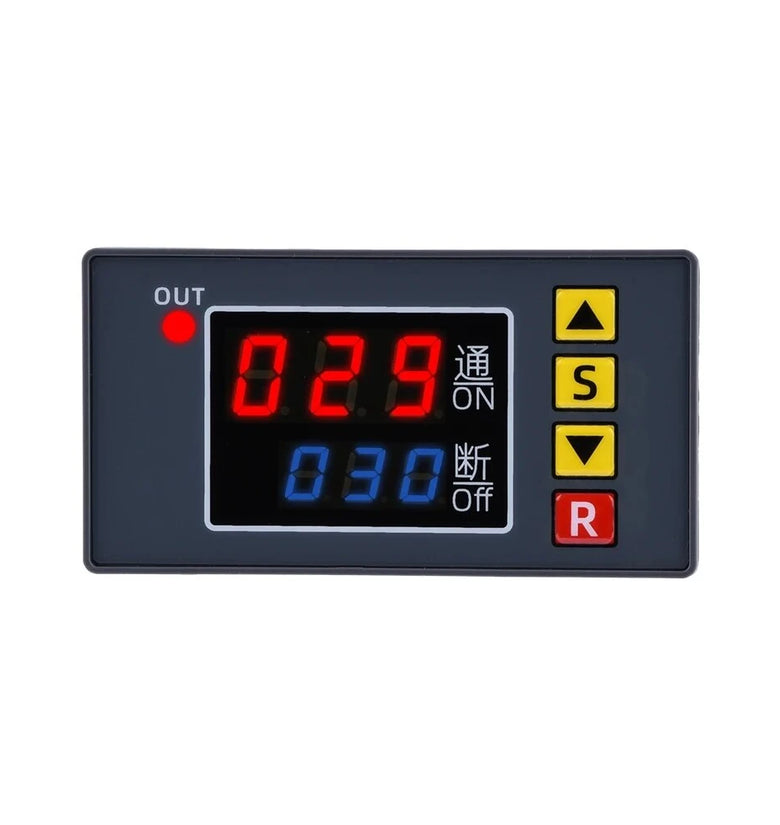

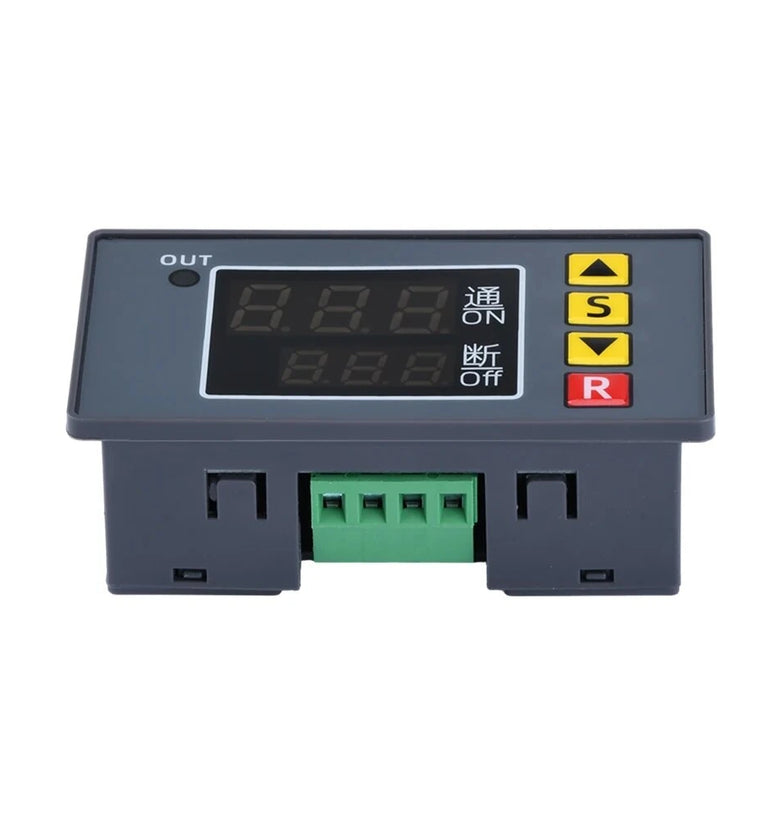

Name: Digital display time relay module

Material: plastic+metal

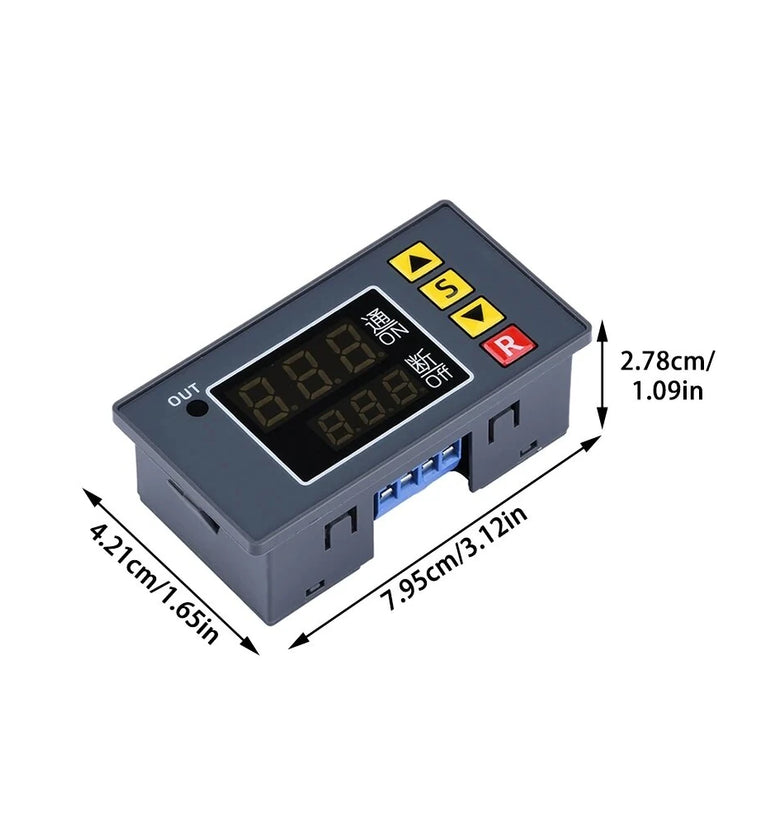

Size:

Display panel: 79mm * 43mm

Installation: 71mm * 40mm * 24mm

Color: Black

Timing range: 0-999S/0-999M/0-999H

Function: timer / delay / cycle / covering 18 kinds of functions

Maximum operating current: 10A

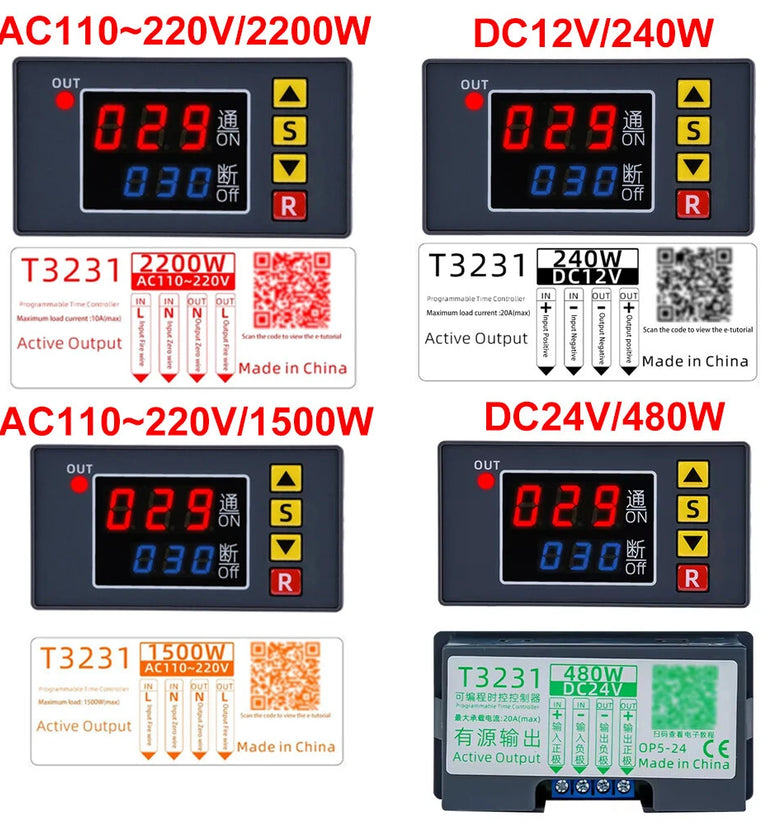

Type:

DC12V/240W, DC24V/480W, AC110~220V/1500W, AC110~220V/2200W (optional)

Function:

Can be used for timing, delay, cycle timing, intermittent timing and other occasions.

Instruction Manual:

* Before using the first prompt the user to note that after setting the data must wait 6s, 6s after the module will automatically save the memory settings data.

* Press the SET key once to enter the time setting mode, the red digital tube flicker, through button plus or minus button to adjust the setting time T1.After T1 is set short press the SET button again , the digital tube flicker, through button plus or minus button to set time.After time T2, T2 time is set, press the SET button again, the system will automatically save the memory setting time or wait 6s, must wait 6s,6s after the module will automatically remember to save the data.

* Long press SET to enter parameter setting mode. There
