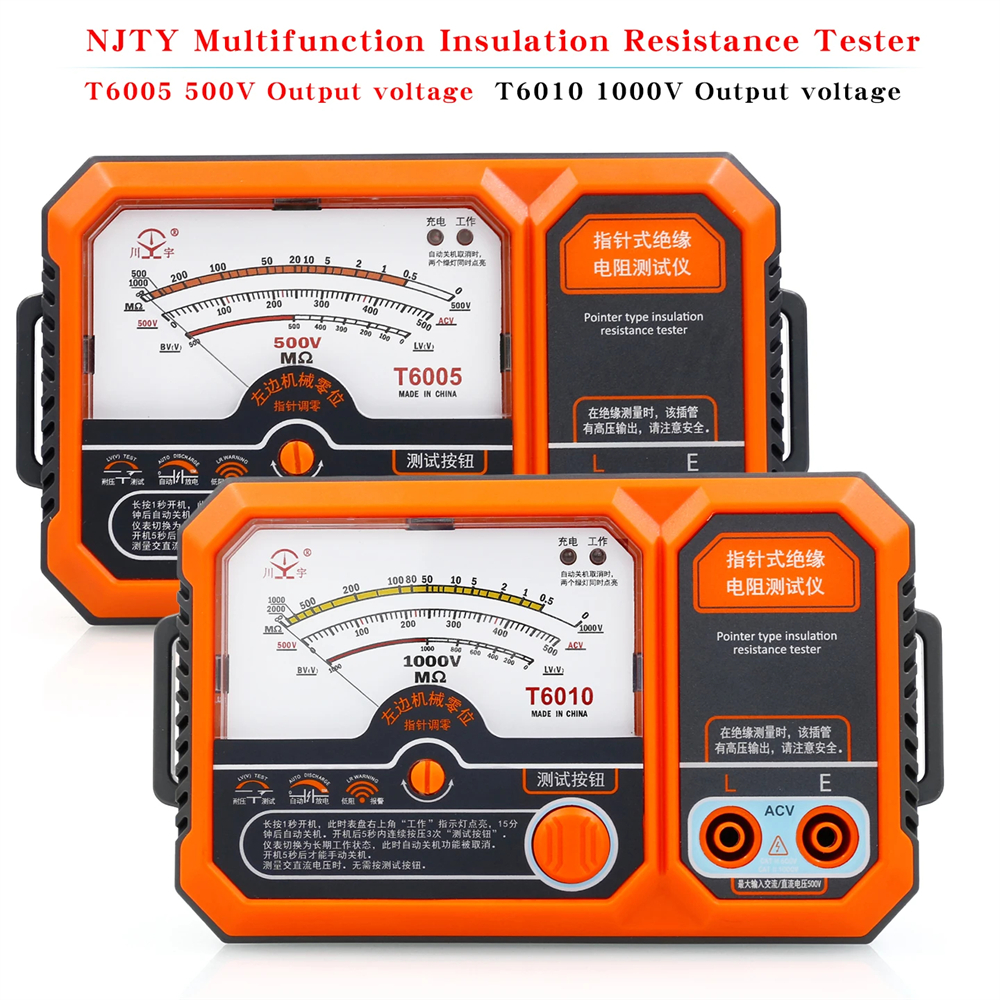

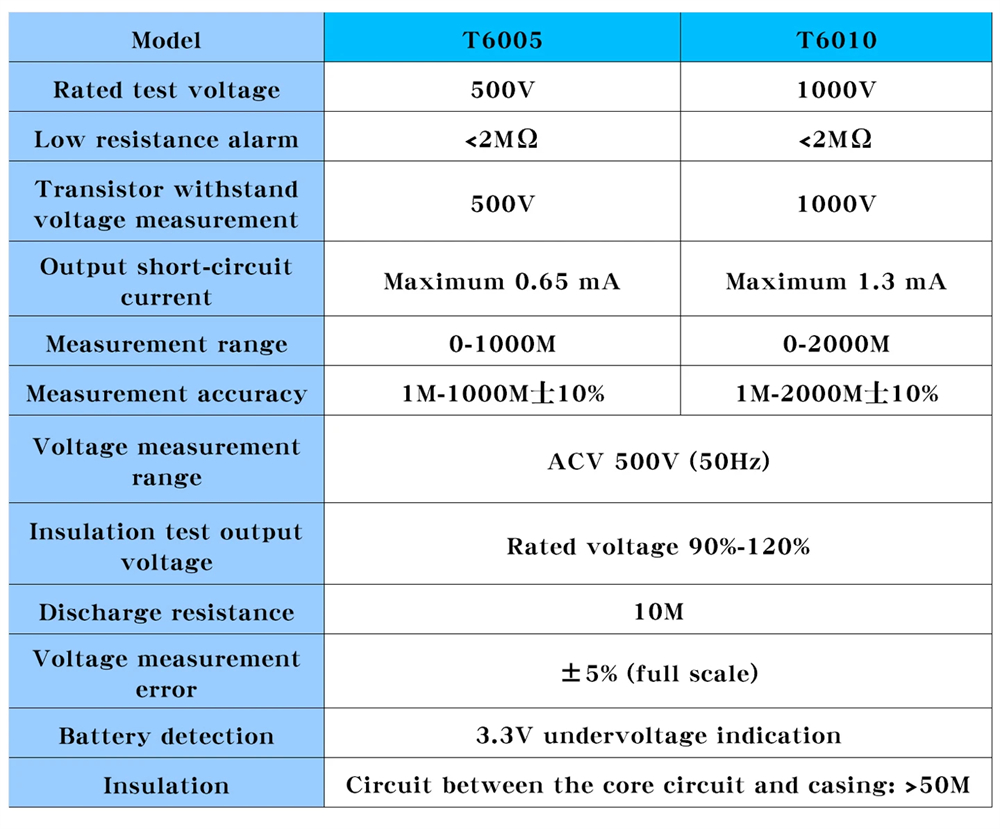

Specifications:

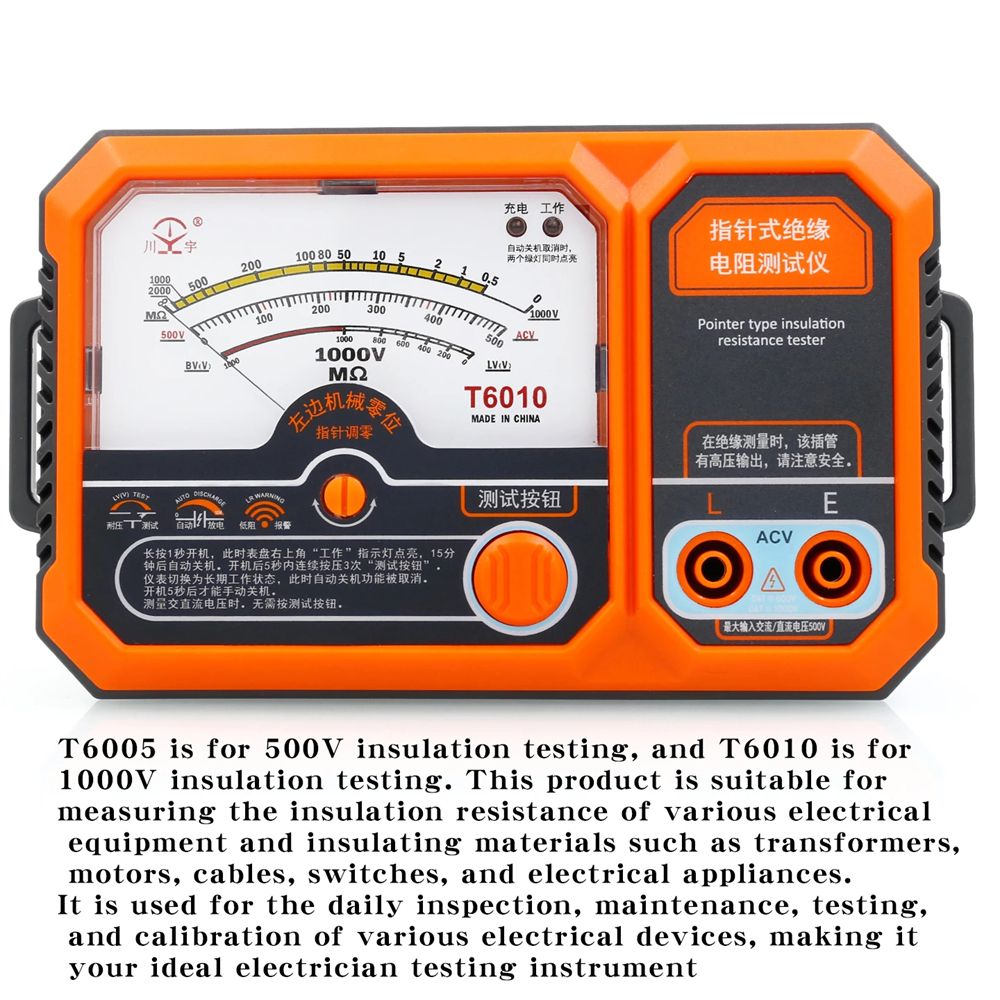

Model: T6005
Rated Test Voltage: 500V
Low Resistance Alarm: <2MΩ
Transistor Withstand Voltage Measurement: 500V
Output Short-Circuit Current: Maximum 0.65 mA
Measurement Range: 0-1000MΩ
Measurement Accuracy: 1M-1000MΩ ±10%

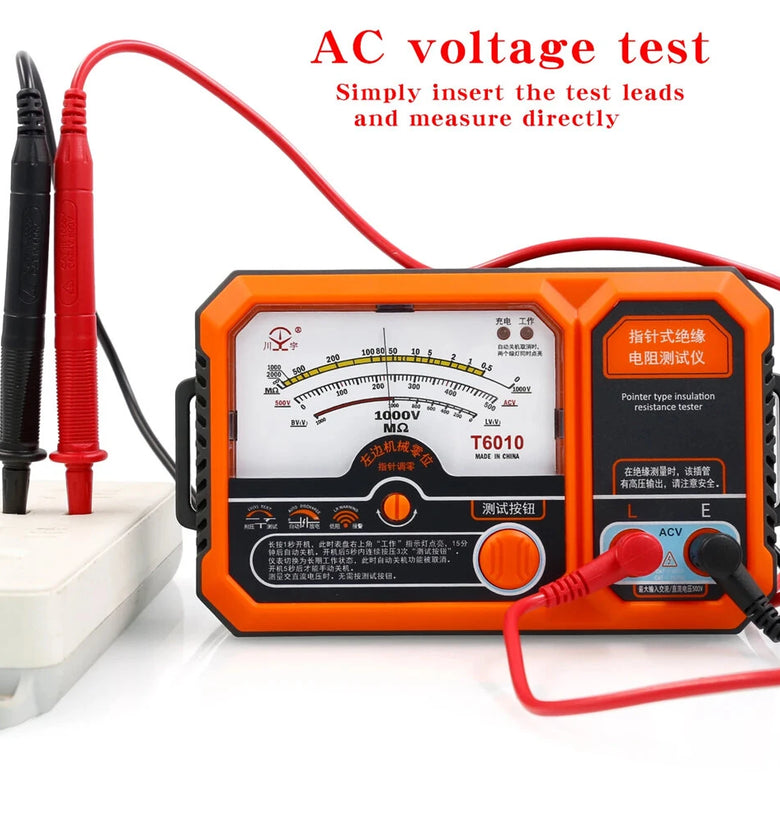

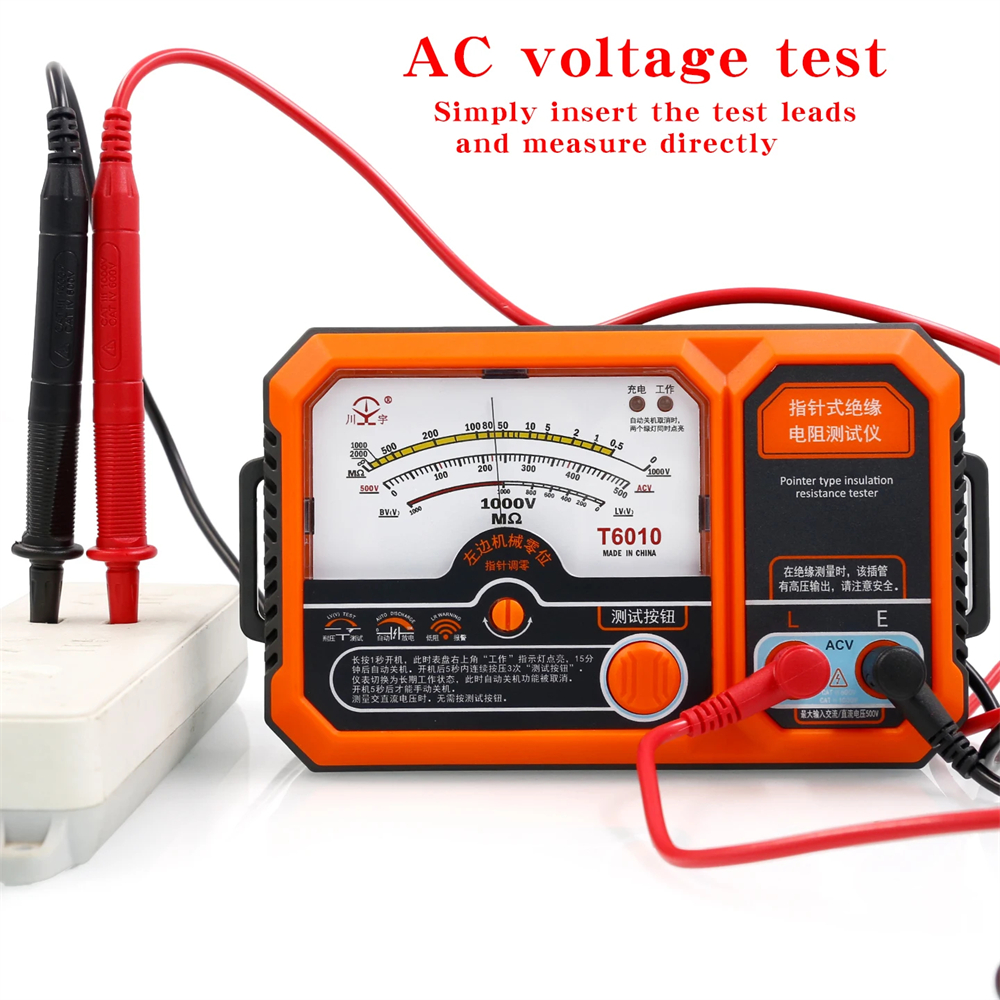

Voltage Measurement Range: ACV 500V (50Hz)
Insulation Test Output Voltage: Rated voltage 90%-120%
Discharge Resistance: 10MΩ
Voltage Measurement Error: ±5% (full scale)

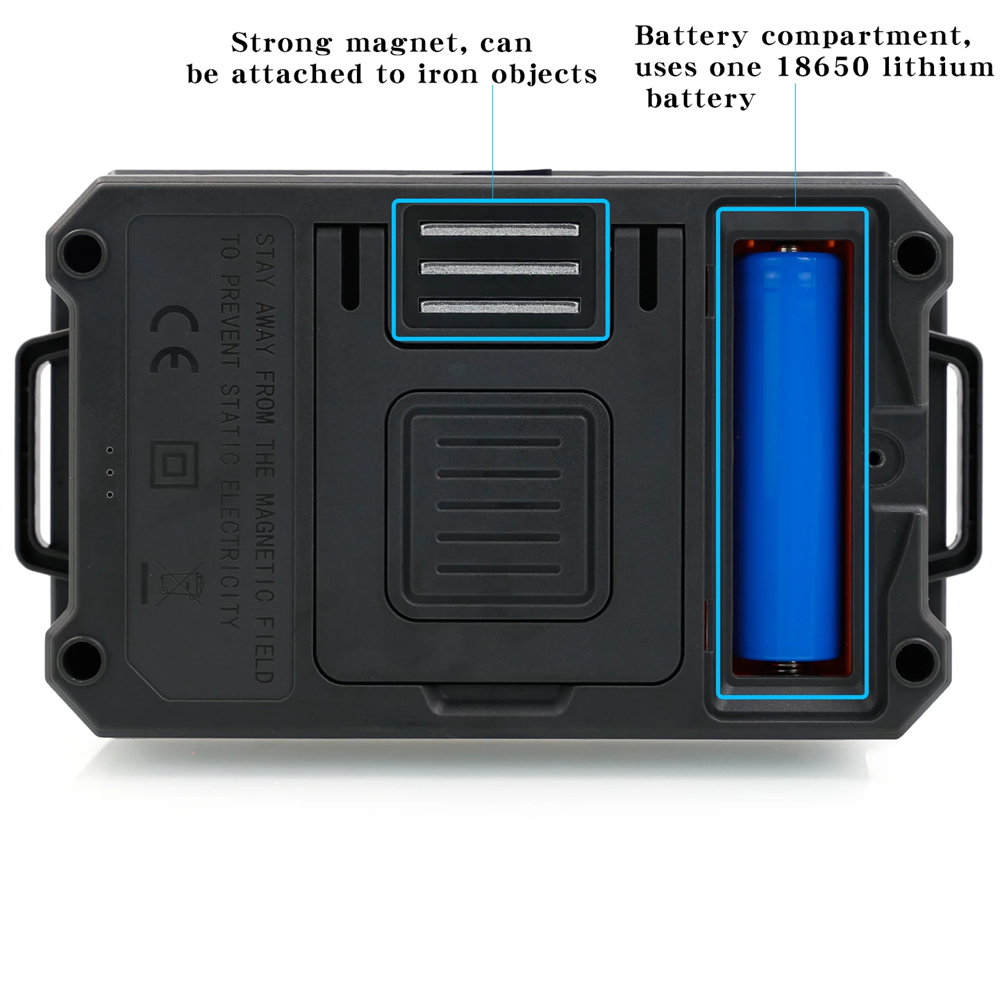

Battery Undervoltage Indication: 3.3V
Insulation: Circuit between the core circuit and casing: >50MΩ

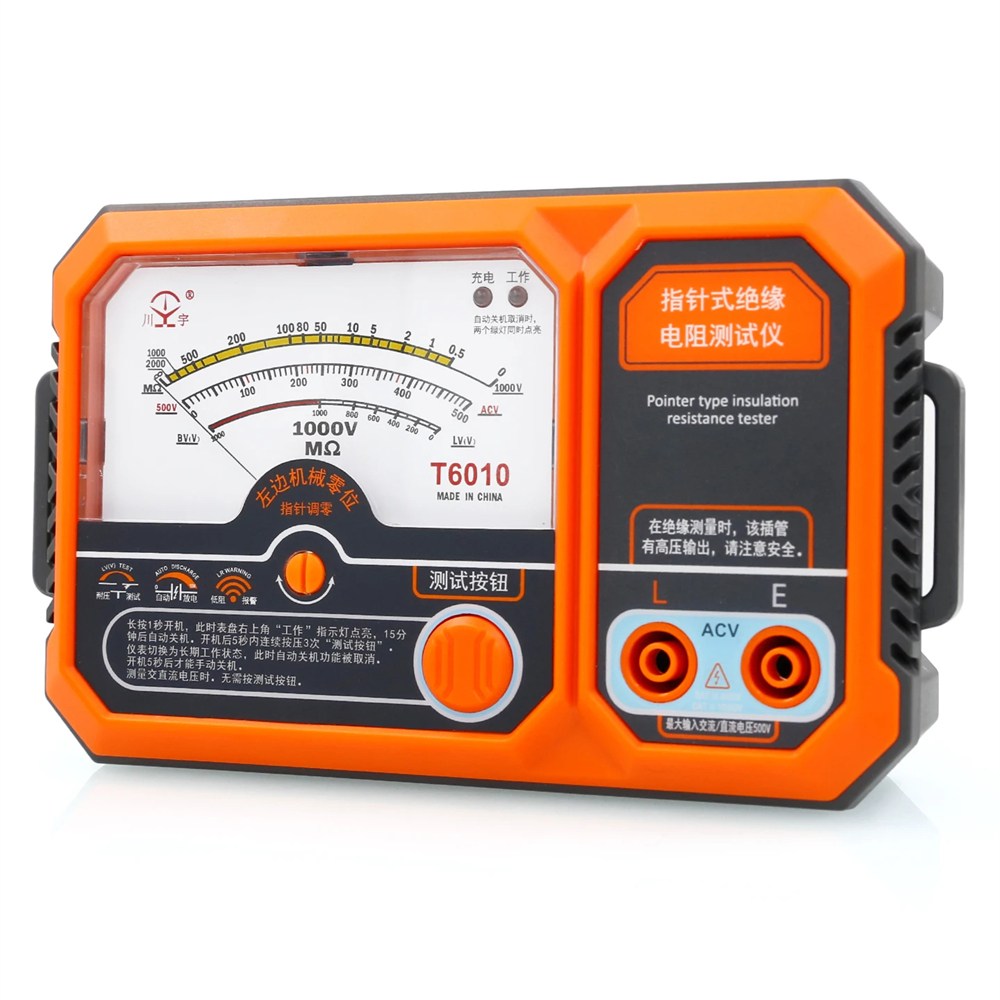

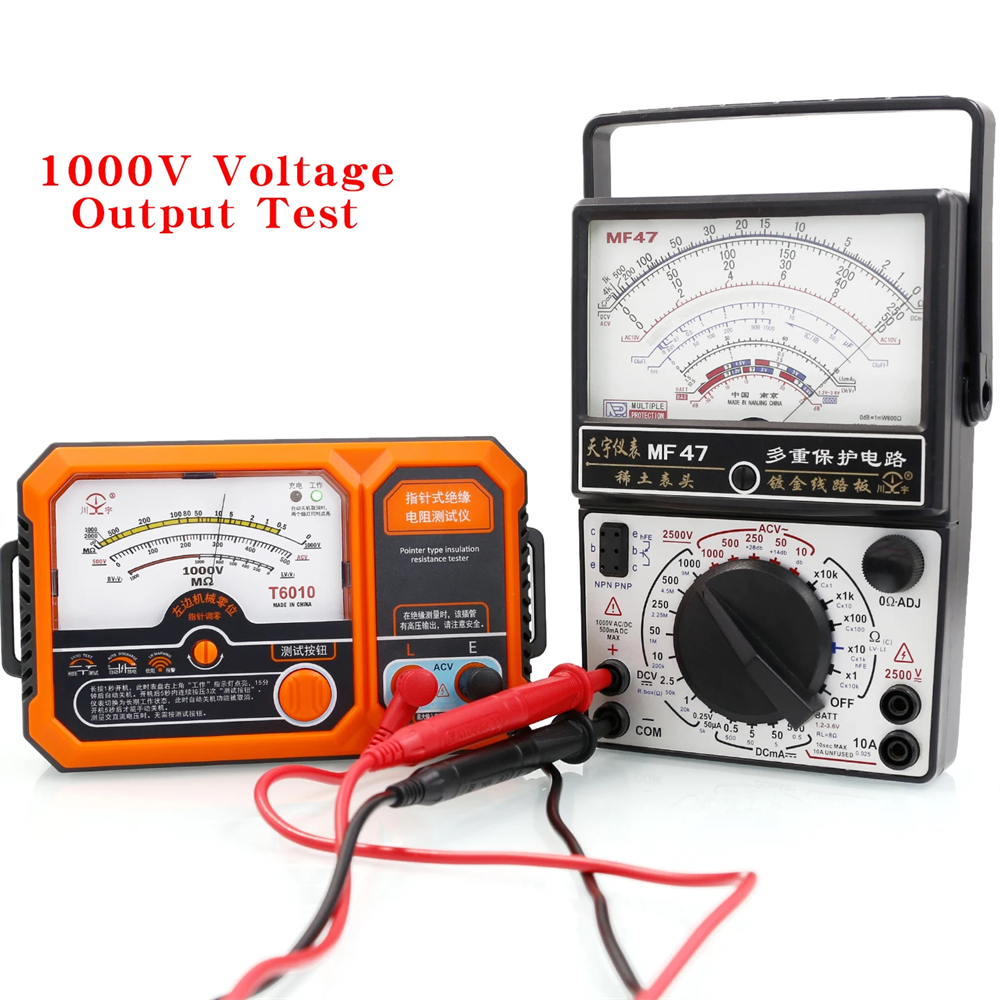

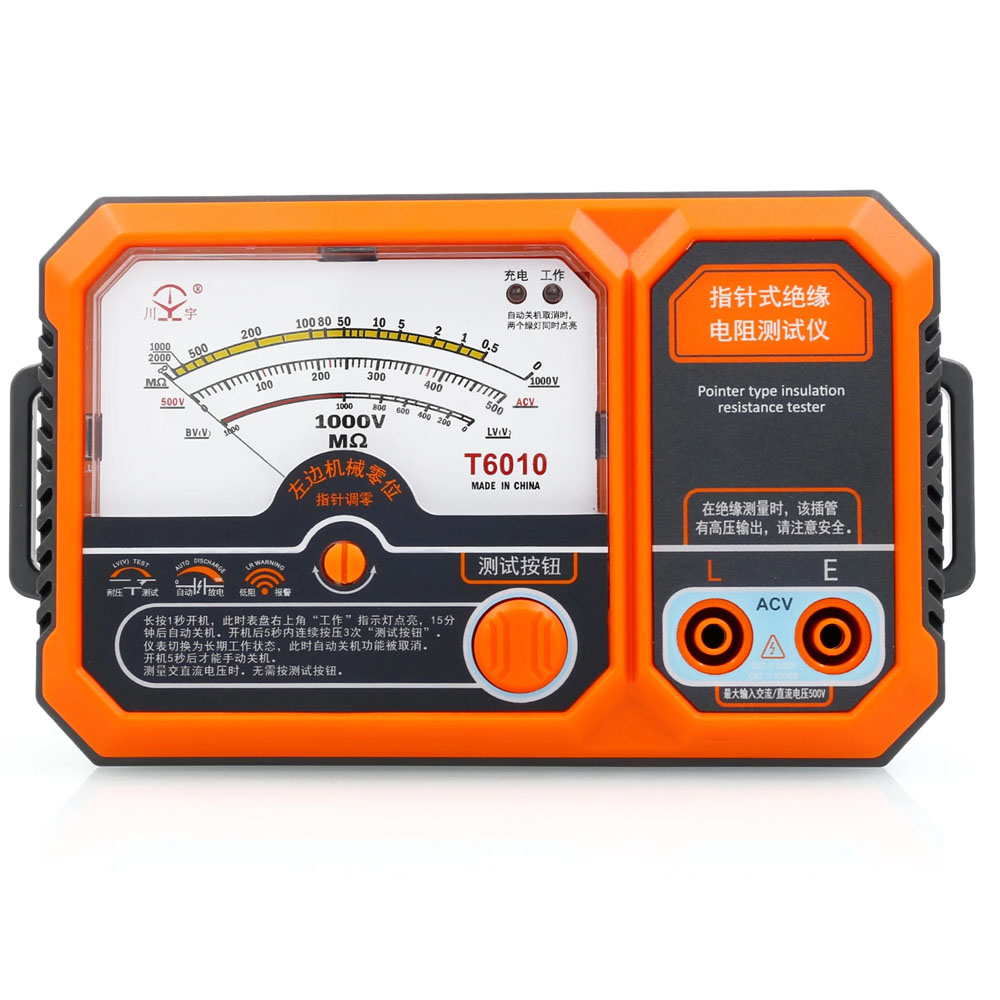

Model: T6010

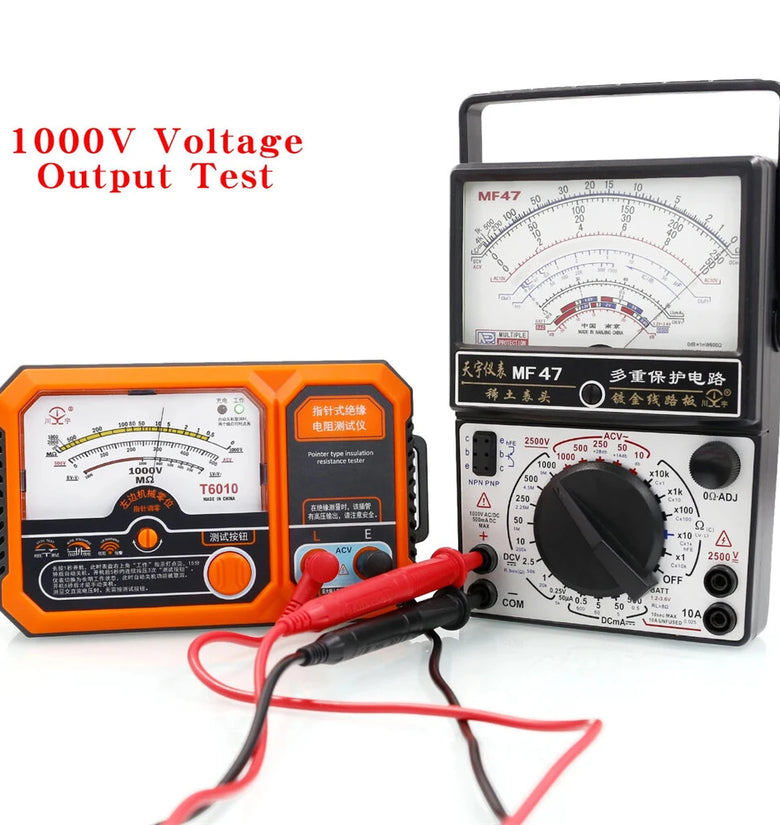

Rated Test Voltage: 1000V
Low Resistance Alarm: <2MΩ
Transistor Withstand Voltage Measurement: 1000V
Output Short-Circuit Current: Maximum 1.3 mA
Measurement Range: 0-2000MΩ
Measurement Accuracy: 1M-2000MΩ ±10%
Voltage Measurement Range: ACV 500V (50Hz)
Insulation Test Output Voltage: Rated voltage 90%-120%
Discharge Resistance: 10MΩ
Voltage Measurement Error: ±5% (full scale)
Battery Undervoltage Indication: 3.3V
Insulation: Circuit between the core circuit and casing: >50MΩ


Features:
1.High Performance Measurement Ranges:

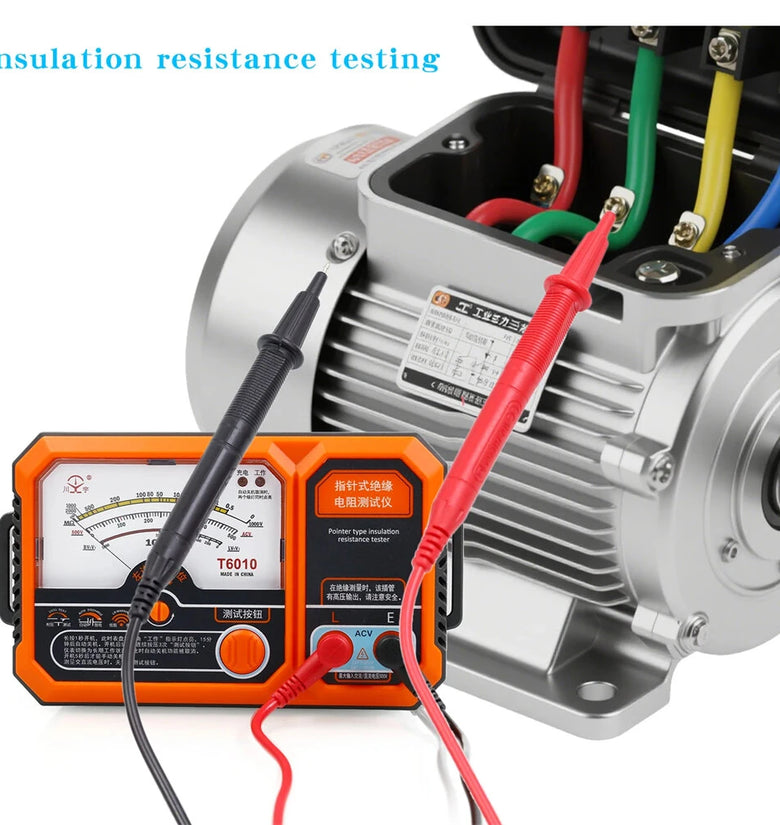

The T6005 and T6010 provide expansive measurement ranges of 0-1000MΩ and 0-2000MΩ respectively, enabling effective insulation tests for a wide variety of industrial and electrical systems.
2.Precision Accuracy:
Measurement accuracy of ±10% ensures reliable readings, making these units ideal for critical applications that require precision.
3.Enhanced Output Capabilities:
Designed with superior short-circuit output currents (0.65 mA for T6005, 1.3 mA for T6010), these devices cater to diverse testing requirements.
4.Safety-Oriented Low Resistance Alarm:
Featuring low resistance alarms at <2MΩ, these instruments help users identify potential risks with prompt alert functionality.
5.Battery Undervoltage Indication:
Equipped with a 3.3V undervoltage indicator, the devices ensure uninterrupted operations and convenience for users without frequent power disruptions.

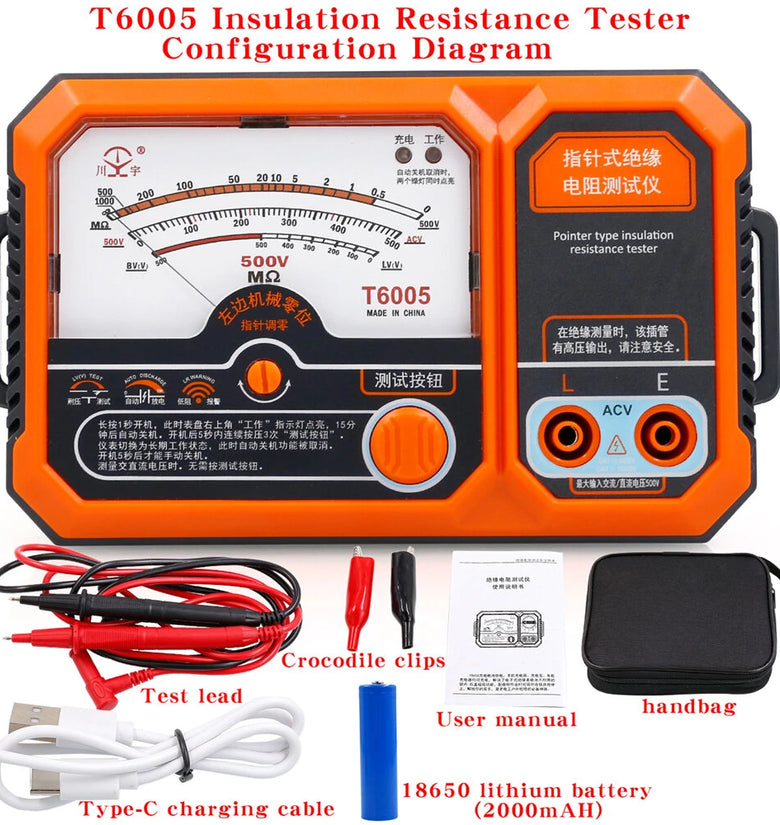

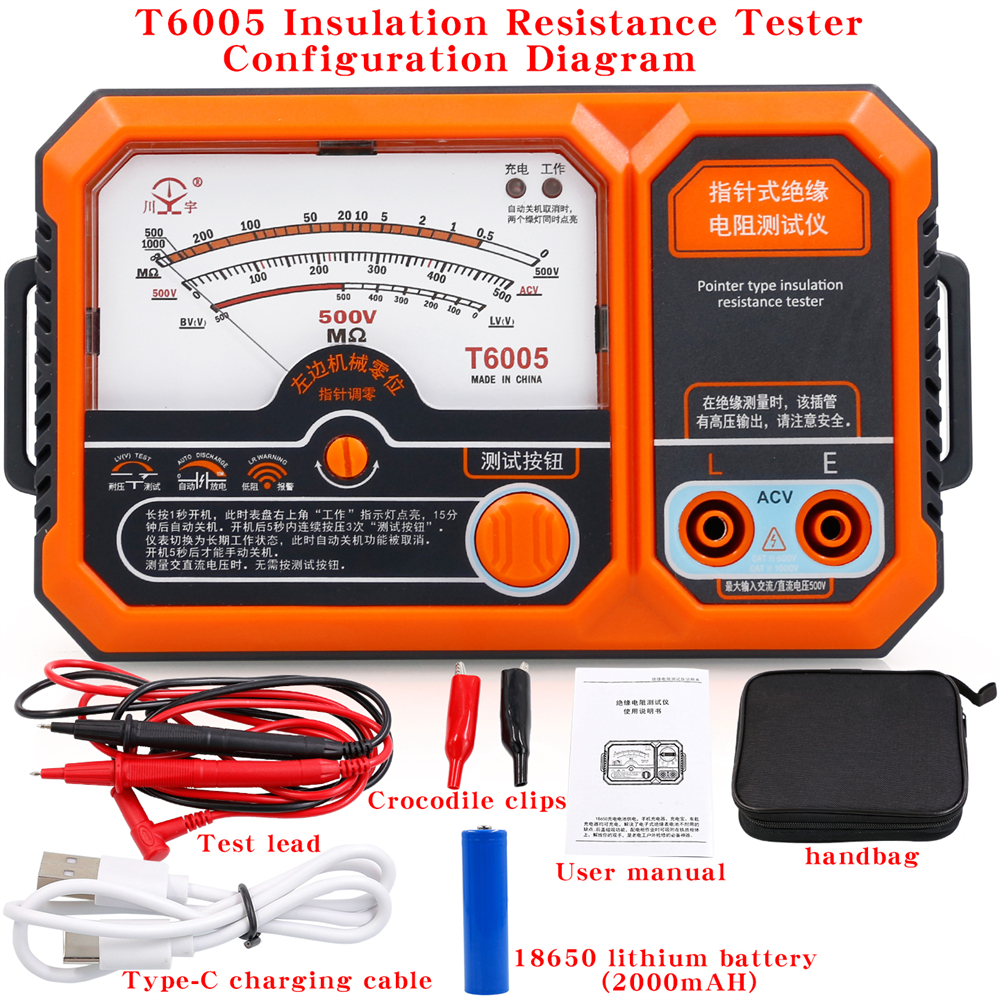

Package Included:
1 x T6005 Insulation Resistance Tester

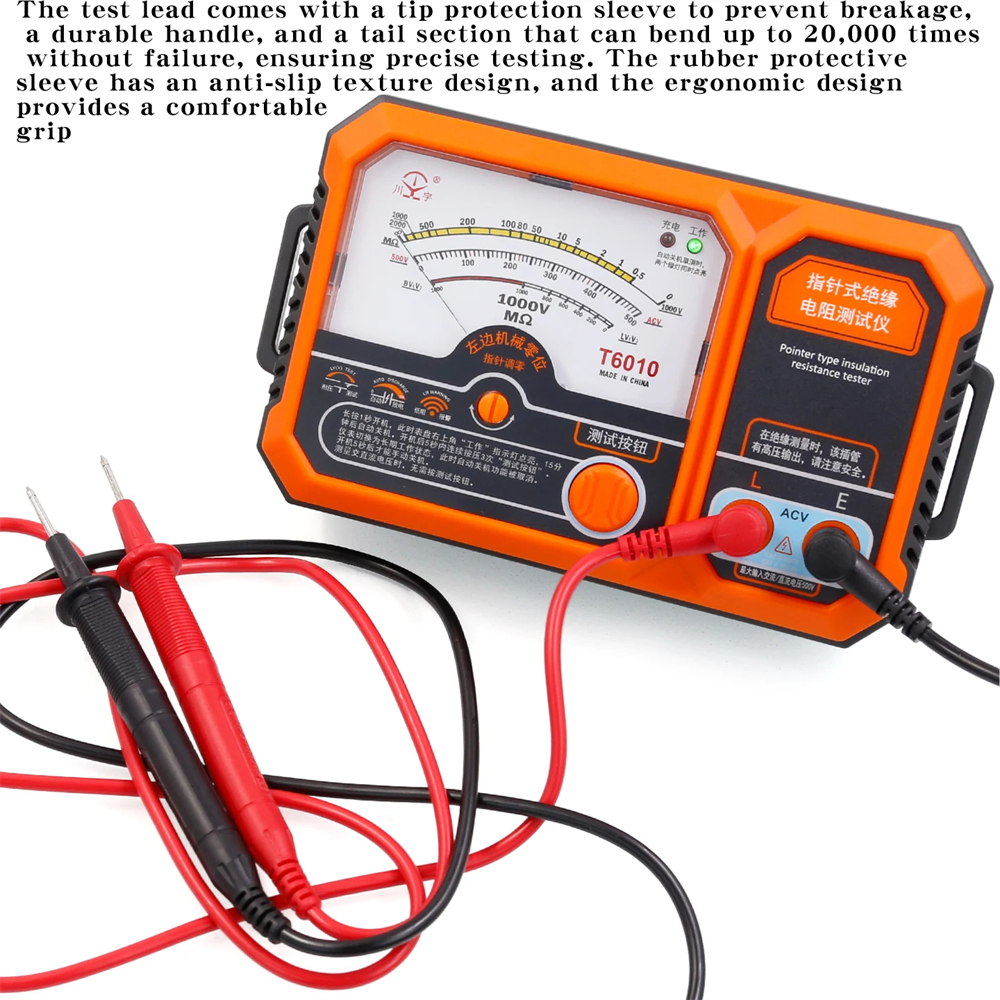

2 x Teat Lead
2 x Crocodile Clips

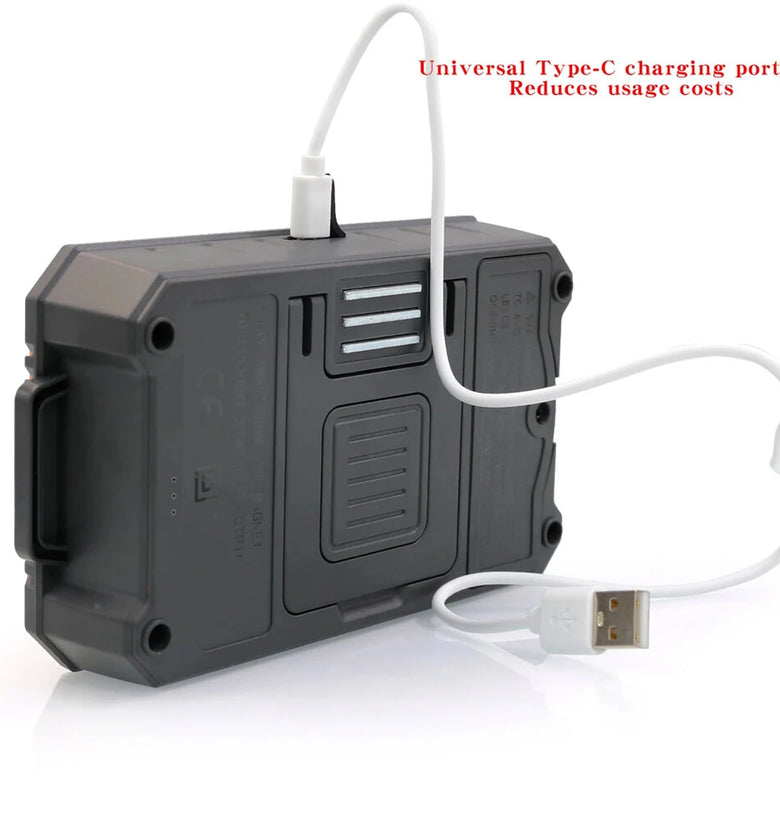

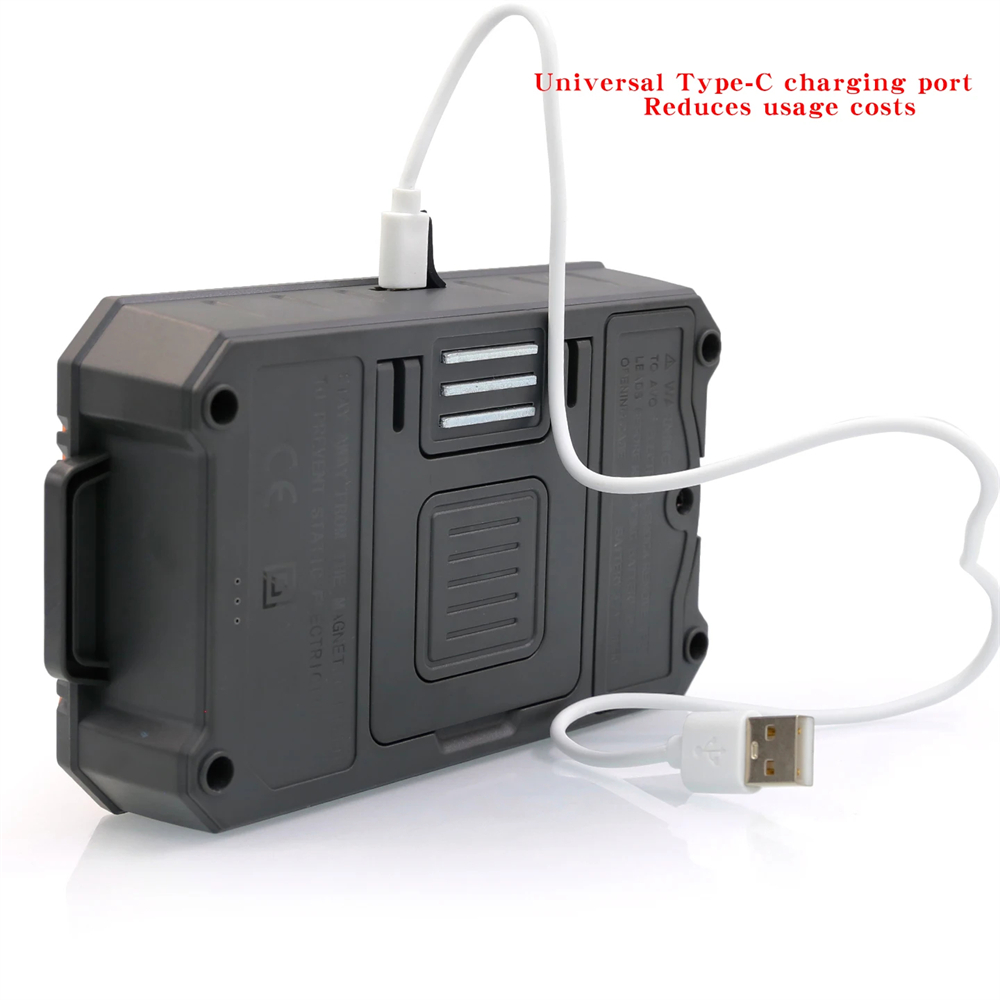

1 x Type-C Charging Cable
1 x Handbag
1 x User Manual
