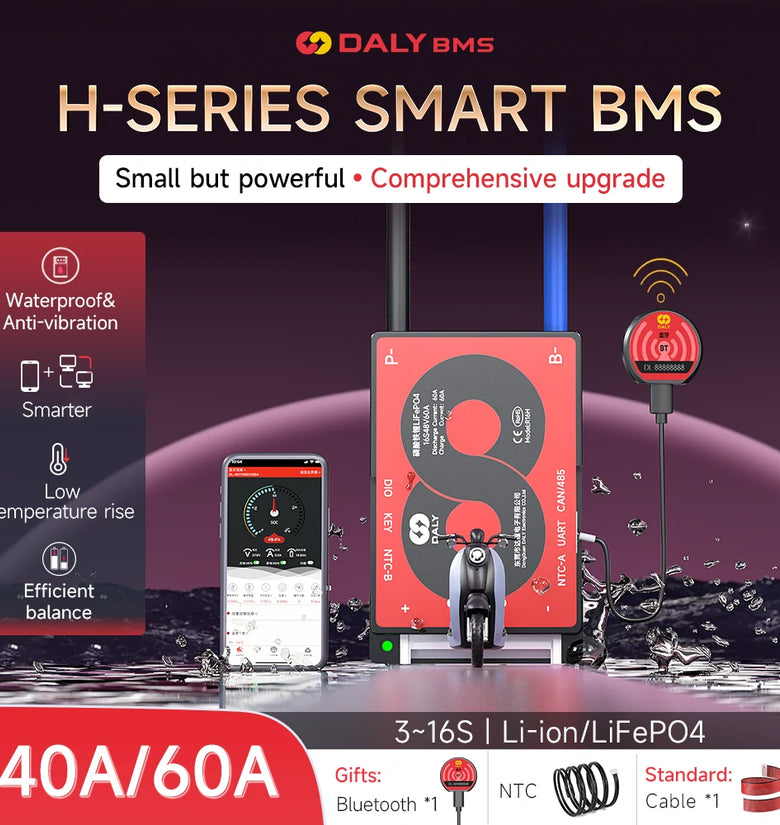

  • Ternary Lithium Battery Protection H-type 3S-16S 40A60A Li-ion 4.2V Portable Mobile Power Solar with Balance+Bluetooth+RS485+CAN Street Light Battery Protection Board

SKU:

Ternary Lithium Battery Protection H-type 3S-16S 40A60A Li-ion 4.2V Portable Mobile Power Solar with Balance+Bluetooth+RS485+CAN Street Light Battery Protection Board

R 1,102.25



Product type: Electronic Components & Supplies

Weight:

  • Courier Delivery
    •
  • In Stock
    •

    Isaiah 55:8-9 John 3:16 Philippians 4:19
    Trust_Badges
    Payment_Icons
    Buyer Protection and Guarantees Privacy Policy




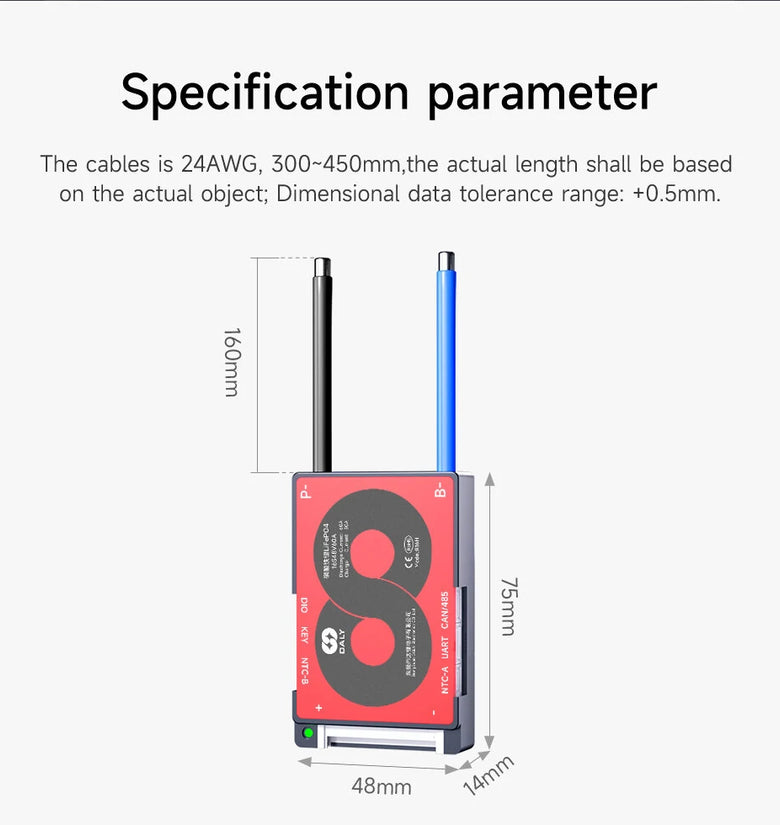

    Specification:


    Installation and wiring in 3 easy steps:

    Step 1: Solder the sampling cables: The first cable in black in the sampling cable set is connected to the negative terminal of the battery, the second cable (red) is connected to the positive terminal of the first string of batteries, and the third cable (red) is connected to the positive terminal of the second string of batteries. And so on, until all cables are connected.
    Step 2: Check the cables: After connecting the cables, measure the voltage between two adjacent cables starting from the header to make sure there are no wrong connections or missing connections.
    Step 3: Connect the output wires: Connect the B- wire of BMS to the total negative terminal of the battery pack, and then plug the sampling cable to BMS. After activating the BMS, make sure that the voltage (battery voltage) between B+ & B- and the voltage between P+ & P- are consistent.

    Activate the BMS:

    The BMS is automatically activated when used for the first time.
    If the BMS is dormant, it can be activated in 4 ways:
    (Before the bms is activated, please make sure that the bms, the cable, the battery are connected correctly, and the NTC is connected with the bms.)

    1. Use key switch.
    2. Press buttons on bluetooth module or SOC indicator.
    3. Using CAN/RS485 communication or Bluetooth connect to Mobile APP.
    4. Charge or discharge the battery.


    Rated discharge current (V) Li-ion: N(Battery string)*4.2V
    Charging voltage (A) 40-60
    Discharge overcurrent protection value (A) 60-90
    Charging current (A) 40-60
    Charge overcurrent protection value (A) 60-90
    Main circuit on-resistance (mΩ) <20
    Passive equalization function (100±30mA)
    Equalization turn-on voltage (V) Li-ion:4.0 (Can be set up)
    Equalize opening differential pressure (mV) 20(Can be set up)
    Balance current (mA) Li-ion: 100±15
    Short circuit protection
    Short circuit protection conditions External Load short circuit
    Short circuit protection delay(uS) 10-500 The actual test is subject to the customer's battery sent back to our company for testing
    Short circuit protection released Remove load release
    Single Cell over-charge protection
    Protection voltage(V) Li-ion: 4.25±0.05 (Can be set up)
    Protection delay(S) 1±0.8
    Recovery voltage(V) Li-ion: 4.15±0.05
    Single Cell over-discharge protection
    Protection voltage(V) Li-ion: 2.7±0.05 (Can be set up)
    Protection delay(S) 1±0.8
    Recovery voltage(V) Li-ion: 2.8±0.05
    Charge/discharge over-current protection
    Protection delay(S) 1±0.8
    Release condition Removing the load is lifted

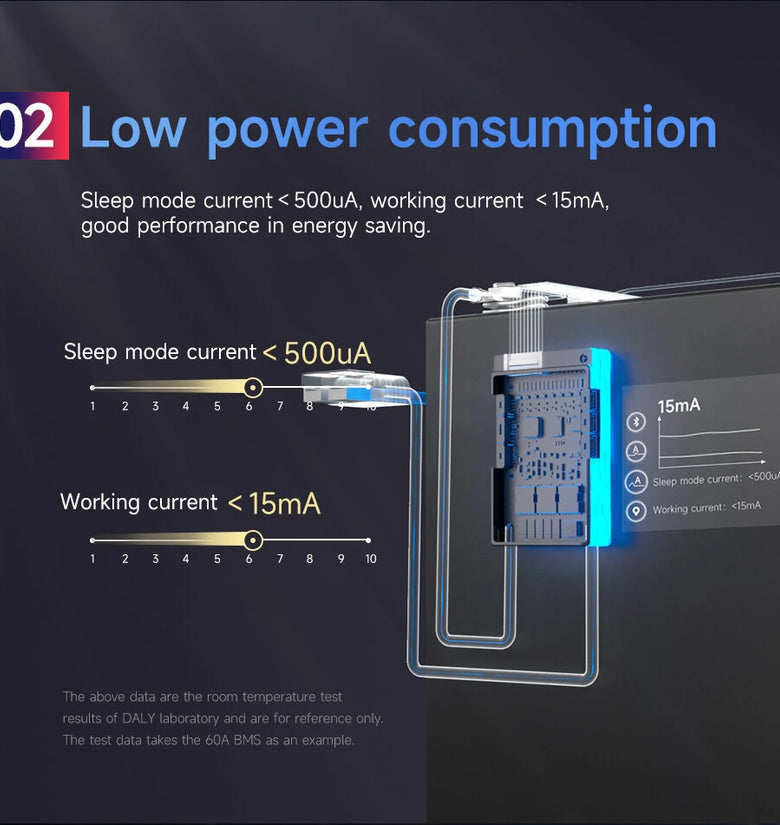

    Current consumption: Working current(mA) < 15
    Temperature protection(℃)
    Operating temperature(℃) charging：-35~75 discharge: -35~75 (can be set up)
    Storage temperature(℃)  -40~85
    Resting current(uA) < 500
    Sleep time(S) 3600
    The above data is the temperature test results of DALY laboratory, for reference only.
    If you need customized services, please consult customer service for details

    Package includes:


    1 x Smart BMS
    1 x Cable
    1 x bluetooth
    1 x NTC
    1 x CAN/485 5pin
