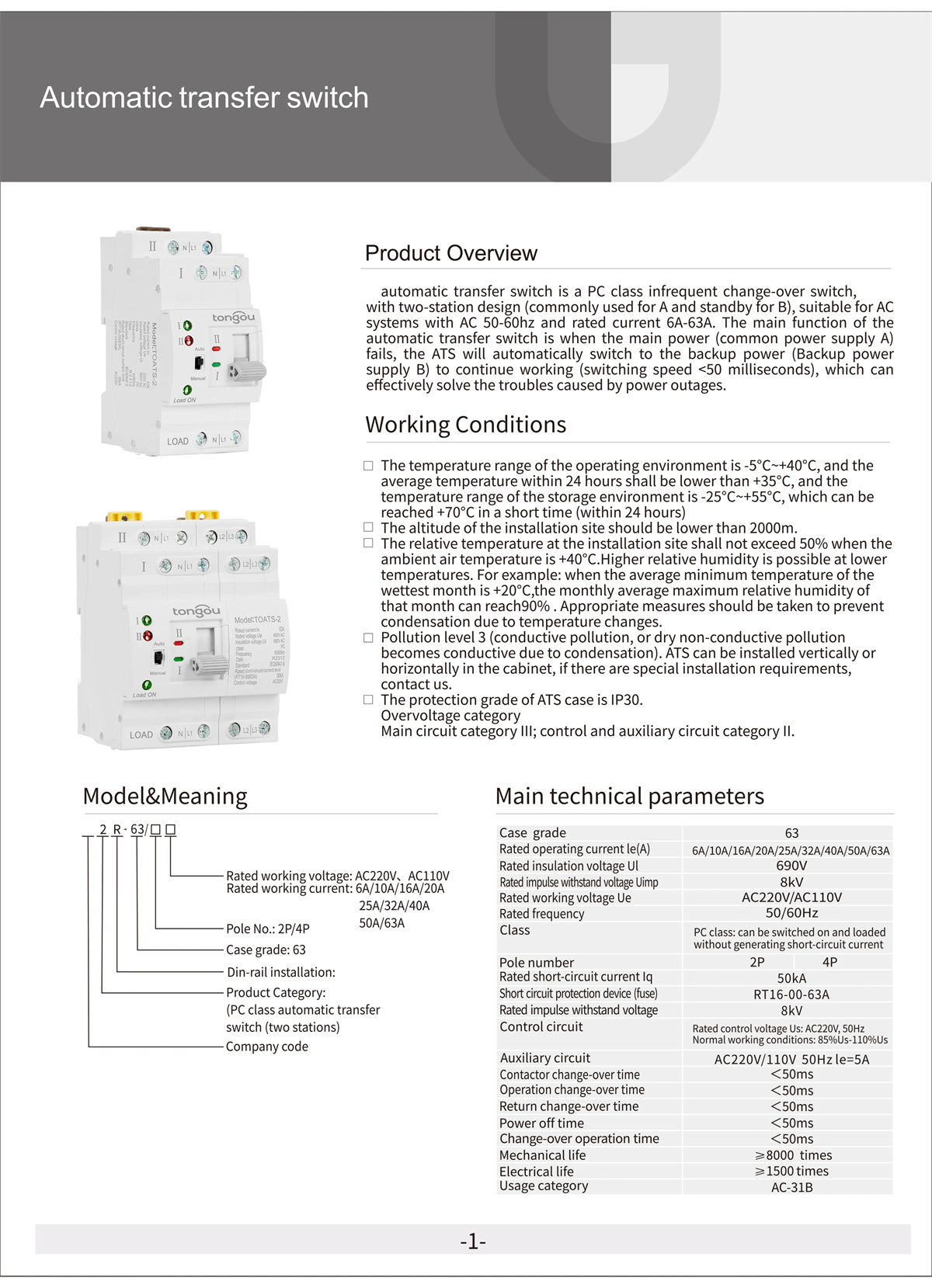

Product Overview:
An automatic transfer switch is a PC class infrequent change-over switch, with a two-station design (commonly used for A and standby for B), suitable for AC systems with AC 50-60Hz and rated current 6A-63A. The main function of the automatic transfer switch is when the main power (common power supply A) fails, the ATS will automatically switch to the backup power (Backup power supply B) to continue working (switching speed <50 milliseconds), which can effectively solve the troubles caused by power outages.

Working Conditions:
1. The temperature range of the operating environment is -5°C~+40°C, and the average temperature within 24 hours shall be lower than +35°C, and the temperature range of the storage environment is -25°C~+55°C, which can be reached +70°C in a short time (within 24 hours).
2. The altitude of the installation site should be lower than 2000m.
3. The relative temperature at the installation site shall not exceed 50% when the ambient air temperature is +40°C. Higher relative humidity is possible at lower temperatures. For example: when the average minimum temperature of the wettest month is +20°C, the monthly average maximum relative humidity of that month can reach 90%. Appropriate measures should be taken to prevent condensation due to temperature changes.
4. Pollution level 3 (conductive pollution, or dry non-conductive pollution becomes conductive due to condensation). ATS can be installed vertically or horizontally in the cabinet, if there are special installation requirements, contact us.
5. The protection grade of ATS case is IP30.
Overvoltage category
Main circuit category III; control and auxiliary circuit category II.

Parameter:
Case grade: 63
Rated operating current Ie(A): 6A/10A/16A/20A/25A/32A/40A/50A/63A
Rated insulation voltage Ui: 690V
Rated impulse withstand voltage Uimp: 8kV
Rated working voltage Ue: AC220V/AC110V
Rated frequency: 50/60Hz
Class: PC class: can be switched on and loaded without generating short-circuit current
<br>
Parameter: Value (2P) / Value (4P)
Pole number: 2P/4P
Rated short-circuit current Iq: 50kA
Short circuit protection device (fuse): RT16-00-63A
Rated impulse withstand voltage: 8kV
Control circuit: Rated control voltage Us: AC220V, 50Hz Normal working conditions: 85%Us-110%Us
Auxiliary circuit: AC220V/110V 50Hz Ie=5A
Contactor change-over time: <50ms
Operation change-over time: <50ms
Return change-over time: <50ms
Power off time: <50ms
Change-over operation time: <50ms
Mechanical life: ≥8000 times
Electrical life: ≥1500 times
Usage category: AC-31B

Package Include:

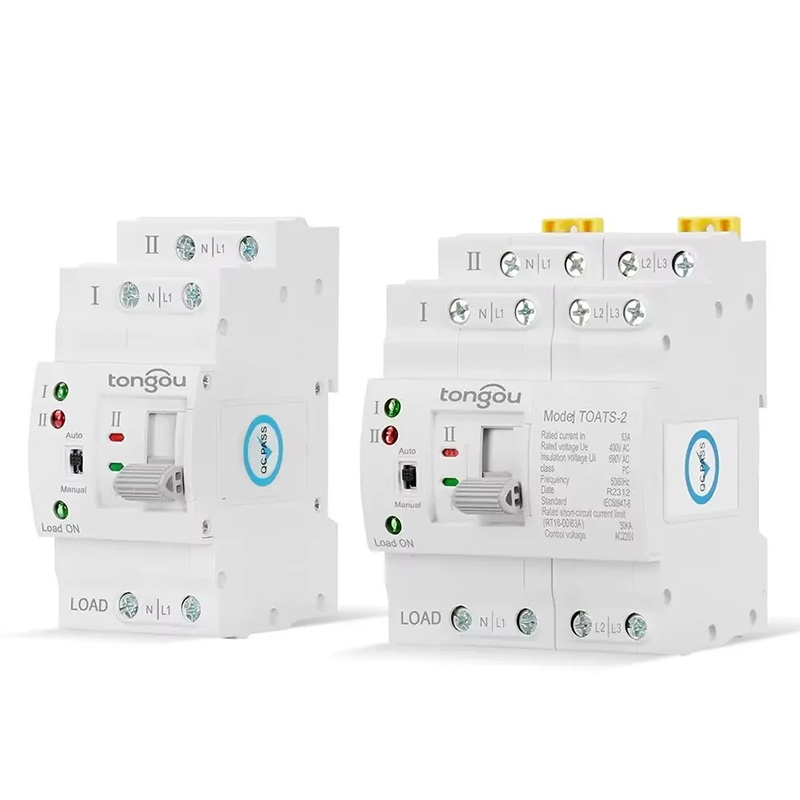

1x Dual Power Automatic Transfer Switch
