#1：2201
#2：2202

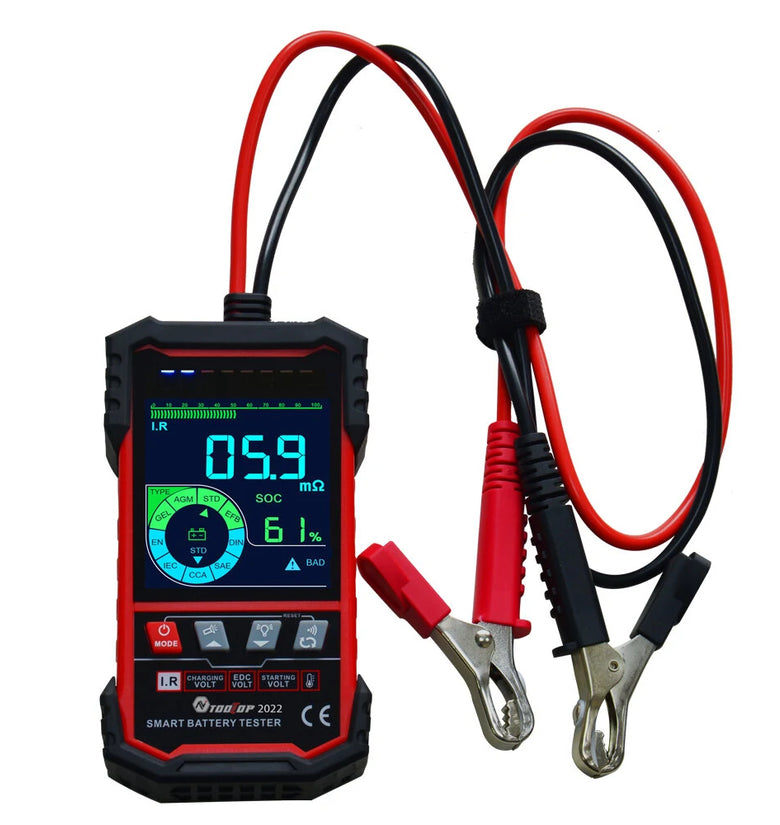

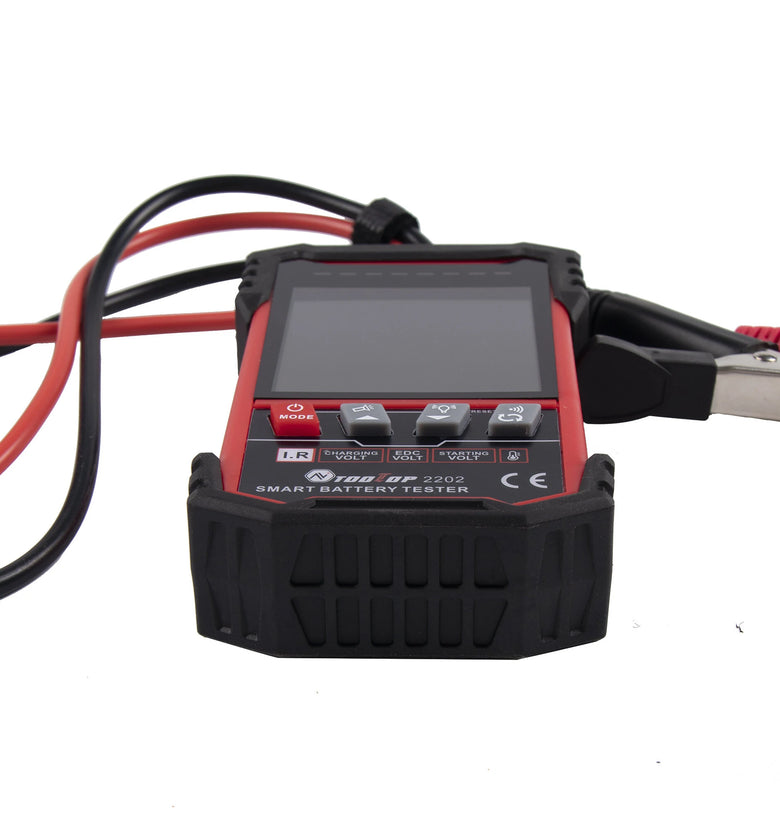

This intelligent battery tester has 3.2inch large LCD color screen for display functions status measuring results, analogue bargraph shows the battery lifespan after finishing tests. Support for battery test (battery voltage, internal resistance, discharge current), starts-test (discharge performance), and load test (generator performance) function. Automatically identify 12.0V or 24.0V batteries, one button selection of intelligent measurement. Various types of batteries can be selected, support matching multiple types of batteries.
Features:
Superior Materials: The housing is made of TPR materials, more comfortable to use and more comprehensive protections.

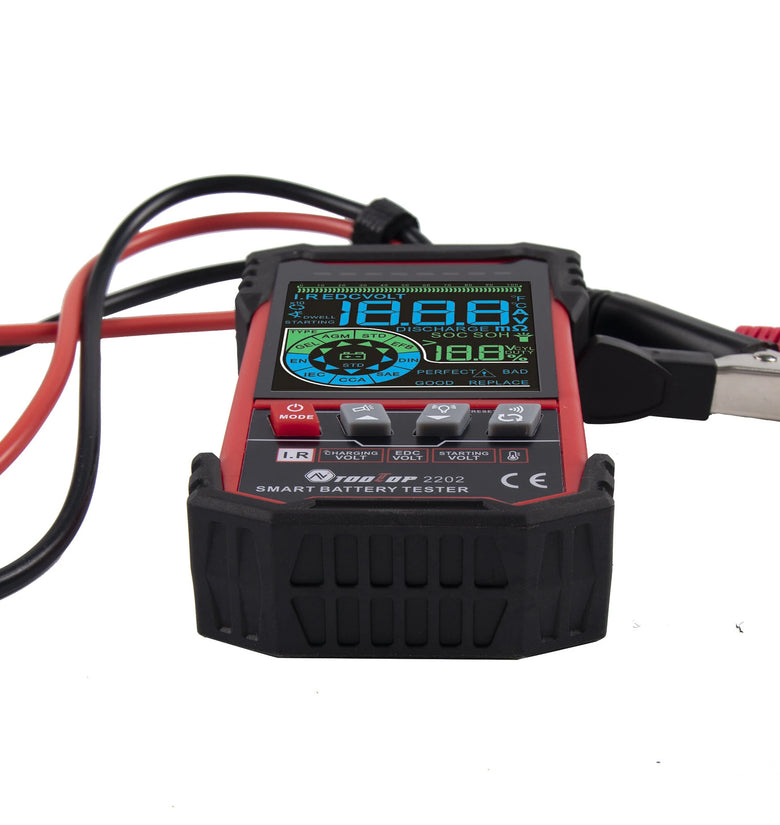

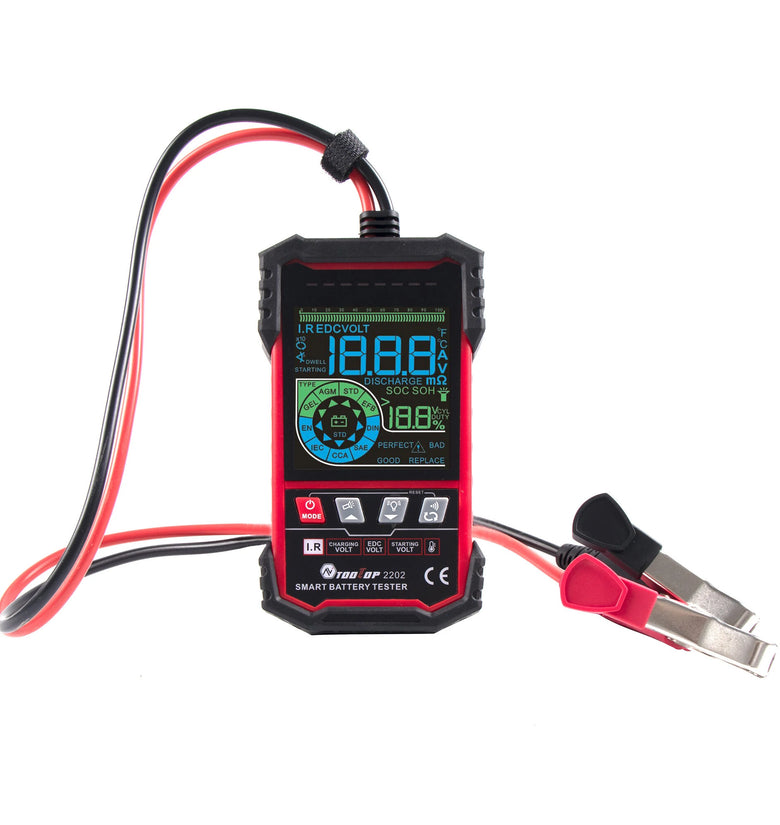

Color LCD Display: 3.2inch large LCD color screen for display functions status measuring results, analogue bargraph shows the battery lifespan after finishing tests.
Multiple Test Function: Support for battery test (battery voltage, internal resistance, discharge current), starts-test (discharge performance), and load test (generator performance) function.
Continuously Test: Can check the battery status and the discharging ability, by applying low frequency signal it will not damage the battery by applying large loading for discharging, support continuously.
Illumination Lamp Function: This lamp can illuminate the engine compartment, and provide illumination in dark and complex working conditions.
Support Both 12.0V and 24.0V Battery: Automatically identify 12.0V or 24.0V batteries, one button selection of intelligent measurement.
Multiple Protections: Support input overvoltage, reverse polarity connection, high voltage connection protections and poor contacts of test clip.
Innovative Temperature Function (Type #2 only): Convenient for engine temperature and air conditioning temperature measurement, more practical.
Easy Operation: Allow to connect batteries in cars It do not need to take the battery out for test. Battery detection is easy to operate, easy to understand battery status, the greater the CCA value of the battery, the smaller the internal resistance.
High Compatibility: Various types of batteries can be selected, support matching multiple types of batteries, EN, IEC, CCA, SAE, DIN.
Copper Wire Clip: All copper material of red and black wire clamp, more than 10000 occlusion tests, more reliable to use.
Two modes Optional: Two types are available, you can choose Type #1 or Type #2 depending on your needs.
Type #1: battery test (battery voltage, internal resistance, discharge current), starts-test (discharge performance), and load test (generator performance).
Type #2: temperature test, charging capacity test, battery test (battery voltage, internal resistance, discharge current), starts-test (discharge performance), and load test (generator performance).
Specifications:
Name: Intelligent Battery Tester
Material: TPR+plastics+metal
Type: Type #1, Type #2(optional)
Battery support: 12.0V/24.0V activated leadacid battery
Internal resistance measurement: Support
Current of discharge: Support
Analysis of lifespan: Support
Electric quantity detection: Support
Ability to starts: Support
Quality of battery: Support
Function of lighting: Support
Car starting test: Support
Temperature detection: Type #2 Only
Vehicle charging capacity: Type #2 Only
Vehicle load measurement: Support
Range CCA: 100-1999
Range of capacity: ЗАН-250AH
Test method: Four-wire Kelvin test
Battery selection criteria: STD/AGM/GEL/EFB/EN/IEC/CCA/SAE/DIN
Power supplys: storage battery power supply/power supply
Other: White backlight, overvoltage protections, reverse input protections
Screen size: 55 * 57mm / 2.17 * 2.24in
Package size: 216 * 145 * 49mm / 8.50 * 5.71 * 1.93in
Package weight:
Type #1 : 489g / 1.08lb
Type #2 : 524g / 1.16lb
Packing List (Type #1):
1 * Intelligent Battery Tester
1 * Storage Bag
1 * Guideline

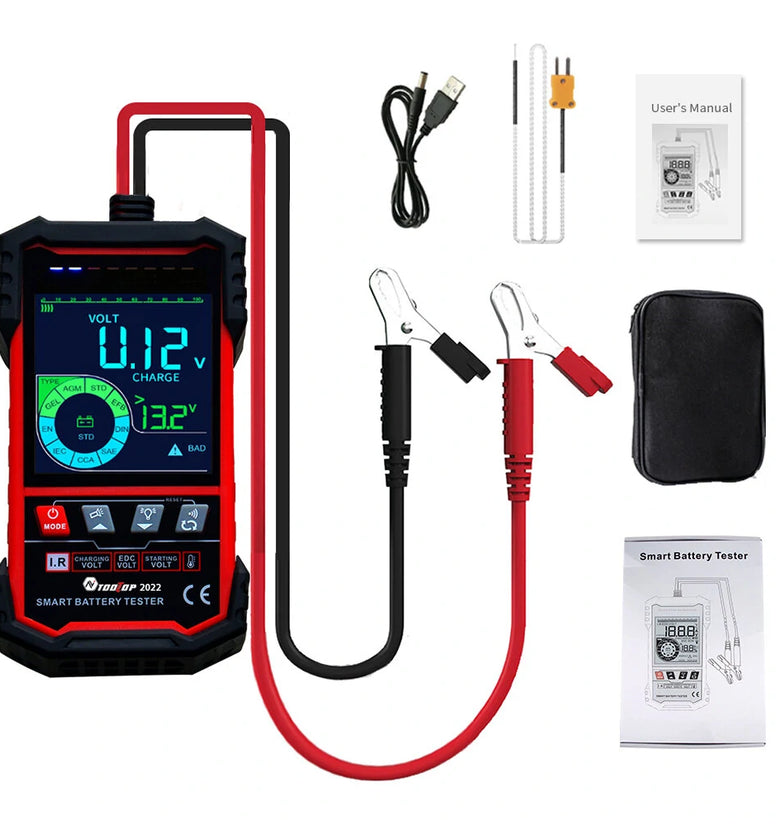

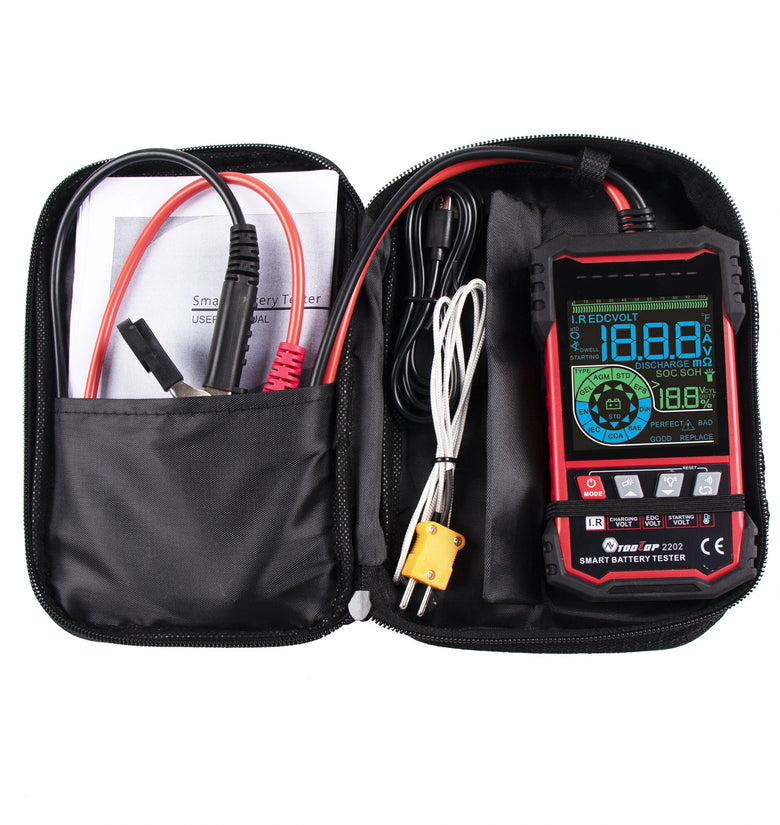

Packing List (Type #2):
1 * Intelligent Battery Tester
1 * Temperature Probe
1 * Power Line
1 * Storage Bag
1 * Guideline
