Description:

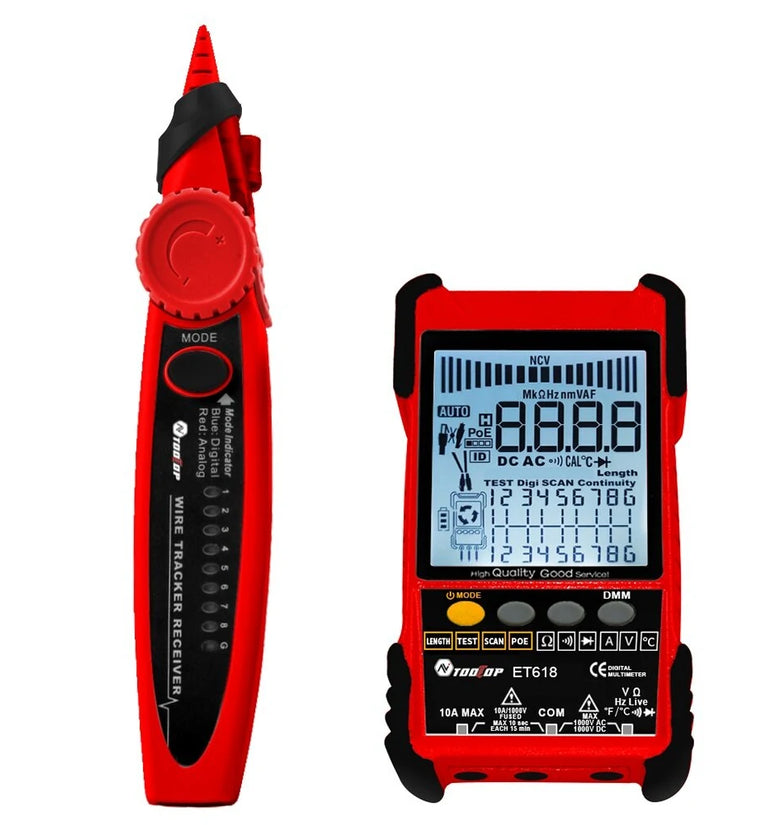

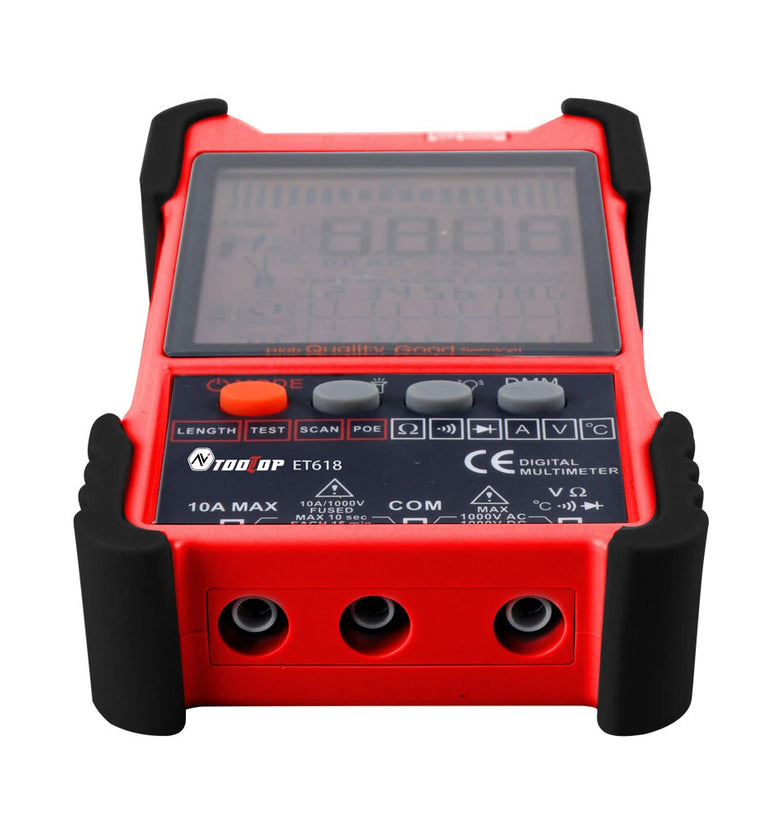

This meter combines with the cable tracing cable length measuring and multimeter functions The advantage of this meter is the long tracing distance clear sound signals rapid and precise cable length measurement and accurate multimeter.
The meter is good tools for laboratories factories, radio lover network installer and technician. It can real time measuring network cable length short circuit and circuit break.

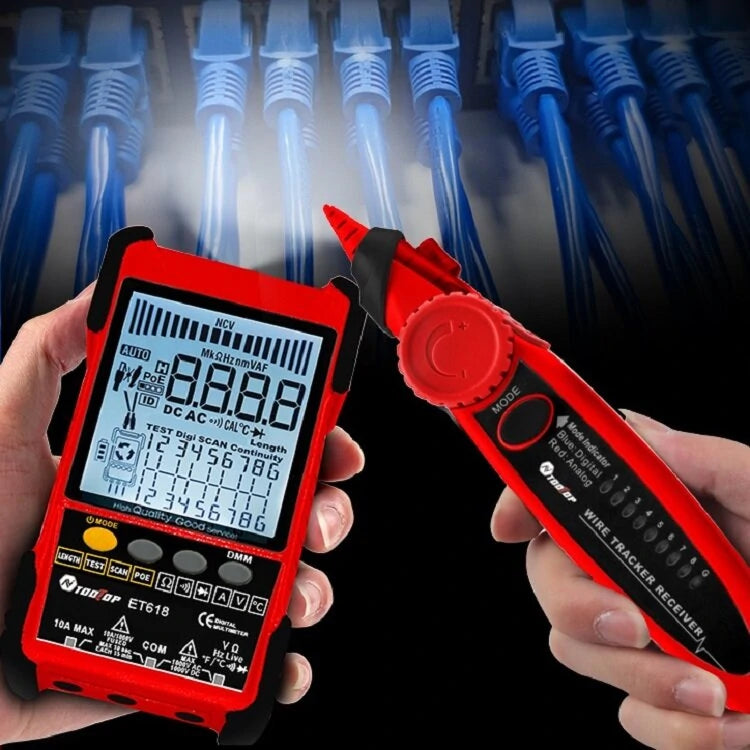

The cable tracing function can quickly and efficiently find out the target cable in large number of cables This function can be used in telephone systems computer networks BNC cables and other metallic network cables.
Our digital tracing apply the newest digital noise free technology It give a good experience to users
The meter is essential equipment for computer networking telecom cabling BNC cabling and other metallic cabling projects.
Features:
- Network cable tester + multimeter(Only ET618) 2 in 1
- 400M/500M network cable length measure
- Analog/digital/POE line checking
- 60V withstand voltage anti-burning
- Noiseless vibration line tracker(Only ET618)

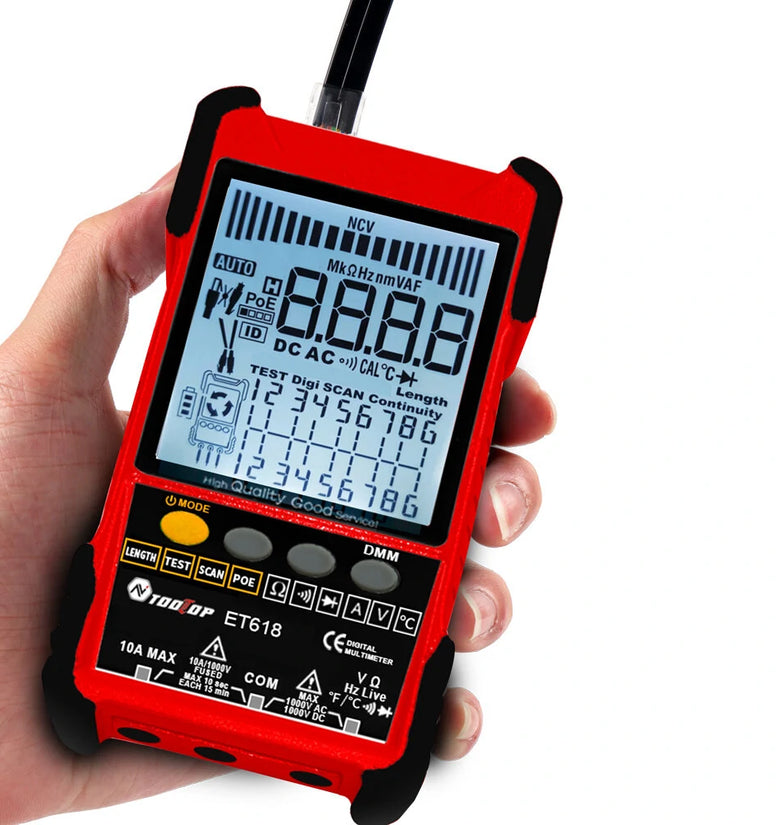

- Large digital display screen
- Built-in lithium battery charging
- Switch pairing and port flashing
- Flashlight
- Auto power off
Specification:

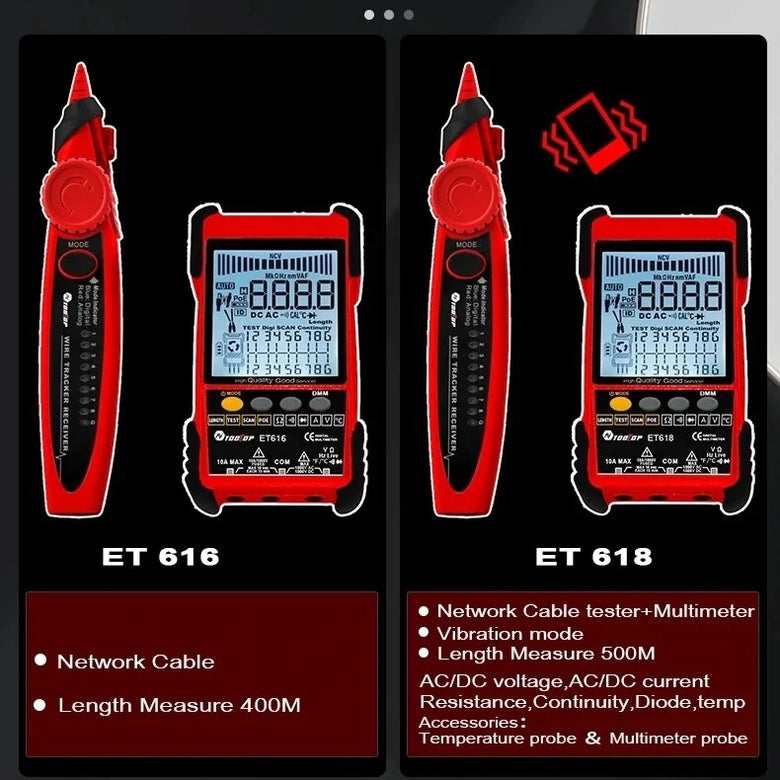

| Model | ET616 | ET618 |
| Analogue Tracing | √ | √ |
| Continuity | √ | Multimeter function |
| Switch Tracing w PoE | √ | √ |
| Cable Mapping | √ | √ |
| Switch indicators flashing | √ | √ |
| Noisy Free Digital Tracing | Digital | Digital /Vibration |
| Voltage Testing | Identify some issues on a circuit | AC DC Voltage |
| PoE Voltage Measuring | Voltage Polarity | Voltage Polarity |

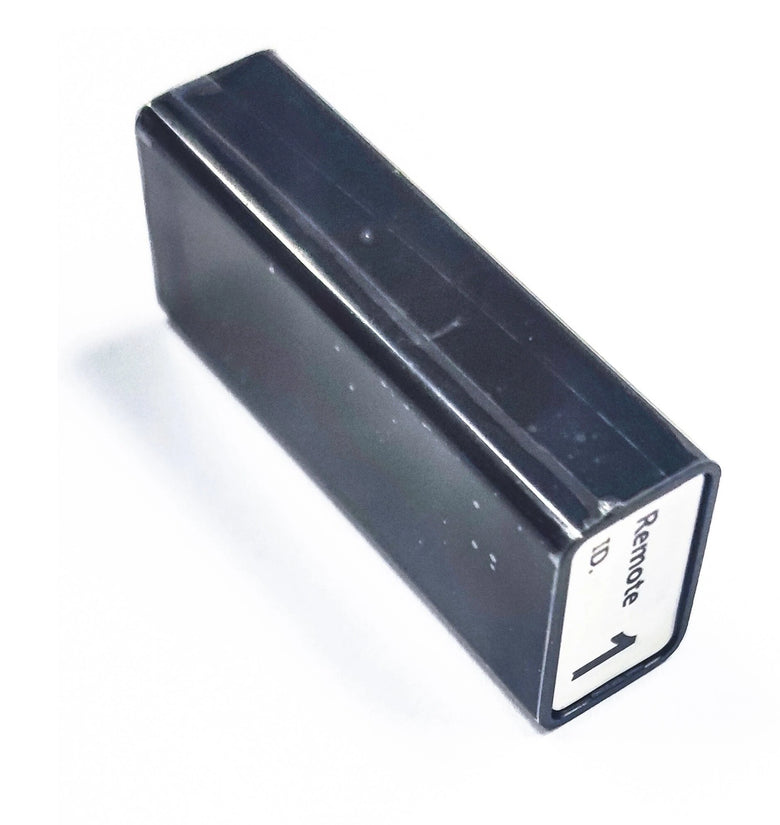

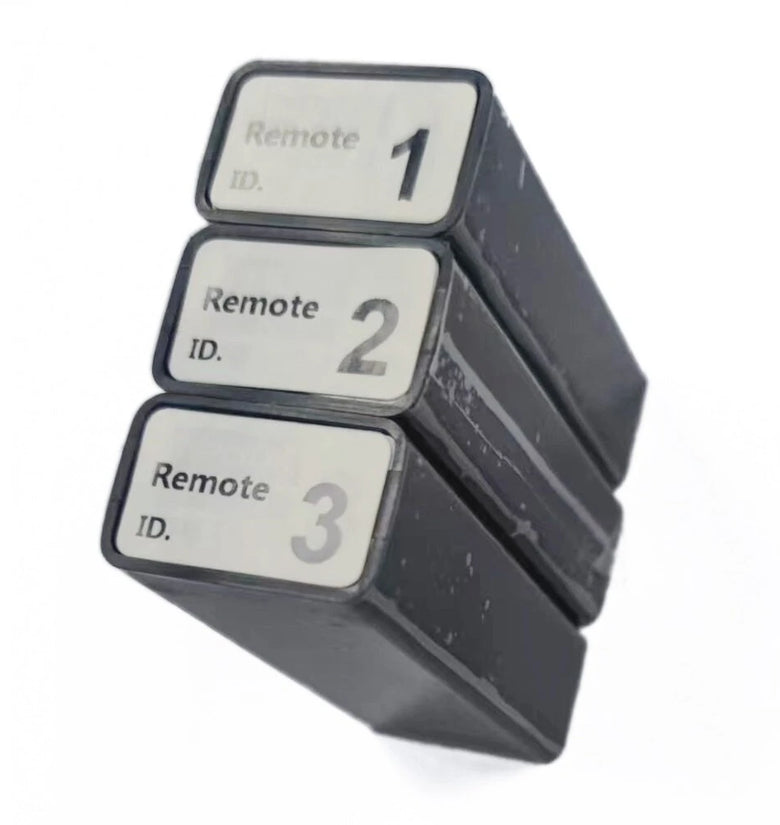

| Remote ID Mapping | Optional | Optional |
| Analogue Bargraph | √ | √ |
| NCV Detection | √ | √ |
| Other Functions | Main Body flashlight multimeter input jack indicator LCD display white flashlight analogue tracing sound adjustable digital tracing sensitivity adjustable low battery indicator white backlight energy saving tracing distance 3km analogue tracing signal selectable | |
| Difference | ||
| Multimeter Functions | / | √ |
| Diode | / | √ |
| DC Voltage | / | 400mV ~1000V±(0.8%+3) |
| AC Voltage | / | 4V~400V±(1.5%+5) |
| DC Current | / | 1.0A~10.0A±(1.2%+4) |
| AC Current | / | 1.0A ~10.0A±(2.0%+5) |
| Resistance | / | 200Ω ~20MΩ±(2%+6) |
| Continuity | / | < 50Ω buzzer beeps |
| Temperature k type | / | -20~1000°C±(2.0%+15) |
| Network Cable Length Measure | 400M | 500M |
| BNC Cable Length Measure | √ | √ |
| Network Cable Short Open Circuit test | √ | √ |
| Powered by | Main Body Bulit-in 1250mAH rechargeable Lithium Battery/Receiver 9V Battery | |
