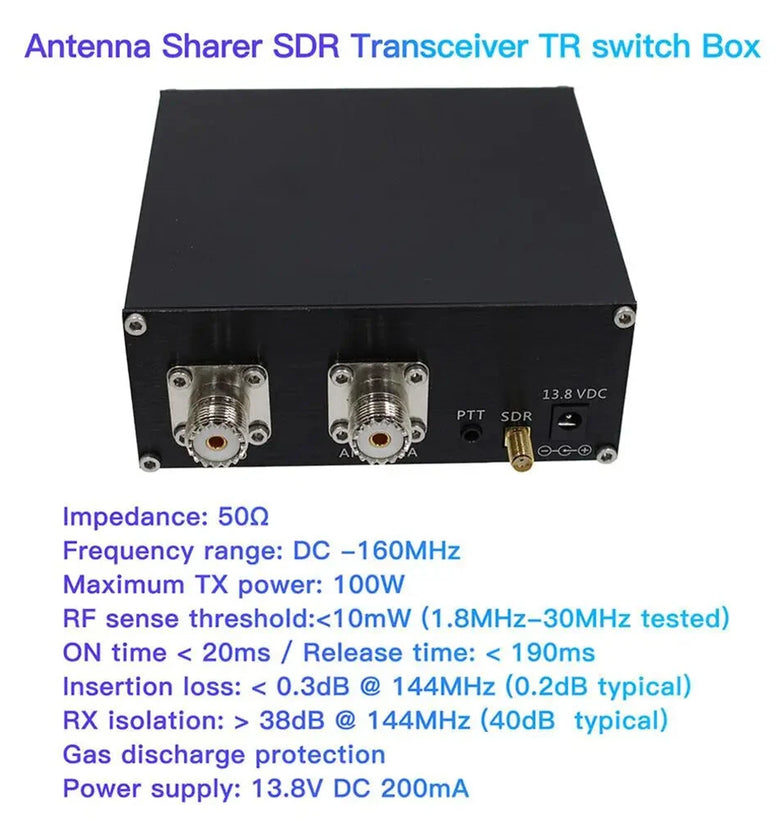

Specifications:

Product Name: Transceiver Switch SDR

Material: Aluminum Alloy

Frequency Range: D-160MHz

Impedance: 50Ω

Maximum TX Power: 100W

Turn-on Time: 20ms

Release Time: 190ms

Insertion Loss: 0.3dB @ 144MHz (0.2dB typical)

RX Isolation: 38dB @ 144MHz (40dB typical)

RF Detection Threshold:

Discharge Protection: Gas discharge

Power Supply: 12V 2A

Net Weight: 430g

Size: 125X112X51mm (excluding board part)

Package Size: 20x13x6cm

Package Weight: 580g

Features:

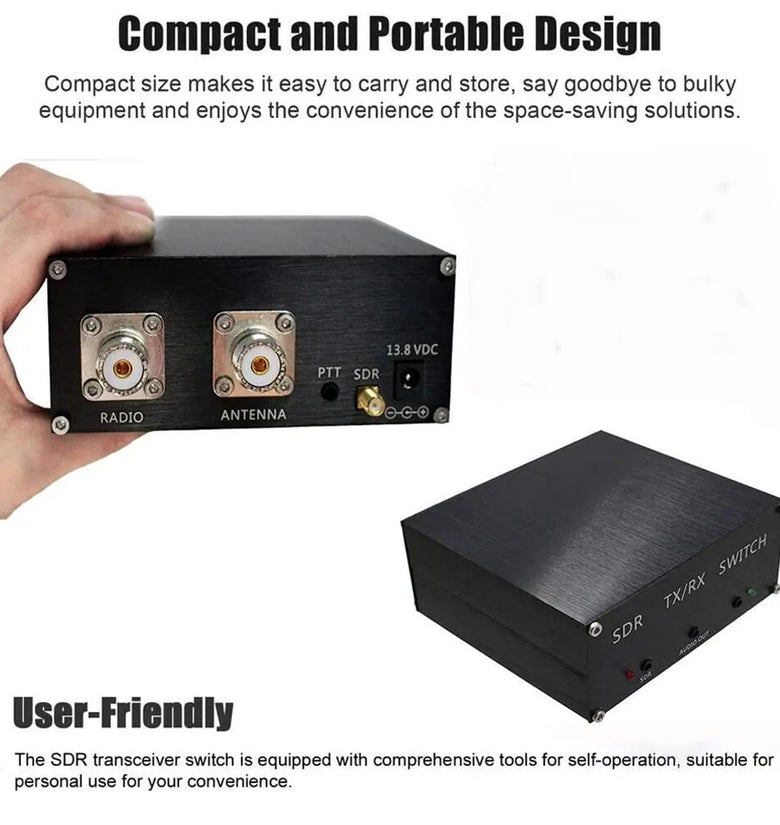

Compact and Portable: Small size makes it easy to transport and store, perfect for on-the-go use.

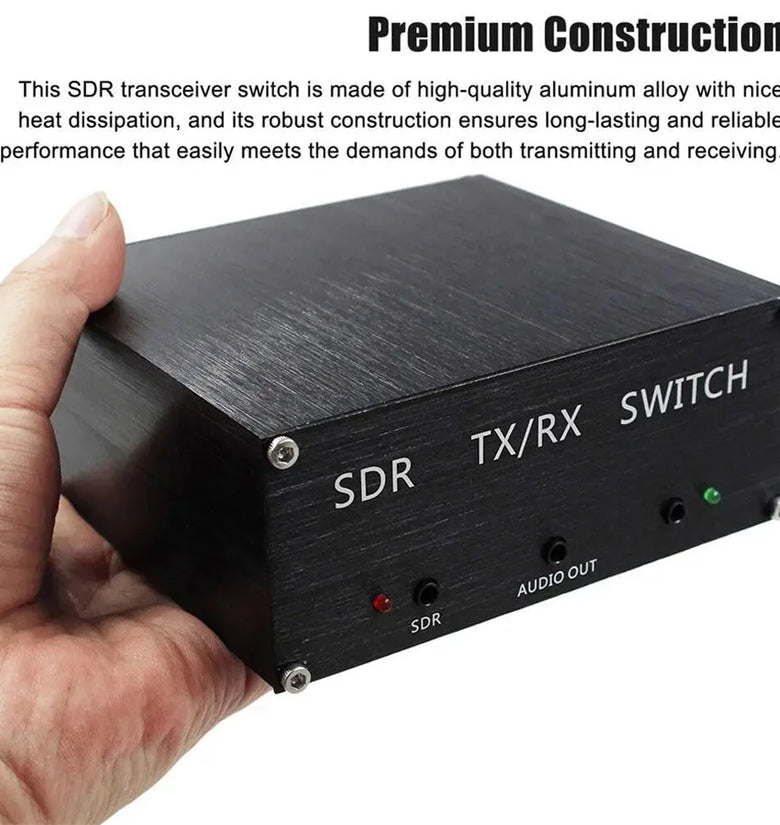

Construction: Housing made from high-quality aluminum alloy, ensuring longevity and excellent performance.

High Power Handling: Can manage up to 100W TX power, suitable for diverse applications.

Efficient Performance: Low insertion loss of 0.3dB and high RX isolation of 38dB at 144MHz, ensuring optimal signal quality.

Complete Package: Includes all necessary accessories for easy setup, suitable for self-operation.

Package Included:

Type A:

1 x Transceiver Switch

1 x Power Cable

1 x SMA to SMA Cable (60cm)

1 x PTT Control Cable

1 x EU Power Adapter

4 x Headphone Cables

1 x BNC Adapter

Type B:

1 x Transceiver Switch

1 x Power Cable

1 x SMA to SMA Cable (60cm)

1 x PTT Control Cable

1 x US Power Adapter

4 x Headphone Cables

1 x BNC Adapter
