Specification:

Support induced 5V, 9V, 12V, 15V, 20V voltage

Fast charge support protocol: PD2.0/PD3.0, QC2.0/QC3.0, AFC

Support voltage: 5V, 9V, 12V, 15V, 20V (voltage step is not supported)

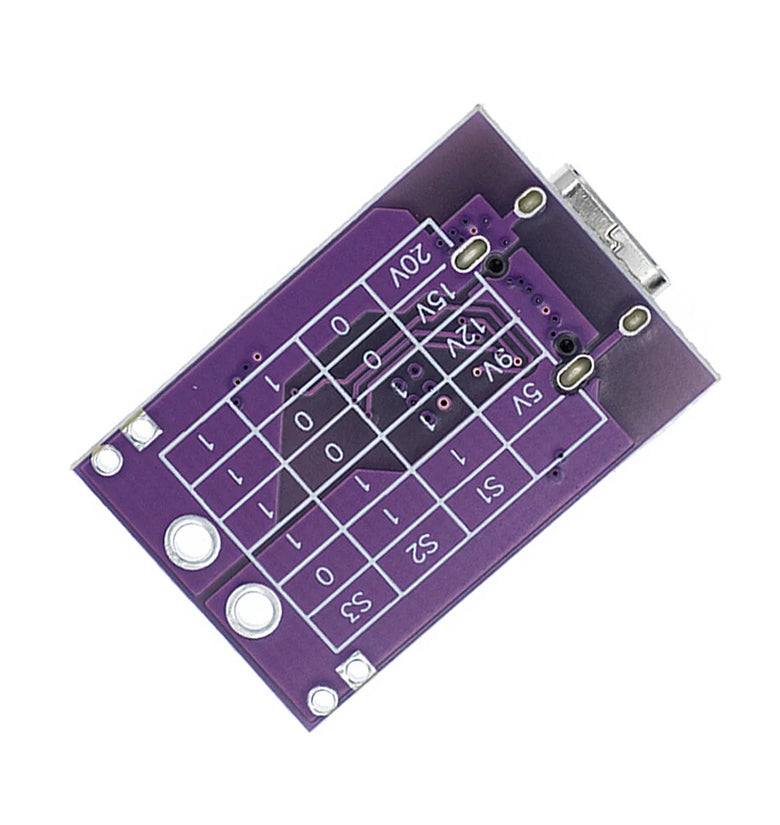

Voltage adjustment method: According to the table on the back of the board, adjust the DIP switch to control the voltage output

Size: 3.1×2cm

Net weight: 2.9g

1. After adjusting the DIP switch, because there is no voltage indicator, it is recommended to use a multimeter to measure the voltage before connecting to the application circuit.

2. If the DIP switch is not adjusted according to the table, the module will output any one of the above voltages.

Features:

1. Stable performance

2. Simple installation

3. Wide application

4. Safe and reliable

5. Support 5V 9V 12V 15V 20V fixed voltage output

Package Include:

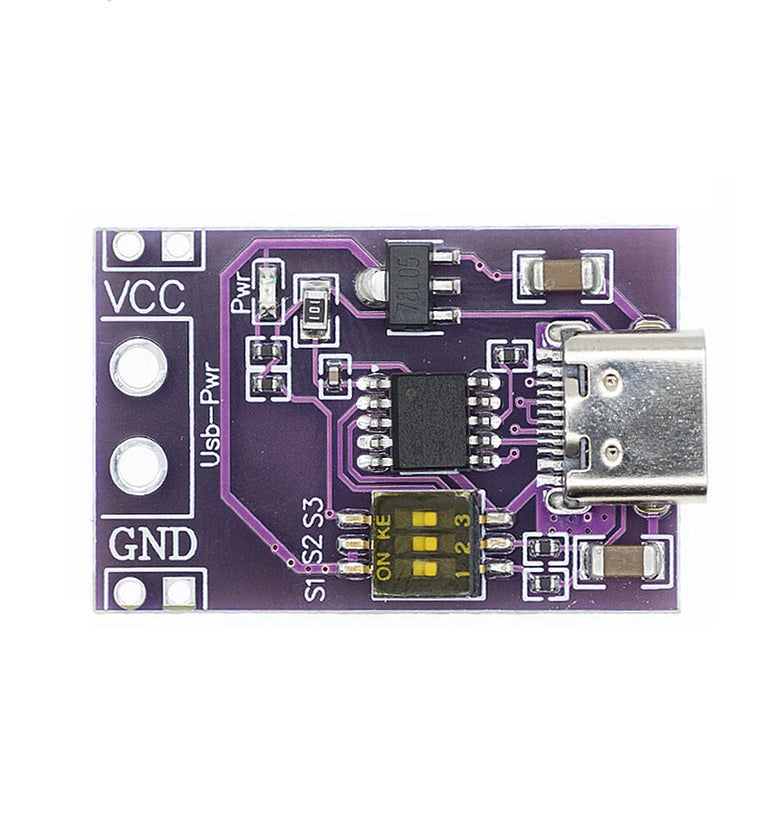

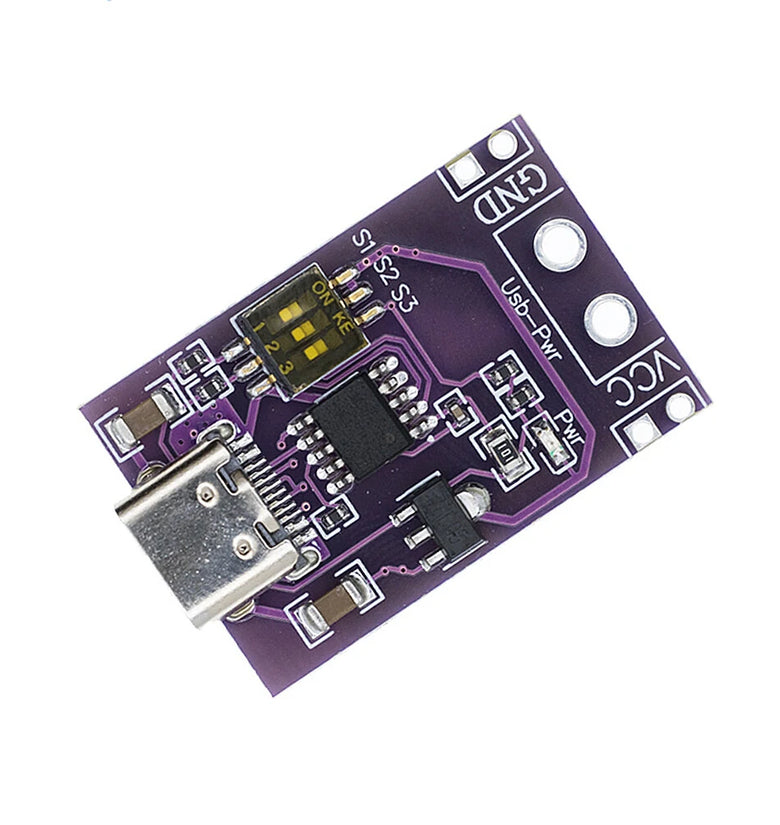

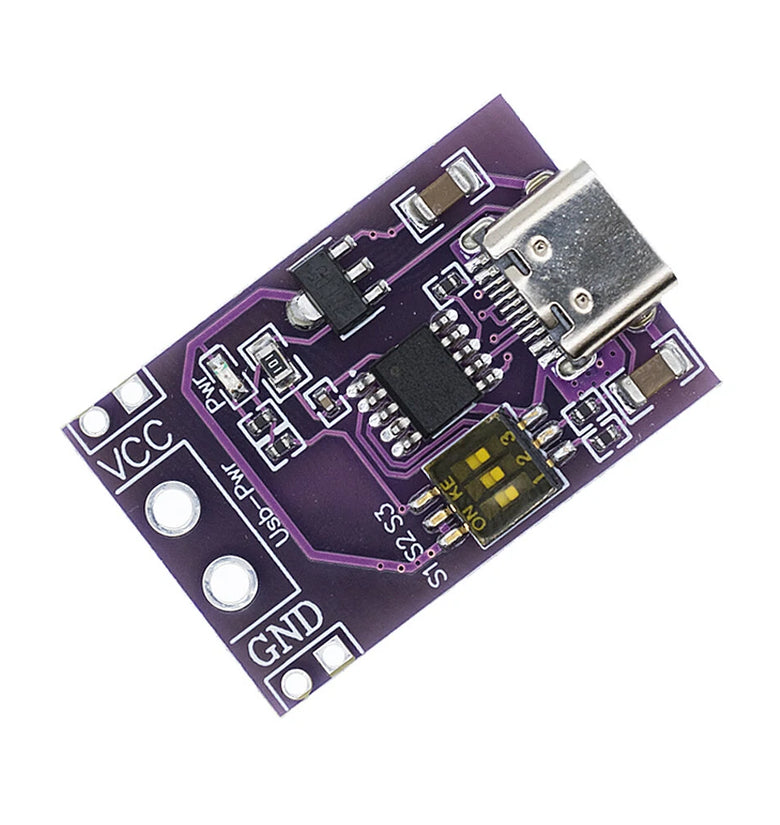

1×PD QC AFC Fast Charge Decoy Trigger Module
