Specifications:

Frequency Range:

26-33MHz (RX/TX) (AM band RX)

47-54MHz (RX/TX) (AM band RX)

136-174MHz (RX/TX)

400-480MHz (RX/TX)

108-136 (AM band RX only)

320-399.000 (RX only)

750-950 (RX only)

Current Cunsumption(Approx):

RX: 0.5A (Squelched)

TX:8.0A (50/430MHz)

8.5A(29/144MHz)

Channel Capacity: 809 channels

Channel Spacing: 5/10/12.5/15/20/25/50KHz

Modes of Emission: F3, F2, F1

Antenna Impedance: 50 Ohms, unbalanced

Frequency Stability: ±5PPM (-140°F ~ +140°F) (-10°C ~ +60°C)

Operating Voltage: 13.8V DC (±15%), Negative ground

Operating Temperature Range: -4°F ~ +140°F (-10°C ~ +60°C)

Case Dimensions (W×H×D): 140 × 41.5 × 168mm (without knobs & connectors)

Weight: 2.2 lb (1Kg)

Transmitter:

Output Power: 50W/20W/10W/5W (29/50/144MHz bands); 35W (430MHz band)

Modulation Type: Variable Reactance

Maximum Deviation: Better than -60dB (29MHz: Better than -50dB)

Modulation Distortion: Less than 3%

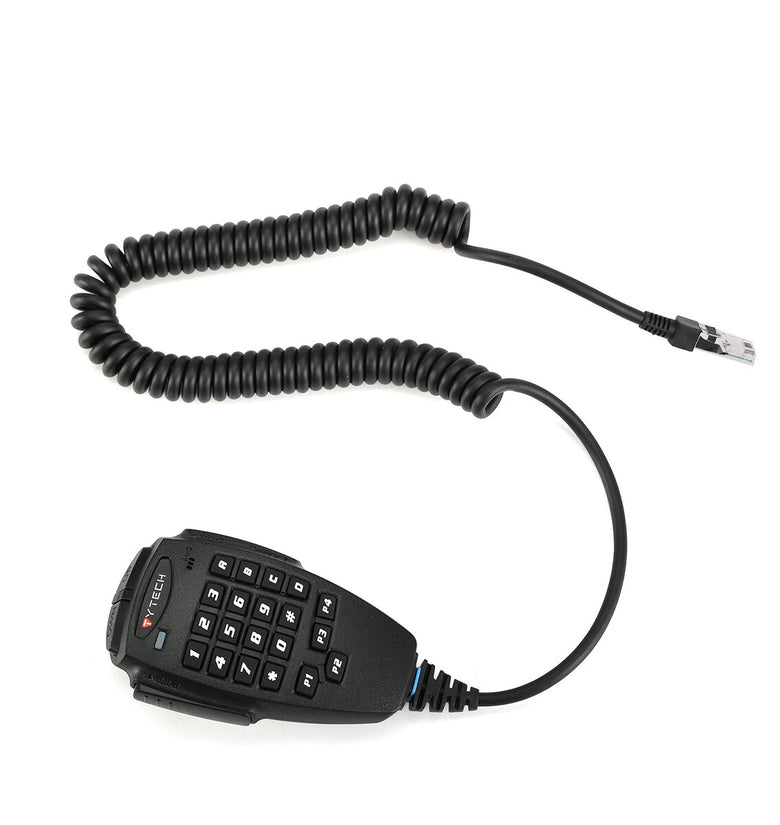

Microphone Impedance: 2kΩ

Receiver:

Circuit Type: Double-conversion super-hete
