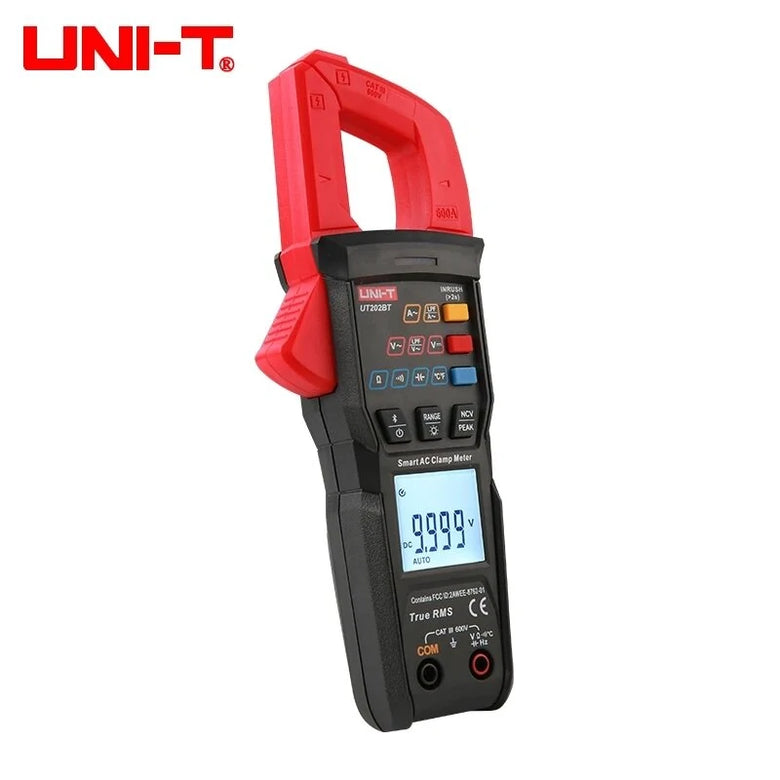

UT202BT AC Clamp Meter
UT202BT is a handheld true RMS digital clamp meter with stable performance, novel structure, high reliability and high safety. Full-featured automatic range, 9999Counts display digits, superior performance. The UT202BT measures AC/DC voltage, AC current, low-pass filtered voltage/current, inrush current, peak voltage/current, resistance, circuit continuity, capacitance, temperature, and non-contact AC voltage sensing (NCV). At the same time, it has Bluetooth function, which can be connected to mobile APP to realize remote data observation and instrument control.
Specifications |
Range |
UT202BT |
DC voltage (V) |
600V |
±(0.5%＋3) |
AC voltage (V) |
600V |
±(0.8%＋3) |
AC current (A) |
600A |
±(2.5%+5) |
DC current (A) |
2000UA |
|
Resistance (Ω) |
6MΩ |
|
100MΩ |
±(0.8%+3) |
|
Frequency (Hz) |
40Hz~1000Hz |
±(1.0％+5) |
Capacitance (F) |
100mF |
±(4%+5) |
Temperature (℃/℉) |
-40℃~1000℃/-40℉~1832℉ |
±5/±9 |
Features | ||
Jaw opening |
28mm |
|
Display count |
9999 |
|
Dual display |
√ |
|
Auto range |
√ |
|
NCV |
√ |
|
Continuity |
√ |
|
PEAK hold |
√ |
|
Low pass filter |
√ |
|
Inrush current |
√ |
|
Audible visual indication |
√ |
|
Low battery indication |
＜2.4V approximately |
√ |
Data hold |
√ |
|
Auto power off |
Approximately 15 minutes |
√ |
Flashlight |
√ |
|
Bluetooth |
√ |
|
Safety rating |
CAT Ⅲ 600V |
|
General Characteristics | ||
Power |
AAA 1.5V x 2(No include） |
|
Product color |
Red+Gray |
|
Product size |
201.5 x 47 x 28mm |
|
Standard accessories |
Test leads,temperature probe |
|
Features:
1. Button-design clamp meter
2. One-handed operation and easy to use
3. 9999 counts
4. Jaw opening: 28mm
5. 600V DC AC voltage measurement
6. 600A AC current measurement
7. Temperature measurement
8. Dual display: V+HZ and A+HZ
9. Bluetooth 5.0 (UT202BT only)
10. Inrush current measurement (UT202BT only)

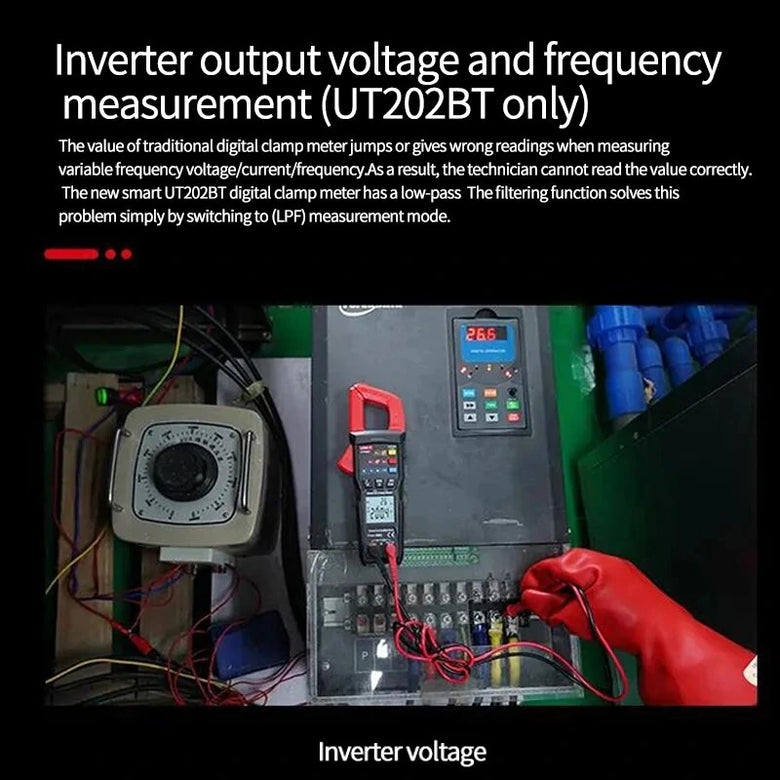

11. Low pass filter measurement (UT202BT only)
12. Bright backlight / Flashlight
13. Non-contact voltage (NCV)
14. CAT III 600V
Package included:
1 x UT202BT (NO BATTERY INCLUDED)
1 x Test Leads
1 x Temperature Probe
1 x Cloth Bag
1 x Manual
