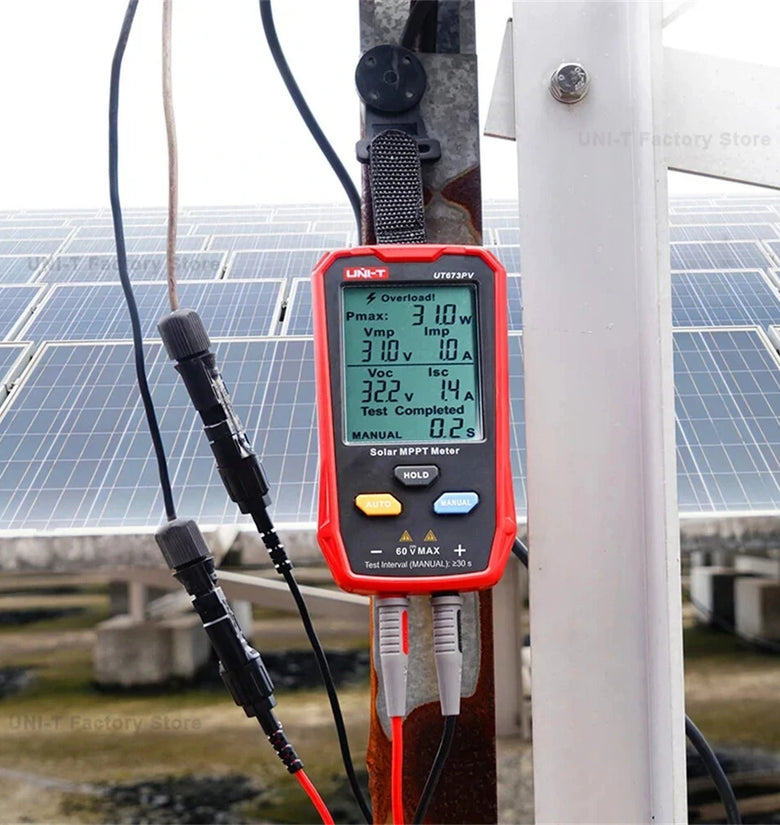

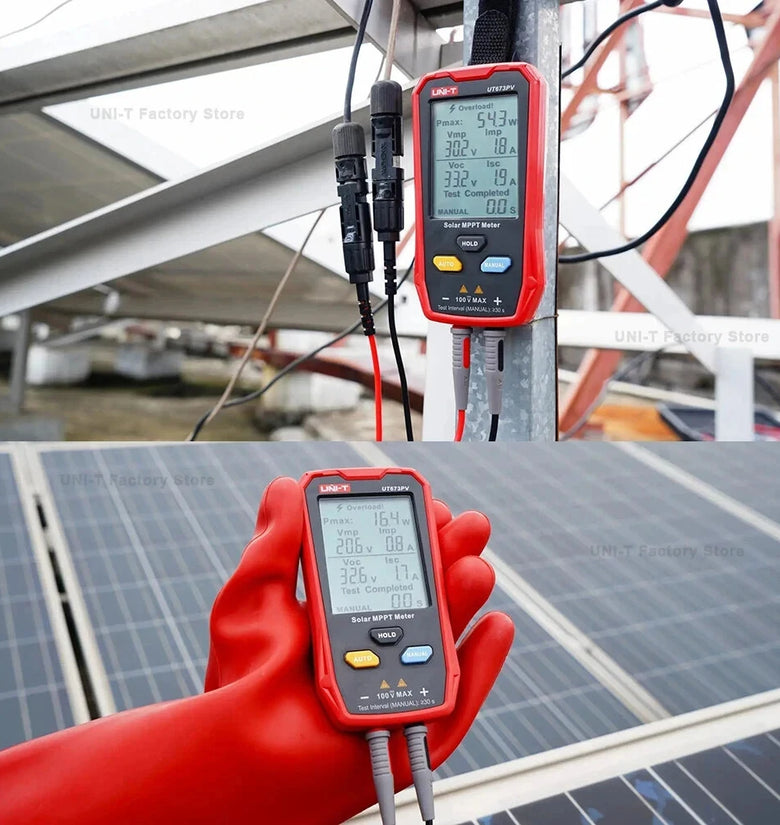

UT673PV Solar MPPT meter can measure the maximum power of solar module rapidly. It has the ability to measure maximum power (Pmax) of solar module, open- circuit voltage (Voc), and short-circuit current (Isc) at the same time and display all parameters on the screen. MPPT is the most important indicator for judging if a solar panel generates power in low efficiency, and is commonly used for measuring solar panel or troubleshooting faulty module. Application fields: Manufacturers of solar panel, users of solar panel, etc.

Features:

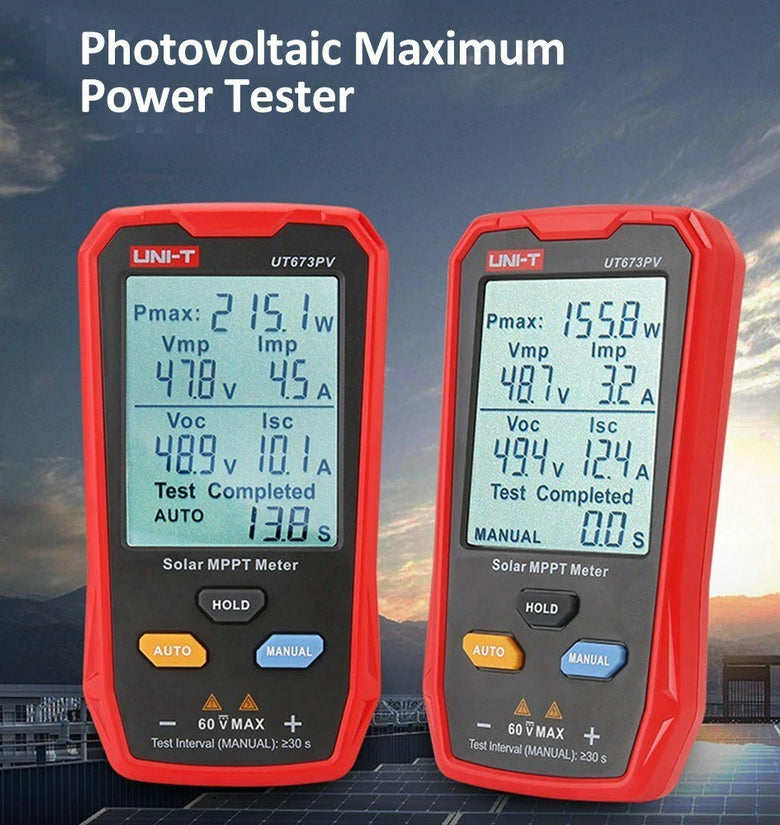

Photovoltaic maximum power tracking point test: maximum power (Pmax), peak power voltage (Vmp).
Display peak power current (Imp), open circuit voltage (Voc), and short circuit current (Isc) simultaneously to quickly determine the fault situation of photovoltaic modules.
800W maximum power test, meeting the requirements of high-power dual glass component testing for leading enterprises in the industry.
Compact size, palm sized, easy to carry.
test line connection, convenient and reliable measurement.
No battery power required, direct power supply from photovoltaic panels.
CE, ETL, RoHS certification, measurement safety and reliability.

Specifications:

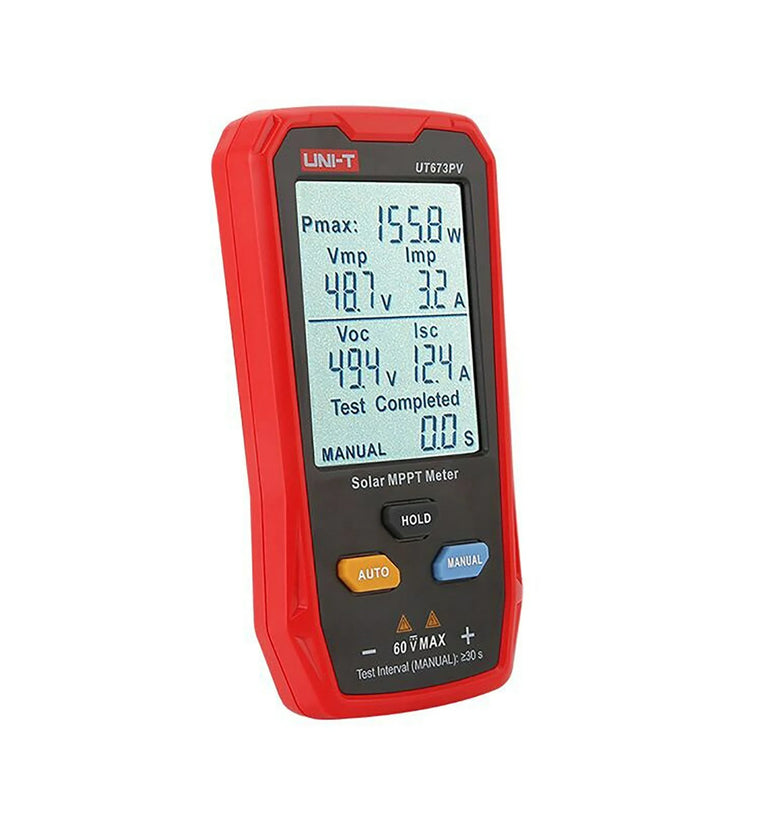

Model: UT673PV
Material: ABS
Color: Red + Grey
Max Power Measurement: 5~800W, ±(1.5%+5)
Max Power Current (DC): 0~35A, ±(1.5%+5)
Open Circuit Current (DC): 12~60V, ±(1.5%+5)
Short Circuit Current (Isc): 0~35A, ±(1.5%+5)
Input Protection: Yes
Reverse Protection: Yes
Over Voltage Protection: Yes
Over Current Protection: Yes
Over Temperature Protection: Yes
Over Power Protection: Yes
Data Hold: Yes
Certificate: CE, ETL, RoHS
Power Supply: No battery needed, powered by solar panel
Item Size: 142 * 76 * 22mm / 5.59 * 2.99 * 0.86in
Item Weight: 155g / 5.46oz
Package Weight: 531g / 18.73oz
Package Size: 22 * 17.8 * 6.5cm / 8.66 * 7.01 * 2.56in

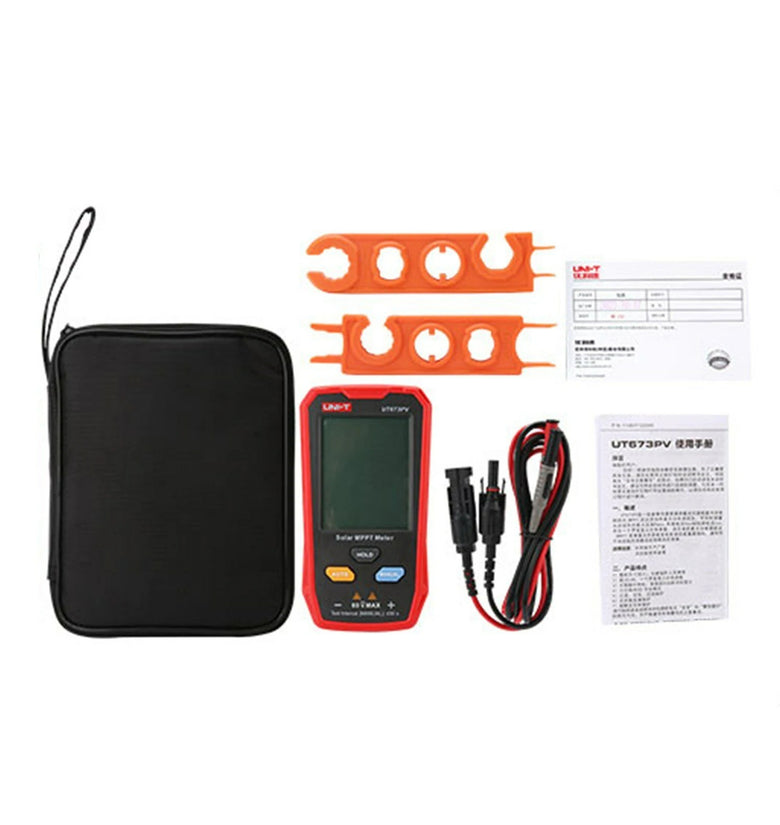

Package List:
1 * Solor MPPT Meter

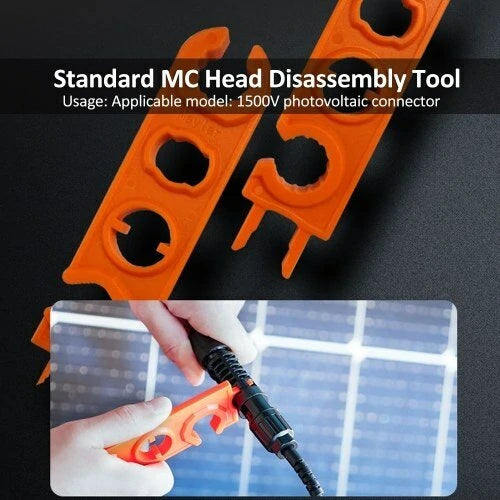

1 * MC Head Disassembly Tool
1 * Head Test Line
1 * Storage Bag
1 * User Manual (English)
