Specifications:

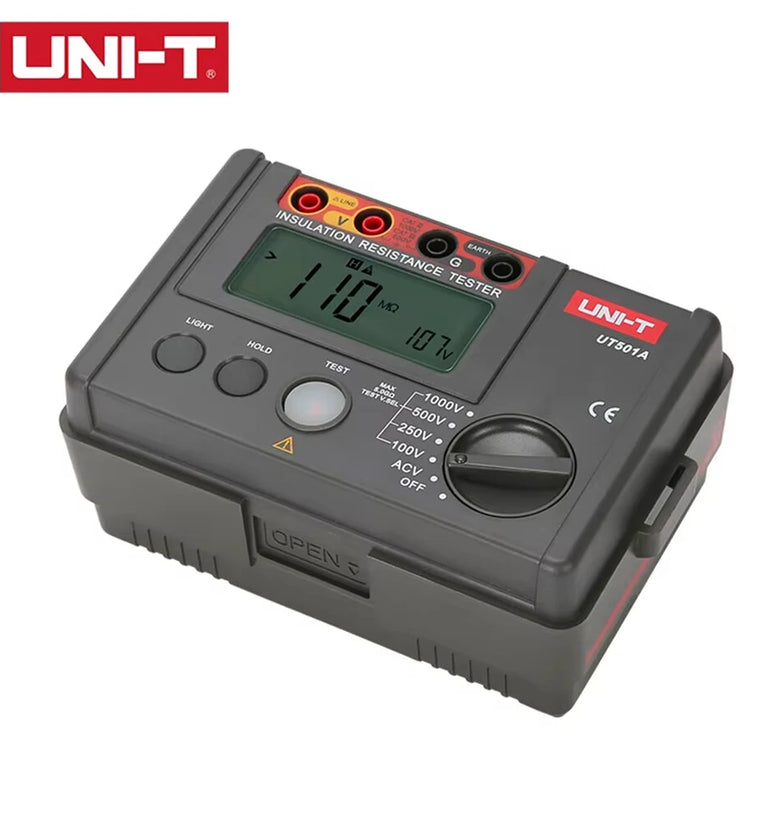

Model: UT501A
Output Voltage: 100V, 250V, 500V, 1000V
AC Voltage Measurement Range: 30V–750V (±2%+3)
Short Circuit Current: ≤2mA
Display: LCD with backlight
Power Supply: 6 x 1.5V alkaline batteries

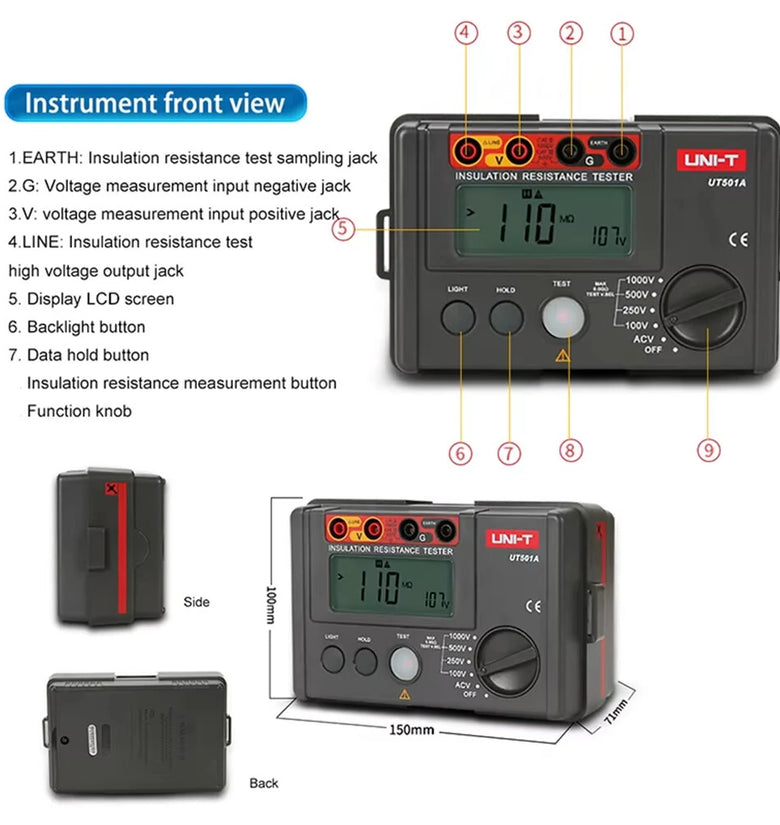

Body Dimensions: 150mm x 100mm x 71mm
Body Weight: 500g
Features:
1.High-Precision Insulation Testing:
Offers ultra-accurate readings for insulation resistance up to 5.5GΩ, making it highly suitable for complex electrical evaluations in high-voltage environments.
2.Multiple Voltage Output Selections:
With 100V, 250V, 500V, and 1000V output voltage options, this tester can handle a range of electrical applications, enhancing user flexibility.
3.Enhanced Safety Features:
Equipped with overload indication, light alert, buzzer alarm, and automatic discharge to ensure maximum safety during operations.
4.Comprehensive Data Interface:
The LCD display with backlight provides clear readings in low-light conditions, while the secondary voltage display adds extra convenience during tests.
5.Built-in Internal Resistance Testing Capability:
Includes a dedicated function for testing 10MΩ internal resistance, helping users address troubleshooting and performance control efficiently.

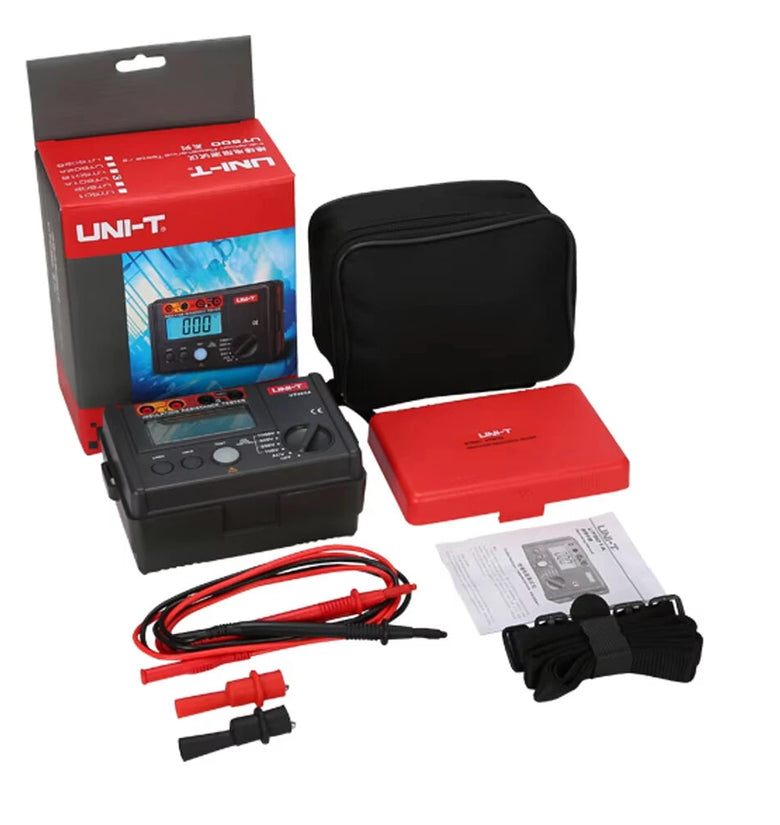

Package Included:
1 x Insulation Resistance Tester Kit
Note: Battery is not included.
