Specifications:

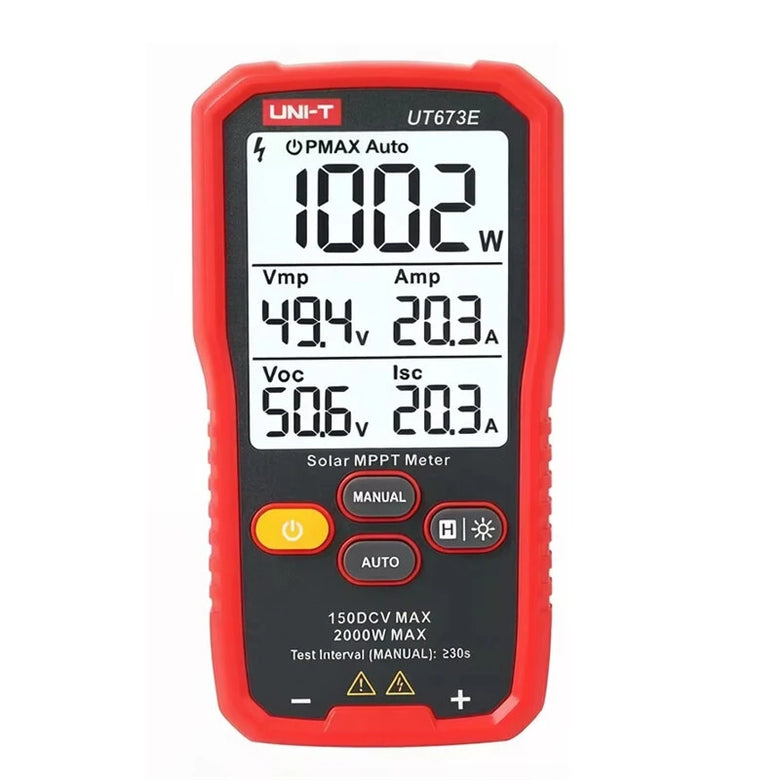

Model: UT673E
Product Type: Solar MPPT Power Meter
Maximum Power Measurement Range: 60-2000W
Pmax Resolution: 0.1W
Pmax Accuracy: ±(1.5%+5dgt)
Vmp Range: 12-150V
Vmp Resolution: 0.1V
Vmp Accuracy: ±(1.0%+5dgt)
Amp Range: 5-45A
Amp Resolution: 0.1A
Amp Accuracy: ±(1.0%+5dgt)
Voc Range: 12-150V
Voc Resolution: 0.1V
Voc Accuracy: ±(1.5%+5dgt)
Isc Range: 5-45A
Isc Resolution: 0.1A
Isc Accuracy: ±(1.5%+5dgt)
Functional Application: Maximumpower point, maximum voltage, and maximum current testing of solar panels
Benchmark Conditions: 23°C ±5°C, below 75% humidity
Maximum Power: Pmax 2000W
Power Resolution: 0.1W
Reverse Input Protection: Yes
Power Supply: AAA 1.5V x 3PCS
Backlight: Yes
Size: 142.5mm x 76mm x 32mm
Test Line: MC4dedicated test line, standard equipped with a dedicated MC4wrench tool
Weight: 230g
Battery Voltage Indication: Battery voltage is insufficient, showing low battery symbol
Automatic Shutdown: About 10 minutes
Data Retention: Yes
Temperature and Humidity: -10°C to 60°C, <80%RH
Features:
1. Supports maximum power measurement up to 2000W for photovoltaic panel testing.
2. Measures Vmp, Amp, Voc, and Isc with clear range, resolution, and accuracy data.

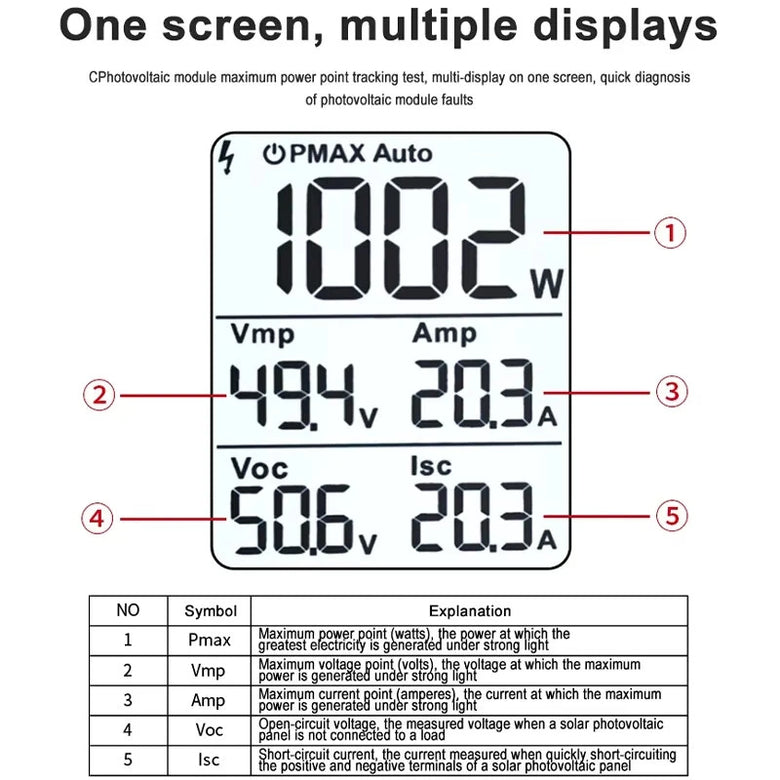

3. Large-screen LCD display provides clear reading of test results.

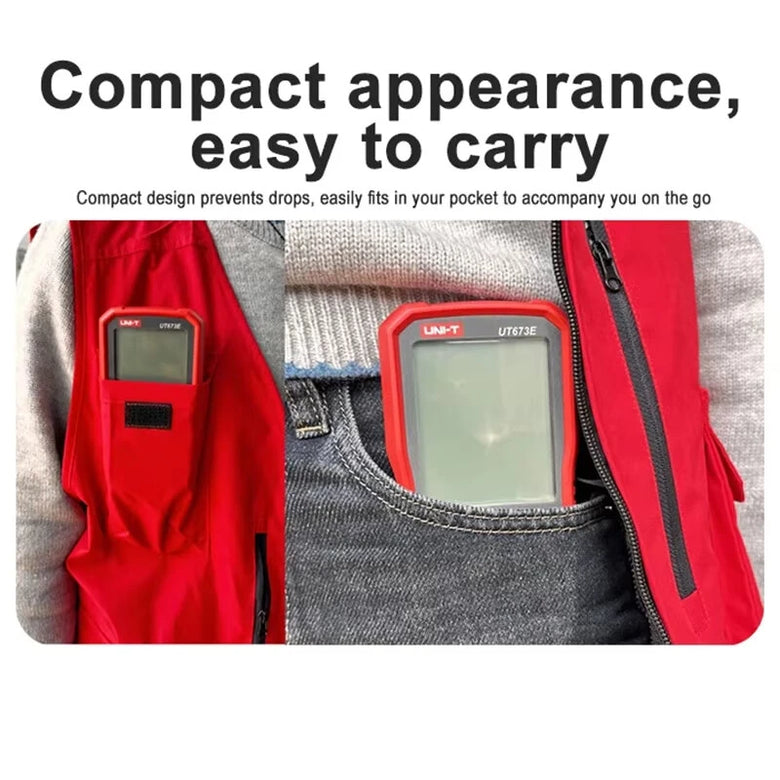

4. Compact appearance and portable size, easy to carry for on-site use.
5. Features reverse input protection, backlight, data retention, and about 10 minutes automatic shutdown.

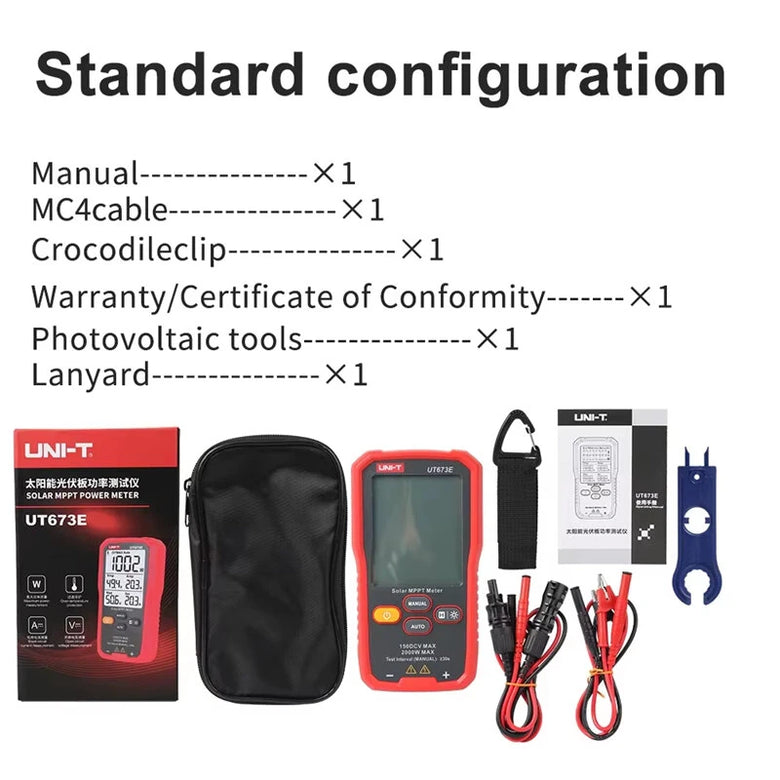

Package Included:
1 x Manual
1 x MC4Cable
1 x Crocodile Clip
1 x Photovoltaic Tools
