Specifications:

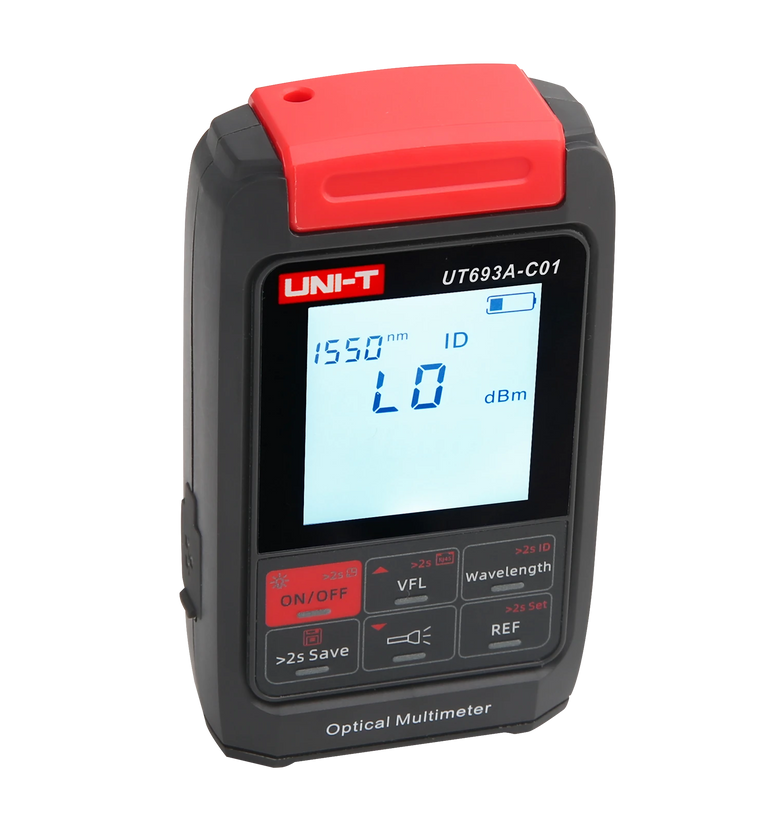

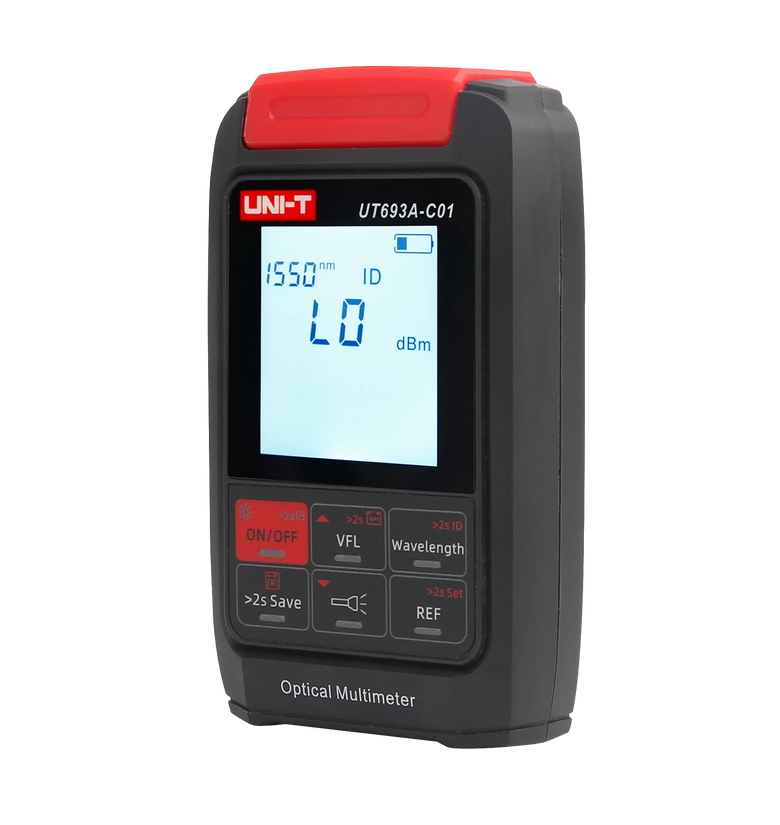

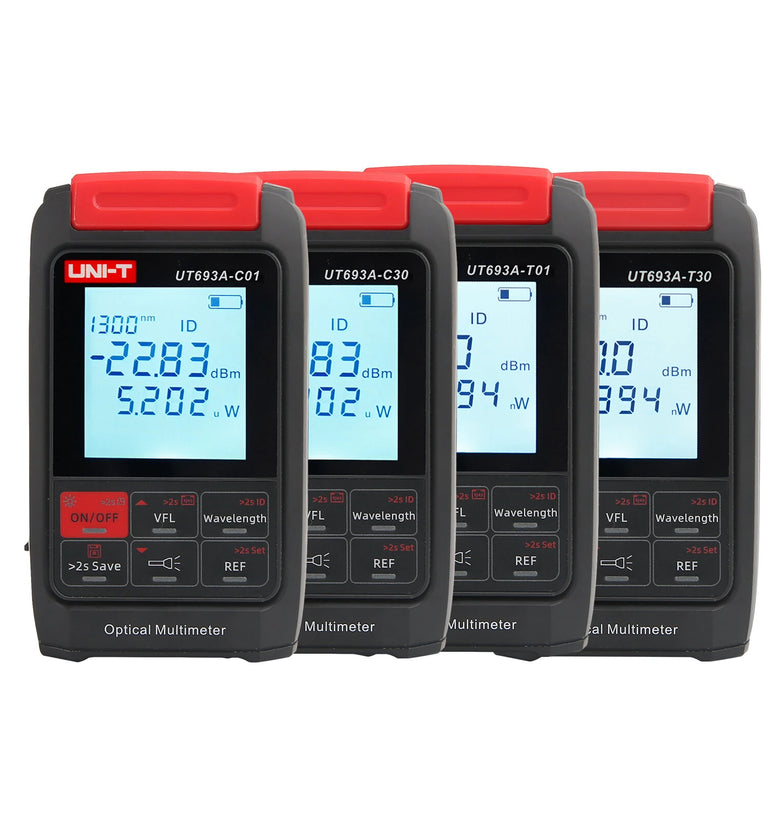

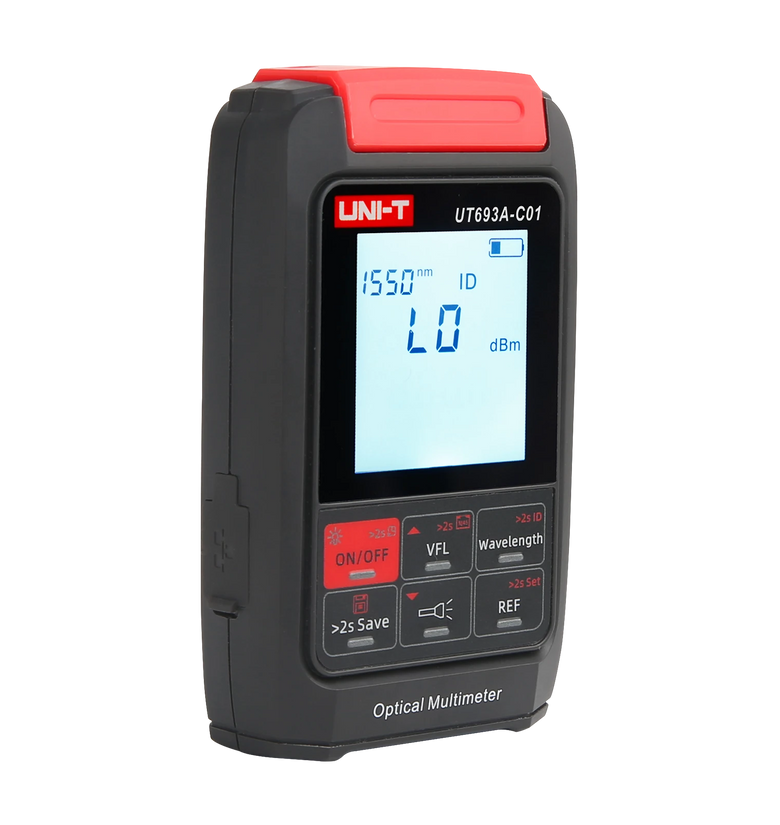

Model Types: UT693A-C01, UT693A-C30, UT693A-T01, UT693A-T30 (Optical )
Power Measurement Range:
UT693A-C01, C30: (-50~+30dBm)
UT693A-T01, T30: (-70~+10dBm)
Accuracy:
UT693A-C Series: ±0.4dB (1310nm/1490nm/1550nm/1625nm); ±1dB (850nm/980nm/1300nm/1270nm/1577nm/1650nm)
UT693A-T Series: ±0.2dB (1550nm); ±0.3dB (1310nm/1490nm/1625nm); ±1dB (850nm/1300nm/980nm/1270nm/1577nm/1650nm)
Calibration Wavelengths: 850nm/980nm/1270nm/1300nm/1310nm/1490nm/1550nm/1577nm/1625nm/1650nm
Connector Type: 2.5mm universal interface
Tester Type: InGaAs
Resolution: 0.01dBm
Light Signal Frequency Recognition: 270Hz/330Hz/1KHz/2KHz
Battery: 3.7V 450mAh lithium battery
Data Storage Capacity: 500 records
Charging Port: Type-C
Dimensions: 100mm x 59mm x 28mm
Weight: Approx 95g
Operating Conditions:
Temperature: -10°C to 50°C
Humidity: <90% RH
Storage Conditions:
Temperature: -20°C to 45°C
Humidity: 65 ± 20% RH

Features:
Wide Power Measurement Range: Supports both (-50~+30dBm) and (-70~+10dBm) models to meet diverse application scenarios, making it suitable for a broad spectrum of optical fiber measurement needs.
Multi-Wavelength Calibration: Compatible with ten calibration wavelengths (850nm to 1650nm), guaranteeing precise readings across the most common optical wavelengths in fiber optic networks.
Compact and Lightweight Design: With a portable form factor of 100mm x 59mm x 28mm and a weight of only 95g, it is ideal for on-site engineers and field installations.
Enhanced Connectivity: Features USB Type-C charging plus RJ45 network cable testing capabilities, delivering versatility for modern fiber optic and data network installations.
Efficient Data Management: Provides convenient storage for up to 500 records, simplifying troubleshooting processes and performance tracking during fiber optic maintenance.

Package Included:
1 x Multi-Functional Power Meter (Optical )
1 x Type-C Cable
1 x User Manual
