Specifications:

Model: UTi120S+

IR Resolution: 120x90

Super Resolution: 240x180

Pixel Pitch: 17μm

Frame Rate: ≤25Hz

NETD: <60mK

Lens Focal Length: 2.28mm

FOV (Field of View): 50°(H) x 38°(V)

IFOV (Spatial Resolution): 1.3mrad

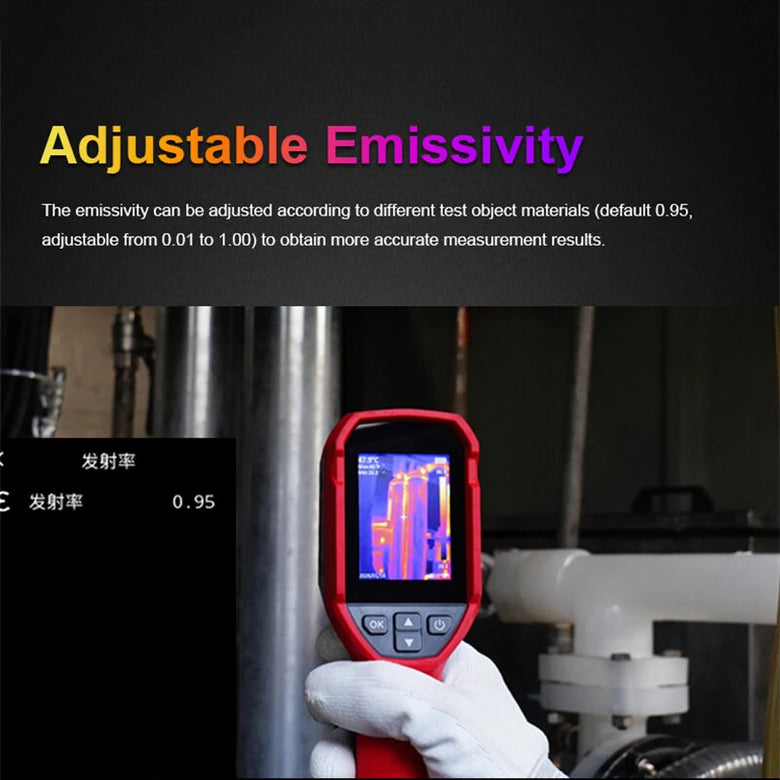

Emissivity: 0.95 (Default, adjustable 0.01~1.00)

Temperature Range: -20°C~550°C

Accuracy: ±2°C or ±2% (whichever is greater)

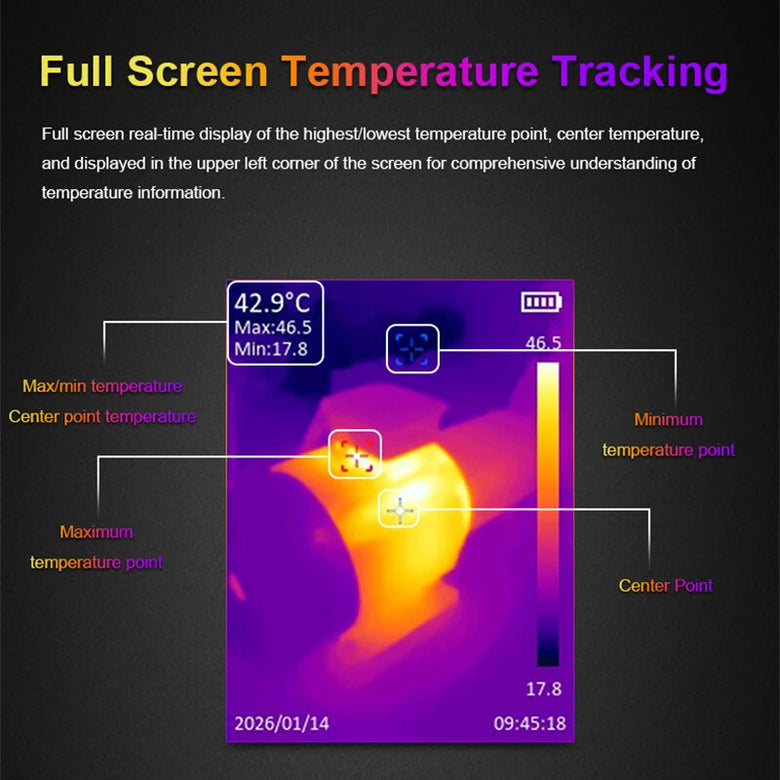

High/Low Temperature Tracking: Yes

High/Low Temperature Alarm: Image, light, buzzer

Color Palettes: Iron Oxide Red, Rainbow, White Hot, Black Hot, Red Hot, , High Contrast Rainbow

Image Mode: Thermal

Illuminator/Laser Pointer: Yes

PC Software: Thermal PC Pro

Features:

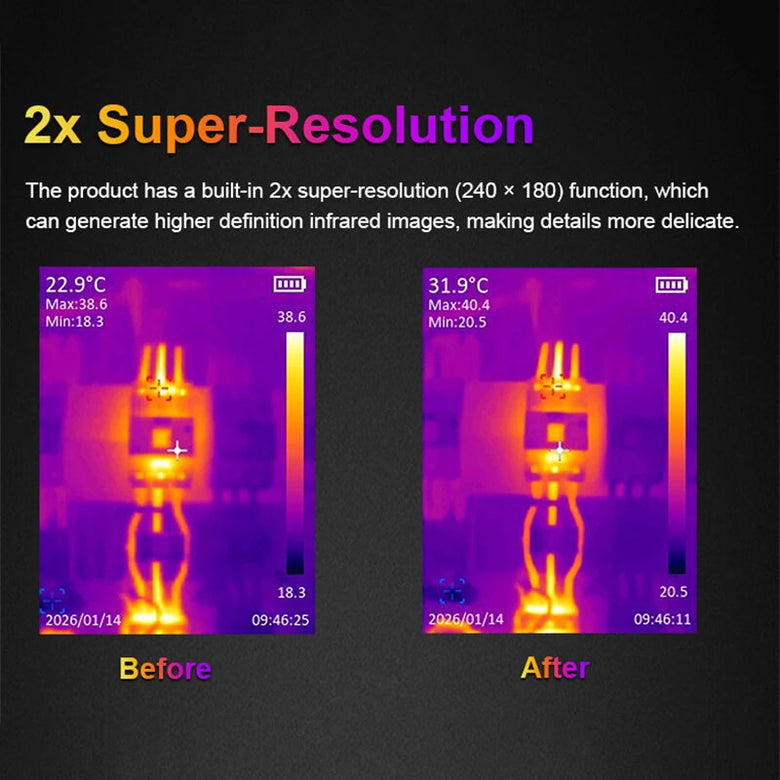

1. 2x Super-Resolution Imaging: The built-in super-resolution function enhances the standard 120x90 image to a sharper 240x180. This generates higher definition infrared images, revealing more intricate details for superior visual analysis.

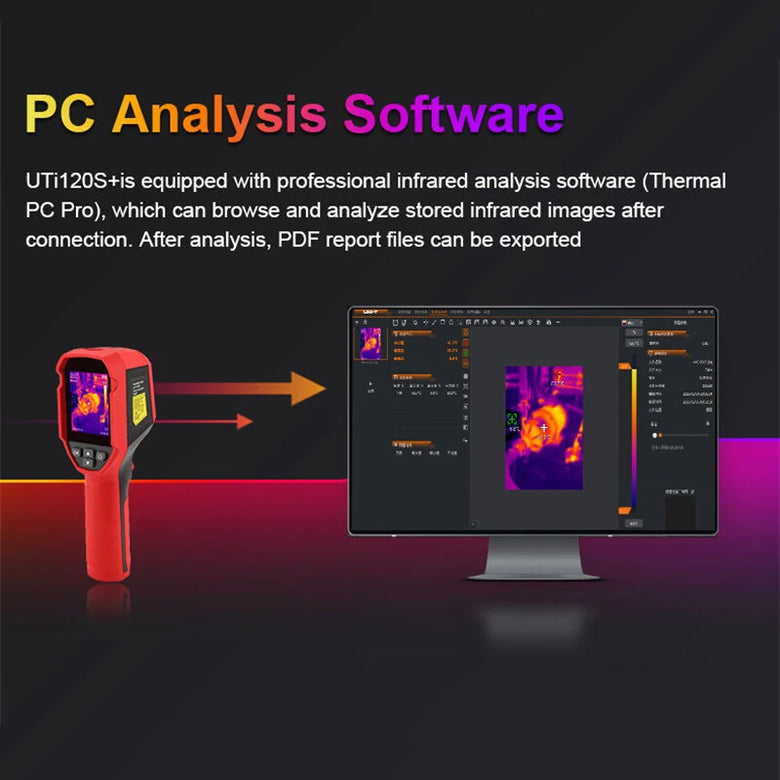

2. Professional PC Analysis Software: Comes equipped with Thermal PC Pro software. Connect the device to your PC to browse, analyze, and process stored infrared images, and export comprehensive PDF reports for professional documentation.

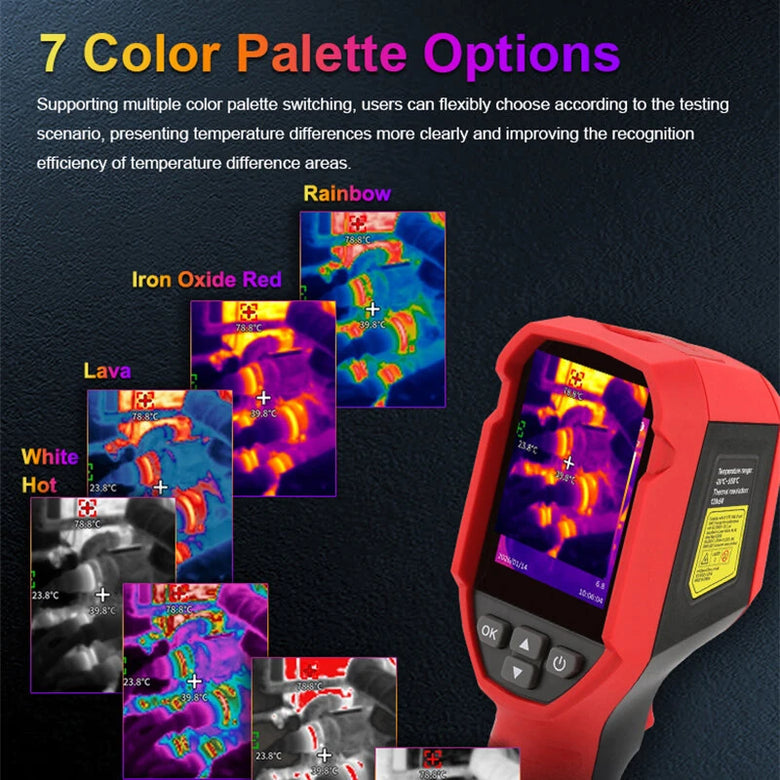

3. 7 Versatile Color Palettes: Choose from 7 color palettes, including Rainbow, , and Iron Oxide Red. This flexibility allows you to select the optimal view for any scenario, improving the clarity of temperature differentials.

4. Wide Measurement Range: Offers a broad temperature measurement range from -20°C to 550°C. This makes it a highly capable tool for various applications, from home inspections to electrical equipment maintenance.
